Key Features ✔ PROFINET IO Controller (Conformance Class B) ✔ Dual-port switch for line topology (100 Mbps Fast Ethernet) ✔ Real-time communication (PROFINET IRT supported) ✔ Cybersecurity features (IEC 62443 compliant) ✔ Hot-swappable design (in redundant configurations) ✔ Advanced diagnostics with LED status indicators ✔ Industrial ruggedness (-25°C to +60°C operation) Technical Specifications Parameter Specification Manufacturer P/N 3BSE092693R1 Interface Type PROFINET IO Controller Ports 2 x RJ45 (100BASE-TX) Protocols PROFINET IO, TCP/IP, UDP, ICMP Real-time Class IRT (Isochronous Real-Time) Cycle Time ≤1ms (configurable) Power Supply 24V DC via backplane Certifications CE, UL, ATEX (optional) Typical Applications Factory Automation (automotive production lines) Process Industries (batch control systems) Packaging Machinery (high-speed equipment) Material Handling (conveyor systems) Energy Systems (power distribution control)

879

ABB

Key Features ✔ Dual-CPU Redundancy 1:1 hot standby configuration Automatic switchover (<100ms) 99.999% availability for critical processes ✔ Powerful Processing Capability 800 MHz PowerPC processor 512 MB RAM for complex control strategies Supports 250,000 I/O points (system-wide) ✔ Industrial Communication Dual Ethernet ports (10/100 Mbps) Supports PROFIBUS DP, Modbus TCP, OPC UA Optional PROFINET, FF HSE communication ✔ Robust Industrial Design Operating temperature: -40°C to +70°C Vibration and shock resistant IP20 protection (higher protection optional) ✔ Cybersecurity IEC 62443 compliant Role-based access control Secure firmware updates Technical Specifications Parameter Specification Processor 800 MHz PowerPC Memory 512 MB RAM / 128 MB Flash Redundancy 1:1 hot standby I/O Capacity Up to 250,000 points Communication Ethernet, PROFIBUS DP, Modbus TCP Power Supply 24V DC (redundant) Certifications CE, UL, ATEX (optional) Typical Applications Oil & Gas (refineries, pipelines) Power Generation (turbine control) Chemical Processing (batch reactors) Pharmaceutical (GMP manufacturing) Water Treatment (SCADA systems)

925

ABB

Key Features & Benefits ✔ PROFIBUS DP-V1 Master Functionality Full compliance with IEC 61158/61784 standards Supports both cyclic and acyclic data exchange ✔ High-Performance Communication Auto-negotiating baud rates from 9.6 kbps to 12 Mbps Optimized for real-time control applications ✔ Industrial Reliability Operating temperature range: -25°C to +60°C 500V galvanic isolation for noise immunity Hot-swappable design (in redundant configurations) ✔ Advanced Diagnostics Comprehensive LED indicators for: Power status Communication activity Error conditions ✔ Seamless Integration Native compatibility with AC 800M controllers (PM851, PM861, etc.) Direct integration with System 800xA DCS Technical Specifications Parameter Specification Manufacturer P/N 3BSE069449R1 Interface Standard PROFIBUS DP-V1 Connector Type 9-pin D-sub male (RS-485) Data Transfer Rate 9.6 kbps - 12 Mbps Isolation 500V galvanic Power Supply 24V DC via backplane Certifications CE, UL, ATEX (optional) Typical Applications Process Automation (Oil & gas refineries, chemical plants) Manufacturing Systems (Automotive production, packaging lines) Power Generation (Turbine control, substation automation) Water Treatment (Pump station control, SCADA systems)

540

ABB

Key Features ✔ 8 Isolated Analog Outputs Configurable as 4-20mA, 0-20mA, or ±10V 16-bit resolution for high-precision control ✔ Advanced Functionality Channel-by-channel configuration Short-circuit protection on all outputs Open-wire detection (current mode) ✔ Industrial Reliability Operating temperature: -25°C to +60°C 500V galvanic isolation (channel-to-channel and system) Hot-swappable in compatible systems ✔ Diagnostic Capabilities Per-channel LED status indicators Comprehensive fault reporting Technical Specifications Parameter Specification Manufacturer P/N 3BSE052605R1 Output Type Current/Voltage (software configurable) Current Output 4-20mA / 0-20mA (±0.1% accuracy) Voltage Output ±10V (±0.1% accuracy) Resolution 16-bit Update Rate ≤1ms per channel Load Impedance ≤500Ω (current), ≥1kΩ (voltage) Power Supply 24V DC via backplane Certifications CE, UL, ATEX (optional) Typical Applications Process Control Valves (position control) Variable Speed Drives (speed reference) Analog Actuators Test & Measurement Systems Batch Process Control

757

ABB

Key Features ✔ Versatile Input Configuration Supports 4-20mA, 0-20mA, ±10V, and thermocouple/mV inputs (software configurable) 16-bit resolution (0.01% accuracy) for precise measurement ✔ Advanced Signal Processing Built-in digital filtering for noise reduction Open-wire detection (for current inputs) Over-range protection (up to ±30V) ✔ Industrial Reliability 500V galvanic isolation (channel-to-channel and system) Operating temperature: -25°C to +60°C Hot-swappable in compatible systems ✔ Comprehensive Diagnostics Per-channel LED status indicators Detailed fault reporting via control system Technical Specifications Parameter Specification Manufacturer P/N 3BSE052604R1 Input Type Current/Voltage/Thermocouple Current Input 4-20mA/0-20mA (±0.05% accuracy) Voltage Input ±10V/±100mV (±0.05% accuracy) Resolution 16-bit Sampling Rate ≤1ms per channel Input Impedance 250Ω (current), >1MΩ (voltage) Common Mode Rejection >120dB Power Supply 24V DC via backplane Certifications CE, UL, ATEX (optional) Typical Applications Process Variable Monitoring (pressure, temperature, flow) Equipment Condition Monitoring Quality Control Systems Energy Management Systems Laboratory InstrumentationSystem Integration Compatible With: ABB AC 800M controllers System 800xA DCS S800 I/O base units

808

ABB

Key Features ✔ PROFIBUS DP-V1 Master Functionality Full compliance with IEC 61158 Type 3 standard Supports cyclic and acyclic data communication Up to 244 bytes input/output data per slave ✔ High-Performance Communication Auto-negotiating baud rates from 9.6 kbps to 12 Mbps <1ms cycle time for fast response applications ✔ Industrial Reliability Operating temperature: -25°C to +60°C 500V galvanic isolation for noise immunity Hot-swappable in redundant configurations ✔ Advanced Diagnostics Dual-color LED indicators for: Power status Bus activity Error conditions Comprehensive diagnostic data via controller Technical Specifications Parameter Specification Manufacturer P/N 3BSE030220R1 Interface Type PROFIBUS DP-V1 Connector 9-pin D-sub male (RS-485) Protocol Support DP-V0/V1 Max. Stations 125 slaves Power Supply 24V DC via backplane Isolation 500V galvanic Certifications CE, UL, ATEX (optional) Typical Applications Process Automation (oil & gas, chemical plants) Manufacturing Systems (automotive production) Power Generation (turbine control) Material Handling (conveyor systems) Water Treatment (pump station control) System Integration Compatible Controllers: ABB AC 800M (PM856, PM866, etc.) System 800xA DCS Field Device Connectivity: PROFIBUS DP slaves (Siemens, ABB, etc.) Remote I/O stations Motor drives and actuators

963

ABB

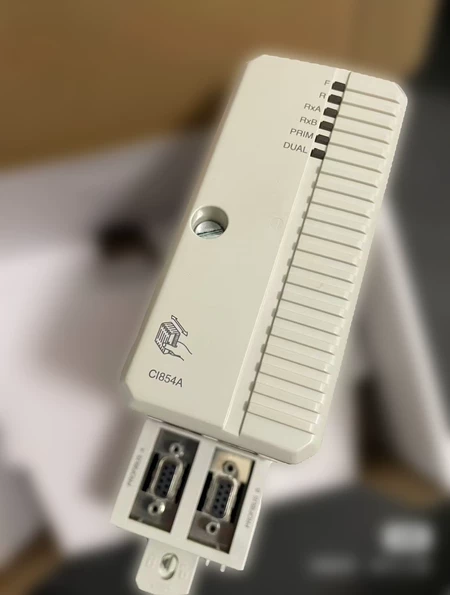

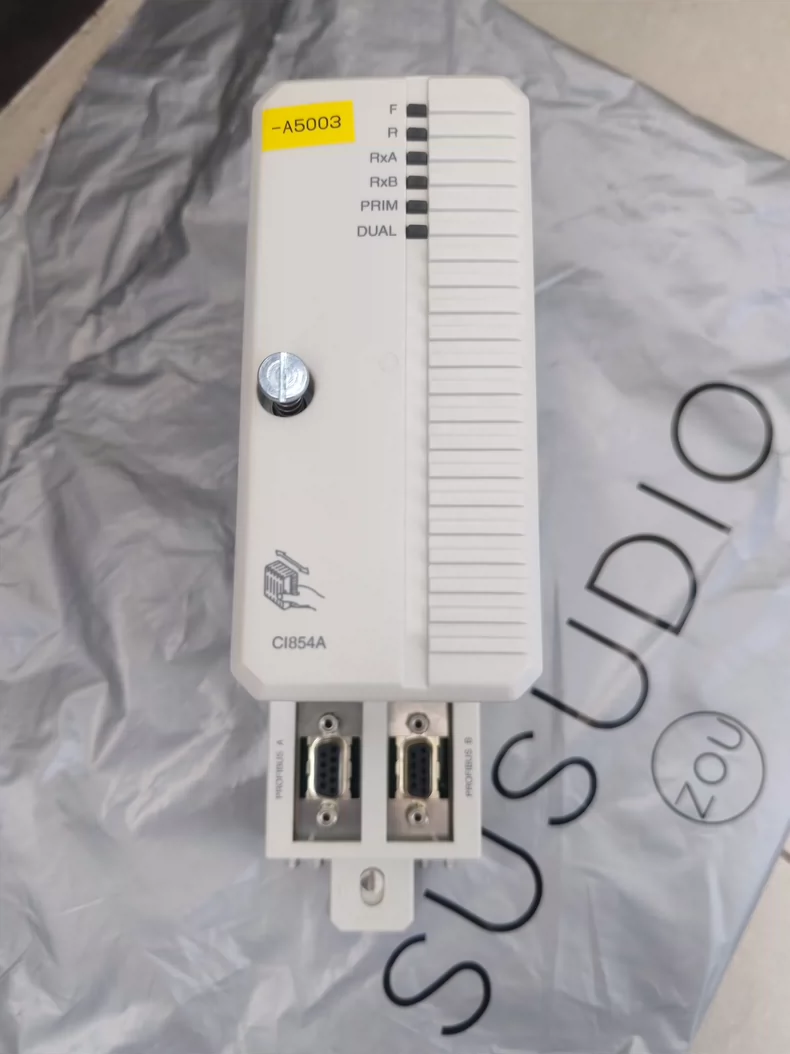

Key Features ✔ PROFIBUS DP-V1 Master Functionality Full compliance with IEC 61158/61784 standards Supports cyclic and acyclic data exchange Automatic baud rate detection (9.6kbps to 12Mbps) ✔ Industrial Reliability Operating temperature range: -25°C to +60°C 500V galvanic isolation for noise immunity Hot-swappable in redundant configurations ✔ Advanced Diagnostics LED indicators for power, status and communication Comprehensive diagnostic capabilities Supports PROFIBUS DP-V1 extended diagnostics ✔ Flexible Integration Native compatibility with AC 800M controllers Direct integration with System 800xA DCS Supports up to 125 PROFIBUS DP slaves Technical Specifications Parameter Specification Interface Type PROFIBUS DP-V1 (RS-485) Connector 9-pin D-sub male Communication Speed 9.6kbps - 12Mbps (auto-detect) Power Supply 24V DC via backplane Isolation 500V galvanic Protection Class IP20 Certifications CE, UL Typical Applications Process automation systems Manufacturing execution systems Power generation control Water treatment plants Material handling systems

440

ABB

Key Features ✔ PROFIBUS DP-V1 Master Functionality Full compliance with IEC 61158/61784 standards Supports both cyclic and acyclic data communication Automatic baud rate detection (9.6kbps to 12Mbps) ✔ Industrial-Grade Reliability Operating temperature: -25°C to +60°C 500V galvanic isolation for noise immunity Hot-swappable design (in redundant configurations) ✔ Advanced Diagnostics LED status indicators for power, communication and errors Comprehensive diagnostic capabilities Supports PROFIBUS DP-V1 extended diagnostics ✔ Seamless Integration Native compatibility with AC 800M controllers Direct integration with System 800xA DCS Supports up to 125 PROFIBUS DP slaves Technical Specifications Parameter Specification Interface Type PROFIBUS DP-V1 (RS-485) Connector 9-pin D-sub male Communication Speed 9.6kbps - 12Mbps (auto-detect) Power Supply 24V DC via backplane Isolation 500V galvanic Protection Class IP20 Certifications CE, UL, ATEX (optional) Typical Applications Process automation in oil & gas refineries Manufacturing execution systems Power plant control systems Water and wastewater treatment Material handling automation

86

ABB

Key Features ✔ PROFIBUS DP-V1 Master Functionality Full compliance with IEC 61158 Type 3 standard Supports cyclic and acyclic data communication Up to 244 bytes input/output data per slave ✔ High-Performance Communication Auto-negotiating baud rates from 9.6 kbps to 12 Mbps <1ms cycle time for fast response applications ✔ Industrial Reliability Operating temperature: -25°C to +60°C 500V galvanic isolation for noise immunity Hot-swappable in redundant configurations ✔ Advanced Diagnostics Dual-color LED indicators for: Power status Bus activity Error conditions Comprehensive diagnostic data via controller Technical Specifications Parameter Specification Manufacturer P/N 3BSE030220R1 Interface Type PROFIBUS DP-V1 Connector 9-pin D-sub male (RS-485) Protocol Support DP-V0/V1 Max. Stations 125 slaves Power Supply 24V DC via backplane Isolation 500V galvanic Certifications CE, UL, ATEX (optional) Typical Applications Process Automation (oil & gas, chemical plants) Manufacturing Systems (automotive production) Power Generation (turbine control) Material Handling (conveyor systems) Water Treatment (pump station control) System Integration Compatible Controllers: ABB AC 800M (PM856, PM866, etc.) System 800xA DCS Field Device Connectivity: PROFIBUS DP slaves (Siemens, ABB, etc.) Remote I/O stations Motor drives and actuators

266

ABB

Key Features ✔ Enhanced PROFIBUS DP-V1 Functionality Full compliance with IEC 61158/61784 standards Supports both cyclic and acyclic data exchange Extended diagnostics for comprehensive network monitoring ✔ High-Speed Industrial Communication Auto-negotiating baud rates from 9.6 kbps to 12 Mbps <1ms cycle time for time-critical applications Supports up to 244 bytes of I/O data per slave device ✔ Industrial-Strength Reliability Operating temperature range: -25°C to +60°C 500V galvanic isolation for superior noise immunity Hot-swappable design for maintenance without downtime ✔ Advanced Diagnostic Capabilities Multi-color LED indicators for: Power status Network activity Fault conditions Detailed diagnostic data accessible via controller Technical Specifications Parameter Specification Manufacturer P/N 3BSE018135R1 Interface Standard PROFIBUS DP-V1 Connector Type 9-pin D-sub (RS-485) Max. Node Count 125 slaves Power Supply 24V DC via backplane Isolation 500V galvanic Certifications CE, UL, ATEX (optional) Typical Applications Process Industries (oil refineries, chemical plants) Power Generation (turbine control systems) Manufacturing Automation (production lines) Infrastructure Systems (water treatment plants) Material Handling (conveyor belt systems) System Integration Controller Compatibility: ABB AC 800M series (PM856, PM866, etc.) System 800xA DCS Field Device Support: All standard PROFIBUS DP slaves Remote I/O stations Motor drives and actuators Measurement devices Configuration Tools: ABB Control Builder Professional Standard GSD/GSDML files for device integration

112

ABB

Key Features ✔ High-Performance Analog Outputs 8 isolated channels (channel-to-channel and system isolation) Configurable as 4-20mA, 0-20mA, or ±10V outputs 16-bit resolution for precise control ✔ Advanced Functionality Individual channel configuration Short-circuit protection on all current outputs Open-circuit detection (for current outputs) Overload protection (for voltage outputs) ✔ Industrial Reliability Operating temperature: -25°C to +60°C 500V galvanic isolation Hot-swappable in compatible systems ✔ Comprehensive Diagnostics Per-channel LED status indicators Detailed fault reporting via control system Technical Specifications Parameter Specification Manufacturer P/N 3BSE045584R1 Output Type Current/Voltage (software configurable) Current Output 4-20mA / 0-20mA (±0.1% accuracy) Voltage Output ±10V (±0.1% accuracy) Resolution 16-bit Update Rate ≤1ms per channel Load Impedance ≤500Ω (current), ≥1kΩ (voltage) Power Supply 24V DC via backplane Certifications CE, UL, ATEX (optional) Typical Applications Process Control Valves (position control) Variable Speed Drives (speed reference) Analog Actuators Test & Measurement Systems Batch Process Control System Integration Compatible With: ABB AC 800M controllers System 800xA DCS S800 I/O base units Configuration: Programmed via ABB Control Builder Supports Foundation Fieldbus or PROFIBUS PA networks

110

ABB

Key Features ✔ PROFIBUS DP-V1 Master Functionality Full compliance with IEC 61158/61784 standards Supports both cyclic and acyclic communication Automatic baud rate detection (9.6kbps to 12Mbps) ✔ Industrial-Grade Reliability Operating temperature: -25°C to +60°C 500V galvanic isolation for noise immunity Hot-swappable in redundant configurations ✔ Advanced Diagnostics LED indicators for power, status and communication Comprehensive diagnostic capabilities Supports PROFIBUS DP-V1 extended diagnostics ✔ Seamless Integration Native compatibility with AC 800M controllers Direct integration with System 800xA DCS Supports up to 125 PROFIBUS DP slaves Technical Specifications Parameter Specification Interface Type PROFIBUS DP-V1 (RS-485) Connector 9-pin D-sub male Communication Speed 9.6kbps - 12Mbps (auto-detect) Power Supply 24V DC via backplane Isolation 500V galvanic Protection Class IP20 Certifications CE, UL, ATEX (optional) Typical Applications Process automation systems Manufacturing execution systems Power plant control Water treatment plants Material handling systems

606
