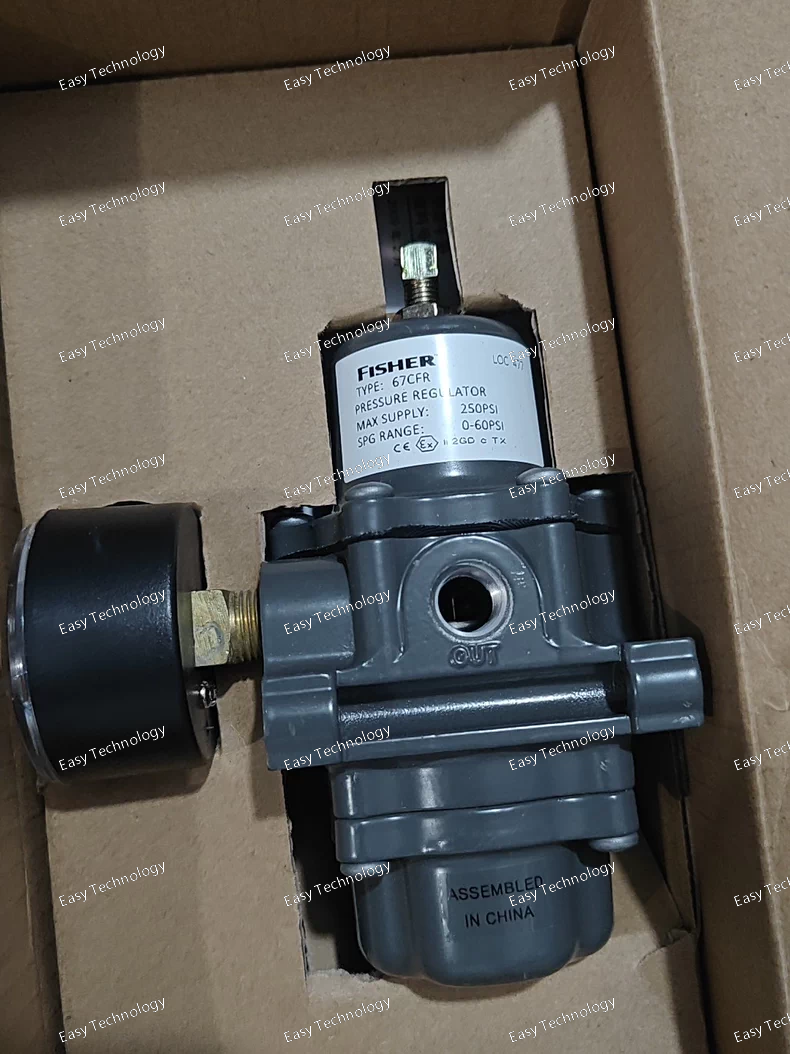

Technical Parameters Category Parameter Specification / Description General Model Series 67CFR Type Digital Pressure Reducing Regulator Product Family FIELDVUE Primary Protocol HART Input & Control Input Signal 4 to 20 mA DC, two-wire Supply Pressure (Max) 400 psig (27.6 bar) Setpoint Range (P2) Wide range, defined by the model suffix. Common ranges from 3-60 psig to 3-115 psig (0.2-4.1 bar to 0.2-7.9 bar). Performance Output Pressure Range 0 to 100 psig (0 to 6.9 bar) Accuracy ±0.5% of span (typical) Supply Pressure Effect ±0.2 psig for a 50 psig (3.4 bar) supply change Flow Capacity (Cv) Defined by the specific model configuration. Environmental Ambient Temperature -40°F to 175°F (-40°C to 80°C) Enclosure Rating Type 4X, 6 (IP66/67); Dust-tight and protected against water jets/immersion. Hazardous Area Certifications FM/CSA & ATEX/IECEx: Explosion-proof & Intrinsically Safe for use in hazardous areas. Physical Body Material Aluminum Pneumatic Connections 1/2" NPT (Supply & Output)

Technical Parameters Category Parameter Specification / Description General Model Series 657 Type Pilot-Operated Pressure Reducing Regulator Pressure & Temperature Body Rating (ANSI) ANSI Class 150, 300, 400, 600, 900 Max. Inlet Pressure (P1) Up to 1440 psig (99 bar) for certain classes. Outlet Pressure Range (P2) Wide range, adjustable via the pilot spring. Common ranges from 5 to 500 psig (0.3 to 34 bar) or higher. Flow & Sizing Flow Capacity (Cv) Very High. Ranges from ~30 to over 1000+, depending on the valve size (e.g., 1", 2", 3", 4", 6", 8"). End Connections Flanged (RF, RTJ) according to ANSI standards. Materials & Construction Body Materials Carbon Steel (Standard), Stainless Steel, Other Alloys. Trim Materials Stainless Steel. Pilot Valve 657 Pilot (Reducing Pilot) - senses downstream pressure. Options Common Pilot Options • Monitor Pilot: For overpressure protection. • SLM (Slow Opening) Pilot: For safe start-up.

Technical Parameters Category Parameter Specification / Description General Model 95H-109 Type Piston Actuator Series 95H Performance Action The "109" code commonly specifies a Spring-Return (Single-Acting) design, providing a fail-safe mode. Piston Diameter The "H" in 95H and the "109" code indicate a specific, large piston diameter capable of generating high thrust. Stroke Length Defined by the "109" code. This is a specific linear travel distance (e.g., 2 inches, 4 inches). Supply Pressure Typically up to 120 psig (8.3 bar). Thrust Output Very High. Exact thrust (in lbs or kN) depends on supply pressure and piston size, but this model is designed for demanding applications. Spring (if applicable) Spring Range For spring-return models, the "109" defines a specific spring that determines the fail-safe action and the air pressure required to compress it. Construction & Environment Body Material Cast Iron or Ductile Iron. Piston Rod Material Stainless Steel. Temperature Range Standard: -20°F to 150°F (-29°C to 66°C).

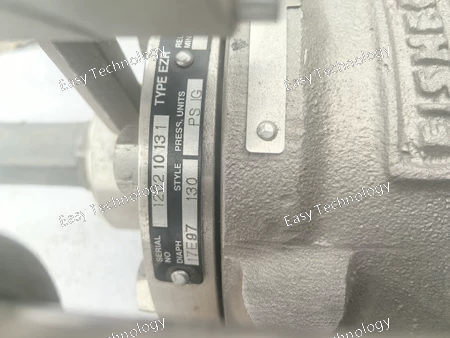

Technical Parameters Category Parameter Specification / Description General Model Series EZR Type Rotary Control Valve Shaft Motion Rotary Pressure & Temperature Pressure Rating (ANSI) ANSI Class 150, 300, 600 Max. Allowable Pressure Up to 1480 psig (102 bar) for Class 600. Temperature Range Standard: -50°F to 800°F (-46°C to 427°C). Depends on seat and seal materials. Flow & Sizing Valve Sizes Depends on the attached rotary valve (e.g., 3" to 48" / DN80 to DN1200). Flow Capacity (Cv) Extremely High. Determined by the specific ball, butterfly, or plug valve it is coupled with. Can range from hundreds to tens of thousands. End Connections Flanged (RF, RTJ), Wafer, Lugged (for butterfly valves). Actuator & Performance Mounting Designed to be paired with Fisher SC Series scotch-yoke piston actuators or other rotary actuators. Torque Output Provided by the actuator. The EZR system is designed to transmit high torque efficiently. Characterization Achieved through the characterized cam in the actuator positioner, providing linear or equal percentage flow characteristics.

Technical Parameters Category Parameter Specification / Description General Model 1301G Type Direct-Operated Pressure Reducing Regulator Pressure Ratings Maximum Inlet Pressure (P1) 5 psig (0.34 bar) or 0.5 psig (0.034 bar) depending on specific configuration. Outlet Pressure Range (P2) Adjustable: Typically a low pressure, commonly around 7" to 14" WC (1.7 to 3.5 kPa). Specific range is defined by the internal spring. Pressure Rating 125 psig (8.6 bar) Body Rating. Flow & Capacity Flow Capacity (Cv) Low, designed for appliance flow rates. End Connections 1/2" NPT (Internal Pipe Thread) - This is the standard and most common connection. Materials & Environment Body Material Aluminum Internal Parts Stainless Steel, Brass Diaphragm Material Neoprene, fabric reinforced. Ambient Temperature Standard: -20°F to 150°F (-29°C to 66°C)

Technical Parameters Category Parameter Specification / Description General Model 1301F-3 Type Direct-Operated Pressure Reducing Regulator Pressure Ratings Maximum Inlet Pressure (P1) 5 psig (0.34 bar) Outlet Pressure Range (P2) Defined by the "-3" spring. This typically indicates a specific, low outlet pressure range, commonly around 3" to 14" WC (0.75 to 3.5 kPa). The exact range must be confirmed from Fisher's spring rate tables. Pressure Rating 125 psig (8.6 bar) Body Rating. Flow & Capacity Flow Capacity (Cv) Very Low (approx. 0.02 to 0.04), designed for small burners and pilots. End Connections Typically 1/2" NPT (Internal Pipe Thread). The "-3" may specify this size. Materials & Environment Body Material Aluminum Internal Parts Stainless Steel, Brass Diaphragm Material Neoprene, fabric reinforced. Ambient Temperature Standard: -20°F to 150°F (-29°C to 66°C)

Technical Parameters Category Parameter Specification / Description General Model Series 1301 Type Direct-Operated Pressure Reducing Regulator Pressure Ratings Maximum Inlet Pressure (P1) 5 psig (0.34 bar) for most models. Outlet Pressure Range (P2) Adjustable: Typically low pressures, from 3" w.c. to 14" w.c. (0.75 kPa to 3.5 kPa) or slightly higher, depending on the specific spring. Pressure Rating 125 psig (8.6 bar) Body Rating. Flow & Capacity Flow Capacity (Cv) Very Low, typically around 0.02 to 0.04, designed for small flows. End Connections 1/4" NPT or 1/2" NPT (Internal Pipe Thread) - Specified by the model suffix. Materials & Environment Body Material Aluminum Internal Parts Stainless Steel, Brass Diaphragm Material Elastomer (e.g., Neoprene) Seat Material Elastomer (e.g., Buna-N) for tight shut-off. Ambient Temperature Standard: -20°F to 150°F (-29°C to 66°C)

Technical Parameters Category Parameter Specification / Description General Model 6392 Type Electro-Pneumatic Transducer (I/P) Input & Output Input Signal 4 to 20 mA DC, two-wire Output Signal 3 to 15 psig (0.2 to 1.0 bar) Supply Pressure 20 psig (1.4 bar) minimum, 20-35 psig (1.4-2.4 bar) typical. Must be at least 3-5 psi above desired output. Performance Accuracy ±0.5% of span Linearity & Hysteresis ±0.5% of span (combined) Air Consumption Steady State: ~0.15 SCFM (4.2 NLPM) Load Capacity Can drive light loads directly. For high-volume devices (like large actuators), a booster relay may be required. Environmental Ambient Temperature -40°F to 175°F (-40°C to 80°C) Enclosure Rating Type 4X, 7, 9 (NEMA 4X, 7, 9); Weatherproof, dust-tight, and certified for hazardous locations. Hazardous Area Certifications FM/CSA: Intrinsically Safe and Explosion-proof approvals. Physical Housing Material Aluminum Pneumatic Connections 1/4" NPT Conduit Opening 1/2" NPT

Technical Parameters Category Parameter Specification / Description General Model 63EG Type Electro-Pneumatic Positioner Input & Output Input Signal 4 to 20 mA DC or 10 to 50 mA DC (selectable) Supply Pressure Up to 100 psig (6.9 bar) Output Pressure Can approach supply pressure. Performance Linearity ±1% of span Hysteresis Less than 0.4% of span Gain High. Designed for fast-response control loops. Air Consumption Steady State: ~0.15 SCFM (4.2 NLPM) During Stroking: ~2.0 SCFM (56.6 NLPM) Environmental Ambient Temperature -40°F to 175°F (-40°C to 80°C) Enclosure Rating Type 4X, 7, 9 (NEMA 4X, 7, 9); Weatherproof, dust-tight, and certified for hazardous locations. Hazardous Area Certifications FM/CSA: Explosion-proof (Class I, Div. 1 & 2; Class II & III). Physical Housing Material Cast Aluminum Pneumatic Connections 1/4" NPT Conduit Opening 1/2" NPT Weight Approximately 12 lbs (5.4 kg)

Technical Parameters General Model: Fisher CVX Valve Positioner Type: Microprocessor-Based, Electro-Pneumatic Positioner Technology: Non-contact, using a Hall Effect sensor for position feedback. Communication: Analog 4-20 mA; HART® communication protocol (on HART-enabled models). Input Signal Standard Analog Input: 4 to 20 mA DC, two-wire connection. Input Impedance: 8 ohms (at 20 mA, including HART communication). Pneumatic Performance Supply Pressure Range: 1.4 to 7.0 bar (20 to 100 psig) Output Pressure Range: 0 to 100% of supply pressure. Air Consumption (Static): Very low, typically less than 0.024 Nm³/hr (0.015 SCFM). Air Flow Capacity: Up to 1.8 Nm³/hr (1.1 SCFM) for standard models; High-flow versions are available for faster actuators. Control & Performance Linearity: ±0.5% of span (with characterized feedback) Hysteresis: Less than 0.3% of span. Calibration: Fully automatic, one-touch calibration procedure. Environmental Ambient Temperature Range: Standard: -25° to 80°C (-13° to 176°F) Extended: -40° to 80°C (-40° to 176°F) Relative Humidity: 0 to 100% condensing. Enclosure Rating: NEMA 4X / Type 4X / IP66 (Weatherproof, Dust-tight, and Hose-proof). Electrical Loop Power: Powered directly from the 4-20 mA signal loop (Two-wire device). Hazardous Area Approvals: Available as Intrinsically Safe (FM, FMC, CSA) and Flameproof (Explosion-proof). Physical & Mounting Mounting: Directly mounts to Fisher rotary actuators (e.g., 1052, 1066 styles) and many linear actuators. Adaptable to other valve brands using universal mounting kits. Housing Material: Lightweight, corrosion-resistant aluminum. Weight: Approximately 1.6 kg (3.5 lbs). Options & Variants CVX500: Standard model. CVX HART: Includes HART protocol for digital configuration and diagnostics using a hand-held communicator. Feedback Characterizations: Available in linear and various characterized (e.g., quick-opening) curves to match the valve's flow characteristic.

Technical Parameters General Model: FIELDVUE DPC2K Digital Pressure Controller Type: Loop-Powered I/P, I/P with Boost Transducer Microprocessor: Integrated for digital control and communication. Input Signal Standard Analog Input: 4 to 20 mA DC Input Impedance: Typically 10 ohms at 20 mA Output Pressure Standard Ranges: 3 to 15 psig (0.2 to 1.0 bar) 3 to 27 psig (0.2 to 1.9 bar) 6 to 30 psig (0.4 to 2.1 bar) Maximum Supply Pressure: 150 psig (10.3 bar) Performance Accuracy: Typically better than ±0.5% of span. Linearity: Typically better than ±0.5% of span. Hysteresis: Typically less than 0.2% of span. Repeatability: Typically better than 0.2% of span. Sensitivity: Typically less than 0.1% of span. Air Consumption (Static): Typically less than 0.05 SCFM (0.08 Nm³/hr) at zero output flow. Air Supply Required Air Supply: Clean, dry, instrument-quality air, non-lubricated or lubricated. If lubricated, a lubricator must be maintained. Supply Pressure Range: Must be at least 5 psig (0.35 bar) above the required output pressure, up to the maximum of 150 psig (10.3 bar). Environmental Ambient Temperature Range: Operating: -40° to 185°F (-40° to 85°C) Storage: -60° to 185°F (-51° to 85°C) Relative Humidity: 0 to 100% (condensing). Enclosure Rating: NEMA Type 4X (Weatherproof and Corrosion-Resistant) when properly installed. Electrical Loop Power: Powered directly from the 4-20 mA signal loop. No separate power supply is required. HART® Communication: Supports HART protocol (FSK) for digital configuration, calibration, and diagnostics via the same two wires used for the 4-20 mA signal. Physical Mounting: Directly onto actuator mounting holes or via a bracket. Common mounting patterns include Fisher 1052 and 1066 styles. Materials: Housing is typically aluminum with a corrosion-resistant coating. Internal parts are stainless steel and anodized aluminum. Weight: Approximately 2.3 kg (5.0 lbs). Approvals Typically carries FM, FMC, ATEX, IECEx, and CSA approvals for use in hazardous (classified) locations. Specific approval codes depend on the model variant.

Technical Parameters General Model: Fisher LCP100 Local Control Panel Type: Field-mounted Local Operator Interface Primary Function: Local control, monitoring, and HART communication for valve instrumentation. Enclosure Enclosure Rating: NEMA 4X / IP66 (Weatherproof, Dust-tight, Corrosion-Resistant, and Hose-proof). Material: Fiberglass-reinforced polyester or equivalent rugged material. Window: Transparent, impact-resistant cover for viewing indicators and communicator. Control & Indication Control Buttons: Typically includes Open, Close, and Stop pushbuttons. Selector Switch: Local/Off/Remote selector switch to transfer control between the panel and the central control system. Status Indicators: LED indicators for: Valve Open Valve Closed Valve in Motion Fault / Alarm HART Communicator: Includes a integrated, NEMA 4X rated HART communicator (often a specific model like the Emerson 475HPAC) stored in a dedicated compartment with a communication port. Electrical Input Power: The power requirements depend on the connected devices (e.g., positioner, solenoids). The LCP100 itself is a passive interface; it must be wired to the device power supply. Intrinsic Safety: Can be installed with intrinsically safe barriers to meet hazardous area requirements. Termination: Internal terminal blocks for connecting to the valve actuator, positioner (e.g., DVC6000, DVC2000), solenoids, and limit switches. Environmental Ambient Temperature Range: Standard: -40° to 70°C (-40° to 158°F) Relative Humidity: 0 to 100% condensing. Compatibility Valve Controllers: Compatible with Fisher FIELDVUE digital valve controllers (DVC series) and other HART-enabled devices. Actuators: Can be configured for use with both spring-return and double-acting pneumatic actuators. Physical Data Dimensions: Compact design, typical footprint is approximately 318mm H x 241mm W x 178mm D (12.5 in H x 9.5 in W x 7.0 in D). Dimensions can vary. Weight: Approximately 4.5 kg (10 lbs). Approvals Typically carries major international approvals for hazardous locations, including FM, FMC, ATEX, IECEx, and CSA.
