FANUC

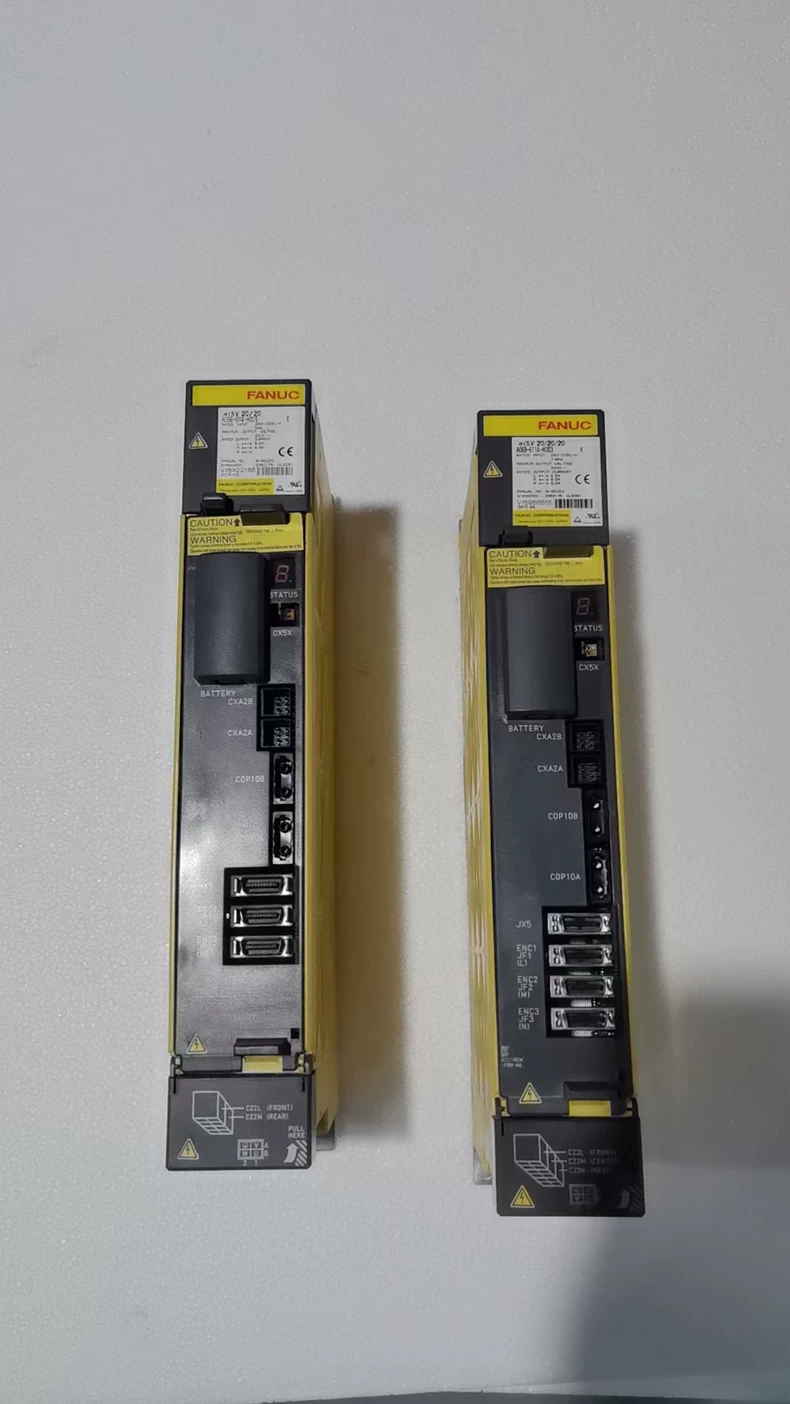

FANUC A06B-6114-H303 • Servo Drive (αi, 30A) • Dual-axis | FSSB • Key Params: #2021/#2084 • For: 16i-30i systems

188

FANUC

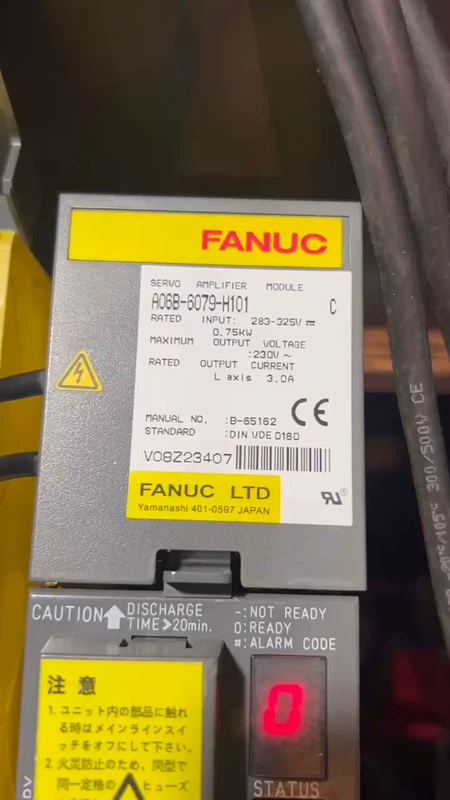

FANUC A06B-6079-H101 • Servo Amp (βi, 1.0kW) • Key Params: #1023/#2021 • Built-in Regen • For: 0i/30i systems

302

FANUC

FANUC A03B-0819-C104 Power Supply Unit - Technical Specifications General Specifications Model: A03B-0819-C104 Type: Power Supply Unit (PSU) for FANUC CNC Systems Compatibility: FANUC 0i/16i/18i Series CNC Input Voltage: 200-240V AC, 3-phase, 50/60Hz

568

FANUC

FANUC A02B-0236-C203 Main CPU Board - Technical Specifications General Specifications Model: A02B-0236-C203 Type: Main CPU Control Board Compatibility: FANUC 0/0i Series CNC Systems Function: Core processing unit for CNC control

26

FANUC

GE Fanuc IC200ALG320E Analog Input Module - Technical Specifications General Specifications Model: IC200ALG320E Type: 2-Channel Isolated Analog Input Module Series: VersaMax I/O (GE Fanuc / Emerson) Compatibility: GE Series 90-30, RX3i, VersaMax PLCs Emerson PACSystems

565

FANUC

ANUC A03B-0819-C152 Power Supply Unit Type: CNC System PSU (3-phase input) Input: 200-240V AC (50/60Hz) Outputs: +24V DC (6A) - I/O & drives +5V DC (10A) - Logic circuits Protections: OVP/OCP/thermal shutdown Cooling: Forced air (fan) Compatibility: FANUC 0i/16i/18i CNC systems Mounting: Standard CNC rack

939

FANUC

GE Fanuc IC200ALG320F Analog Input Module Type: 2-channel isolated analog input (±10V, 0-20mA) Resolution: 16-bit high precision Compatibility: VersaMax I/O, GE/Emerson PLCs (RX3i, 90-30) Features: Jumper-selectable voltage/current input Channel-to-channel isolation Hot-swappable in VersaMax racks

882

FANUC

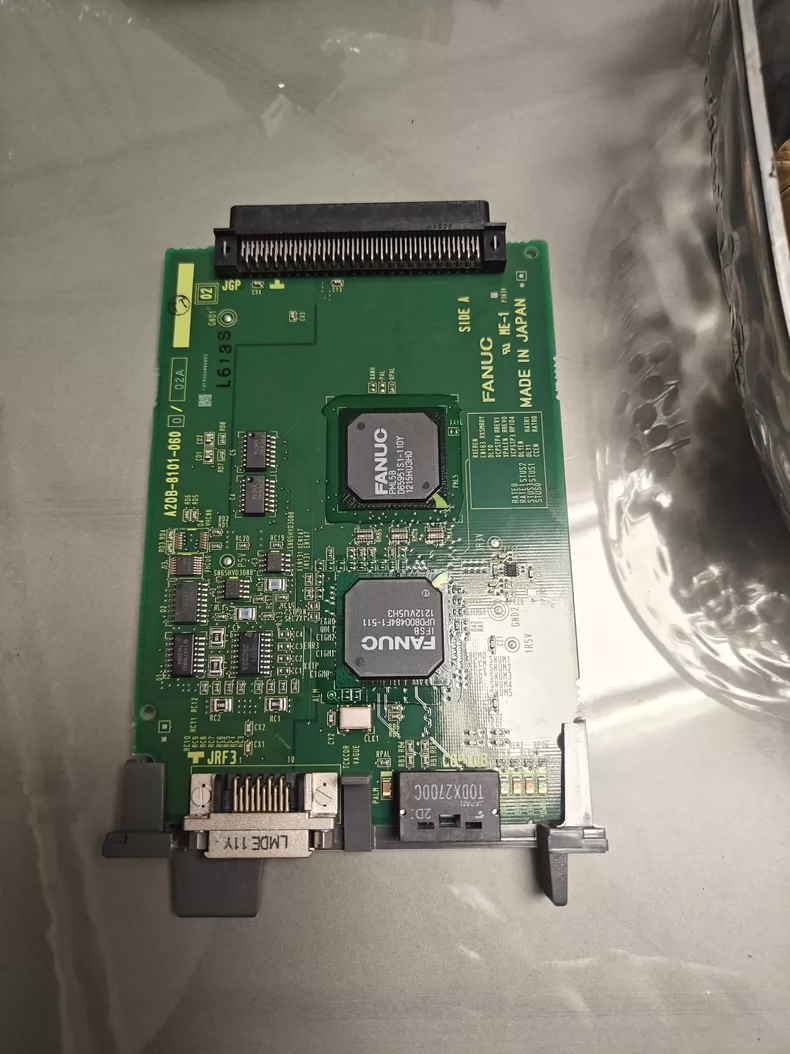

FANUC A20B-8101-060 PCB Module Type: Main Control Board (Legacy System) Application: FANUC 6/11/15 Series CNC Function: System CPU & Axis Control Key Feature: ROM/RAM Memory Expansion Compatibility: Requires FANUC Power Supply Unit

151

FANUC

FANUC A06B-0115-B804 AC Servo Motor Series: α (Alpha) Power: 1.5 kW (1500W) Speed: 2000 rpm (Max 3000 rpm) Torque: 7.16 Nm (Peak 21.5 Nm) Voltage: 200V AC Frame Size: 130mm Encoder: High-resolution (Absolute/Incremental) Protection: IP55 Application: CNC machines, robotics

321

FANUC

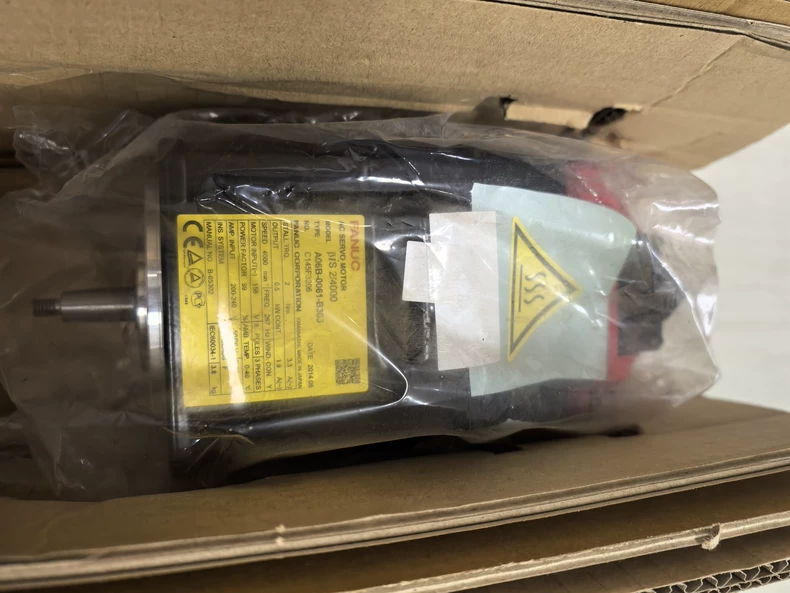

FANUC A06B-0061-B303 Servo Motor Type: AC Servo Motor (β Series) Rated Output: 0.6 kW (600W) Max Speed: 2000 rpm Encoder: Absolute/Incremental (Standard) Voltage: 200V AC (3-phase) Key Feature: Compact design, compatible with FANUC βi servo drives Application: CNC machines, automation systems

509

FANUC

FANUC A02B-0118-C131 Type: CNC Control Unit (Mainboard/CPU Module) Compatibility: FANUC 0/00/0-Mate Series (Legacy CNC Systems) Function: Core processing unit for machine tool control Features: Built-in PLC, servo control, and memory for ladder logic Applications: Early-model CNC lathes & milling machines Note: "C131" indicates hardware revision/spec variant

274

FANUC

FANUC A860-2109-T302 I/O Module Type: Digital I/O Unit (Input/Output Module) Compatibility: FANUC CNC Systems (0i/30i/31i/32i Series) Voltage: 24V DC (I/O Standard) Function: Connects sensors, switches, and actuators to CNC Communication: FANUC I/O Link (High-speed serial interface) Applications: CNC machine control (e.g., tool changers, coolant systems) Note: "T302" indicates a specific hardware variant

233
