Technical Specifications Category Specification Fisher Part Number 67DF-2349-725106 Description Travel & Temperature Sensor Module Assembly Compatible Device Fisher FIELDVUE DVC6200 Series Digital Valve Controllers Sensor Type Non-Contact Travel Sensor Measurement Functions • Valve Stem Travel / Position • Ambient Temperature Electrical Interface Connects internally to the DVC6200 main processor board. Physical Compatibility This assembly is designed as a direct replacement for the original sensor module in specific DVC6200 series models. Primary Application Repair and replacement of a failed or damaged travel/temperature sensor in a DVC6200 positioner.

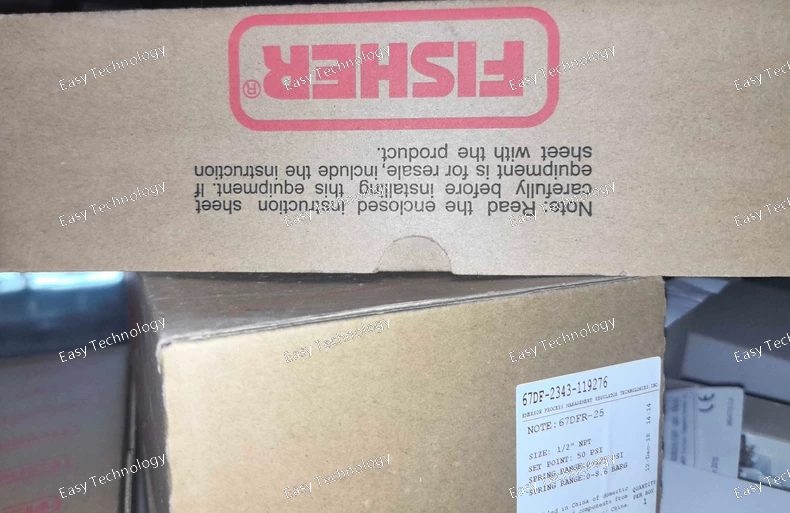

Technical Specifications Category Specification Model 67DFR-25 Type Panel-Mount Filter Regulator Function Filtration and Pressure Reduction of Instrument Air Port Size 1/4" NPT (Inlet & Outlet) Maximum Inlet Pressure Typically 250 psig (17.2 bar) Outlet Pressure Range 0 to 60 psig (0 to 4.1 bar). Adjustable via the top knob. Flow Capacity Sufficient for supplying one or several standard pneumatic instruments. Filter Element Typically 40 micron. Removes particulates and includes a bowl to collect condensed liquids. Bowl Transparent or metal bowl for visual inspection of condensate level. Gauge Includes an integrated pressure gauge to indicate the set outlet pressure. Mounting Panel Mount via a integral locking nut. Body Material Die-cast Zinc or Aluminum Bowl Material Polycarbonate (transparent) or metal.

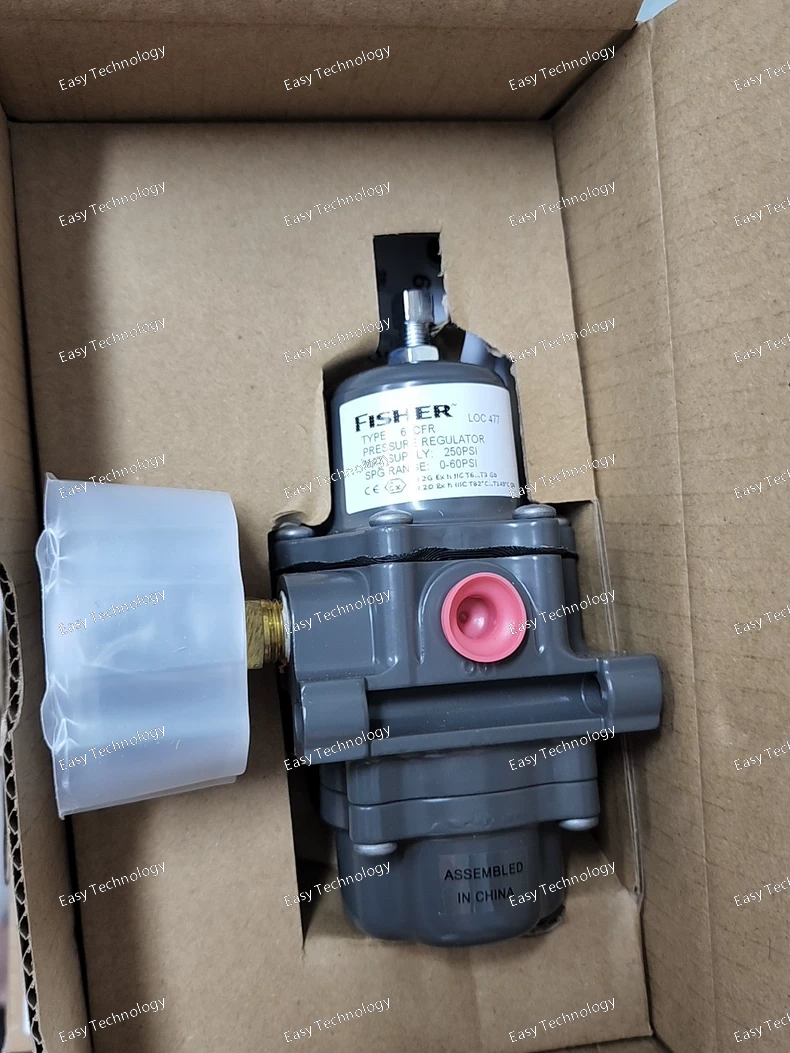

Parameters / Specifications Type: Direct-operated filtered pressure regulator Series: Fisher 67C Series (Model: 67CFR) Function: Supply a stable, reduced instrument air pressure Internal Filter: Yes (provides particulate protection) Internal Relief: Yes (automatically relieves excess downstream pressure) Inlet Pressure Rating: Up to 250 psi Outlet Pressure Range: 0–60 psi adjustable Connections: ¼ inch NPT (inlet and outlet) Body Style: Compact instrument regulator Media: Air or compatible gases Weight: Approximately 1.7 lb (≈0.77 kg) Typical Applications: Pneumatic controllers, actuators, valve positioners, panel-mounted instrument regulation Mounting: Suitable for inline or panel mounting Design Features: Stable outlet pressure, filtered supply, relief protection, small form factor

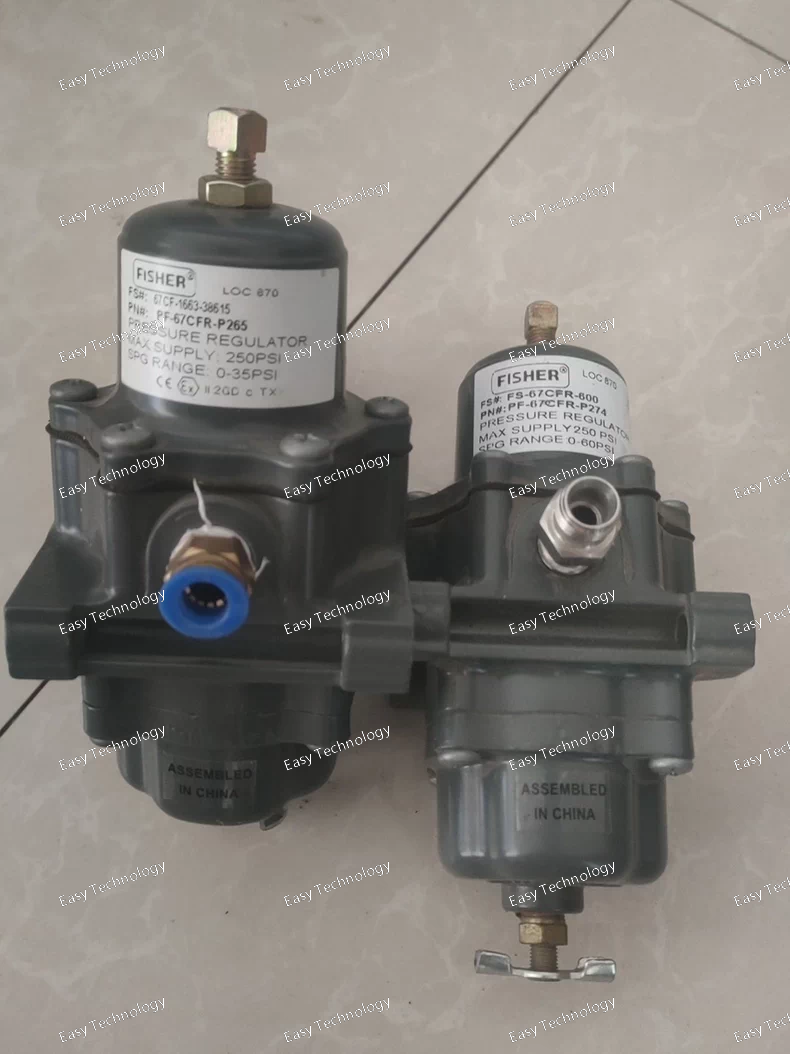

Key Specifications Model: PF-67CFR-P265 Series: 67C Series (67CFR type) Maximum inlet (supply) pressure: up to 250 psi (≈17.2 bar) Outlet (regulated) pressure range: 0–35 psi (≈0–2.4 bar) Connection size: ¼-inch NPT (inlet and outlet) Body configuration: aluminum instrument regulator with internal filter & internal relief Media: Air or compatible gas Temperature/Material notes (general for 67C Series): With Nitrile (NBR) elastomers: operating range typically from –40 °F to 180 °F (≈ –40 °C to +82 °C) With Fluorocarbon (FKM) elastomers: higher temperature capability With Silicone (VMQ) elastomers: for low-temperature service (down to –60 °F / –51 °C) Accuracy / repeatability: In the 67C Series general manual, repeatability for NBR/VMQ elastomers is ~0.1 psi (≈7 mbar) and inlet sensitivity <0.2 psi change in outlet for 25 psi change in inlet (for NBR/VMQ elastomers) Internal relief: The 67CFR type includes built-in relief feature (soft-seat valve) to relieve downstream pressure if it rises above setpoint, thereby ensuring safety & stable regulation Filter: The “F” in 67CFR indicates integral filter—standard polyethylene filter with ~5 microns rating; optional glass or stainless steel filters available Weight: Approximate weight ~0.95 kg (for this particular part)

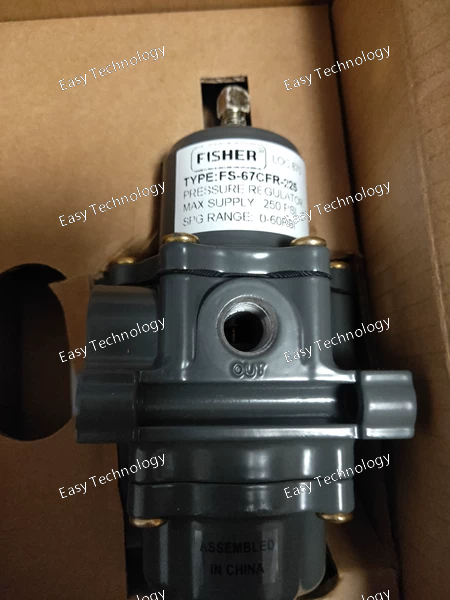

Specifications / Parameters Below are the key specifications and operating parameters for the 67CFR-225 version: Body material: Aluminum (alloy) Body size & end connections: ¼ inch NPT (inlet & outlet) Maximum inlet pressure (body rating): 250 psig (≈17.2 bar) Maximum emergency outlet pressure: 50 psig (≈3.4 bar) over the set outlet pressure Outlet (regulated) pressure range: 0-60 psig (≈0-4.1 bar) for this version (0-60 psi spring range) Filter: Integral filter (e.g., ~5 micron polyethylene standard) Internal relief: Yes — soft-seat internal relief valve integrated Temperature capabilities (depending on elastomer material): Nitrile (NBR): –40 °F to 180 °F (≈ –40 °C to 82 °C) Fluorocarbon (FKM): 0 °F to 300 °F (≈ –18 °C to 149 °C) Silicone (VMQ) with low temperature bolting: –60 °F to 180 °F (≈ –51 °C to 82 °C) Approximate weight: ~1 lb (~0.5 kg) for standard 67C/67CFR body Media: Air or compatible gases (depending on materials of construction) Typical applications: Instrument supply regulators for pneumatic/electropneumatic controllers, valve positioners, etc. Construction notes: With filter and relief means particulates are removed and downstream over-pressure can be relieved automatically when downstream exceeds the setpoint plus relief margin.

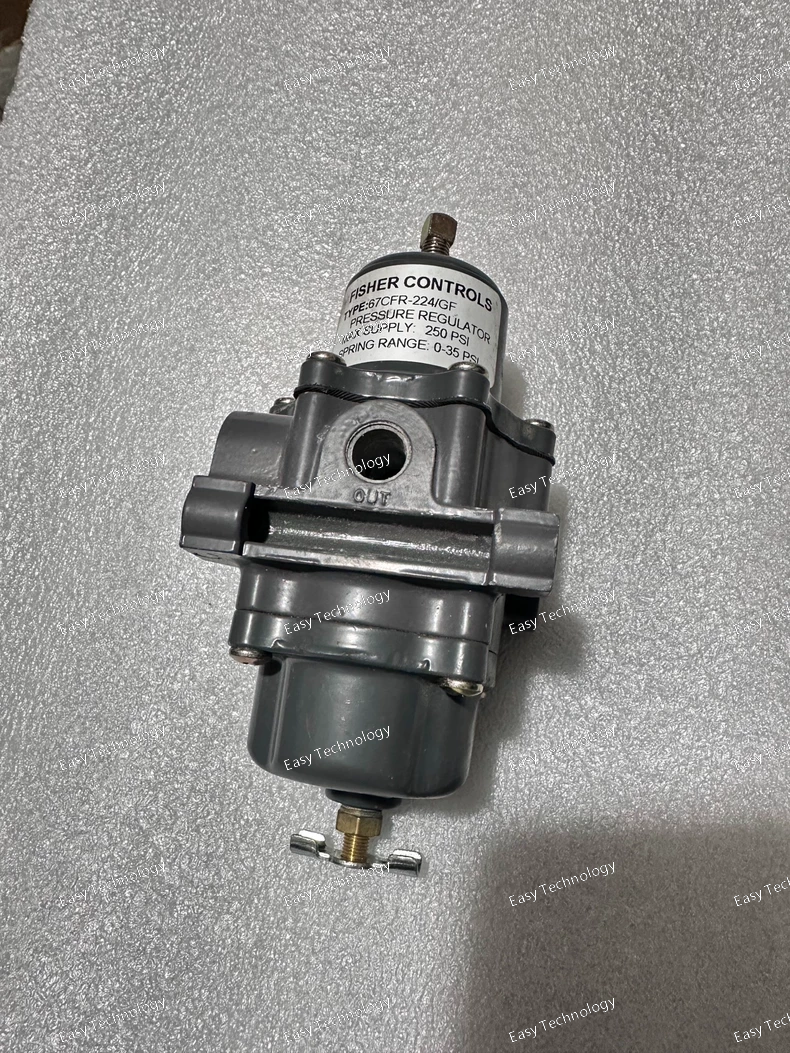

English Parameters / Specifications Model: 67CFR-224/GF Series: Fisher 67C Series (Instrument Supply Regulators) Body Material: Aluminum (standard for 67C) End Connections: ¼ in NPT (inlet & outlet) Maximum Inlet Pressure (Body Rating): 250 psig (≈17.2 bar) Outlet (regulated) Spring Range: 0–35 psig (≈0–2.4 bar) for the “224” variant Maximum Emergency Outlet Pressure (i.e. relief above set outlet): 50 psig (≈3.4 bar) above the outlet setting Filter: Integral internal filter (particulate filter element included) Internal Relief Valve: Yes — built-in soft-seat relief to relieve downstream pressure above setpoint Temperature Capability (depending on elastomer choice): Nitrile (NBR): –40 °F to +180 °F (≈ –40 °C to +82 °C) Fluoroelastomer (FKM): 0 °F to +300 °F (≈ –18 °C to +149 °C) Silicone (VMQ) with low-temperature bolting: –60 °F to +180 °F (≈ –51 °C to +82 °C) Media: Air or compatible gases (must be compatible with elastomer and body materials) Typical Applications: Instrument air supply regulation, panel-mounted regulators, pneumatic controllers, valve positioners Approximate Weight: For the 67C/67CFR aluminum body version ~1 lb (≈0.5 kg)

English Parameters / Specifications Model: 67CF-1663-38512 Series: Fisher 67C Series (Instrument Supply Regulators) Type: Filtered regulator (integral filter) Body Material: Aluminum (standard for 67C/67CF) End Connections: ¼ inch NPT (inlet & outlet) Maximum Inlet Pressure (Body Rating): 250 psig (≈17.2 bar) Outlet (regulated) Spring Range: 0-60 psig (≈0-4.1 bar) Maximum Emergency Outlet Pressure (i.e., relief above set outlet): 50 psig (≈3.4 bar) above the set outlet pressure Filter: Included (typically 5 micron polyethylene standard) Temperature Capabilities (depending on elastomer choice): Nitrile (NBR): –40 °F to +180 °F (≈ –40 °C to +82 °C) Fluoroelastomer (FKM): 0 °F to +300 °F (≈ –18 °C to +149 °C) Silicone (VMQ) with low-temperature bolting: –60 °F to +180 °F (≈ –51 °C to +82 °C) Media: Air or compatible gases (subject to elastomer/filter compatibility) Typical Weight: ~0.99 lbs (~0.45 kg) Typical Applications: Instrument air supply for controllers, valve positioners, pneumatic instrumentation, panel mount lines

Parameters / Specifications Model: 67CFR-235 Series: Fisher 67C Series (Instrument Supply Regulators) Construction: Filtered regulator with internal relief (i.e., integral filter and soft-seat internal relief valve) Body material: Aluminum (standard for 67C series non-CS version) End connections: ¼ inch NPT (inlet & outlet) Maximum inlet (body rating) pressure: 250 psig (≈17.2 bar) for standard models. Maximum emergency outlet pressure (i.e., the relief valve will relieve when downstream exceeds setpoint by this margin): 50 psig (≈3.4 bar) above the outlet setting. Typical outlet (regulated) pressure spring range for the “235” variant: likely 0–35 psig (≈0–2.4 bar) (many order-codes in the 200-series use 0-35 psig) Filter: Integral, standard rating about 5 microns for polyethylene filter element Temperature capability (depending on elastomer / diaphragm / filter media): Nitrile (NBR): –40 °F to +180 °F (≈ –40 °C to +82 °C) Fluoroelastomer (FKM): 0 °F to +300 °F (≈ –18 °C to +149 °C) Silicone (VMQ diaphragm + low-temp bolting): –60 °F to +180 °F (≈ –51 °C to +82 °C) Media: Air or compatible gases (must confirm elastomer/filter compatibility for specific gas) Typical weight (for ¼ in NPT aluminum body version): about ~1 lb (≈0.5 kg) Typical applications: Instrument air supply regulators for pneumatic controllers, actuators, panel mount regulators, air chucks, spray guns, etc.

Parameters / Specifications Model: 67CFR‑362 Series: Fisher 67C Series (Instrument Supply Regulators) Body Material: Aluminum Connections: ¼ inch NPT (inlet & outlet) Maximum Inlet Pressure: 250 psig (≈17.2 bar) Outlet (Regulated) Pressure Range: 0–35 psig (≈0–2.4 bar) Maximum Emergency Outlet Pressure: 50 psig (≈3.4 bar) above set outlet pressure Filter: Integral internal filter for particulate removal Internal Relief Valve: Yes — soft-seat relief built in to protect downstream pressure Temperature Capabilities (depending on elastomer): Nitrile (NBR): –40 °F to +180 °F (≈ –40 °C to +82 °C) Fluoroelastomer (FKM): 0 °F to +300 °F (≈ –18 °C to +149 °C) Silicone (VMQ) with low-temperature bolting: –60 °F to +180 °F (≈ –51 °C to +82 °C) Media: Air or compatible gases, compatible with elastomer and filter materials Typical Applications: Instrument air supply regulation, pneumatic controllers, valve positioners, panel-mounted instrumentation, air chucks, spray guns Approximate Weight: ~1 lb (≈0.5 kg)

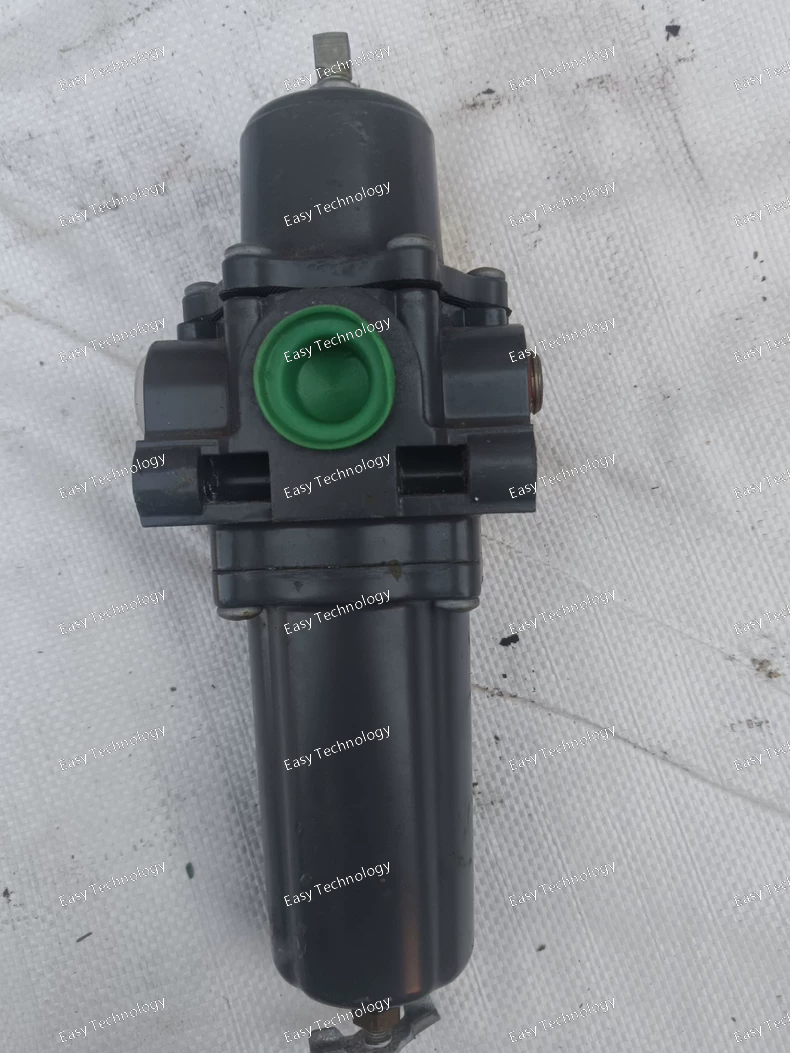

Parameters / Specifications Model: 67DFR‑24 Series: Fisher 67D Series Pressure-Reducing Regulators Construction Type: Filtered regulator with internal relief (integral filter + soft-seat relief) Body Material: Aluminum Connection Size / End Connections: ½ inch NPT (inlet & outlet) Maximum Inlet Pressure (Body Rating): 250 psig (≈17.2 bar) Maximum Emergency Outlet Pressure: Up to 150 psig (≈10.3 bar) over the outlet pressure setting Filter Element: Integral 5 micron polyethylene filter; optional glass-fiber or stainless steel filters available Temperature Capabilities (depending on elastomer/diaphragm): Nitrile (NBR): –40 °F to +180 °F (≈ –40 °C to +82 °C) Fluoroelastomer (FKM): 0 °F to +300 °F (≈ –18 °C to +149 °C) Silicone (VMQ) diaphragm with low-temperature bolting: –60 °F to +180 °F (≈ –51 °C to +82 °C) Approximate Weight: ~2.0 lb (≈0.9 kg) Media: Air or compatible gases, subject to material compatibility Typical Applications: Regulated supply for pneumatic instruments, pilot-operated devices, instrument air systems, and any application requiring both filtration and downstream pressure relief

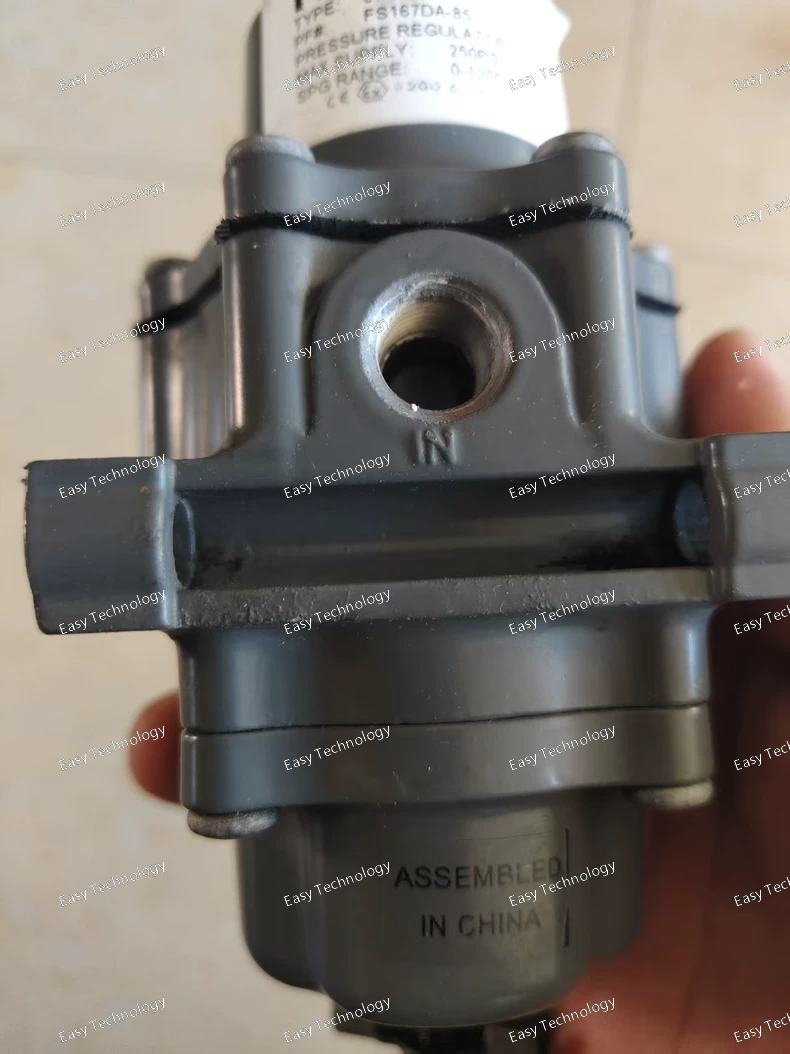

Parameters / Specifications Model: 167DA‑85 Series: Fisher 167D Series (Switching Valves) Type: Three-way switching valve (ports A, B, C plus control/vent port D) Body Size & End Connections: Ports A and C: ¼ or ½ inch NPT; Vent and control (Port D) & Port B: ¼ inch NPT Maximum Inlet Pressure (Body Rating): 125 psig (≈8.6 bar) standard; some versions up to 400 psig depending on construction Set Pressure (Spring Range) Options: Typically 0–125 psig Temperature Capabilities (depending on materials): Nitrile (NBR) standard service: –20 °F to +180 °F (≈ –29 °C to +82 °C) Low temperature service: –40 °F to +180 °F (≈ –40 °C to +82 °C) Fluoroelastomer (FKM) high-temperature service: 0 °F to +300 °F (≈ –18 °C to +149 °C) Approximate Weight: ~1.2 lb (≈0.5 kg) for standard aluminum body Flow / Sizing Coefficients: Wide-open flow coefficient (Cv) for ¼ NPT size around 30.58; ½ NPT around 32.22 Construction Materials: Standard aluminum body and spring case; optional stainless steel available; diaphragm, valve stem, and plug materials vary Media: Gaseous fluids (air or compatible gas) suitable for pilot-instrumentation, switching, venting, etc. Applications: Switching of pneumatic circuits—when control pressure falls below or rises above a setpoint, it opens one port and closes another (typical fail-safe or lock-up arrangement)

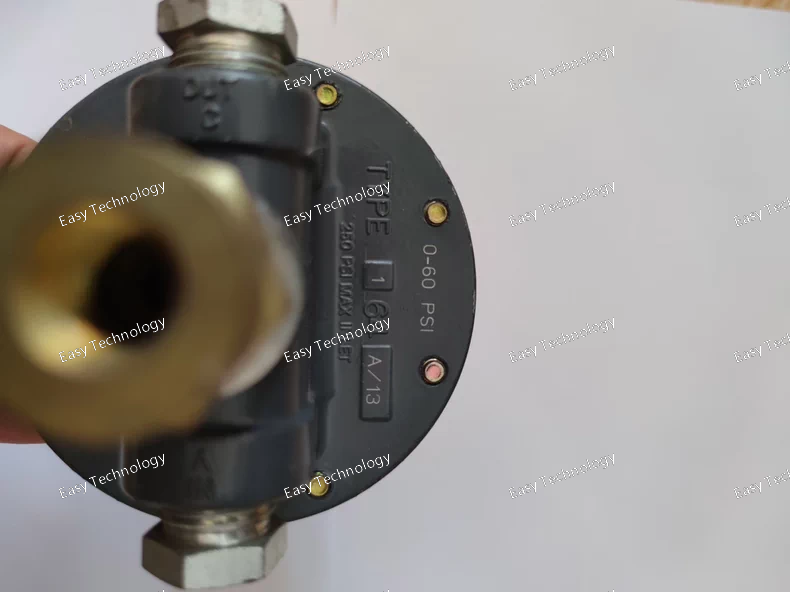

Technical Specifications Category Specification Model Type 64 A/13 Type Self-Operated Pressure Reducing Regulator Function To reduce a higher, variable inlet pressure to a stable, lower outlet pressure. Power Source Self-Operated (Uses energy from the process fluid) Body Style Globe Valve Body Trim Single-port, balanced or unbalanced plug. End Connections Flanged (Typically ANSI Class 125 or 150 RF). The specific size (e.g., 1", 2") is defined by the full order code. Outlet Pressure Range Defined by the "/13" configuration. This is a factory-calibrated range. Example ranges for a similar code could be 20 to 60 psig (1.4 to 4.1 bar) or 50 to 150 psig (3.4 to 10.3 bar). The exact range must be confirmed from the original factory data sheet. Maximum Inlet Pressure Dependent on the body rating, but typically suitable for several hundred psig. Temperature Limits Standard diaphragm materials are suitable for -20°F to +180°F (-29°C to +82°C). Materials of Construction Body: Cast Iron (standard). Trim: Stainless Steel (standard). Diaphragm: Buna-N (standard).
