EATON

Key Features: Capacity: 50kVA/45kW Topology: VFI (Voltage and Frequency Independent) Runtime: Configurable with EBM (External Battery Module) Efficiency: 94% (ECOnversion mode) Standards: IEC 62040-3, UL 1778

981

EATON

Key Features: Tripping Current (IΔn): 30mA (fixed) Breaking Capacity: 6kA Mechanical Life: 20,000 cycles Terminals: Screw-type (up to 25mm² wire) Standards: IEC 61008-1, CE

69

EATON

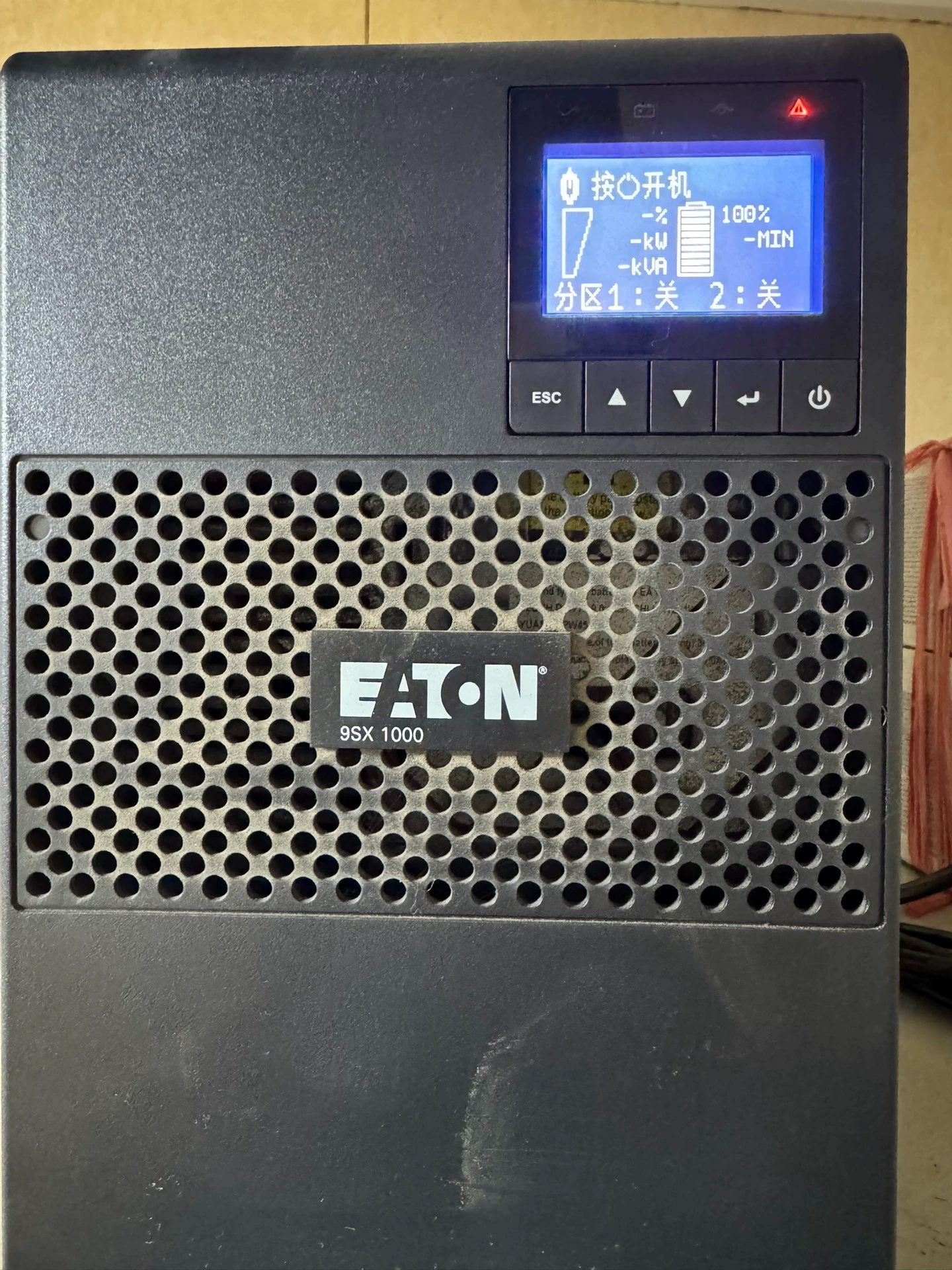

Eaton 9SX1000 - Uninterruptible Power Supply (UPS) - Brief Description Key Features: Capacity: 1000VA/900W (Line-Interactive) Input Voltage: 100-120V AC (Single Phase) Output Voltage: Pure Sine Wave (120V ±5%) Battery: Sealed Lead-Acid (SLA), Hot-Swappable Runtime: Variable (Depends on load; expandable with extra battery packs) Efficiency: >95% (High-Efficiency Mode) Transfer Time: <10ms (Automatic Voltage Regulation - AVR) Display: LCD Panel (Status, load, battery level) Protection: Surge, overload, short-circuit, deep discharge Communication: USB/Serial (Eaton Intelligent Power Software) Applications: Critical IT equipment (PCs, servers, networking devices) Home office & small business backup power Point-of-sale (POS) systems & medical devices Certifications: UL, CE, FCC, RoHS

734

EATON

Key Features: Function: Safety monitoring relay (dual-channel) Inputs: 2 safety circuits (e.g., E-Stop, light curtains) Outputs: 2 NO (normally open) safety contacts Rated Voltage: 24V DC/AC Safety Standards: EN ISO 13849-1 (PL e), IEC 62061 (SIL 3) Mounting: DIN rail (35mm) Applications: Machine safety systems Emergency stop circuits Guard door monitoring

917

EATON

Key Features: Input: 24V DC (18-32V range) Output: 20A total (configurable per channel) Channels: Modular, with electronic fuse protection Mounting: DIN rail (TS35) Protection: Reverse polarity, overload & short-circuit Compliance: UL 508, IEC 60947, CE, RoHS Applications: Industrial control panels, PLC systems, 24V DC power distribution.

118

EATON

Key Features: Type: Single-pole (1P) or multi-pole MCB Rated Current: Up to 32A (specific range depends on model) Breaking Capacity: Typically 6 kA (at 230/400V AC) Tripping Curve: Type B, C, or D (standard IEC curves) Voltage Rating: 230V AC (1P) / 400V AC (3P) Standards: Complies with IEC 60898-1 Applications: Residential & commercial electrical distribution Protection against overloads & short circuits

536

EATON

Key Features: Rated Current: 32A (adjustable or fixed, depending on model) Poles: 3P (3-phase) Breaking Capacity (Icu): Up to 50 kA (at 415V AC, depending on variant) Voltage Rating: 400/415V AC (50/60 Hz) Tripping Characteristics: Thermal-Magnetic Trip: Overload & short-circuit protection Adjustable Settings: Some models allow trip current adjustment Mounting: Fixed or plug-in (depends on version) Standards Compliance: IEC 60947-2, CE, UL (check specific certifications) Applications: Industrial power distribution Motor protection Commercial electrical panels

666

EATON

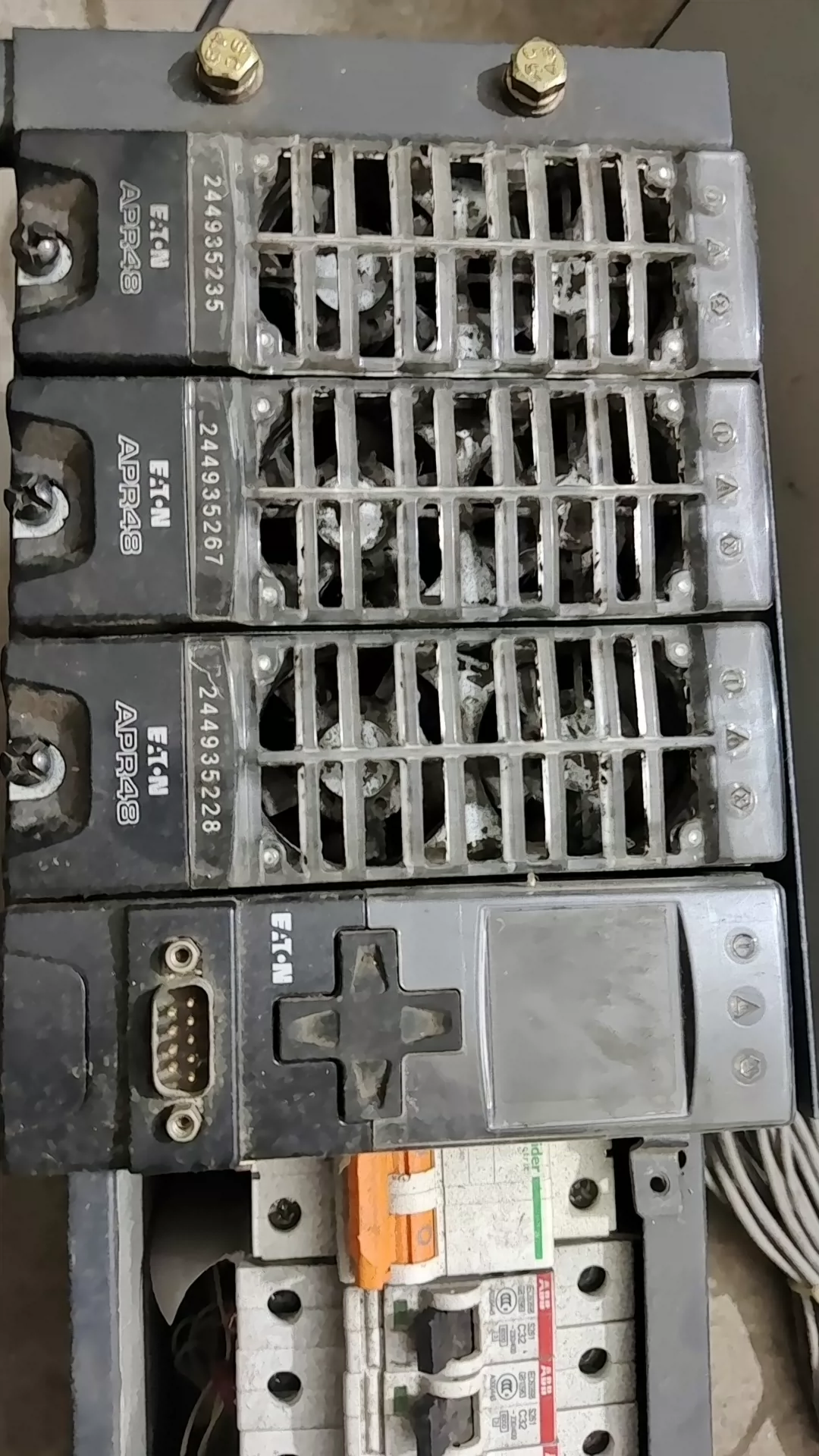

Eaton APR48 – Power Rectifier Module Type: High-efficiency DC power rectifier (typically for telecom/power systems) Input Voltage: 85-300V AC (wide range) Output Voltage: 48V DC (adjustable range, e.g., 42-58V) Output Current: Up to 50A (model-dependent) Efficiency: >90% (typical) Key Features: Hot-swappable design Active power factor correction (PFC >0.99) LED status indicators Overvoltage/overcurrent protection Applications: Telecom base stations Industrial power backup systems Renewable energy systems

446

EATON

Eaton M22-PV – Proximity Sensor / Push Button Type: Inductive proximity sensor or illuminated push button (depends on variant). Mounting: Standard M22 threaded barrel (typical for industrial sensors). Voltage Range: Commonly 10-30V DC (for proximity sensors) or 24-240V AC/DC (for push buttons). Output Type: PNP (sourcing) / NPN (sinking) (proximity sensor). SPST/DPST contacts (push button). Sensing Distance: Up to 8mm (for inductive sensors). IP Rating: IP67 (dust/water-resistant). Applications: Machine automation, conveyor systems, control panels.

879

EATON

Eaton PL9-C6 – Lighting Contactor Type: DIN rail-mounted lighting contactor (1-pole, 6A). Rated Voltage: 230V AC (50/60 Hz). Rated Current: 6A (resistive load) / 3A (motor load). Control Voltage: Typically 24V DC or 230V AC (check coil variant). Applications: Switching lighting circuits, HVAC controls, small motor loads. Features: Mechanical Lifespan: ≥100,000 cycles. Electrical Lifespan: ≥50,000 cycles (at rated load). Screw Terminals: Easy wiring (up to 2.5 mm²). LED Indicator: Status monitoring (optional, depends on model). Standards: IEC 60947, EN 60669 (compliance varies).

932

EATON

Eaton NZM2/3-XU208-240AC Type: Circuit breaker or motor protection relay (exact function depends on series). Rated Voltage: 208-240V AC. Current Range: Typically 2-3A (check specific model suffix for exact rating). Applications: Motor protection, short-circuit/overload protection in industrial/commercial systems. Key Features: Thermal/magnetic tripping. Compact design (e.g., DIN rail mount). Compatible with NZM series accessories.

690

EATON

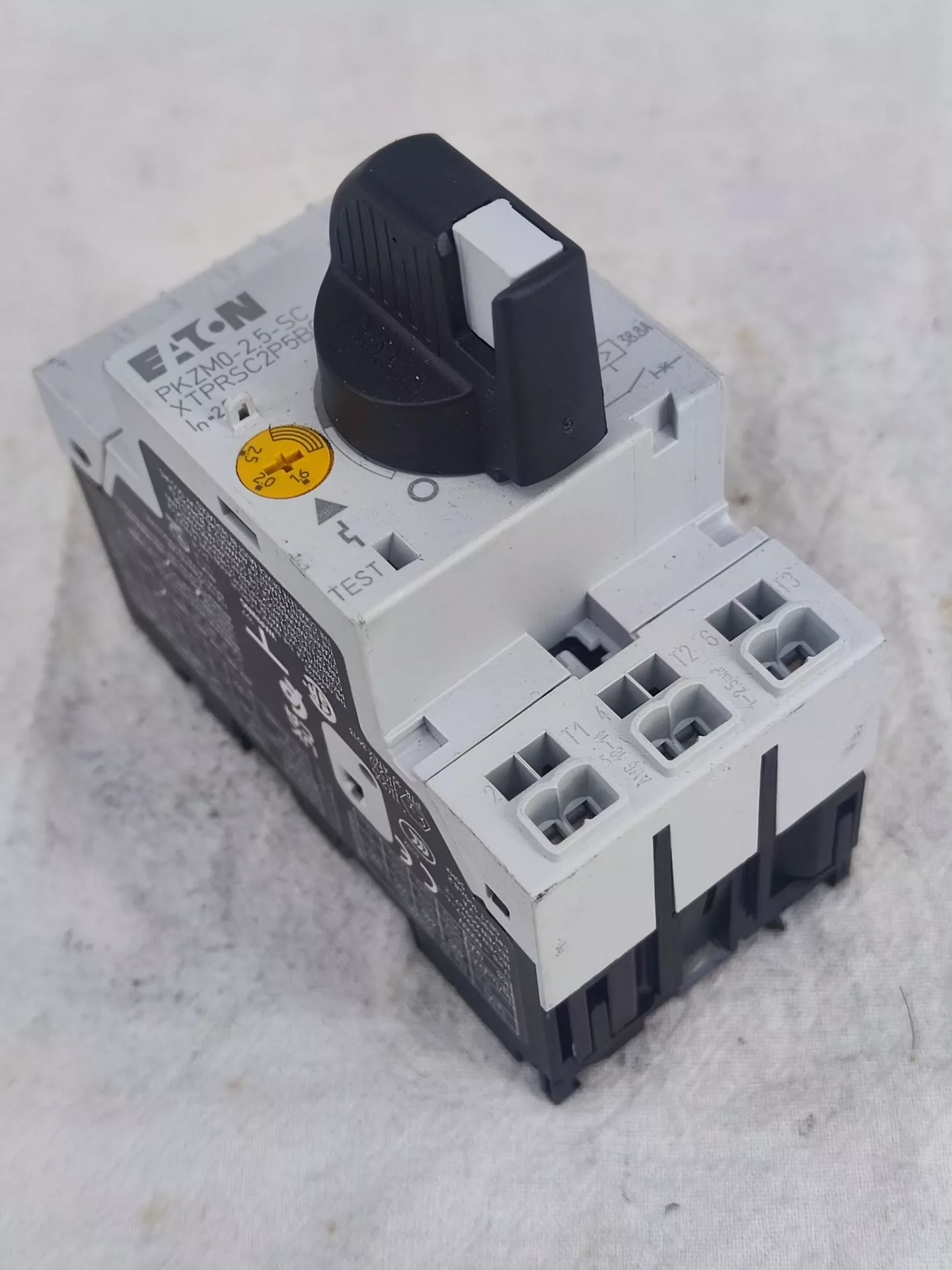

PKZM0-2.5-SC Circuit Breaker Description: The PKZM0-2.5-SC is a compact circuit breaker designed for overcurrent protection in electrical installations. This DIN-rail mounted device features precise trip characteristics for reliable circuit protection. Key Features: Type: Miniature circuit breaker (MCB) Rated Current: 2.5A Breaking Capacity: [X] kA (specify) Tripping Characteristic: [B/C/D] curve (specify) Poles: 1P (single pole) Mounting: DIN rail (35mm) Standards: IEC/EN 60898-1 Terminals: Screw-type (suitable for solid/stranded conductors) Operating Temperature: -25°C to +60°C Typical Applications: Residential electrical installations Commercial building circuits Industrial control panels Lighting circuits protection

110
