ABB

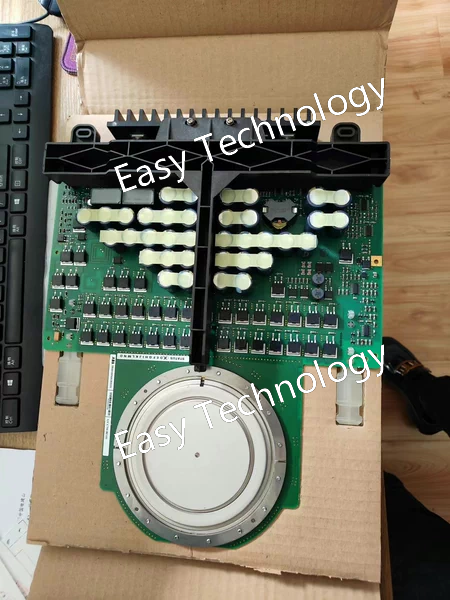

Key Features & Benefits ✅ Ultra-High Power Handling Voltage rating: 4500V Current rating: 4000A (peak) Optimized for high-power inverters & converters ✅ Advanced IGCT Technology Low conduction & switching losses vs. traditional GTOs Integrated gate driver for precise switching control Short-circuit ruggedness for fault-tolerant operation ✅ Robust Mechanical Design Press-pack housing for optimal thermal performance Low-inductance terminal design Forced-air or liquid-cooled configurations ✅ Industry-Leading Reliability Designed for 24/7 operation in harsh environments MTBF >100,000 hours in typical applications Technical Specifications Parameter Specification Part Numbers 5SHY 3545L0016 (ABB ID) 3BHB020720R0002 (Order Code) Device Type Asymmetric IGCT (with anti-parallel diode) Voltage Rating VDRM = 4500V Current Rating ITAV = 1200A (avg) ITSM = 4000A (surge) Switching Speed Turn-off time: <5µs Thermal Resistance Rth(j-c) = 0.03 K/W Mounting Bolt-clamped (press-pack) Weight Approx. 2.5 kg Typical Applications ⚡ Medium-Voltage Drives (e.g., ABB ACS 2000 series) ⚡ HVDC Power Transmission ⚡ Industrial Megawatt-Range UPS Systems ⚡ Renewable Energy Inverters (wind/solar farms) ⚡ Mining & Metals Industry (electrolytic processes)

29

ABB

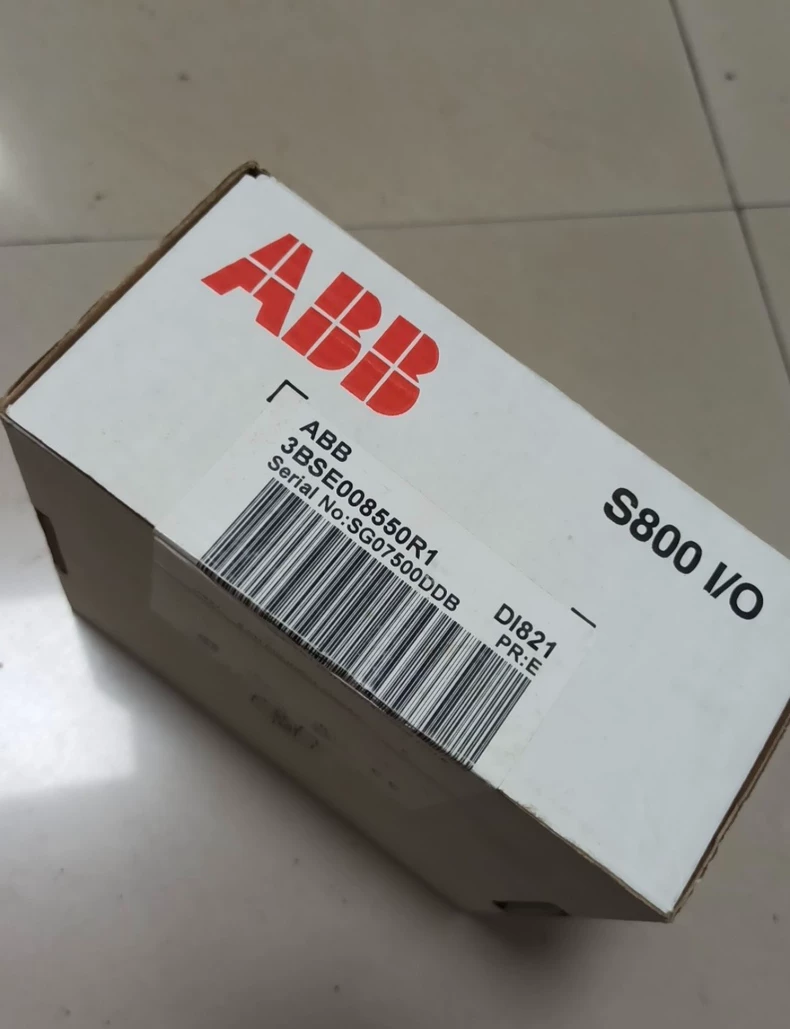

Key Features 32-channel isolated digital input module 24V DC input voltage (sinking/sourcing configurable) High-density design saves cabinet space Galvanic isolation between channels and system Hot-swappable for easy maintenance Diagnostic LEDs per channel for status monitoring Technical Specifications Part Number: 3BSE008550R1 Input Type: Dry contact or wet contact (24V DC) Input Current: 3-5mA typical Isolation: 500V AC between channels Response Time: <1ms Operating Temperature: -25°C to +60°C Protection Class: IP20 (panel-mounted) Certifications: CE, UL, ATEX (optional) Communication & Integration Interfaces with ABB's S800 I/O system Compatible with AC 800M controllers Supports PROFIBUS DP and Foundation Fieldbus Configurable via ABB Control Builder Typical Applications Process automation systems Power generation plants Oil & gas facilities Chemical processing Water treatment systems

259

ABB

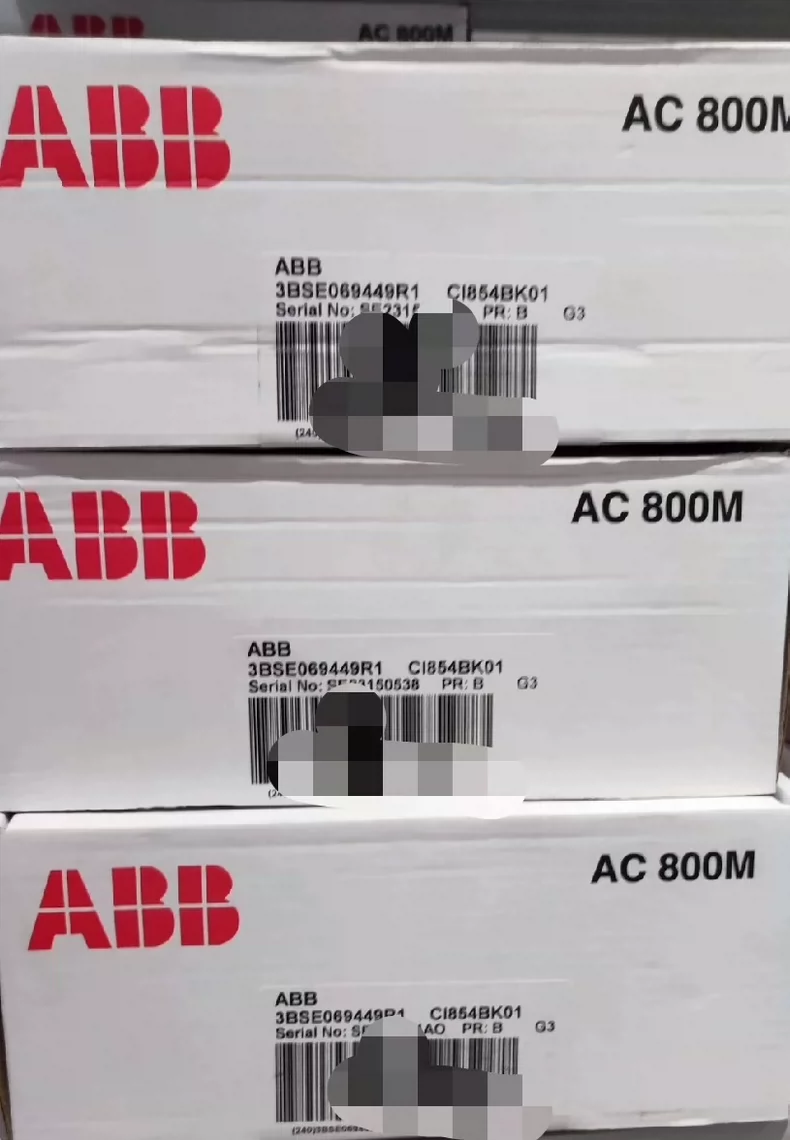

Key Features ✔ PROFIBUS DP-V1 Master/Slave Support – Compliant with IEC 61158/61784 ✔ High-Speed Data Exchange – Up to 12 Mbps (auto-negotiating) ✔ Redundancy Support – Optional dual-channel for fault-tolerant systems ✔ Hot-Swappable – Allows replacement without system shutdown ✔ Diagnostics & Monitoring – Built-in LED indicators for status & errors ✔ Wide Compatibility – Works with ABB AC 800M, S800 I/O, and third-party PROFIBUS devices Technical Specifications Parameter Specification Model Number CI854BK01 (3BSE069449R1) Communication Standard PROFIBUS DP-V1 (IEC 61158) Data Rate 9.6 kbps – 12 Mbps (auto-sensing) Connector 9-pin D-sub (RS-485) Isolation 500V (galvanic isolation) Power Supply 24V DC (via backplane) Operating Temp. -25°C to +60°C Certifications CE, UL, ATEX (optional) Typical Applications Process Automation (chemical, oil & gas, power plants) Manufacturing & Factory Automation (PLC-to-drive communication) Water/Wastewater Treatment Mining & Metals Processing

939

ABB

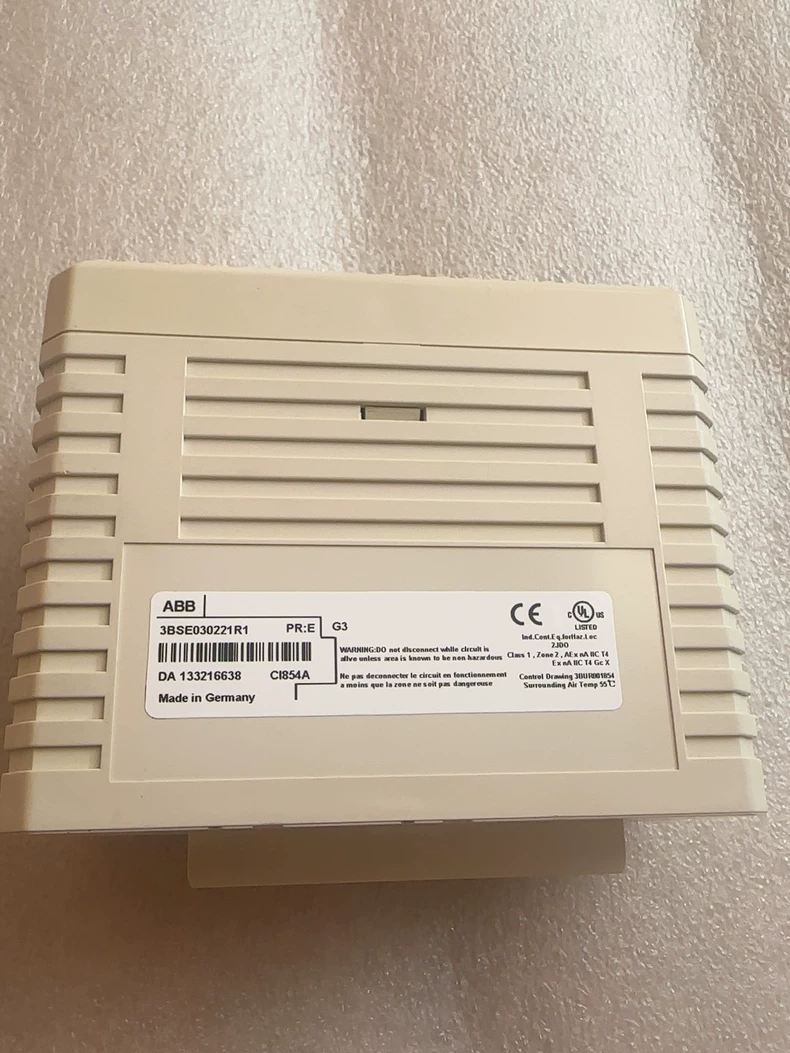

Key Features ✔ PROFIBUS DP-V1 Master Functionality - Compliant with IEC 61158/61784 standards ✔ High-Speed Communication - Supports baud rates from 9.6 kbps to 12 Mbps (auto-negotiating) ✔ Robust Industrial Design - Operates in harsh environments (-25°C to +60°C) ✔ Comprehensive Diagnostics - LED indicators for power, status, and network activity ✔ Hot-Swappable - Allows replacement without system shutdown (when used in redundant configuration) ✔ Flexible Configuration - Supports up to 244 bytes of input/output data Technical Specifications Parameter Specification Article Number 3BSE030221R1 Interface Type PROFIBUS DP-V1 (RS-485) Connector 9-pin D-sub male Power Supply 24V DC via backplane Isolation 500V galvanic isolation Data Transfer Cyclic and acyclic Certifications CE, UL, ATEX (optional) Typical Applications Process control systems in oil & gas facilities Power generation and distribution systems Chemical and pharmaceutical plants Water and wastewater treatment plants Manufacturing automation systems

317

ABB

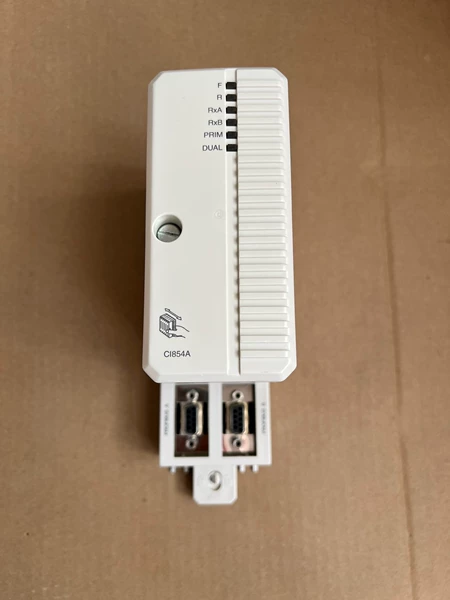

Key Parameters Category Specification Model CI854AK01 / 3BSE030220R1 Interface PROFIBUS DP-V1 (IEC 61158) Role Master Baud Rate 9.6 kbps – 12 Mbps (auto-sensing) Connector 9-pin D-sub (RS-485) Isolation 500V galvanic I/O Capacity 244 bytes (max.) Power 24V DC (backplane) Temp. Range -25°C to +60°C Certifications CE, UL Features: Hot-swappable (redundant setups) LED diagnostics AC 800M/800xA compatible Typical Use: Process automation, motor control, remote I/O.

431

ABB

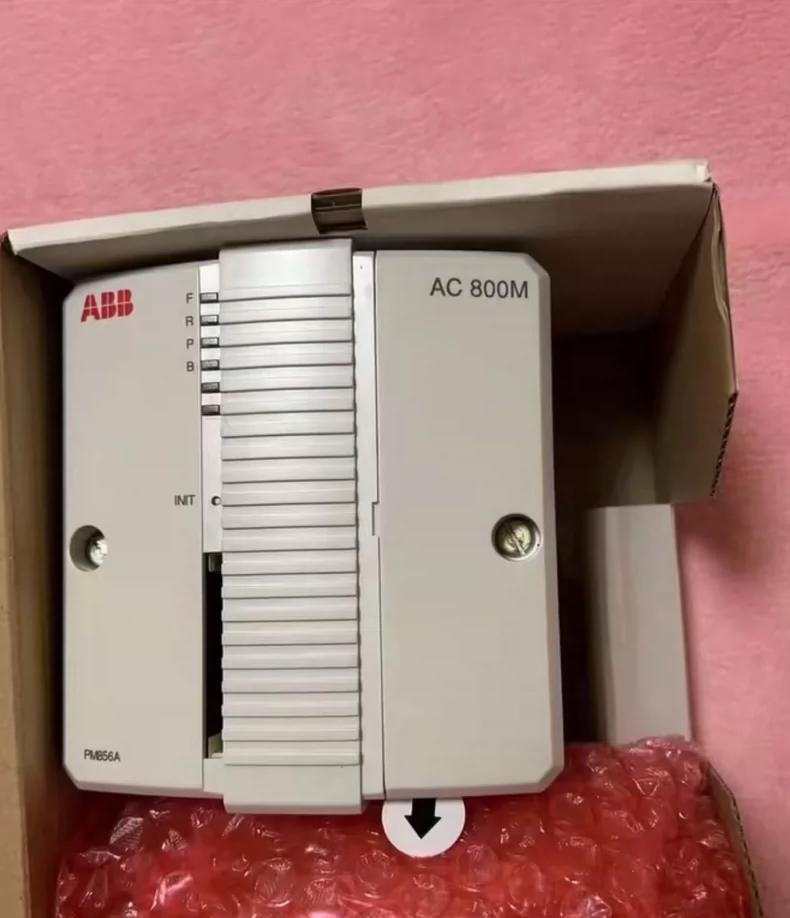

Key Features ✔ Dual-CPU Redundancy – Hot standby for continuous operation (99.999% availability) ✔ Powerful Processing – 800 MHz CPU with 512 MB RAM ✔ Extensive I/O Support – Connects to S800, S900, and Profibus/Fieldbus modules ✔ Industrial Robustness – Operates in -40°C to +70°C environments ✔ Cybersecurity – Supports role-based access & encryption (IEC 62443 compliant) ✔ Seamless Integration – Fully compatible with ABB System 800xA Technical Specifications Parameter Specification Model Number PM856AK01 (3BSE066490R1) CPU 800 MHz PowerPC Memory 512 MB RAM / 128 MB Flash Redundancy Yes (1:1 hot standby) Communication Ethernet, PROFIBUS, Modbus TCP, OPC UA I/O Capacity Up to 250,000 I/O points (system-wide) Power Supply 24V DC (redundant inputs) Certifications CE, UL, ATEX (optional) Typical Applications Oil & Gas (refineries, offshore platforms) Power Plants (turbine control, SCADA) Chemical/Petrochemical (batch processing) Pharmaceuticals (GMP-compliant automation) Water Treatment (pump station control)

995

ABB

Key Features ✔ Dual-CPU Redundancy - 1:1 hot standby configuration for 99.999% availability ✔ Powerful Processing - 1.1 GHz dual-core CPU with 1 GB RAM for complex control tasks ✔ Extensive Connectivity - Supports PROFIBUS, Modbus TCP, OPC UA, and Ethernet/IP ✔ Cybersecurity - IEC 62443 compliant with role-based access control ✔ Wide Temperature Range - Operates in -40°C to +70°C harsh environments ✔ Large Capacity - Supports up to 500,000 I/O points system-wide Technical Specifications Parameter Specification Model Number PM866AK01 (3BSE076939R1) Processor 1.1 GHz dual-core Memory 1 GB RAM / 256 MB Flash Redundancy Yes (1:1 hot standby) Communication Ethernet, PROFIBUS DP/PA, Modbus TCP, OPC UA I/O Capacity Up to 500,000 I/O points (system-wide) Power Supply 24V DC (redundant inputs) Certifications CE, UL, ATEX (optional) Typical Applications Oil & Gas (refineries, pipelines, offshore platforms) Power Generation (turbine control, SCADA systems) Chemical Processing (batch and continuous processes) Pharmaceutical (GMP-compliant manufacturing) Water/Wastewater (pump control, treatment plants) System Integration Compatible with: ABB S800/S900 I/O modules PROFIBUS DP/PA and Foundation Fieldbus devices ABB System 800xA DCS Configuration Tools: Control Builder Professional ABB Ability™ Edge Gateway for IIoT connectivity

609

ABB

Key Features Industrial-grade Ethernet connectivity Dual 10/100BASE-TX RJ45 ports Supports redundant network configurations DIN rail mounting for easy installation LED status indicators for network monitoring Compatible with ABB AC 800M controllers Technical Specifications Parameter Specification Model Number RLM01 (3BDZ00398R1) Ethernet Standard IEEE 802.3 10/100BASE-TX Ports 2 x RJ45 (auto MDI/MDI-X) Protocols Supported TCP/IP, UDP, ICMP Power Supply 24V DC (via controller backplane) Operating Temperature -25°C to +60°C Relative Humidity 5% to 95% (non-condensing) Certifications CE, UL, cUL Typical Applications Process automation systems Power generation and distribution Oil & gas facilities Water treatment plants Manufacturing automation

848

ABB

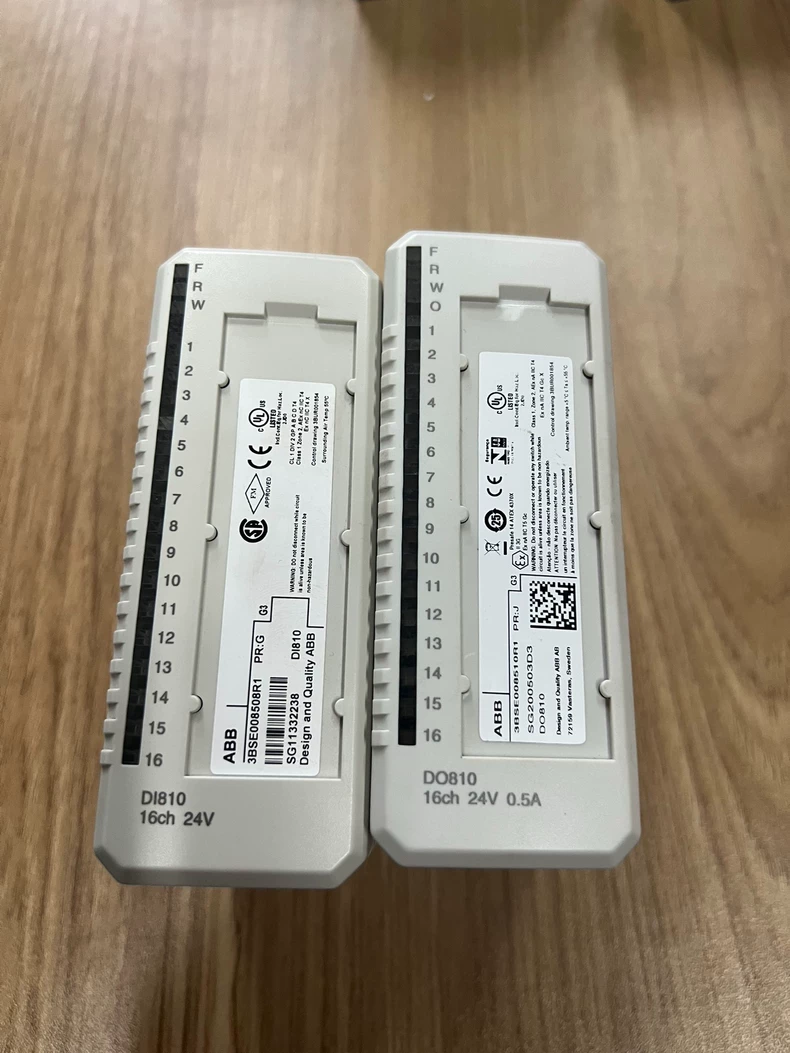

The ABB DO810 (3BSE008510R1) is a high-density digital output module designed for ABB's S800 I/O system, compatible with AC 800M controllers and System 800xA distributed control systems. This rugged industrial module provides reliable switching capabilities for automation applications.

32

ABB

Key Features 16 isolated digital input channels 24V DC voltage sensing (sinking/sourcing configurable) High-density design for space-efficient cabinet installation Hot-swappable for easy maintenance (in compatible systems) Advanced diagnostics with per-channel LED indicators Industrial-grade construction (-25°C to +60°C operation) Technical Specifications Parameter Specification Manufacturer P/N 3BSE008508R1 Input Type 24V DC (dry/wet contact) Input Current 3-5mA typical Isolation 500V between channels Response Time <1ms Power Consumption 1.2W typical Connection Screw terminal block Protection Class IP20 (panel-mounted) Certifications CE, UL, ATEX (optional) Typical Applications Process automation (sensor monitoring, limit switches) Manufacturing systems (machine status inputs) Power generation (breaker status monitoring) Safety systems (emergency stop circuits) Building automation (door/window sensors)

403

ABB

Key Features ✔ PROFIBUS DP-V1 Master Functionality (IEC 61158 compliant) ✔ High-Speed Communication (9.6 kbps to 12 Mbps auto-negotiation) ✔ Dual-Channel Redundancy Support for mission-critical applications ✔ Hot-Swappable Design for easy maintenance ✔ Advanced Diagnostics with comprehensive LED status indicators ✔ Robust Industrial Design (-25°C to +60°C operation) Technical Specifications Parameter Specification Manufacturer P/N 3BSE018135R1 Interface Type PROFIBUS DP-V1 Connector 9-pin D-sub (RS-485) Protocol DP-V1 (supports cyclic/acyclic data) Baud Rate 9.6 kbps - 12 Mbps Isolation 500V galvanic isolation Power Supply 24V DC via backplane Certifications CE, UL, ATEX (optional) Typical Applications Process Automation (oil & gas, chemical plants) Power Generation (turbine control systems) Manufacturing Automation (production lines) Water Treatment (pump station control) Mining Operations (conveyor systems)

388

ABB

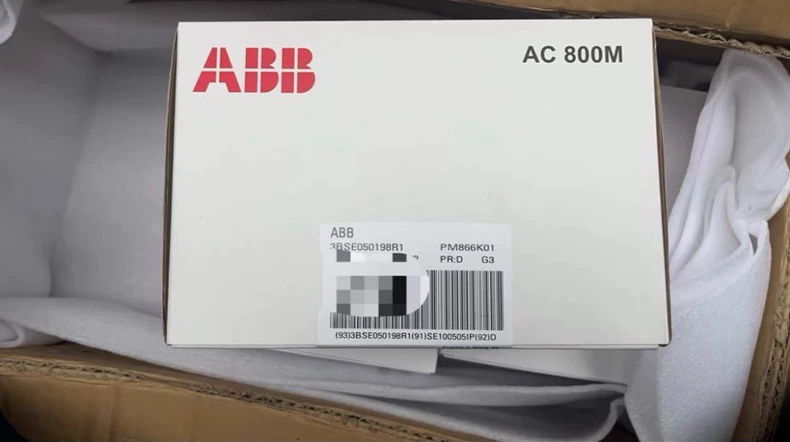

Key Features ✔ Dual-CPU Redundancy - 1:1 hot standby configuration for 99.999% availability ✔ Powerful Processing - 1.1 GHz dual-core CPU with 1 GB RAM for complex control tasks ✔ Extensive Connectivity - Supports PROFIBUS DP/PA, Modbus TCP, OPC UA, and Ethernet/IP ✔ Cybersecurity - IEC 62443 compliant with advanced security features ✔ Industrial Robustness - Operates in -40°C to +70°C harsh environments ✔ Large Capacity - Supports up to 500,000 I/O points system-wide Technical Specifications Parameter Specification Model Number PM866K01 (3BSE050198R1) Processor 1.1 GHz dual-core Memory 1 GB RAM / 256 MB Flash Redundancy Yes (1:1 hot standby) Communication Ethernet, PROFIBUS DP/PA, Modbus TCP, OPC UA I/O Capacity Up to 500,000 I/O points (system-wide) Power Supply 24V DC (redundant inputs) Certifications CE, UL, ATEX (optional) Typical Applications Oil & Gas (refineries, pipelines, offshore platforms) Power Generation (turbine control, SCADA systems) Chemical Processing (batch and continuous processes) Pharmaceutical (GMP-compliant manufacturing) Water/Wastewater (pump control, treatment plants)

595
