Weidmueller

Weidmüller PJ ADV TNAW (1338710000) | Industrial Power Connector Key Features: 16A/400V male plug (pin contacts) Screw Termination 0.5-4mm² IP65/IP67 when mated Robust Design: ✔ PA66 housing (-40°C to +85°C) ✔ Gold-plated contacts ✔ T-lock secure mating Certified: UL 1977, IEC 61076-2-101 Applications: ✔ Control cabinet wiring ✔ Motor power connections ✔ Harsh industrial environments → Reliable high-current connectivity (Female socket version available as PJ ADV TNAF)

244

Weidmueller

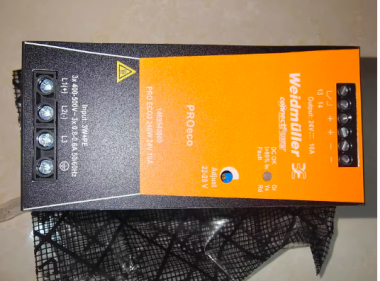

Weidmüller PRO ECO3 240W 24V 10A (1469540000) Key Features: 240W Output (24V DC, 10A) Universal Input 85-264V AC / 120-370V DC High Efficiency ≥94% (Active PFC) 3W+PE Wiring for secure grounding Industrial Ready: ✔ Metal housing, IP20 ✔ Fanless design ✔ -25°C to +70°C operation Certifications: UL 508, EN 62368-1 CE, RoHS Applications: ✔ Control cabinets ✔ Industrial automation ✔ Sensor networks → Reliable power with advanced protection *(DIN-rail mountable, output adjustable 22-28V)*

645

Weidmueller

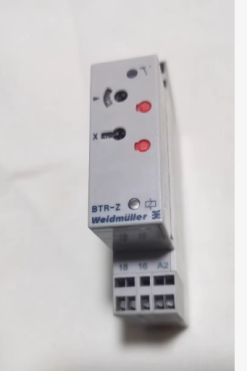

Weidmüller BTR-Z Timer Relay (8647730000) Key Features: Adjustable Timing: 0.1s–120h 4 Modes: ON/OFF delay, interval, flashing Output: SPDT relay (8A 250V AC / 5A 30V DC) Industrial Design: ✔ DIN-rail mount (IP20) ✔ LED status display ✔ -20°C to +60°C operation Certified: CE, UL, RoHS Applications: ✔ Motor start/stop control ✔ Conveyor system timing ✔ Automated lighting sequences → Reliable industrial timing solution *(12-240V AC/DC input versions available)*

575

Weidmueller

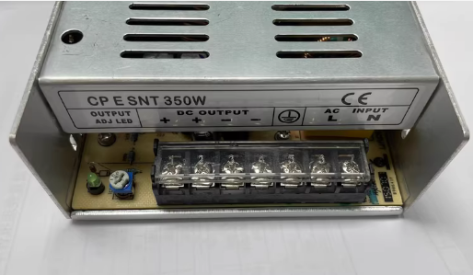

Weidmüller CP E SNT 350W 24V 14.6A (1202550000) Key Features: 350W Output (24V DC, 14.6A) Wide Input Range 100-240V AC / 125-370V DC High Efficiency ≥93% Smart Cooling Temperature-controlled fan Protections: ✔ Overload/Short-circuit ✔ Overvoltage/Overtemperature Industrial Design: Metal housing, IP20 DIN-rail mountable -25°C to +70°C operation Certifications: UL 508, EN 62368-1 CE, RoHS Applications: ✔ Control panels ✔ Industrial drives ✔ Automation systems → Reliable power for demanding applications (Parallel operation supported for redundancy)

557

Weidmueller

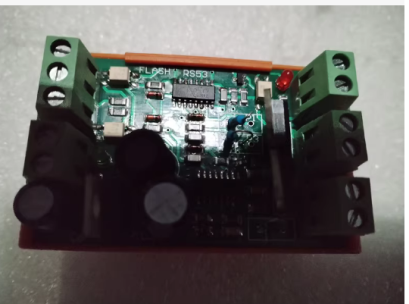

Weidmüller RS53 Trigger Board | Signal Beacon Controller Key Features: Controls RS53 Beacons (Steady/Flash/Rotate modes) 24V DC Input (18-30V) Multi-Color Support (Red/Yellow/Green/Blue/White) Industrial Ready: ✔ DIN-rail mountable (IP20) ✔ -25°C to +60°C operation ✔ Overload protection Certified: CE, UL, RoHS Applications: ✔ Machine status indication ✔ Warning light systems ✔ Production line signaling → Centralized control for industrial visual alarms (Compatible with all RS53 series beacons)

711

Weidmueller

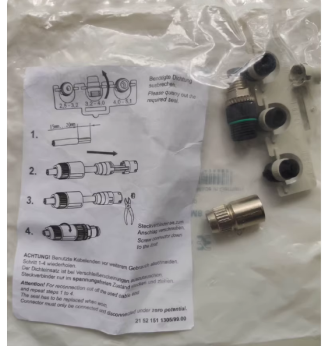

Weidmüller SAIS-3-IDC M8 Small (1784040001) | M8 Sensor Connector Key Features: 3-pin M8 Male (A-coded) IDC Termination (tool-free) IP67/IP69K Rated Industrial Ready: ✔ -40°C to +85°C operation ✔ Gold-plated contacts ✔ 360° EMI shielding Certified: UL, IEC 61076-2-104 Applications: ✔ Proximity sensors ✔ Tight-space cabling ✔ Washdown environments → Compact, reliable sensor connectivity (Screw-termination version available)

745

Weidmueller

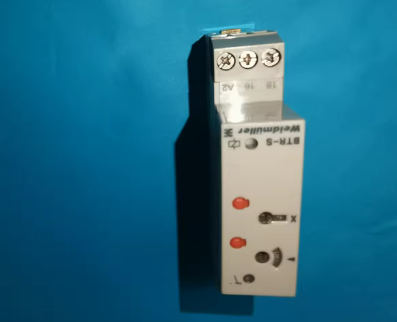

Weidmüller BTR-S Timer Relay (8647720000) Key Features: Adjustable Timing: 0.1s–120h 4 Modes: ON/OFF delay, interval, flashing Output: SPDT relay (8A, 250V AC) Industrial Design: ✔ DIN-rail mount (IP20) ✔ LED status display ✔ -20°C to +60°C operation Certified: CE, UL, RoHS Applications: ✔ Motor start sequencing ✔ Conveyor belt control ✔ Automated lighting → Reliable timing control for industrial systems *(12-240V AC/DC input versions available)*

575

Weidmueller

Weidmüller TRS 24VUC 1CO (1122780000) | SIL3 Safety Relay Key Features: 1NO/1NC Safety Contact (3A 250V AC / 5A 24V DC) 24V DC Supply (19.2-28.8V) Dual-Channel Input with cross-monitoring SIL3/PL e Certified Safety Protections: ✔ Forced-guided contacts ✔ Short-circuit proof ✔ <20ms response time Industrial Design: DIN-rail mount (IP20) -25°C to +60°C operation Certified: TÜV, CE, UL Applications: ✔ Emergency stop systems ✔ Safety gate monitoring ✔ Machine guarding → Compact safety solution for critical controls *(2-channel output version available)*

315

Weidmueller

PRO DM 20 (2486080000) | Industrial Digital Multimeter Key Features: True RMS for AC/DC voltage/current Wide Range: 1000V DC/750V AC, 20A, 40MΩ 6000-Count LCD with backlight CAT III 600V safety rated Industrial Tough: ✔ IP54 dust/splash proof ✔ 1m drop protection ✔ -10°C to +50°C operation Certified: CE, UL, RoHS Applications: ✔ Electrical troubleshooting ✔ Equipment maintenance ✔ HVAC system checks → Reliable measurements for harsh environments (Bluetooth model available for data logging)

920

Weidmueller

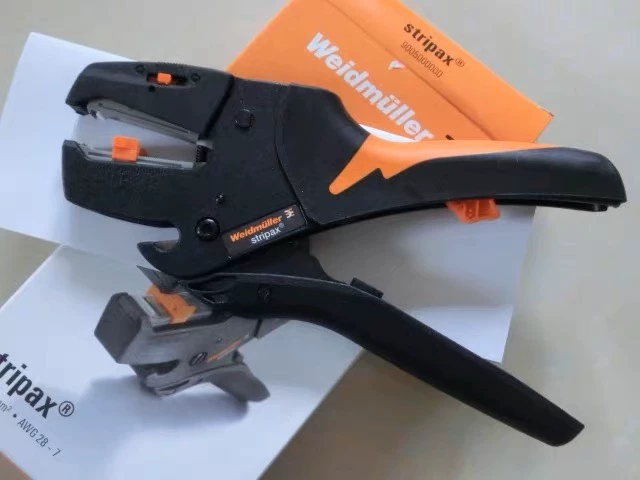

STRIPAX (9005000000) | Automatic Wire Stripper Key Features: Wire Range: 0.08-6mm² (AWG 28-10) Self-Adjusting Jaws for precise stripping Integrated Cutter for cable trimming Professional Design: ✔ Tungsten carbide blades ✔ One-hand spring operation ✔ Ergonomic anti-slip grip Certified: CE, RoHS Applications: ✔ Control panel wiring ✔ Electrical installations ✔ Field maintenance → Fast, clean stripping for industrial cables (VDE-insulated version available)

118

Weidmueller

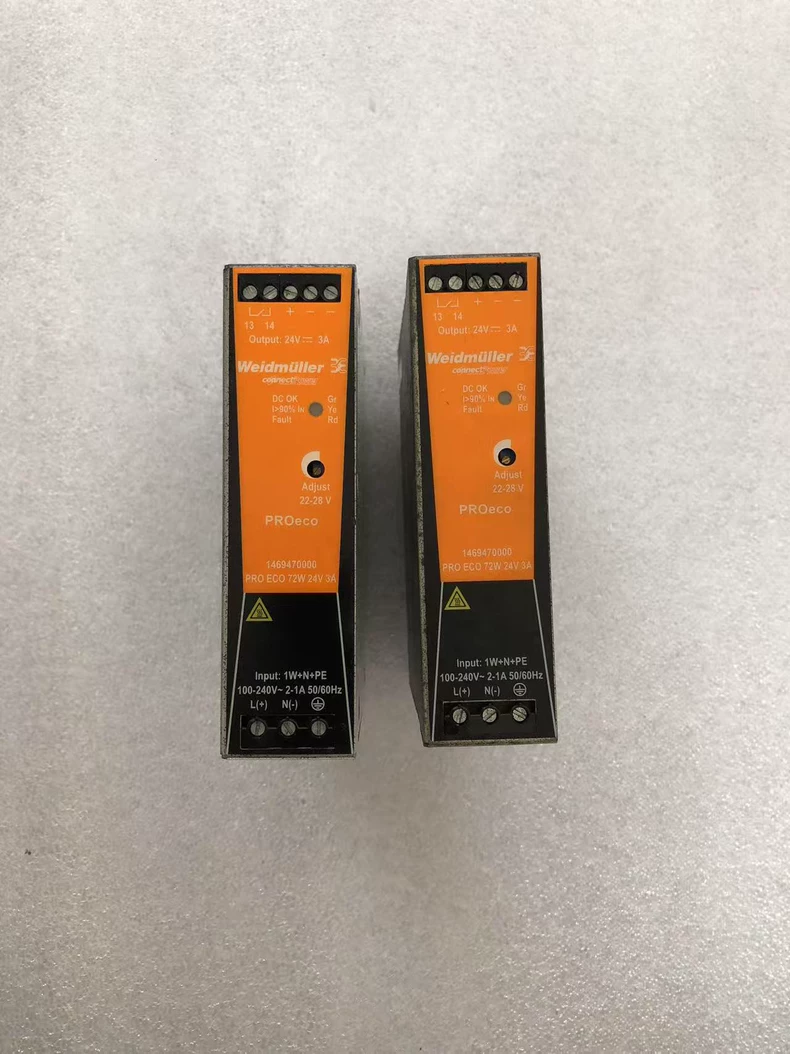

PRO ECO 72W 24V 3A (1469470000) | Compact DIN-Rail Power Supply Key Features: 72W Output (24V DC, 3A) Universal Input 85-264V AC / 120-370V DC Fanless Design for silent operation High Efficiency ≥90% Protections: ✔ Overload/Short-circuit ✔ Overvoltage Space-Saving Design: Ultra-slim 22.5mm width DIN-rail mountable (IP20) -25°C to +70°C operation Certifications: UL 508, EN 62368-1 CE, RoHS Applications: ✔ Sensor networks ✔ Control panel circuits ✔ Low-power devices → Reliable power for small-scale automation (Ideal for cabinet retrofits - no parallel operation)

283

Weidmueller

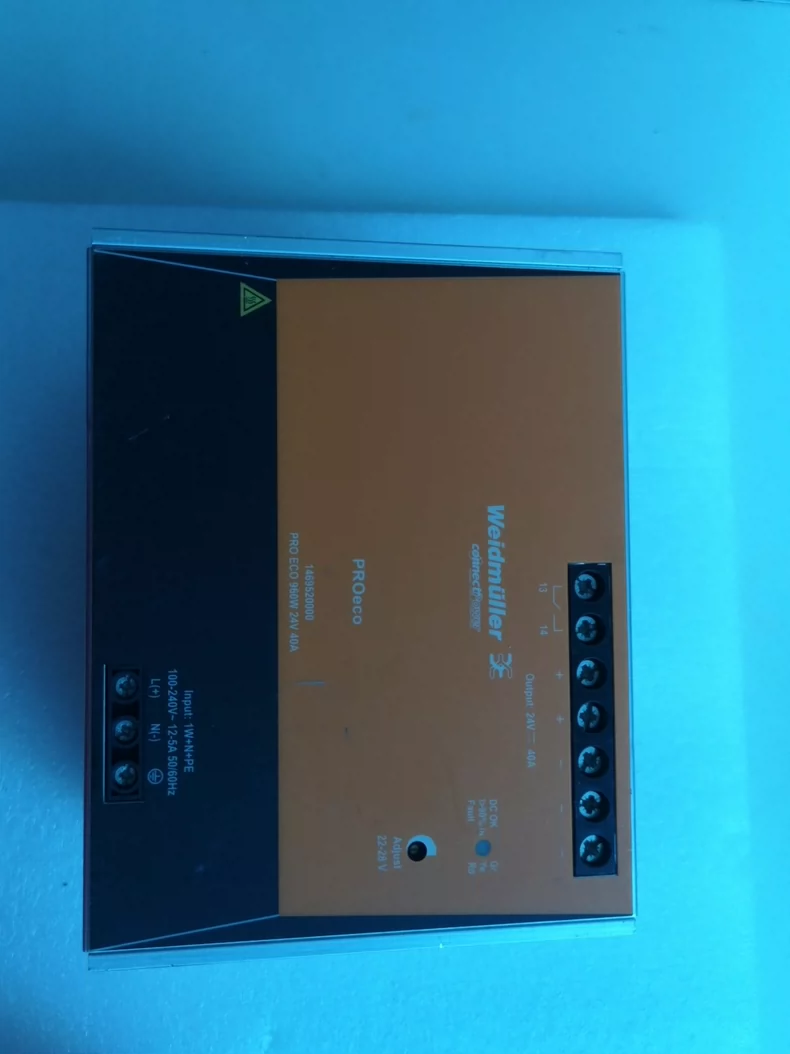

PRO ECO3 960W 24V 40A (1469560000) | Industrial Power Supply Key Features: 960W Output (24V DC, 40A) Wide Input Range 85-264V AC / 120-370V DC High Efficiency ≥94% (Active PFC) Smart Cooling Temperature-controlled fan Protections: ✔ Overload/Short-circuit ✔ Overvoltage/Overtemperature Industrial Design: Metal housing, IP20 DIN-rail mountable -25°C to +70°C operation Certifications: UL 508, EN 62368-1 CE, RoHS Applications: ✔ High-power automation systems ✔ Industrial machinery ✔ Test benches → Reliable high-current power for 24/7 operation (Parallel operation supported for redundancy)

283
