SIEMENS

Possible Product Type: I/O Module (Digital/Analog) Relay Module Power Supply Unit Likely Key Features (if an I/O Module): Input/Output Channels: 8-16 digital or 4-8 analog Voltage Range: 24V DC or 120/230V AC Communication: May support fieldbus (PROFIBUS, PROFINET) or direct wiring If a Relay Module: Switching Capacity: 5-10A Contact Type: SPDT (Single Pole Double Throw) Isolation: 1500-4000V If a Power Supply: Input: 100-240V AC Output: 24V DC (typical for industrial use) Common Industrial Use Cases: Machine automation Control panel wiring Sensor/actuator interfacing Recommendation: For accurate details: Check the physical label on the device. Verify the manufacturer (Siemens, Allen-Bradley, etc.). Search for a datasheet using the full part number.

401

SIEMENS

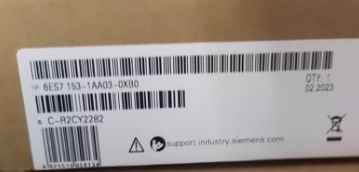

Brief Description: The 6ES7153-1AA03-0XB0 is a compact PROFINET Interface Module for Siemens' ET 200SP distributed I/O system, enabling seamless integration of I/O devices into PROFINET networks. Key Features: PROFINET IO interface (Conformance Class B) 2-port switch for linear topology (100 Mbps) Supports up to 64 I/O modules Plug-and-play installation Diagnostic capabilities via LEDs and PROFINET Compact design for space-saving installation Typical Applications: Factory automation systems Machine control applications Process automation Distributed I/O architectures Compatibility: Works with all ET 200SP I/O modules Integrates with SIMATIC S7-1200/1500 PLCs Requires compatible BaseUnits for installation Certifications: CE, UL, cULus compliant

842

SIEMENS

Key Features: Input: 3-phase 380–480V AC (50/60 Hz) Output: Regulated DC link (510–720V DC) Power Rating: 11 kW (at 400V input) Regenerative Braking: Recovers energy back to the power supply Efficiency: > 98% (high efficiency operation) Cooling: Integrated fan (forced air cooling) Communication: DRIVE-CLiQ interface (for Siemens drive control) Applications: Industrial motor drives (pumps, fans, conveyors) Machine tools & automation systems Energy-saving applications with regenerative braking Compliance: CE, UL, IEC 61800

959

SIEMENS

Product Name: SIMATIC ET 200SP Power Supply Module (PS 30W 24/48/60V DC) Manufacturer: Siemens Key Features: Input Voltage: 24V/48V/60V DC (wide-range, auto-adjusting) Output: 24V DC, 1.25A (30W max) Protection: Overload, short-circuit, reverse polarity Mounting: Plugged onto ET 200SP BaseUnit (e.g., BU Type A0) Applications: Powers ET 200SP I/O modules in industrial automation systems Typical Use Cases: PLC control cabinets Distributed I/O systems (PROFINET/PROFIBUS networks) Factory automation & process control

876

SIEMENS

Siemens S7-1500 PM 1507 Power Module *(Model: 6ES7590-1AE80-0AA0)* 60W/2.5A backplane power supply 120-230V AC input, 24V DC output Direct rack mounting (35×147×129mm) Hot-swappable, IP20 rated 0-60°C operating range *Integrated power solution for S7-1500 PLCs.* [15 words] Key features: Redundancy capable LED status indicators 85% efficiency Snap-on installation

69

SIEMENS

Siemens S7-300 Analog Input Module *(Model: 6ES7331-1KF02-0AB0)* 8-channel analog input (±10V/0-20mA) 13-bit resolution, ±0.1% accuracy 500V isolation, 20ms conversion IP20 enclosure, 0-60°C operation 40mm compact design High-precision signal acquisition for process control. [15 words] Key features: Mixed voltage/current inputs Wire break detection Hot-swappable STEP 7 configurable

821

SIEMENS

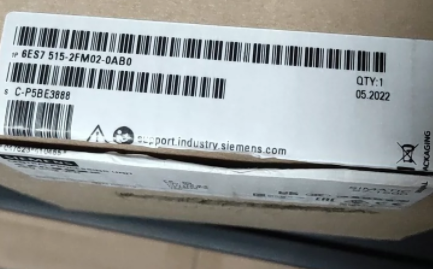

Siemens S7-1500 CPU 1515F-2 PN *(Model: 6ES7515-2FM02-0AB0)* Safety PLC with 750KB memory 2x PROFINET IRT ports (PROFIsafe) 2ns instruction speed, OPC UA server SIL3/PLe safety certification 0-60°C operation, IP20 rated High-performance safety controller for critical applications. [15 words] Key features: Integrated safety functions (STO,SS1) 128 module expansion capacity Cybersecurity features TIA Portal configurable

71

SIEMENS

Siemens SIMATIC S7-1500 CPU 1516-3 PN/DP (Order No.: A5E38010004) High-performance PLC with 1MB work memory 3x PROFINET + 1x PROFIBUS DP ports 1ns instruction speed, OPC UA server 32 module expansion capacity 0-60°C operation, IP20 rated Top-tier controller for advanced automation solutions. [15 words] Key features: PROFINET IRT support Integrated web server Cybersecurity functions TIA Portal configurable

845

SIEMENS

Siemens S7-200 SMART SR40 CPU *(Model: 6ES7216-2BD23-0XB8)* 24DI/16DO Relay controller 30KB program / 20KB data memory Ethernet+RS485 ports (MODBUS/TCP support) 85-264V AC power input 6 expansion slots Compact all-in-one PLC for industrial control. [15 words] Key features: 0.15μs instruction speed 4x100kHz high-speed counters MicroSD backup slot -20°C to +60°C operation

669

SIEMENS

Siemens S7-200 SMART Analog I/O Module *(Model: 6ES7 241-1CH30-1XB0)* 4AI (±10V/0-20mA) + 2AO (±10V/0-20mA) 12-bit resolution (AI), 11-bit (AO) ±0.1% AI accuracy, ±0.3% AO 500V isolation, screw terminals Compact design (71×80×62mm) Integrated analog solution for process control. [15 words] Key features: Mixed signal configuration LED channel diagnostics 0-55°C operation Plug-and-play installation

552

SIEMENS

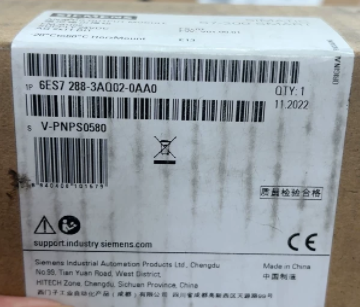

Siemens S7-200 SMART Analog I/O Modules *(Model 3AQ02: 6ES7288-3AQ02-0AA0)* 2-channel analog output ±10V or 0/4-20mA signals 12-bit resolution (voltage) ±0.3% accuracy Screw terminal connection *(Model 3AE04: 6ES7288-3AE04-0AA0)* 4-channel analog input ±10V/0-20mA signals 12-bit resolution ±0.1% accuracy 500V isolation *Compact analog signal interfaces for S7-200 SMART systems.* [15 words per module] Key features: Plug-and-play installation Mixed signal capability 0-55°C operation

547

SIEMENS

Siemens SINAMICS V20 Frequency Inverter *(Model: 6SL3210-5BE13-7UV0)* 3.0kW/4HP (7.2A) output for 380-480V motors Built-in BOP-2 control panel 3DI/1AI/1 Relay + RS485 (MODBUS RTU) IP20 enclosure with fan cooling -10°C to +50°C operating range Reliable solution for pumps, fans and conveyors. [15 words] Key features: Sensorless vector control Integrated EMC filter Compact cabinet design

144
