Category Parameter Specification / Typical Value Electrical Ratings Rated Voltage 300 VAC (3~ + PE) Rated Current ~16 A (Critical: Must verify exact value with datasheet - common values are 16A, 20A, 30A for this form factor) Frequency 50/60 Hz Test Standards Safety Standards UL 60939, IEC 60939, EN 60939 EMC Standards Designed to meet CISPR 11/32, EN 55011/55032 Filter Performance Insertion Loss > 60 dB (Typical at 1 MHz) > 40 dB (Typical at 100 kHz) Leakage Current Line to Ground Typically < 5 mA (at 250VAC, 50Hz) General Data Number of Phases 3-Phase + Protective Earth (PE) Connection Type Screw Terminals (for both line and load sides) Mounting Through-hole or bracket mounting (panel mount) Operating Temperature -25 °C to +100 °C Housing Material Metal case (typically aluminum) for shielding

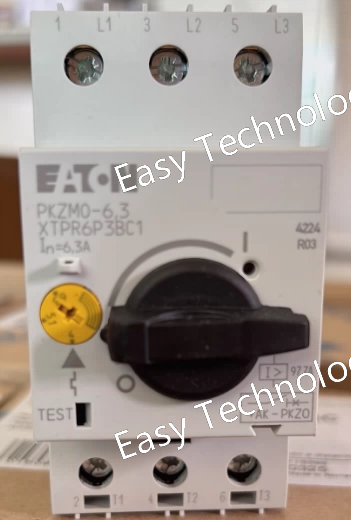

Category Parameter Specification / Typical Value Motor Protection Setting Current Range (Iᵣ) 0.06 - 0.6 A (This is the core protective range) Tripping Class 10 (Standard) / 20 (e.g., for high-inertia loads) - Selectable Protection Functions • Overload • Phase Loss / Unbalance • Jam Protection (with adjustable trip time) • Earth Fault Protection (optional, depends on version) Electrical Characteristics Rated Operational Voltage (Uᵢ) Up to 690 V AC Supply Voltage (for electronics) Typically 24-240 V AC/DC (Auxiliary voltage for the relay's own circuitry) Contacts Output Auxiliary Contacts • 1 NO (95-96) - Fault Signal • 1 NC (97-98) - Fault Signal Rated Current of Aux. Contacts Typically 6 A General Data Mounting Snap-on to compatible Eaton contactors (e.g., DILM series) Standards IEC/EN 60947-4-1, UL 508 Status Indication LED indicators for "Ready", "Alarm/Trip" Ambient Temperature -20 °C to +60 °C

Category Parameter Specification / Typical Value Application & Configuration Protected Circuit Signal circuits (e.g., 4-20 mA, digital I/O) Circuit Configuration 2-pole (Line-to-Line and Line-to-Ground protection) Connection In-series with the signal line Electrical Characteristics Nominal Voltage 8 - 24 V DC (Typical for signal applications) Max. Continuous Operating Voltage (Uc) ~30 V DC (Please verify in datasheet) Nominal Current (In) Up to 250 mA (Suitable for most signal loops) Voltage Drop < 1.5 V (Low, to minimize impact on the signal) Surge Protection Performance Standards Complies with IEC 61643-21 Nominal Discharge Current (In) 5 kA (8/20 μs waveform) Max. Discharge Current (Imax) 10 kA (8/20 μs waveform) Protection Level (Up) < 40 V (at In, typical for this class) General Data Mounting 35 mm DIN Rail Connection Type Screw terminals Housing Material Plastic (PA 6.6) Operating Temperature -40 °C to +80 °C Status Indication None (This is a basic model without visual fault indicator)

Category Parameter Specification / Typical Value Application & Configuration Protected Circuit Signal circuits (e.g., 4-20 mA, digital I/O) Circuit Configuration 2-pole (Line-to-Line and Line-to-Ground protection) Connection In-series with the signal line Electrical Characteristics Nominal Voltage 8 - 24 V DC Max. Continuous Operating Voltage (Uc) ~30 V DC Nominal Current (In) Up to 250 mA Voltage Drop < 1.5 V Surge Protection Performance Standards Complies with IEC 61643-21 Nominal Discharge Current (In) 5 kA (8/20 μs) Max. Discharge Current (Imax) 10 kA (8/20 μs) Protection Level (Up) < 40 V (at In) Monitoring & Signaling (EA Option) Alarm Contact Floating changeover contact (SPDT) Contact Rating Typically 24V DC / 2A (or 230V AC / 2A) Function Changes state upon internal failure of the SPD, signaling the need for replacement. General Data Mounting 35 mm DIN Rail Connection Type Screw terminals (for both signal and alarm contacts) Housing Material Plastic (PA 6.6) Operating Temperature -40 °C to +80 °C Status Indication None (Visual status may not be present; reliance on alarm contact)

Category Parameter Specification / Typical Value Input Characteristics Input Voltage 100 - 240 VAC (Wide Range) Input Frequency 50 / 60 Hz Inrush Current Limiting Yes Output Characteristics Output Voltage Likely 24 V DC (Must be verified with datasheet) Rated Output Current ~2.6 A (if output is 24V) Rated Output Power 63 W Efficiency Typically > 89% Ripple and Noise < 100 mVpp Redundancy Function (EA) Redundancy Capability Yes, designed for parallel operation Key Component Integrated OR-ing diode Integrated Control Function (-SW) PLC Runtime Pre-installed license for Eaton SPC/SPS Programming Software Eaton XVS software package Memory for User Program Typically several MB (for logic, data logs, recipes) Protection & Safety Overload Protection Electronic, auto-recovery Overvoltage Protection Electronic, auto-recovery Standards CE, cULus Listed Environmental & Mechanical Operating Temperature -25 °C to +70 °C (with derating) Cooling Method Fanless (Convection) Mounting Standard 35 mm DIN Rail Connections Screw Terminals

Category Parameter Specification / Typical Value Input Characteristics Input Voltage 100 - 240 VAC (Wide Range, Auto-Sensing) Input Frequency 50 / 60 Hz Inrush Current Limiting Yes Output Characteristics Output Voltage Likely 24 V DC (Must be verified with datasheet) Rated Output Current ~2.6 A (if output is 24V) Rated Output Power 63 W Efficiency Typically > 89% Ripple and Noise < 100 mVpp Line Regulation < 0.5% Load Regulation < 0.5% Redundancy Function (EA) Redundancy Capability Yes, designed for parallel operation Key Component Integrated OR-ing diode to prevent reverse current Protection & Safety Overload Protection Electronic, auto-recovery Overvoltage Protection Electronic, auto-recovery Short-Circuit Protection Yes Standards CE, cULus Listed Environmental & Mechanical Operating Temperature -25 °C to +70 °C (with derating above 60°C) Cooling Method Fanless (Convection) Mounting Standard 35 mm DIN Rail Protection Rating IP20 Connections Screw Terminals

Category Parameter Specification / Typical Value Input Characteristics Input Voltage 100 - 240 VAC (Wide Range) Input Frequency 50 / 60 Hz Output Characteristics Output Voltage 24 V DC Rated Output Current ~1.0 A (at 24V) Rated Output Power 25 W Efficiency Typically > 80% Communication Interface (I2) Protocol IO-Link Functionality • Remote monitoring of output parameters (U, I, P, T) • Diagnostic data (e.g., overload events, short-circuit events) • Parameter setting Protection & Safety Overload Protection Electronic, auto-recovery Overvoltage Protection Electronic, auto-recovery Short-Circuit Protection Yes Environmental & Mechanical Operating Temperature -25 °C to +70 °C (with derating) Cooling Method Fanless (Convection) Mounting Standard 35 mm DIN Rail Connections Screw Terminals (for Power) & IO-Link Port (for Communication)

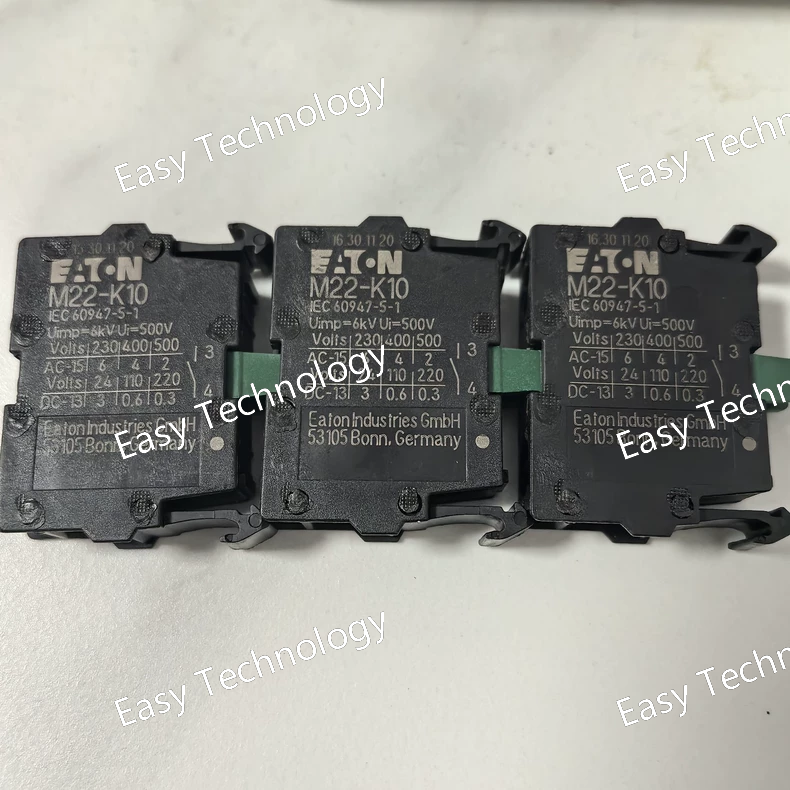

Category Parameter Specification / Typical Value Electrical Characteristics Contact Configuration 1 NO (One Normally Open Contact) Rated Operational Voltage (Ue) Up to 500V AC / 600V DC Rated Impulse Withstand Voltage (Uimp) 6 kV Rated Thermal Current (Ith) 10 A Utilization Category (AC) AC-15: Control of electromagnetic loads (>72 VA) Utilization Category (DC) DC-13: Control of DC electromagnets Mechanical & Switching Electrical Life > 1,000,000 cycles (at rated operational current) Mechanical Life > 5,000,000 cycles Degree of Protection (with actuator) IP65 (Front panel) General Data Mounting Hole Diameter 22.5 mm (ISO Standard) Connection Type Screw Clamp Terminals Actuator Dependency Requires a separate M22 series pushbutton actuator (e.g., a colored button cap) Material Thermoplastic housing Standards IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14

Category Parameter Specification / Typical Value Function & Compatibility Function DC OK / Power Good Signal Compatible Series Eaton P1 Series and P3 Series Power Supplies Mounting Snap-on or direct attachment to the compatible power supply unit Signal Contact Characteristics Contact Type Floating Changeover Contact (SPDT) - 1 NO (Normally Open) + 1 NC (Normally Closed) Contact Rating (Max.) Typically 240V AC, 2A or 30V DC, 2A (Resistive load) Operation State Relay is energized when DC output voltage is normal. Electrical Characteristics Supply Voltage Self-powered from the host power supply (no external wiring required) Response Time Typically a few tens to hundreds of milliseconds (to avoid nuisance tripping on short dips) General Data Connection Type Screw Terminals for the signal contact output Status Indication Usually an LED indicator to show the "DC OK" status Operating Temperature -25 °C to +60 °C (or as per the host PSU specification) Standards Relevant parts of IEC/EN 60947, UL 508

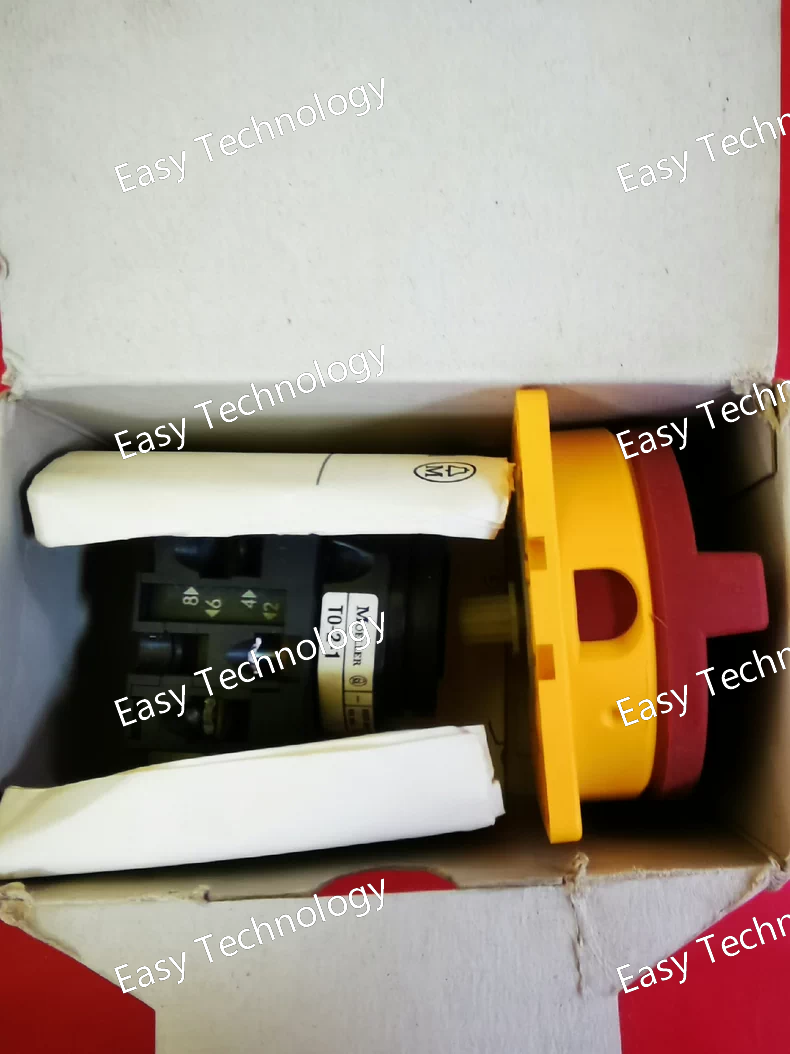

Category Parameter Specification / Typical Value Input Characteristics Input Voltage 100 - 240 VAC (Wide Range, Auto-Sensing) Input Frequency 50 / 60 Hz Inrush Current Limiting Yes (NTC Thermistor) Output Characteristics Output Voltage Likely 24 V DC (Must be verified with datasheet) Rated Output Current ~1.3 A (if output is 24V) Rated Output Power 32 W Efficiency Typically > 81% Ripple and Noise < 150 mVpp Redundancy Function (EA) Redundancy Capability Yes, designed for parallel operation Key Component Integrated OR-ing diode to prevent reverse current Protection & Safety Overload Protection Electronic, auto-recovery Overvoltage Protection Electronic, auto-recovery Short-Circuit Protection Yes Standards CE, cULus Listed Environmental & Mechanical Operating Temperature -25 °C to +70 °C (with derating above 60°C) Cooling Method Fanless (Convection) Mounting Standard 35 mm DIN Rail Protection Rating IP20 Connections Screw Terminals

Category Parameter Specification / Typical Value General Characteristics Product Type Illuminated Selector Switch Actuator Actuator Color Black Positions 2 Positions (e.g., ON-OFF, ON-ON) Illumination Yes Lens Material Polycarbonate or similar thermoplastic Electrical (for Illumination) Lamp Voltage (Typical) 24V AC/DC or other voltages (depends on the specific lamp or LED module used) Lamp Type Typically uses a standard T5 wedge base bulb or an equivalent LED module Mechanical & Physical Mounting Snap-fit onto compatible E50 series contact blocks Mounting Hole Diameter 22.5 mm (Standard) Degree of Protection (Front Panel) IP65 (Dust-tight and protected against water jets) Mechanical Life Several hundred thousand cycles Compatibility Required Base Must be used with one or more E50 series contact blocks (e.g., E52-*, E53-*) to create a functional switch.

Category Parameter Specification / Typical Value Electrical Ratings Rated Voltage 340 VAC (3~ + PE) Rated Current 30 A Frequency 50/60 Hz Test Standards Safety Standards UL 60939, IEC 60939, EN 60939 EMC Standards Designed to meet CISPR 11/32, EN 55011/55032 Filter Performance Insertion Loss > 50 dB (Typical at 1 MHz) > 40 dB (Typical at 100 kHz) Leakage Current Line to Ground Typically < 10 mA (per phase) General Data Number of Phases 3-Phase + Protective Earth (PE) Connection Type Heavy-Duty Screw Terminals (MXL likely indicates this) Mounting Through-hole or bracket mounting (panel mount) Operating Temperature -25 °C to +100 °C Housing Material Metal case (typically aluminum) for effective shielding
