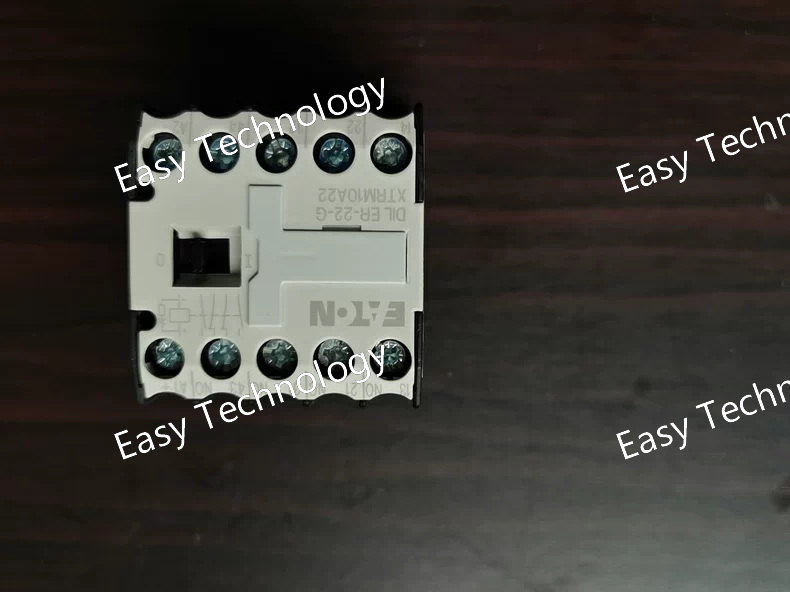

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, DILER Series Model Number DILER-22-G Rated Operational Current (Ie) 6 A (for AC-15 category, 250V AC) Poles 2-Pole Contact Configuration 2 CO (2 Changeover contacts - 2 NO + 2 NC) Rated Operational Voltage (Ue) Up to 250V AC / 300V DC Control Coil Voltage Available in multiple standard AC and DC voltages (e.g., 24V, 110V, 230V AC/DC). The specific voltage must be specified when ordering. Utilization Categories AC-15: Control of electromagnetic loads (≤ 720 VA) DC-13: Control of electromagnetic loads Mechanical Life ~ 10 - 30 million operations Electrical Life Varies by utilization category (e.g., ~ 1-3 million operations at rated AC-15 load) Mounting Standard 35mm DIN Rail (EN 60715) Standards Compliance IEC/EN 60947-5-1 Terminal Type Cage Clamp or Screw Clamp

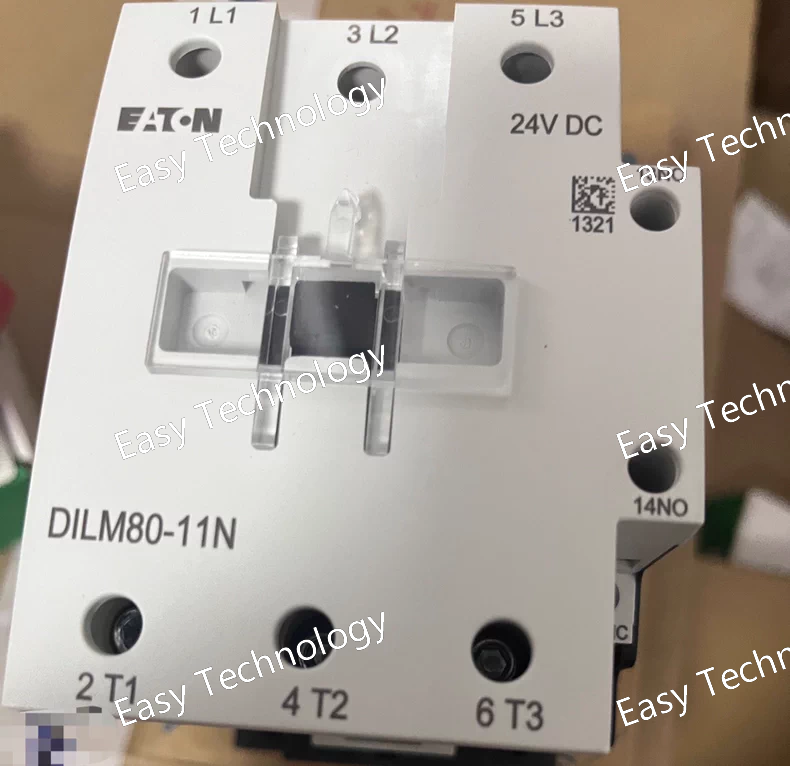

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, DILM Series Model Number DILM80-11N Rated Operational Current (Ie) 80 A at AC-3, 400V Thermal Current (Ith) 80 A Poles (Main Circuit) 3 (Normally Open) Auxiliary Contacts 1 NO (Normally Open) + 1 NC (Normally Closed) - Convertible Rated Operational Voltage (Ue) Up to 690V AC Control Coil Voltage AC operating coil (Specific voltage must be specified when ordering, e.g., 230V AC). Utilization Categories AC-3: Squirrel cage motors: Starting, switching off during running AC-1: Non-inductive or slightly inductive loads Motor Rating (at 400V AC) 37 kW / 50 HP Mechanical Life ~ 10 million operations Electrical Life (AC-3) ~ 1 million operations Mounting Standard 35mm DIN Rail (EN 60715) or screw mounting Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 Terminal Type Screw Clamp

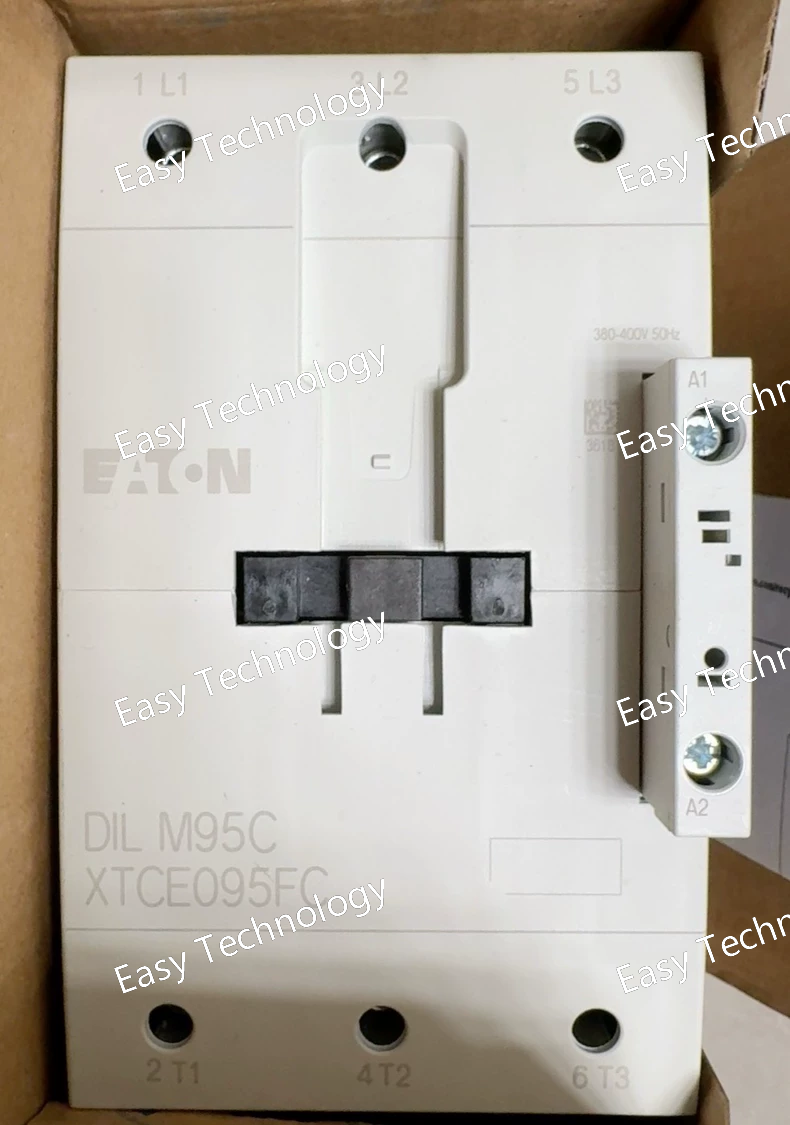

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, DILM Series Model Number DILM95C XTCE095FC Rated Operational Current (Ie) 95 A at AC-3, 400V Thermal Current (Ith) 95 A Poles (Main Circuit) 3 (Normally Open) Auxiliary Contacts Typically 1 NO (Normally Open) - Fixed (configurable with additional blocks) Rated Operational Voltage (Ue) Up to 690V AC Control Coil Voltage DC operating coil (Specific voltage defined by the XTCE095FC suffix, e.g., 24V DC). Utilization Categories AC-3: Squirrel cage motors: Starting, switching off during running AC-1: Non-inductive or slightly inductive loads Motor Rating (at 400V AC) 45 kW / 60 HP Mechanical Life ~ 10 million operations Electrical Life (AC-3) ~ 1 million operations Mounting Standard 35mm DIN Rail (EN 60715) or screw mounting Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 Terminal Type Screw Clamp

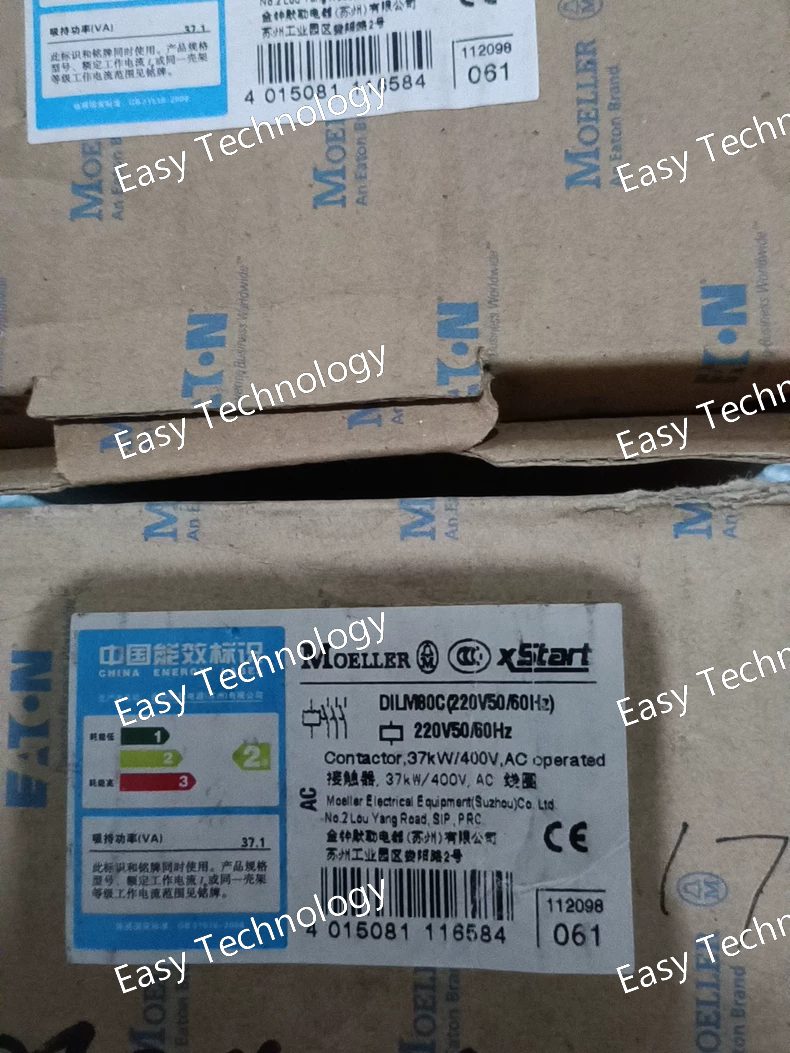

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, DILM Series Model Number DILM80C Rated Operational Current (Ie) 80 A at AC-3, 400V Thermal Current (Ith) 80 A Poles (Main Circuit) 3 (Normally Open) Auxiliary Contacts Typically 1 NO (Normally Open) - Fixed (configurable with additional blocks) Rated Operational Voltage (Ue) Up to 690V AC Control Coil Voltage DC operating coil (Specific voltage must be specified when ordering, e.g., 24V DC, 110V DC). Utilization Categories AC-3: Squirrel cage motors: Starting, switching off during running AC-1: Non-inductive or slightly inductive loads Motor Rating (at 400V AC) 37 kW / 50 HP Mechanical Life ~ 10 million operations Electrical Life (AC-3) ~ 1 million operations Mounting Standard 35mm DIN Rail (EN 60715) or screw mounting Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 Terminal Type Screw Clamp

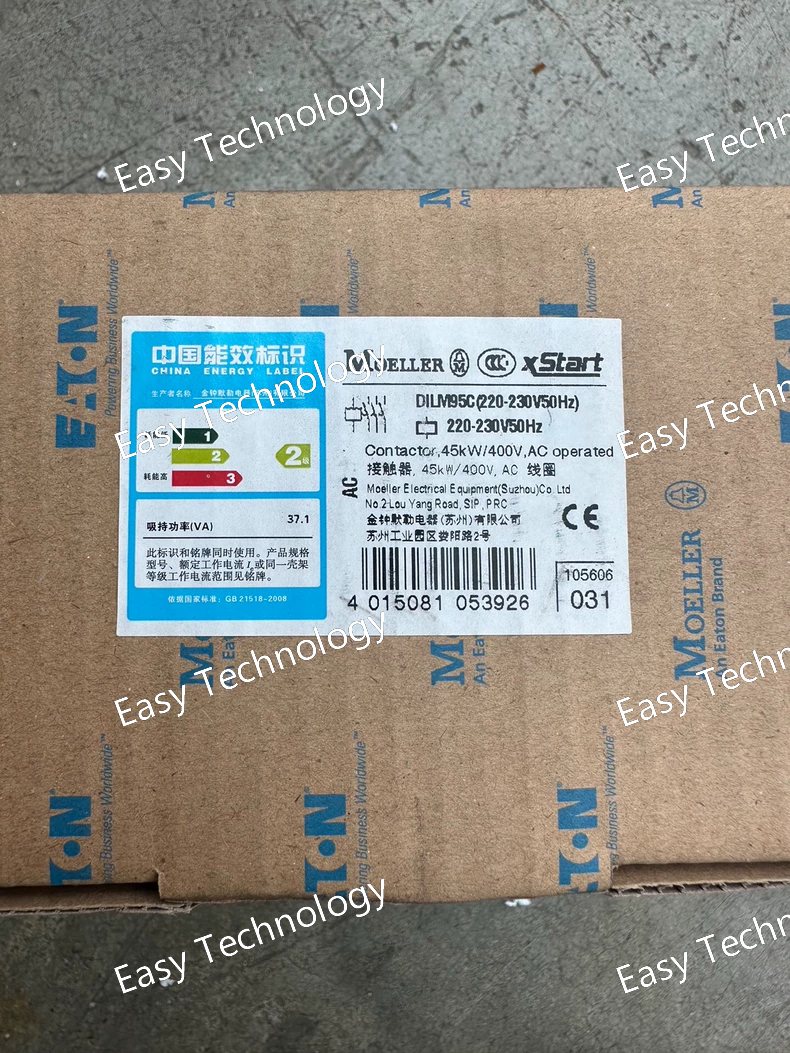

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, DILM Series Model Number DILM95 Rated Operational Current (Ie) 95 A at AC-3, 400V Thermal Current (Ith) 95 A Poles (Main Circuit) 3 (Normally Open) Auxiliary Contacts Typically 1 NO (Normally Open) - Fixed (configurable with additional blocks) Rated Operational Voltage (Ue) Up to 690V AC Control Coil Voltage Available in multiple standard AC voltages (e.g., 24V, 110V, 230V, 400V AC). The specific voltage must be specified when ordering. Utilization Categories AC-3: Squirrel cage motors: Starting, switching off during running AC-1: Non-inductive or slightly inductive loads Motor Rating (at 400V AC) 45 kW / 60 HP Mechanical Life ~ 10 million operations Electrical Life (AC-3) ~ 1 million operations Mounting Standard 35mm DIN Rail (EN 60715) or screw mounting Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 Terminal Type Screw Clamp

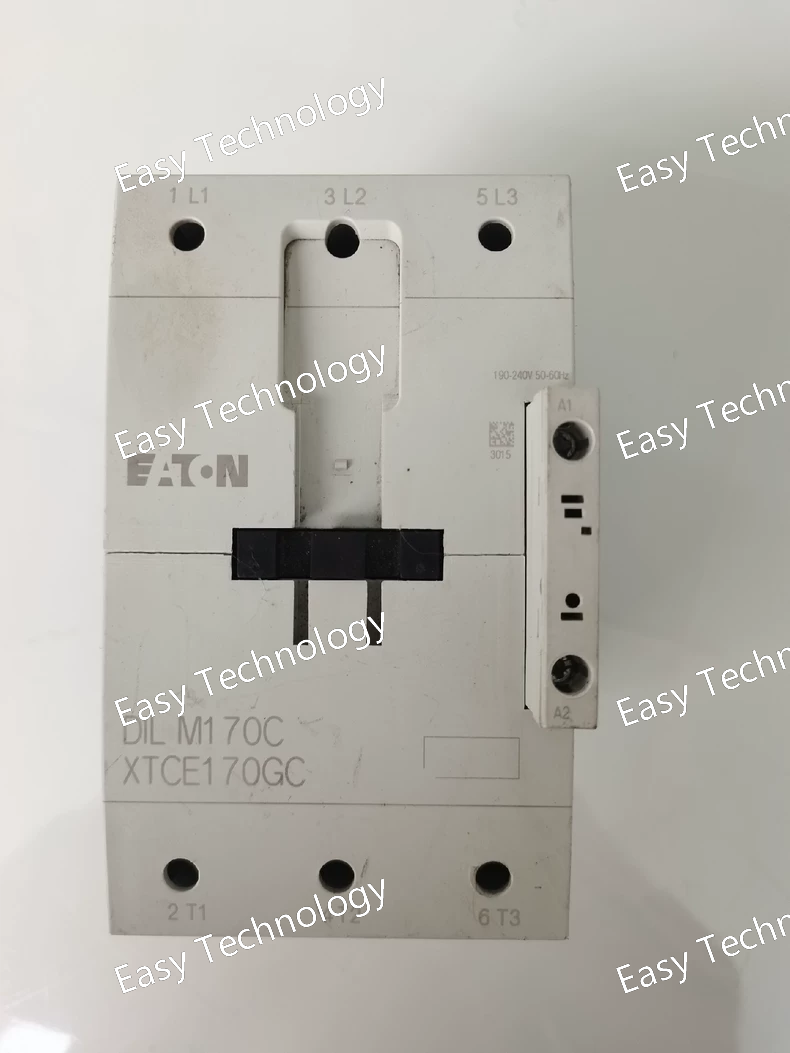

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, DILM Series Model Number DILM170C XTCE170GC Rated Operational Current (Ie) 170 A at AC-3, 400V Thermal Current (Ith) 170 A Poles (Main Circuit) 3 (Normally Open) Auxiliary Contacts Typically 1 NO (Normally Open) - Fixed (configurable with additional blocks) Rated Operational Voltage (Ue) Up to 690V AC Control Coil Voltage DC operating coil (Specific voltage defined by the XTCE170GC suffix). Utilization Categories AC-3: Squirrel cage motors: Starting, switching off during running AC-1: Non-inductive or slightly inductive loads Motor Rating (at 400V AC) 75 kW / 100 HP Mechanical Life ~ 5-10 million operations Electrical Life (AC-3) ~ 0.5-1 million operations Mounting Screw mounting (due to size and weight) Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 Terminal Type Screw Clamp

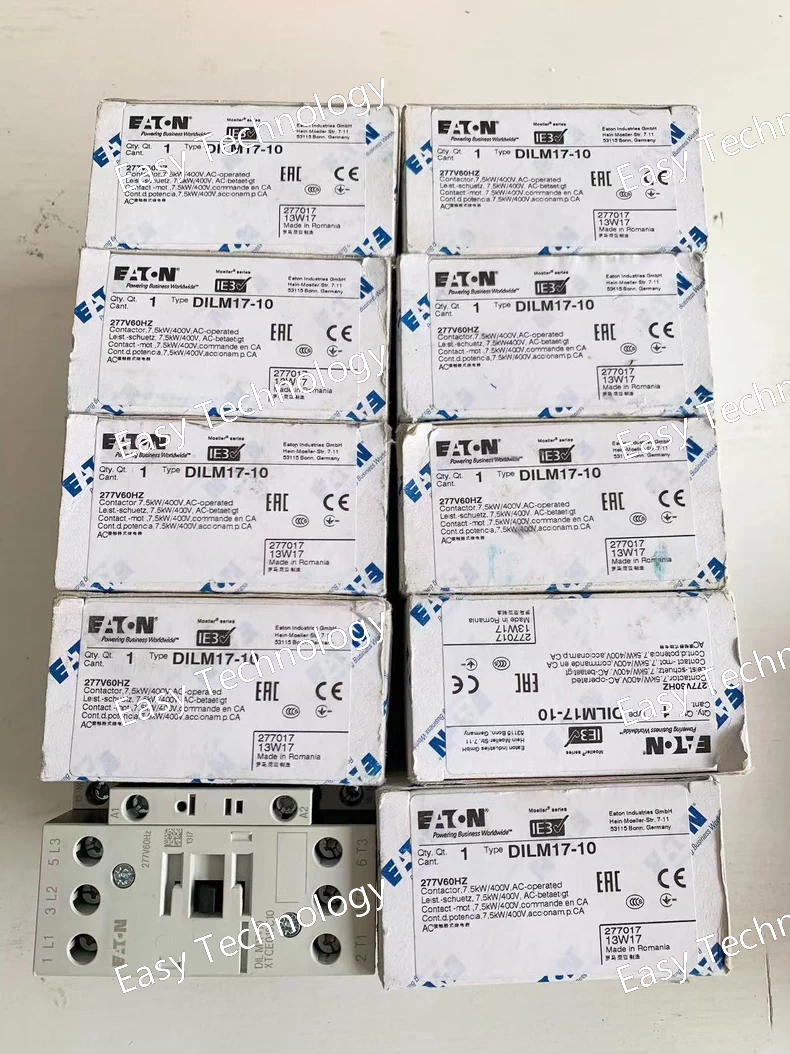

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, DILM Series Model Number DILM17-10 Rated Operational Current (Ie) 17 A at AC-3, 400V Thermal Current (Ith) 17 A Poles (Main Circuit) 3 (Normally Open) Auxiliary Contacts 1 NO (Normally Open) + 1 NC (Normally Closed) - Convertible Rated Operational Voltage (Ue) Up to 690V AC Control Coil Voltage Available in multiple standard AC voltages (e.g., 24V, 110V, 230V, 400V AC). The specific voltage must be specified when ordering. Utilization Categories AC-3: Squirrel cage motors: Starting, switching off during running AC-1: Non-inductive or slightly inductive loads Motor Rating (at 400V AC) 7.5 kW / 10 HP Mechanical Life ~ 15 million operations Electrical Life (AC-3) ~ 1.5 million operations Mounting Standard 35mm DIN Rail (EN 60715) or screw mounting Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 Terminal Type Cage Clamp / Screw Clamp

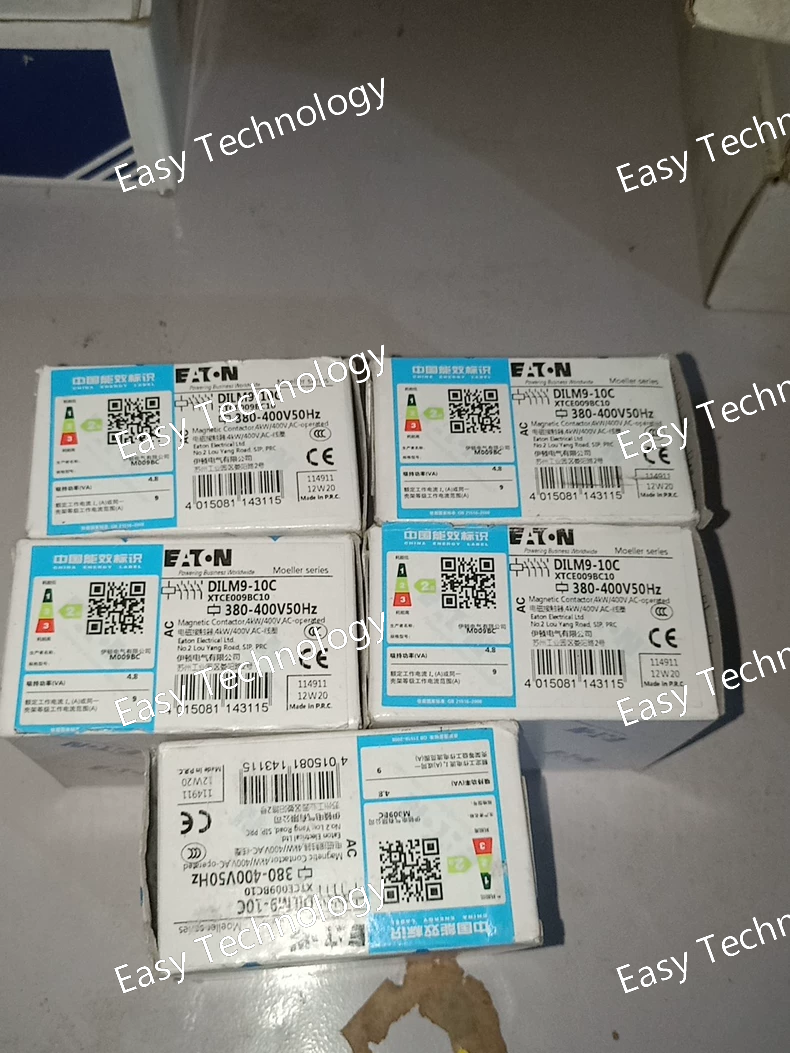

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, DILM Series Model Number DILM9-10C Rated Operational Current (Ie) 9 A at AC-3, 400V Thermal Current (Ith) 9 A Poles (Main Circuit) 3 (Normally Open) Auxiliary Contacts 1 NO (Normally Open) + 1 NC (Normally Closed) - Convertible Rated Operational Voltage (Ue) Up to 690V AC Control Coil Voltage DC operating coil (Specific voltage must be specified when ordering, e.g., 24V DC, 110V DC). Utilization Categories AC-3: Squirrel cage motors: Starting, switching off during running AC-1: Non-inductive or slightly inductive loads Motor Rating (at 400V AC) 4 kW / 5.5 HP Mechanical Life ~ 15 million operations Electrical Life (AC-3) ~ 1.5 million operations Mounting Standard 35mm DIN Rail (EN 60715) or screw mounting Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 Terminal Type Cage Clamp / Screw Clamp

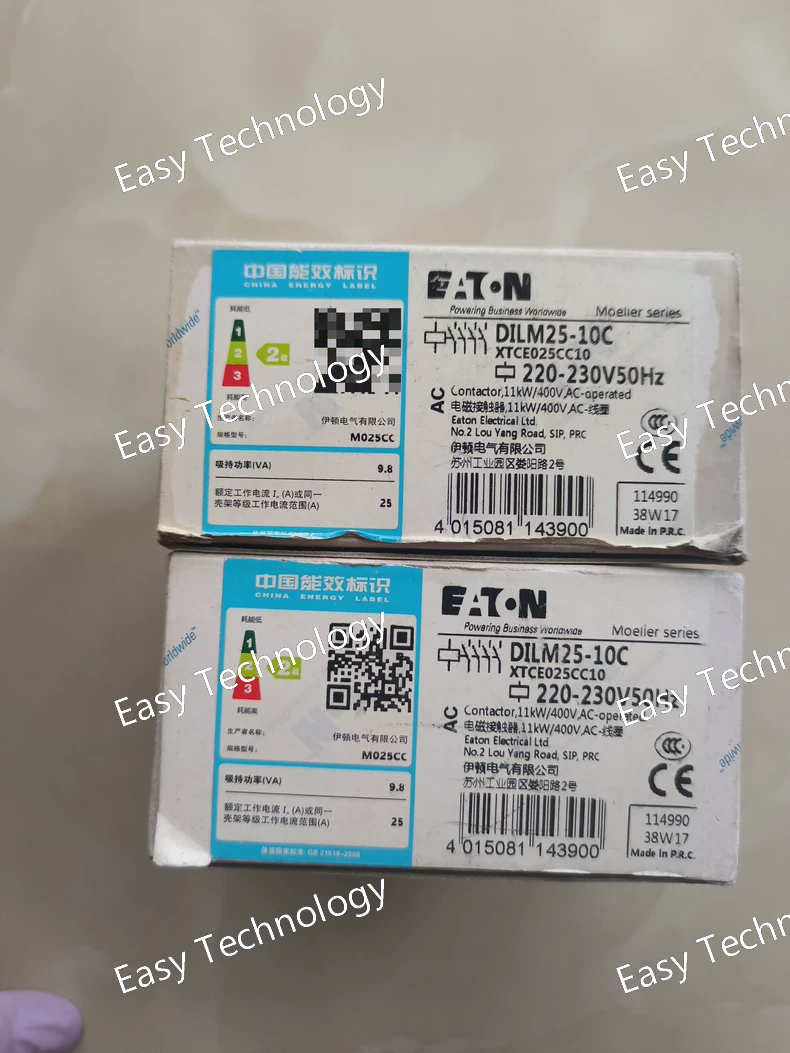

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, DILM Series Model Number DILM25-10C Rated Operational Current (Ie) 25 A at AC-3, 400V Thermal Current (Ith) 25 A Poles (Main Circuit) 3 (Normally Open) Auxiliary Contacts 1 NO (Normally Open) + 1 NC (Normally Closed) - Convertible Rated Operational Voltage (Ue) Up to 690V AC Control Coil Voltage DC operating coil (Specific voltage must be specified when ordering, e.g., 24V DC, 110V DC). Utilization Categories AC-3: Squirrel cage motors: Starting, switching off during running AC-1: Non-inductive or slightly inductive loads Motor Rating (at 400V AC) 11 kW / 15 HP Mechanical Life ~ 15 million operations Electrical Life (AC-3) ~ 1.5 million operations Mounting Standard 35mm DIN Rail (EN 60715) or screw mounting Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 Terminal Type Cage Clamp / Screw Clamp

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, M25 Series Model Number M25-01C Sensor Type Inductive Proximity Sensor Housing Material Nickel-plated brass or Stainless Steel Thread Size M25 x 1.5 Connection Type Built-in connector (e.g., M12 connector) Sensing Distance 8 mm (Standard for M25 inductive sensors) Output Type DC 3-wire Output Logic PNP (Sourcing output) - "C" often indicates PNP, NO Output Function Normally Open (NO) Supply Voltage 10-30V DC Rated Operating Current ≤ 200 mA Switching Frequency ≤ 500 Hz Protection Degree IP67 Standards Compliance IEC 60947-5-2

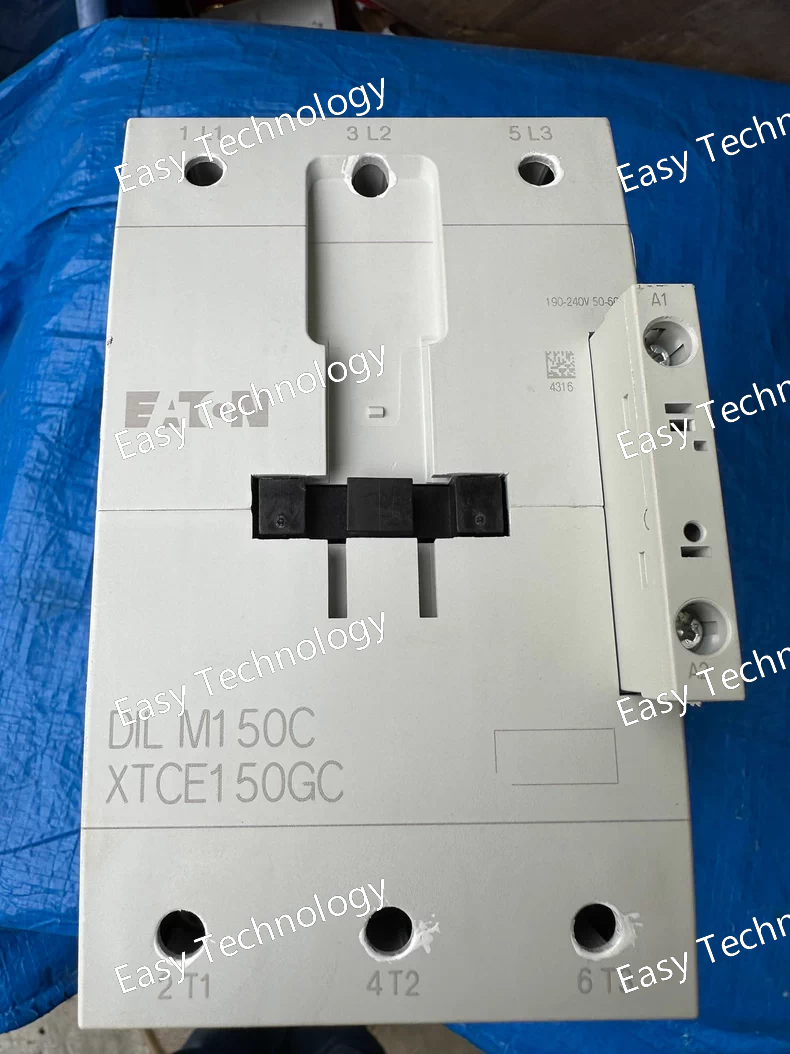

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, DILM Series Model Number DILM150C Rated Operational Current (Ie) 150 A at AC-3, 400V Thermal Current (Ith) 150 A Poles (Main Circuit) 3 (Normally Open) Auxiliary Contacts Typically 1 NO (Normally Open) - Fixed (configurable with additional blocks) Rated Operational Voltage (Ue) Up to 690V AC Control Coil Voltage DC operating coil (Specific voltage must be specified when ordering, e.g., 24V DC, 110V DC). Utilization Categories AC-3: Squirrel cage motors: Starting, switching off during running AC-1: Non-inductive or slightly inductive loads Motor Rating (at 400V AC) 75 kW / 100 HP Mechanical Life ~ 5-10 million operations Electrical Life (AC-3) ~ 0.5-1 million operations Mounting Screw mounting (due to size and weight) Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 Terminal Type Screw Clamp

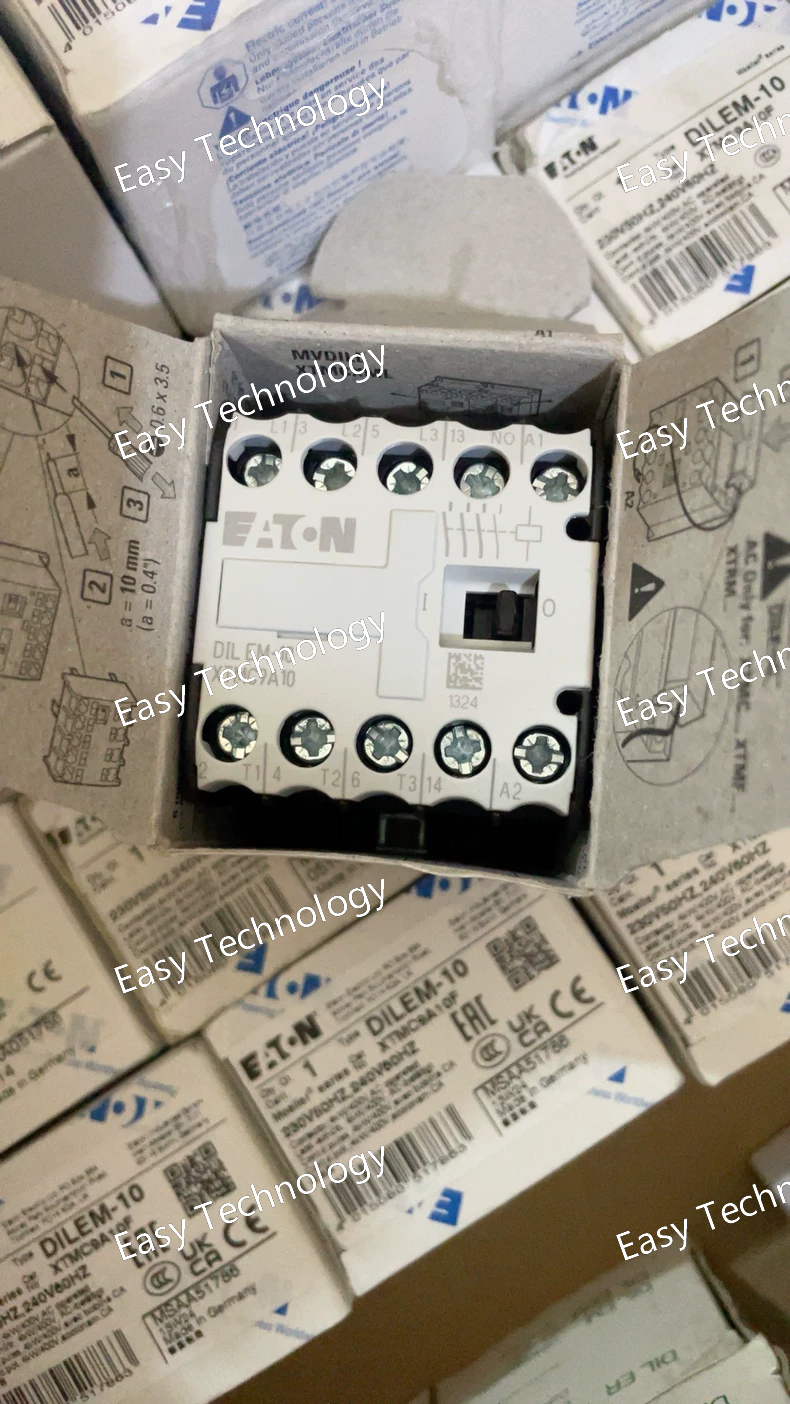

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, DILEM Series Model Number DILEM-10 Rated Operational Current (Ie) Specific current rating corresponding to "10" code (typically in the range of 9-12A) Poles (Main Circuit) 3 (Normally Open) Auxiliary Contacts Convertible auxiliary contacts (configuration varies by specific "10" variant) Rated Operational Voltage (Ue) Up to 690V AC Control Coil Voltage Available in multiple standard AC voltages (e.g., 24V, 110V, 230V AC) Utilization Categories AC-3: Squirrel cage motors: Starting, switching off during running AC-1: Non-inductive or slightly inductive loads Mounting Standard 35mm DIN Rail (EN 60715) Standards Compliance IEC/EN 60947-4-1
