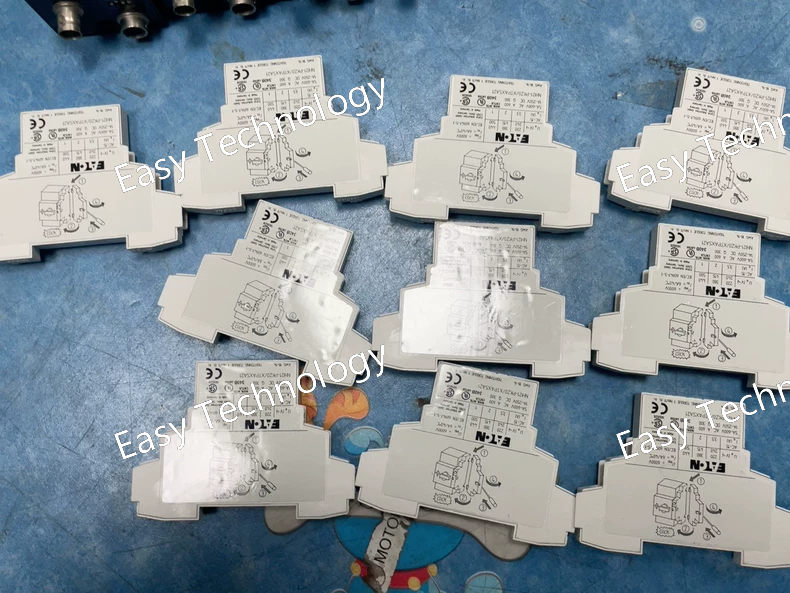

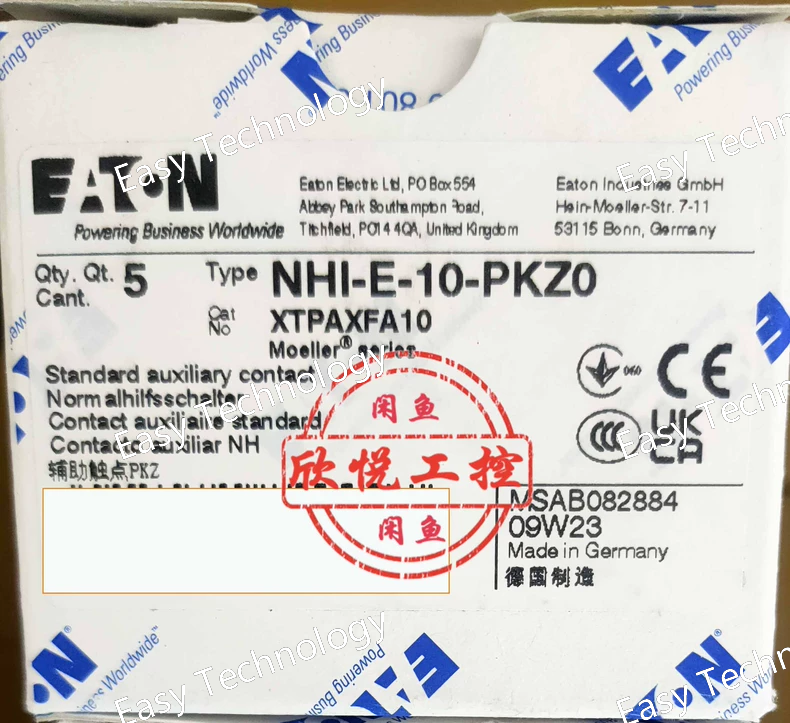

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, NHI Series Model Number NHI-E-10-PKZ0 Poles 3-Pole Trip Class Class 10 Current Setting Range 0.10 - 0.14 A Rated Operational Voltage (Ue) 690V AC Rated Insulation Voltage (Ui) 1000V AC Ambient Temperature Range -20°C to +55°C (Without derating) Standards Compliance IEC/EN 60947-4-1 Mounting Snap-on mounting to compatible Eaton PKZ0 series contactors Auxiliary Contacts 1 NO (95-96) + 1 NC (97-98) Reset Mode Manual reset

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, PKZ0 Series Model Designation U-PKZ0 System Type Combined Motor Starter (Contactor + Overload Relay) Rated Operational Current Varies by specific contactor and overload relay combination (e.g., up to 25A for PKZ0 system) Poles 3-Pole (Main circuit) Rated Operational Voltage (Ue) Up to 690V AC Control Voltage Various AC and DC voltages available Protection Functions Overload Protection, Phase Failure Protection Trip Class Class 10 (Standard) Mounting DIN Rail (35mm) Standards Compliance IEC/EN 60947-4-1

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, BK Series Model Number BK25/3-PKZ0-E Mounting Diameter 25 mm Function Illuminated Pushbutton Actuator Type /3 - Specific actuator style and color (e.g., typically a colored, illuminated mushroom head for emergency stop or similar function). Compatibility PKZ0 motor starter system Contact Configuration 1 NC (Normally Closed) - Typical for E-Stop functions. Rated Operational Voltage (Ue) AC-15: 240V AC DC-13: 60V DC Rated Thermal Current (Ith) 10 A Mounting Panel Mount Protection Degree Front panel: IP65 Mechanical Life > 1,000,000 operations Electrical Life > 100,000 operations (at rated load) Standards Compliance IEC/EN 60947-5-1

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, NHI Series Model Number NHI21-PKZ0 Poles 3-Pole Trip Class Class 10 Current Setting Range Specific range corresponding to "21" code (e.g., likely between 0.25A - 25A, exact range must be confirmed via datasheet). Rated Operational Voltage (Ue) 690V AC Rated Insulation Voltage (Ui) 1000V AC Ambient Temperature Range -20°C to +60°C Standards Compliance IEC/EN 60947-4-1 Mounting Snap-on mounting to compatible Eaton PKZ0 series contactors Auxiliary Contacts 1 NO (95-96) + 1 NC (97-98) Reset Mode Manual reset (typical for NHI series)

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, M22 Series Model Number M22S-D-G Sensor Type Inductive Proximity Sensor Housing Material Nickel-plated brass Thread Size M22 x 1.5 Connection Type Pre-wired cable (Standard length, e.g., 2m) Sensing Distance 5 mm Output Type DC 3-wire Output Logic NPN (Sinking output) Output Function Normally Open (NO) Supply Voltage 10-30V DC Rated Operating Current ≤ 200 mA Switching Frequency ≤ 500 Hz Hysteresis ≤ 10% of sensing distance Protection Degree IP67 Standards Compliance IEC 60947-5-2

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, M Series Model Number M025CC Sensor Type Inductive Proximity Sensor Housing Shape Compact Cylindrical Housing Material Stainless Steel or Nickel-plated brass Thread Size M8, M12, or M18 (Specific size must be confirmed via datasheet) Connection Type Built-in Connector (e.g., M12 connector) Sensing Distance Varies by thread size (e.g., 1.5mm, 2mm, 5mm, 8mm) Output Type DC 3-wire Output Logic PNP (Sourcing output) - "CC" often indicates PNP, NO Output Function Normally Open (NO) Supply Voltage 10-30V DC Rated Operating Current ≤ 200 mA Switching Frequency ≤ 1 kHz Protection Degree IP67 Standards Compliance IEC 60947-5-2

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, M Series Model Number M012BC Sensor Type Inductive Proximity Sensor Housing Shape Compact Cylindrical Housing Material Stainless Steel or Nickel-plated brass Thread Size M8 (Likely, based on "012" code) Connection Type Built-in Connector (e.g., M8 connector) Sensing Distance 1.5 mm or 2 mm (Standard for M8 size) Output Type DC 3-wire Output Logic PNP (Sourcing output) - "BC" often indicates PNP, NC Output Function Normally Closed (NC) Supply Voltage 10-30V DC Rated Operating Current ≤ 200 mA Switching Frequency ≤ 1.5 kHz Protection Degree IP67 Standards Compliance IEC 60947-5-2

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, M Series Model Number M007BC Sensor Type Inductive Proximity Sensor Housing Shape Miniature Cylindrical Housing Material Stainless Steel Thread Size M5 (Likely, based on "007" code) Connection Type Built-in Miniature Connector (e.g., M5 or M8 connector) Sensing Distance 0.8 mm or 1 mm (Standard for M5 size) Output Type DC 3-wire Output Logic PNP (Sourcing output) - "BC" often indicates PNP, NC Output Function Normally Closed (NC) Supply Voltage 10-30V DC Rated Operating Current ≤ 100 mA Switching Frequency ≤ 2 kHz Protection Degree IP67 Standards Compliance IEC 60947-5-2

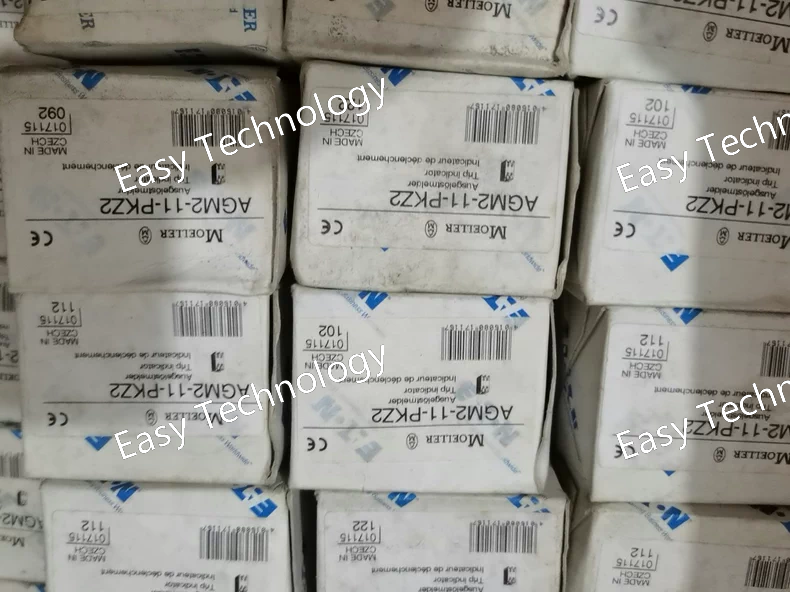

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, AGM2 Series Model Number AGM2-11-PKZ2 Rated Operational Current (Ie) Specific value corresponding to "11" (e.g., likely a lower current rating such as 1.0 - 1.6A or similar). Poles 3-Pole Rated Operational Voltage (Ue) 690V AC Rated Insulation Voltage (Ui) 750V AC Utilization Category AC-3 (Squirrel cage motors: Starting, switching off during running) Motor Power Rating (at 400V AC) Specific kW/HP rating based on the "11" current code (e.g., ~0.55 kW / 0.75 HP). Short-Circuit Breaking Capacity (Icu) Typically 6 kA or higher at 400V AC (Confirm with datasheet) Trip Class Class 10 Operation Type Manual (Toggle Handle) Mounting DIN Rail (35mm) Standards Compliance IEC/EN 60947-4-1

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, ZB Series Model Number ZB32C-6 Output Voltage 6V DC Rated Output Power 32 W Rated Output Current 5.33 A Input Voltage Range 85-264V AC (Wide range, auto-sensing) Input Frequency Range 47-63 Hz Efficiency Typically >85% Power Factor (PF) Typically >0.9 Output Adjustment Range Typically ±10% (e.g., 5.4-6.6V DC) Mounting DIN Rail (35mm) Protection Overload Protection, Overvoltage Protection, Short-Circuit Protection Standards Compliance IEC/EN 61347-1, IEC/EN 61347-2-13, UL 1310, CSA C22.2 No. 223

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, PKZMC Series Model Number PKZMC-0.16 Rated Operational Current (Ie) 0.16 A Poles 3-Pole Rated Operational Voltage (Ue) 690V AC Rated Insulation Voltage (Ui) 750V AC Utilization Category AC-3 (Squirrel cage motors: Starting, switching off during running) Motor Power Rating (at 400V AC) ~0.06 kW / 0.08 HP (Approximate) Short-Circuit Breaking Capacity (Icu) Typically 6 kA or higher at 400V AC (Confirm with datasheet) Trip Class Class 10 Operation Type Manual (Toggle Handle) Mounting DIN Rail (35mm) Standards Compliance IEC/EN 60947-4-1

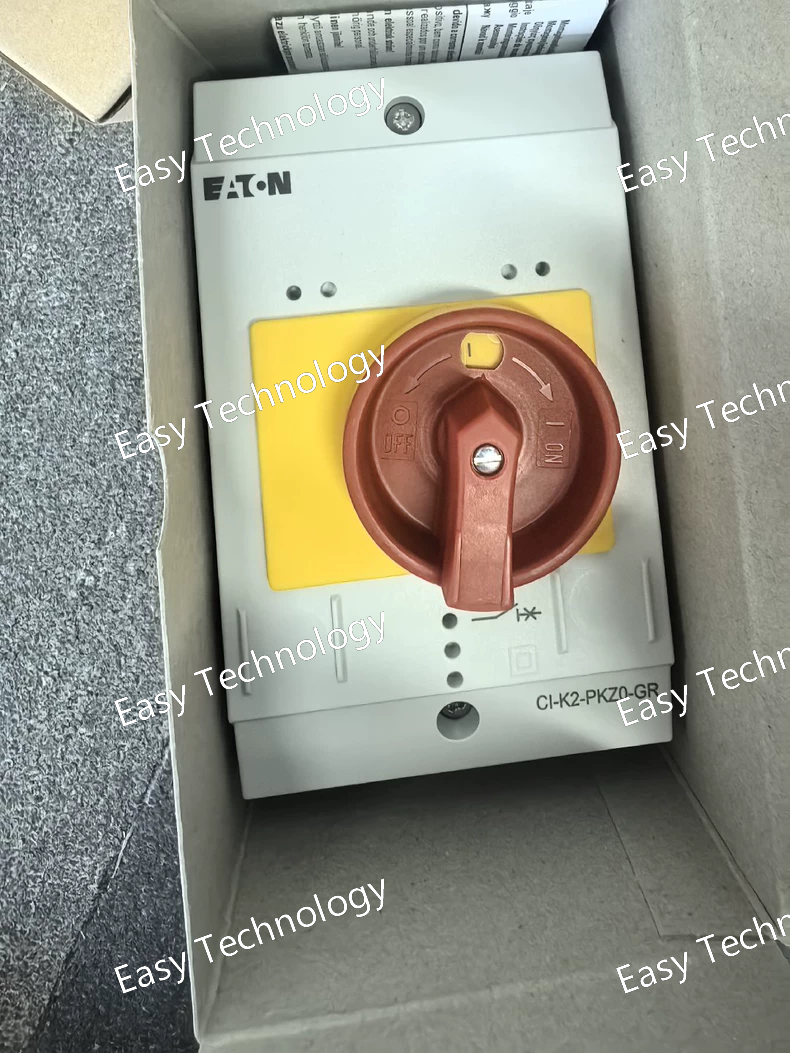

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, CI Series (Control Interface) for PKZ0 System Model Number CI-K2-PKZ0-GR Compatibility PKZ0 motor starter system Function K2 - Specific control function (e.g., specific relay configuration, interface type). Color GR - Gray Rated Operational Voltage (Ue) Dependent on internal relay/electronics (e.g., 24V DC, 230V AC). Contact Configuration Specific to the K2 function (e.g., may contain relays with NO/NC contacts). Mounting DIN Rail (35mm), typically mounts adjacent to or integrated with the PKZ0 starter. Standards Compliance Relevant parts of IEC/EN 60947 series (e.g., -4-1, -5-1).
