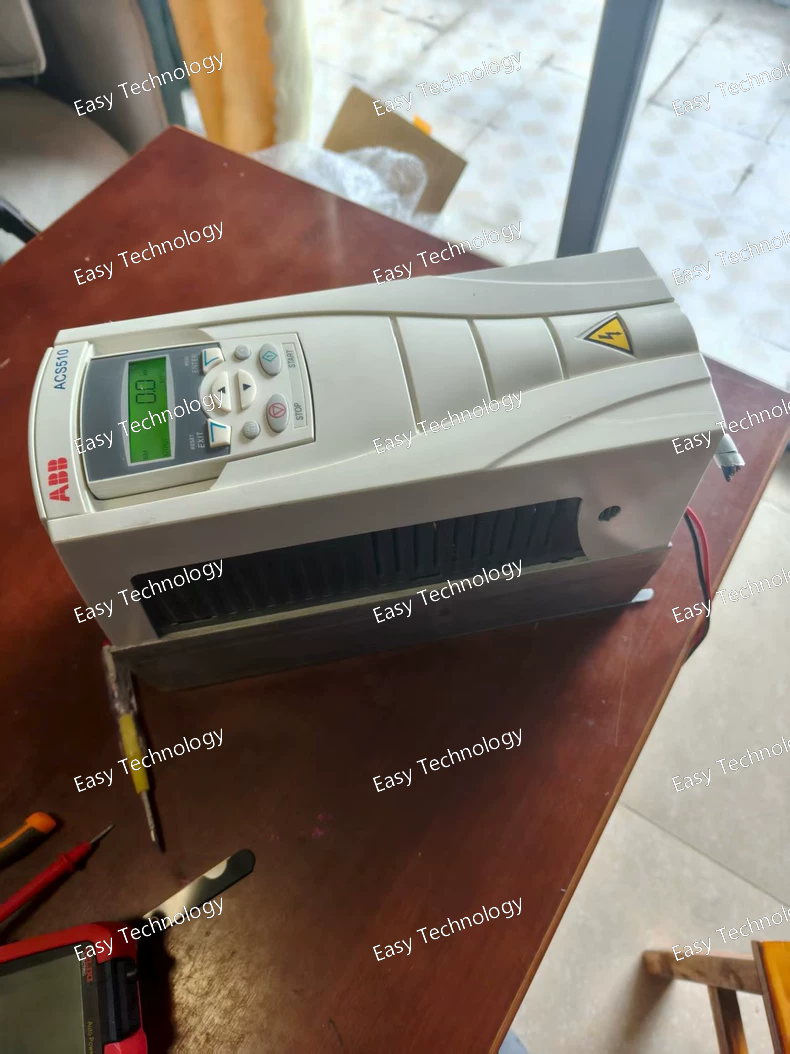

Specifications Power Characteristics: Input Voltage: 200-240V AC, 3-phase (±10%) Input Frequency: 47-63 Hz Rated Output Current: 7.0 A continuous (at 240V, 40°C ambient) Overload Capacity: 110% for 1 minute every 10 minutes Short Circuit Rating: Withstands output short circuits Motor Compatibility: Motor Power Rating: 1.5 kW (2 HP) at 200V 2.2 kW (3 HP) at 240V Motor Types: Standard asynchronous squirrel-cage motors Number of Motors: Can control one motor per drive Parameter Specification Enclosure Rating IP21 (indoor use, protected against touching hazardous parts and vertically falling water drops) Dimensions (H×W×D) 262 × 149 × 180 mm (10.3 × 5.9 × 7.1 in) Weight 4.2 kg (9.3 lbs) Cooling Method Forced air cooling (integrated fan) Ambient Temperature -15°C to +50°C (derating above 40°C) Storage Temperature -40°C to +70°C Relative Humidity <95% non-condensing Altitude Up to 1000 m without derating Vibration 1.0 g (9.81 m/s²) at 10-150 Hz Control & Performance Features Control Methods: Standard Control: Voltage/Frequency (V/Hz) control with ECO mode Advanced Option: Direct Torque Control (DTC) for superior performance Switching Frequency: 1-12 kHz (adjustable)

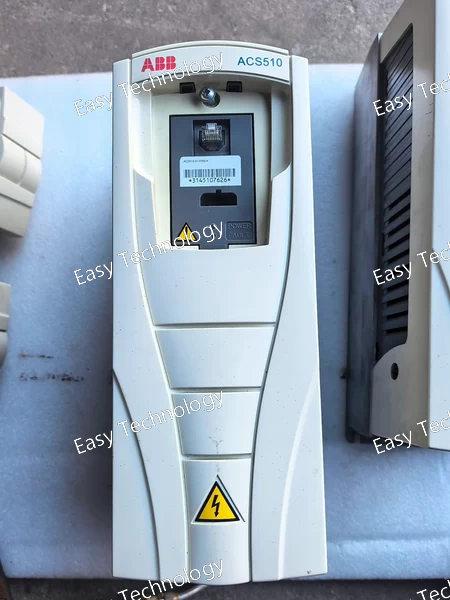

Specifications Input Characteristics: Supply Voltage: 200-240V AC, 3-phase (±10%) Frequency: 47-63 Hz Power Factor: 0.98 (typical at full load) Inrush Current: < rated input current Output Characteristics: Output Current: 3.0 A continuous (at 240V, 40°C) Overload Capacity: 110% for 1 minute every 10 minutes Output Frequency: 0-500 Hz Output Voltage: 0-100% of supply voltage Carrier Frequency: 1-12 kHz (adjustable) Power Ratings: Motor Power at 240V: 0.75 kW / 1.0 HP Apparent Power (kVA): 1.2 kVA Efficiency: >97.5% (typical at rated load) Physical Specifications Characteristic Specification Enclosure IP21 (finger-safe, protected against dripping water) Dimensions (H×W×D) Approx. 155 × 73 × 147 mm (6.1 × 2.9 × 5.8 in) Weight 1.1 kg (2.4 lbs) Cooling Method Convection cooling (no fan) Mounting Wall/chassis mounting Ambient Temperature -15°C to +50°C (derating above 40°C) Relative Humidity <95% (non-condensing) Altitude <1000 m without derating

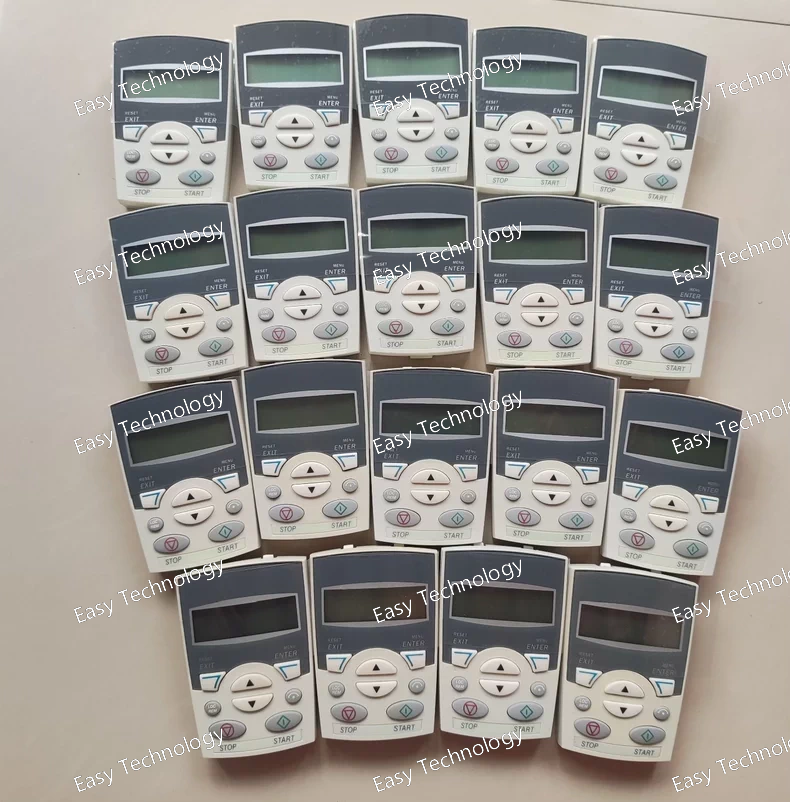

Specifications Characteristic Specification Dimensions ~145 × 75 × 25 mm Weight Approx. 200 g Protection IP20 (for indoor use only) Display 2 × 20 character LCD, no backlight Keys 11 tactile membrane keys Connector Fixed, integrated 9-pin connector Cable 1.5 m integrated straight cable Compatible Drives: ACS-AP-S cabinet drives (ACQ series) ACS 600/6000 series (with appropriate interface) ACS 700 series ACS 800 standard drives Communication: DriveBus protocol (500 kbps) Power Supply: 24 V DC via drive connection Operating Temperature: 0°C to +45°C Storage Temperature: -25°C to +70°C Humidity: 10-90% RH, non-condensing

Technical Specifications Protection Class: IP54 (front panel) Operating Temperature: 0°C to +50°C (+32°F to +122°F) Storage Temperature: -25°C to +70°C (-13°F to +158°F) Relative Humidity: 5-95% non-condensing Vibration Resistance: 1.0 g (9.81 m/s²) at 10-150 Hz Connection: Integrated cable with proprietary 15-pin connector Cable Length: Standard 2-meter integrated cable

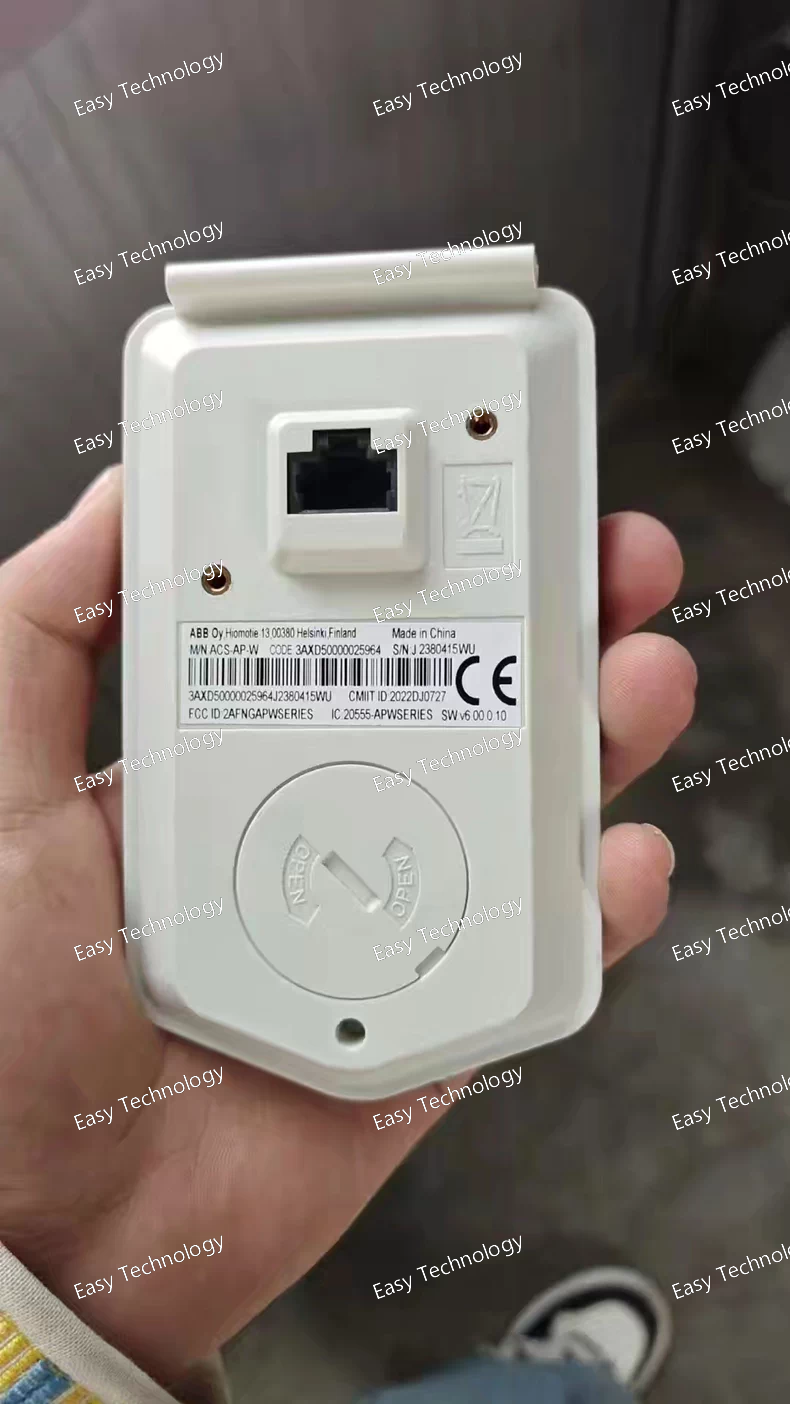

Technical Specifications Item Specification Compatibility ACS880 series, ACS800 series drives (requires appropriate adapter) Display Color TFT, typically 5.7-inch QVGA (320 x 240 pixels) Protection Class IP65 (front panel) Interface Resistive touchscreen + membrane function keys Communication DriveBus (with ACS-AP-W Adapter Module) Configuration Requires PC tool: ACS-AP-W Configurator for custom screens Power Supply Typically 24 V DC, sourced from the drive or external supply
