Specifications Electrical Ratings Input Voltage: 380-480V AC (±10%), 3-phase, 50/60 Hz Output Power: 22 kW (30 HP) at 480V Output Current: 45.0 A continuous (40°C ambient) Overload Capacity: 110% for 1 minute every 10 minutes Output Frequency Range: 0-500 Hz Control Methods: V/Hz, Open/Closed Loop Vector, Direct Torque Control (DTC) Physical Characteristics Enclosure: IP21 (indoor industrial) Dimensions: ~450 × 220 × 240 mm (H×W×D) Weight: Approx. 16 kg Cooling: Intelligent forced-air with temperature monitoring Ambient Temperature: -15°C to +50°C (derating above +40°C) Relative Humidity: 5-95% non-condensing Altitude: Up to 1000 m without derating Compressor Management: Screw/scroll compressor protection Oil management timers Anti-recycle and minimum off timers Load/unload sequencing Energy Management Energy Optimizer: Reduces motor losses by up to 40% Adaptive Control: Self-tuning PID for varying system conditions Power Factor: >0.98 displacement factor Harmonic Mitigation: Built-in DC choke (optional) Peak Demand Management: Power limiting function Control & Connectivity I/O Configuration Digital Inputs: 6 programmable (24V DC, optical isolation) Digital Outputs: 4 (2 relay, 2 transistor) Analog Inputs: 3 (0-10V/0-20mA/PT1000, 14-bit resolution) Analog Outputs: 2 (0-20mA/4-20mA) Thermistor Inputs: 2 (PTC/KTY)

Specifications Electrical Ratings Input Voltage: 200-240V AC (±10%), 3-phase, 50/60 Hz Output Power: 18.5 kW (25 HP) at 240V Output Current: 45.0 A continuous (40°C ambient) Overload Capacity: 110% for 1 minute every 10 minutes Output Frequency: 0-250 Hz (standard), 0-500 Hz (optional) Physical Characteristics Enclosure: IP21 (indoor use, protected against dripping water) Dimensions: ~450 × 220 × 240 mm (H×W×D) Weight: Approx. 15 kg Cooling: Forced air with temperature-controlled fan Ambient Temperature: 0°C to +40°C (full rating), up to +50°C with deratin Control & I/O Configuration Standard I/O Digital Inputs: 5 programmable (24V DC) Digital Outputs: 3 programmable (2 relay, 1 transistor) Analog Inputs: 2 (0-10V/0-20mA, 12-bit resolution) Analog Outputs: 2 (0-20mA) PTC Input: For motor temperature monitoring

Specifications Parameter Specification Series ACS310 (Material Handling & General Purpose) Typical Power 4.0 kW (5 HP) Common Voltage 400-480V AC, 3-phase (also available in 200-240V versions) Current Rating ~9.8 A (at 400V) Enclosure Options IP21 / IP55 (depends on model suffix) Control Method Direct Torque Control (DTC) or V/Hz Core Features Application-Optimized Material Handling Macros: Pre-programmed for conveyors, cranes, hoists High Starting Torque: Up to 180% for demanding starts S-curve Acceleration: Smooth ramp-up/down for material transport Torque Proving: Ensures adequate torque before load release Technical Capabilities Built-in Modbus RTU (RS-485 standard) Enhanced I/O Configuration: 3 digital inputs (24V DC) 2 analog inputs (0-10V/0-20mA) 2 relay outputs 1 analog output (0-20mA) Integrated Brake Chopper for dynamic braking Flying Start: Can start into rotating motors PID Controller: Built-in for process control Protection & Safety Motor Protection: Thermal (I²t), phase loss, ground fault, stall prevention Drive Protection: Overcurrent, overvoltage, short circuit, overtemperature Safe Torque Off (STO): Optional safety function EMC Compliance: Built-in RFI filter (Category C3 standard) Typical Applications Conveyor Systems: Belt conveyors, roller conveyors, assembly lines Material Handling: Cranes, hoists, elevators, lifting equipment Packaging Machinery: Wrappers, fillers, labelers Machine Tools: Lathes, mills, drills Industrial Automation: Production lines, positioning systems

Specifications Input Power: 200-240V AC (±10%), 1-phase, 50/60 Hz Output Power: 2.2 kW (3 HP) at 240V Output Current: 9.0 A continuous Overload Capacity: 150% for 60 seconds Enclosure: IP21 (indoor industrial use) Dimensions: 210 × 90 × 165 mm (H×W×D) Weight: ~2.3 kg Cooling: Forced air (integrated fan) Key Features High Starting Torque: Up to 180% for demanding starts Material Handling Macros: Pre-programmed for conveyors, cranes, hoists Built-in Modbus RTU: RS-485 communication standard Enhanced I/O: 3 digital inputs 2 analog inputs (0-10V/0-20mA) 2 relay outputs 1 analog output (0-20mA) Brake Chopper: Integrated for dynamic braking Flying Start: Can start into rotating motor Application Focus Primary Applications: Conveyor belts and transport systems Material handling equipment Hoists and lifting devices Packaging machinery Machine tools and positioning systems

Specifications Input: 200–240V AC, 1-phase, 50/60 Hz Output: 0.55 kW (0.75 hp) at 240V, 2.8 A Enclosure: IP21 (finger-safe, drip protection) Dimensions: 152 × 70 × 142 mm (H×W×D) Weight: ~1.5 kg Cooling: Natural convection (fanless) 4. Core Features Built-in Modbus RTU (RS-485 interface) Basic I/O Configuration: 2 digital inputs (24V DC) 1 analog input (0-10V/0-20mA selectable) 1 relay output (250V AC, 2A) 1 analog output (0-20mA) Integrated Control Panel: Includes speed potentiometer Pre-programmed Application Macros: Pump, Fan, Conveyor Basic PID Controller for simple closed-loop control 5. Motor & Protection Features Motor Protection: Thermal overload, short circuit, phase loss Drive Protection: Over/under voltage, overcurrent, overtemperature Safe Stop Capability: Compatible with external safety circuits 6. Typical Applications Small ventilation fans Low-power circulating pumps Light-duty conveyors Packaging equipment Laboratory devices OEM machinery

Specifications Input Supply: 200–240 V AC (±10%), 1-phase, 50/60 Hz Output Power: 1.5 kW (2 hp) at 240 V Output Current: 7.0 A continuous Overload Capacity: 110% for 60 s every 300 s Output Frequency Range: 0–500 Hz Switching Frequency: 2–16 kHz (adjustable) 4. Physical & Environmental Data Enclosure Rating: IP21 (indoor use, protected against dripping water) Dimensions: 184 × 70 × 155 mm (H × W × D) Weight: ≈ 1.8 kg Cooling: Natural convection (fanless) Ambient Temperature: –10 °C to +50 °C (derating above +40 °C) Relative Humidity: < 95% non-condensing Mounting: Wall or DIN-rail (optional kit) 5. Control & I/O Features Built-in Communication: Modbus RTU via RS‑485 Digital Inputs: 2 (24 V DC, sink/source selectable) Analog Input: 1 (0–10 V / 0–20 mA configurable) Relay Output: 1 (250 V AC, 2 A) Analog Output: 1 (0–20 mA) Integrated Operator Panel: Potentiometer + Start/Stop/Reset buttons Pre-set Macros: Pump, Fan, Conveyor, Hoist, etc. PID Controller: Built-in for simple closed-loop control 6. Motor & Drive Protection Motor Protection: Overload (I²t), stall, phase loss, earth fault Drive Protection: Overvoltage/undervoltage, short circuit, overtemperature Safe Stop: Safe torque off (STO) option via external safety relay 7. Typical Applications Commercial ventilation fans Small water pumps and circulators Conveyors and light material handling Packaging machinery Compressors and mixers (light-duty)

Specifications Input Power: 200–240 V AC, 1‑phase, 50/60 Hz Output Power: 0.37 kW (0.5 hp) at 240 V Output Current: 2.3 A Enclosure Rating: IP21 (finger‑safe, drip‑protected) Dimensions: 152 × 70 × 142 mm (H × W × D) Weight: ≈1.5 kg Cooling: Natural convection (fanless) Ambient Temperature: 0 °C to +50 °C (derating above +40 °C) Key Features Built‑in Modbus RTU via RS‑485 port Essential I/O: 2 digital inputs (24 V DC) 1 analog input (0–10 V / 0–20 mA selectable) 1 relay output (250 V AC, 2 A) 1 analog output (0–20 mA) Integrated Control Panel: Includes potentiometer for speed setting Pre‑programmed Macros: Quick setup for common applications (pump, fan, conveyor, etc.) Motor Protection: Overload, short‑circuit, earth‑fault, and overtemperature protection EMC Compliance: Built‑in RFI filter meets Category C3 standards Typical Applications Small fans and ventilation units Low‑power pumps and circulators Light‑duty conveyors Packaging and labeling machines

Specifications Input: 200-240V AC, 1-phase, 50/60 Hz Output: 0.75 kW (1 HP) at 240V, 4.0 A Motor Control: Voltage/Frequency (V/Hz) control Enclosure: IP21 (finger-safe, drip protected) Dimensions: Ultra-compact (~152 × 70 × 142 mm) Weight: ~1.6 kg Cooling: Natural convection (fanless) Key Features Built-in Modbus RTU (RS-485) Essential I/O: 2 digital inputs 1 analog input (0-10V/0-20mA) 1 relay output 1 analog output (0-20mA) Simple keypad with potentiometer Pre-programmed application macros Basic protection functions Application Areas Small fans and blowers Basic pumps Conveyors Packing machines Material handling equipment OEM machinery

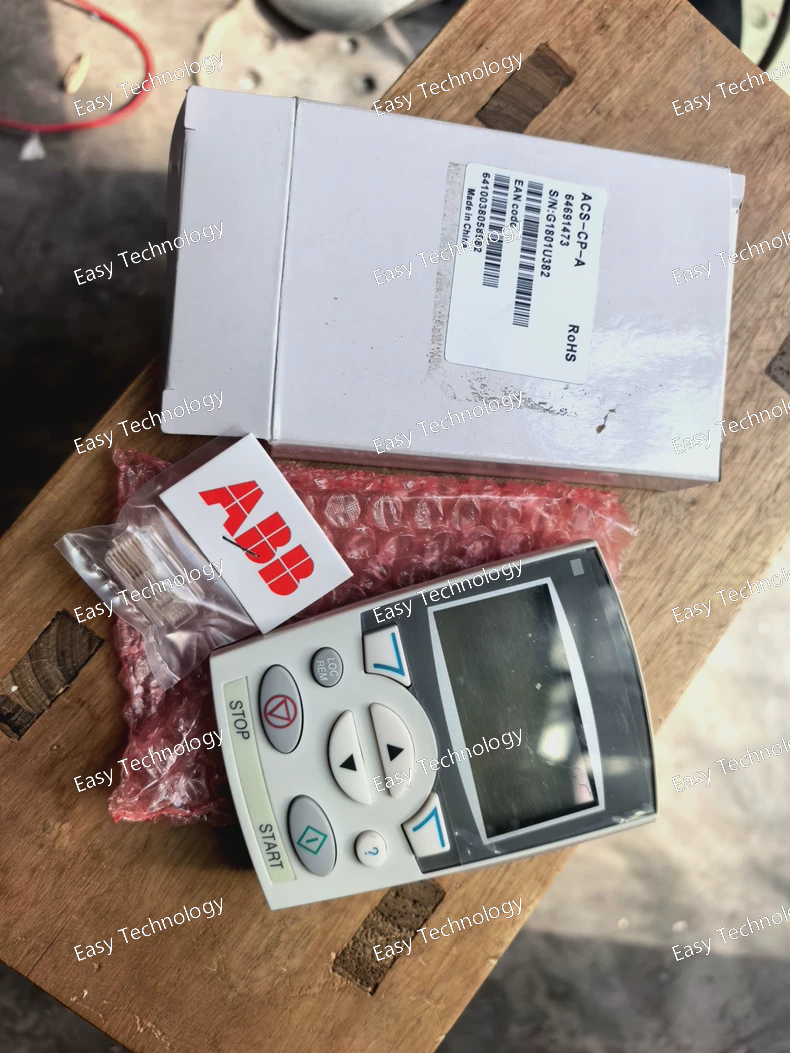

Specifications Compatibility: ACS 100/400/500/600 series drives Display: Monochrome LCD, no backlight Protection: IP20 (indoor use only) Connector: Fixed 9-pin drive connector Dimensions: ~140 × 75 × 25 mm Weight: Approx. 180 g Functions Basic drive control (Start/Stop/Reset) Parameter editing and viewing Real-time monitoring (speed, current, frequency) Fault display and reset Local/Remote mode selection Applications Legacy drive systems maintenance Basic commissioning of older ABB drives Service tool for field technicians Backup interface when PC tools unavailable

Technical Specifications Input Power: 200-240V AC, 1-phase, 50/60 Hz Output Power: 0.75 kW (1 HP) at 240V Output Current: 4.0 A continuous Output Voltage: 3-phase, 0-240V Enclosure: IP21 (indoor use, protected against dripping water) Dimensions: ~185 × 90 × 153 mm Weight: Approximately 2.0 kg Cooling: Convection cooling (fanless) Key Features Simple Control: Basic speed/torque control Built-in I/O: 2 digital inputs (24V DC) 1 analog input (0-10V/0-20mA) 1 relay output (250V AC, 2A) Communication: Optional fieldbus adapters Protection: Overload, short circuit, overtemperature Application Macros: Pre-programmed for common applications Keypad: Basic control panel included Application Areas Small pumps and fans Conveyor systems Packaging machinery Material handling equipment Basic industrial automation OEM machine integration

Specifications Input: 200-240V AC, 1-phase, 50/60 Hz Output: 2.3 A, 3-phase to motor Power Rating: 0.4 kW (0.5 HP) at 240V Enclosure: IP20 (finger-safe, no water protection) Dimensions: Compact design (~150 × 70 × 140 mm) Cooling: Convection cooling (fanless) Features Basic speed control for AC motors Simple I/O: 2 digital inputs, 1 relay output Modbus RTU communication Easy commissioning with basic keypad Overload protection and fault monitoring Applications Small conveyors Fans and blowers Pumps Basic material handling OEM machinery

Specifications Power Characteristics: Input Supply: 200-240V AC, 3-phase, 47-63 Hz Rated Output Current: 1.7 A continuous (at 240V, 40°C ambient) Overload Capability: 110% for 1 minute every 10 minutes Starting Current: Limited to drive rating (soft start capability) Output Frequency Range: 0-500 Hz Carrier Frequency: 1-12 kHz (adjustable to reduce motor noise) Motor Compatibility: Motor Power Ratings: 0.75 kW (1.0 HP) at 200V AC 1.1 kW (1.5 HP) at 240V AC Motor Types: Standard 3-phase asynchronous squirrel-cage motors Maximum Cable Length: 150 m without output filter (shielded cable recommended) Physical & Mechanical Specifications Parameter Specification Enclosure Rating IP21 (indoor use, protection against finger contact and vertically falling water) Dimensions (H×W×D) 190 × 93 × 147 mm (7.5 × 3.7 × 5.8 in) Weight 1.8 kg (4.0 lbs) Cooling Method Natural convection (fanless design) Mounting Wall or chassis mounting (vertical orientation recommended) Ambient Temperature -15°C to +40°C (full rating) 40°C to 50°C (with derating: 1.5% per °C) Storage Temperature -40°C to +70°C Relative Humidity 5-95% (non-condensing) Altitude Up to 1000 m without derating Pollution Degree 2 (normal industrial environment) Control & I/O Capabilities Standard I/O Configuration: Digital Inputs: 3 programmable (24V DC, PNP/NPN selectable) Configurable for start/stop, direction, preset speeds, etc. Digital Output: 1 relay (changeover contact) Rating: 250V AC/30V DC, 2A maximum Configurable for ready, running, fault, alarm signals Analog Input: 1 configurable (software-selectable) 0-10V DC or 0-20 mA (12-bit resolution) Can be used as speed reference or PID feedback Analog Output: 1 programmable (0-20 mA) Can be configured for speed, current, torque, etc. Built-in Potentiometer: Integrated 1 kΩ, 10-turn pot on control panel Control Features: Control Modes: Voltage/Frequency (V/Hz) control with ECO mode Square-law characteristic for fan applications Direct Torque Control (DTC) optionally available Application Macros: ABB Standard (factory default) 3-Wire Control Hand/Auto Control PID Control Torque Control
