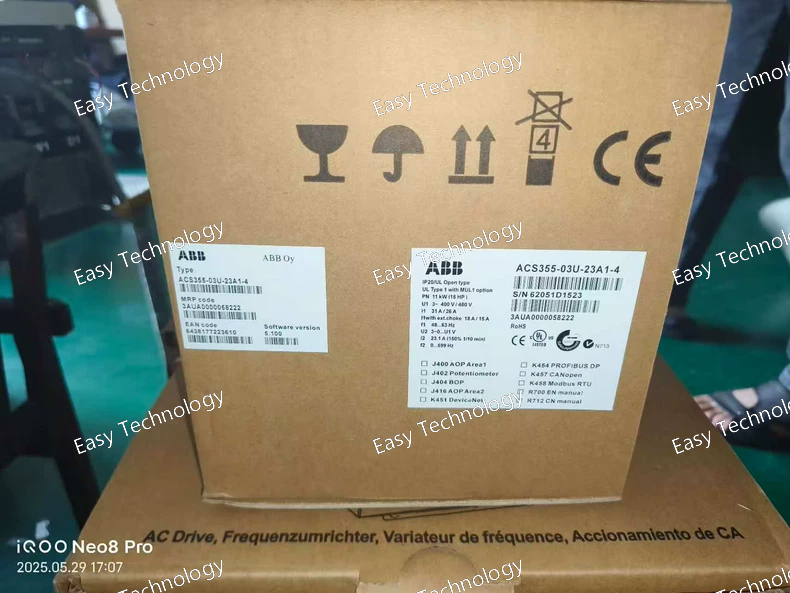

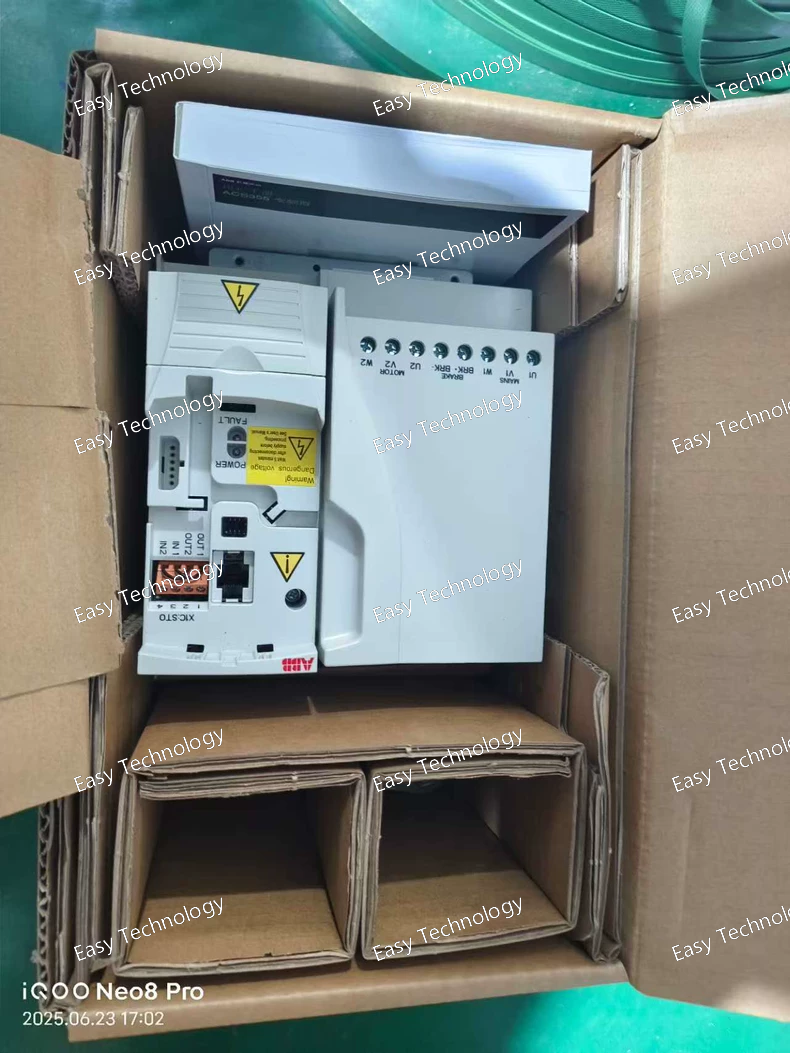

Key Specifications Parameter Category Specification Drive Series/Model ACS355-03U-23A1-4 Rated Output Current 23 A Rated Output Power 11 kW (15 HP) Input Supply Voltage 380 - 480 V AC (± 10%), 3-phase Input Supply Phases 3-phase Output Voltage 0 - Input voltage Output Phases 3-phase Enclosure Rating IP00 (Open Chassis). Must be installed inside a protective control cabinet (e.g., IP20, IP54). Keypad Supplied separately. The removable control panel (RCP) can be mounted on the cabinet door via an extension cable. Cooling Method Self-cooled (with internal fan) Control Methods • Scalar Control (V/f) for standard applications. • ABB Direct Torque Control (DTC) for high dynamic performance (accurate speed/torque control, fast response). Key Standard Features • High Power Density: Compact size for its power rating. • Removable Control Panel (RCP): Backlit LCD with parameter copy function (supplied separately). • Built-in EMC Filter (Class A). • Application Macros: Pre-programmed parameter sets for common tasks (Factory, Hand/Auto, Pump/Fan). • Built-in PID Controller with sleep/wake function. • Flying Start and DC Magnetization. • Built-in I/O: 2 analog inputs, 1 analog output; 3 digital inputs, 1 relay output. • Fieldbus Connectivity: Built-in Modbus RTU (RS-485); optional adapters for PROFIBUS DP, DeviceNet, CANopen, etc. Protection Features • Motor thermal overload protection (I²t) • Short circuit, ground fault, overcurrent, and overvoltage protection • Motor stall and underload protection • IGBT overtemperature protection • Power loss ride-through Application Focus General-purpose industrial machinery (Pumps, Fans, Conveyors, Mixers, Packaging machines).

Key Specifications Parameter Category Specification Drive Series/Model ACH550-UH-023A-4 Rated Output Current 23 A Rated Output Power 11 kW (15 HP) Input Supply Voltage 380 - 480 V AC (± 10%), 3-phase Input Supply Phases 3-phase Output Voltage 0 - Input voltage Output Phases 3-phase Enclosure Rating NEMA 3R / Type 3R / IP54. Suitable for indoor/outdoor use. Weather-resistant. Cooling Method Fan-cooled Control Methods Sensorless Flux Control (Magnetizing Flux Control, MFC) Key Standard Features • HVAC-Specific Application Macros: Pre-programmed for AHU, Cooling Tower, Pump, etc. • Advanced PID Control: Dual sets of PID parameters, sleep/wake, PID freeze. • Multi-Pump & Multi-Motor Control: Logic for lead/lag/alternation of up to 4 pumps/fans. • Built-in Building Automation Protocols: BACnet MS/TP, Metasys N2, and Modbus RTU (RS-485) are standard. • Energy Optimizer: Automatically minimizes motor and drive losses for maximum efficiency. • Extended Safeties: Fireman’s Override, Smoke/Fire Control sequences. • LCD Keypad: Multi-language, with parameter copy function. Protection Features • Motor thermal overload protection (I²t) • Pump/Fan-specific protection (dry pump, anti-jam, underload) • Comprehensive electrical protection (short circuit, ground fault, etc.) • Heatsink overtemperature protection • Conformal Coated PCB for protection against corrosive atmospheres (standard in -UH). Application Focus Air Handling Units (AHUs), Cooling Towers, Chilled Water & Condenser Pumps, Exhaust Fans, Compressors in HVAC systems.

Key Specifications Parameter Category Specification Drive Series/Model ACS310-03E-04A5-4 Rated Output Current 4.0 A Rated Output Power 1.1 kW (1.5 HP) Input Supply Voltage 380 - 480 V AC (± 10%), 3-phase Input Supply Phases 3-phase Output Voltage 0 - Input voltage Output Phases 3-phase Enclosure Rating IP20 / UL Open Type (Chassis). Requires installation in a protective cabinet. Cooling Method Self-cooled (convection) Control Methods • Scalar Control (V/f) • ABB Direct Torque Control (DTC) for superior performance Key Standard Features • Intelligent Pump and Fan Control (IPF): Auto-tunes for optimal efficiency, includes multi-pump control logic, anti-jam, dry pump protection, and "Flying Start". • Embedded Application Programming: Built-in programmable function blocks (timers, comparators, logic gates) for custom control sequences. • Adaptive Program (AUP): Guides user through setup based on application. • Integrated EMC Filter (Class A). • Built-in Modbus RTU (RS-485) and BACnet MS/TP communication protocols. • LCD Keypad: Clear display with multi-language support and copy function. • PID Controller with sleep/wake and cascade control functions. Protection Features • Motor thermal overload protection (I²t) • Pump-specific protection (dry pump, overload, underload) • Short circuit, ground fault, overcurrent, overvoltage protection • IGBT overtemperature protection • Automatic fault reset Application Focus HVAC systems (fans, pumps), water supply, pressure boosting, cooling towers, and other pump and fan applications.

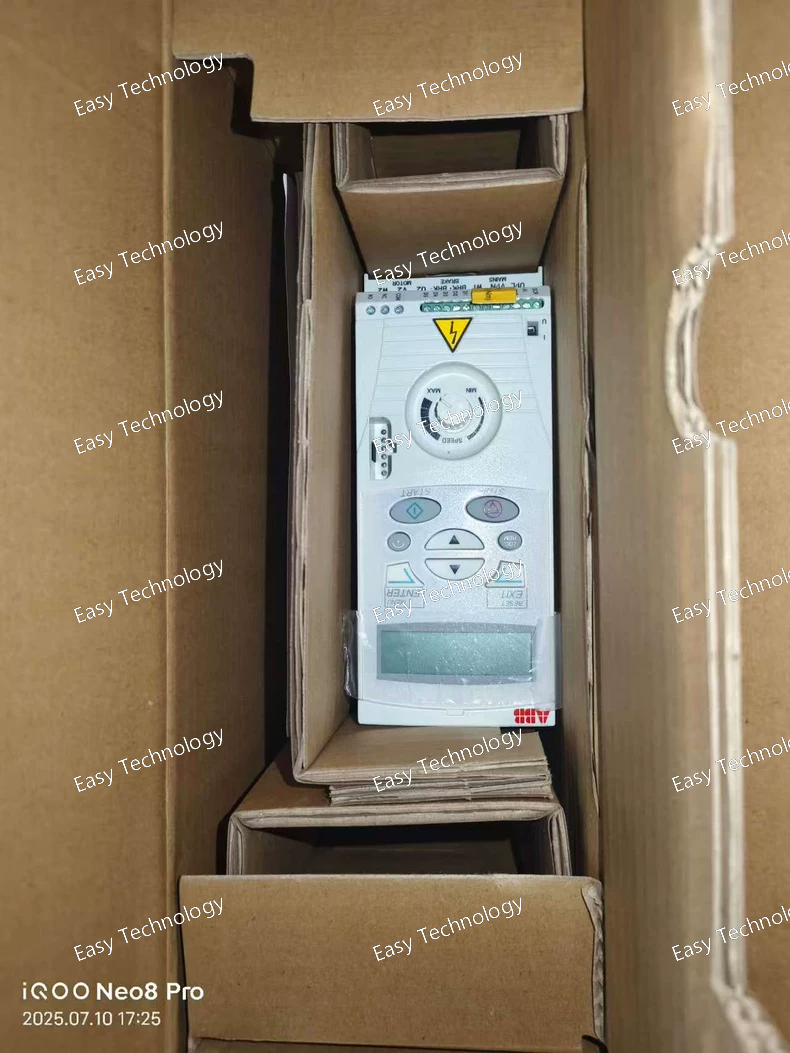

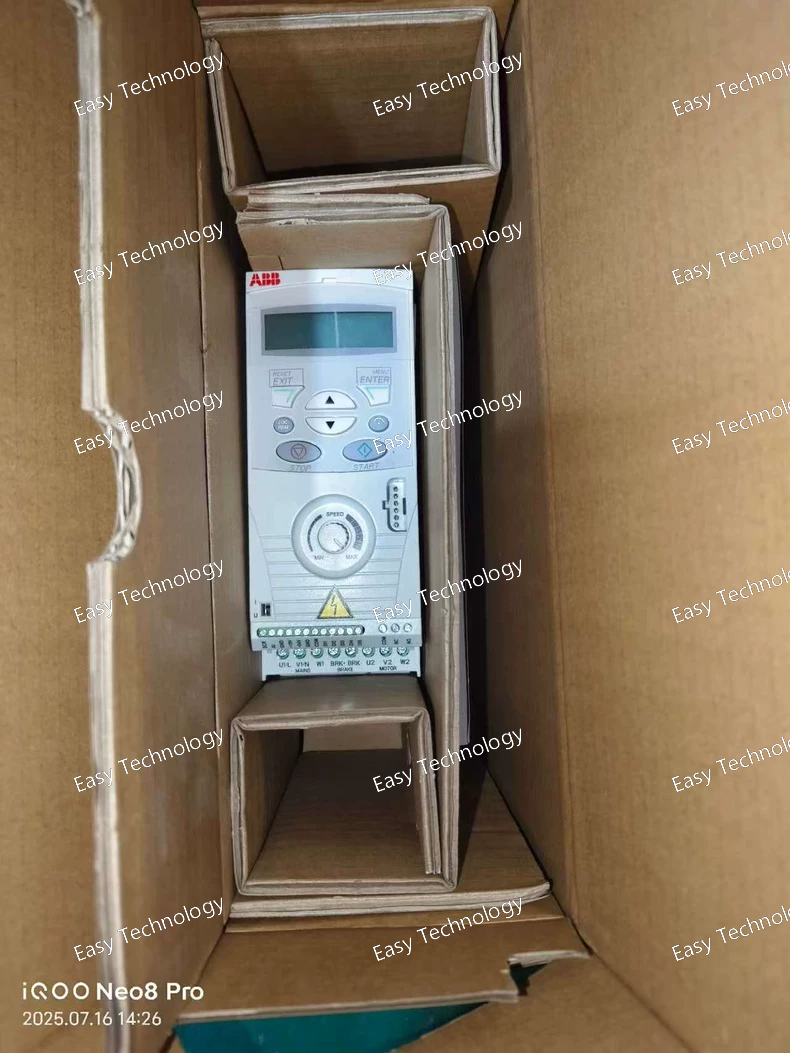

Key Specifications Parameter Category Specification Drive Series/Model ACS150-03E-08A8-4 Rated Output Current 8.0 A Rated Output Power 3.0 kW (4 HP) Input Supply Voltage 380 - 480 V AC (± 10%), 3-phase Input Supply Phases 3-phase Output Voltage 0 - Input voltage Output Phases 3-phase Enclosure Rating IP20 / UL Open Type (Chassis). Must be installed inside a protective control cabinet. Control Panel Standard removable keypad. Cooling Method Self-cooled (convection) Control Method Scalar Control (V/f) Key Standard Features • Removable Keypad for flexible mounting. • Flexible Mounting: DIN rail or screw mounting. • Application Macros: Pre-set parameter configurations (e.g., Hand/Auto, 2-Wire, 3-Wire). • Analog Input: 1 channel (configurable for 0/4...20 mA or 0...10 V). • Relay Output: 1 changeover contact. • Modbus RTU (RS-485) communication available via an optional external module. Protection Features • Motor thermal overload protection (I²t model) • Short circuit, ground fault, overcurrent, and overvoltage protection • IGBT overtemperature protection • Motor stall prevention Typical Applications Small industrial pumps, fans, conveyors, packaging machinery, and other general-purpose motor control tasks.

Key Specifications Parameter Category Specification Drive Series/Model ACS150-01e-07A5-2 Rated Output Current 7.5 A Rated Output Power 2.2 kW (3 HP) Input Supply Voltage 200 - 240 V AC (± 10%), 1-phase Input Supply Phases 1-phase Output Voltage 0 - Input voltage Output Phases 3-phase Enclosure Rating IP20 / UL Open Type (Chassis). Must be installed inside a higher-degree protection cabinet (e.g., IP54). Control Panel Standard removable keypad (non-sealed), supports remote mounting via cable. Cooling Method Self-cooled (convection) Control Method Scalar Control (V/f) Key Standard Features • Removable Keypad: Can be mounted remotely. • Flexible Mounting: DIN rail or screw mounting. • Application Macros: Pre-set parameter sets (Hand/Auto, 2-Wire, 3-Wire, etc.). • Analog Input: 1 channel (configurable for 0/4...20 mA or 0...10 V). • Relay Output: 1 changeover contact. • Modbus RTU (RS-485) available via an optional external module. Protection Features • Motor thermal overload protection (I²t model) • Short circuit, ground fault, overcurrent, and overvoltage protection • IGBT overtemperature protection • Motor stall prevention Typical Applications Small pumps, fans, conveyors, and basic material handling equipment.

Key Parameters Parameter Category Specification Drive Series/Model ACS355-03E-23A1-4 Rated Output Current 23 A Rated Output Power 11 kW (15 HP) Input Supply Voltage 380 - 480 V AC (± 10%), 3-phase Input Supply Phases 3-phase Output Voltage 0 - Input voltage Output Phases 3-phase Enclosure Rating IP21 / UL Type 1 (Standard for -03E) Cooling Method Self-cooled (with internal fan) Control Methods • Scalar Control (V/f) for standard applications • ABB Direct Torque Control (DTC) for high performance (torque control, fast response) Key Standard Features • Removable Control Panel (RCP): Backlit LCD with parameter copy function. • Built-in EMC Filter (Class A, 第一环境). • Application Macros: Pre-programmed setups (Factory, Hand/Auto, Pump/Fan, etc.). • PID Controller with sleep/wake and anti-jam functions. • Flying Start and DC Magnetization. • Built-in I/O: 2 analog inputs (0/4...20 mA, 0...10 V), 1 analog output; 3 digital inputs, 1 relay output. • Fieldbus Connectivity: Built-in Modbus RTU (RS-485); optional adapters for PROFIBUS DP, DeviceNet, CANopen, etc. Protection Features • Motor thermal overload protection (I²t) • Short circuit, ground fault, overcurrent, and overvoltage protection • Motor stall and underload protection • IGBT overtemperature protection • Power loss ride-through Application Focus General-purpose industrial machinery (Pumps, Fans, Conveyors, Mixers, Packaging machines).

Key Parameters Parameter Category Specification Product Type Brake Chopper Module (External Braking Unit) ABB Series / Model VPSTB570-600-70 Nominal DC Link Voltage 600 V DC Maximum Continuous Braking Current 70 A Maximum Peak Braking Current Typically 150-200% of continuous current for short durations (e.g., 140 A). Refer to datasheet for exact values. Control / Activation Monitors DC bus voltage. Turns ON when voltage exceeds a preset threshold (typically ~760-780V for a 600V system) and turns OFF when it drops below a reset level. Power Connection Connects in parallel to the drive's DC bus (+ and - terminals). Resistor Connection Output terminals for connecting an external braking resistor. The resistor must be sized separately based on the application's braking power and duty cycle requirements. Key Features • Designed for use with ABB ACS880 and compatible multi-drive systems. • Provides overvoltage protection for the entire DC bus system. • Compact module for cabinet installation. • Includes status indicators and fault signals. Main Protection • Thermal overload protection for the IGBT. • Short-circuit protection for the braking resistor circuit. Typical Mounting Cabinet mounting (IP00). Requires integration into a suitable electrical enclosure. Core Application Safely dissipating regenerative braking energy in variable speed drive systems with frequent stopping, deceleration, or overhauling loads.

Key Parameters Parameter Category Specification Drive Series/Model ACS150-03U-06A7-2 Rated Output Current 6.0 A Rated Output Power 1.5 kW (2 HP) Input Supply Voltage 380 - 480 V AC (± 10%), 3-phase Input Supply Phases 3-phase Output Voltage 0 - Input voltage Output Phases 3-phase Enclosure Rating IP00 (Chassis / Open Type). Requires installation in a protective cabinet (e.g., IP20). Cooling Method Self-cooled (convection) Control Method Scalar Control (V/f) Key Standard Features • Integrated, Sealed Keypad: Pre-wired, potted for dust and moisture resistance (IP66 on keypad). • Easy Mounting: Snap-on design for DIN rail or screw mounting. • Application Macros: Basic pre-programmed setups (Hand/Auto, 2-Wire, 3-Wire). • Analog Input: One (0/4...20 mA or 0...10 V). • Relay Output: One changeover relay. • Modbus RTU (RS-485) option via external module. Protection Features • Motor thermal overload protection (I²t) • Short circuit, ground fault, overcurrent, and overvoltage protection • IGBT overtemperature protection • Motor stall prevention Application Focus Small machinery, basic pumps & fans, conveyors, and simple material handling.

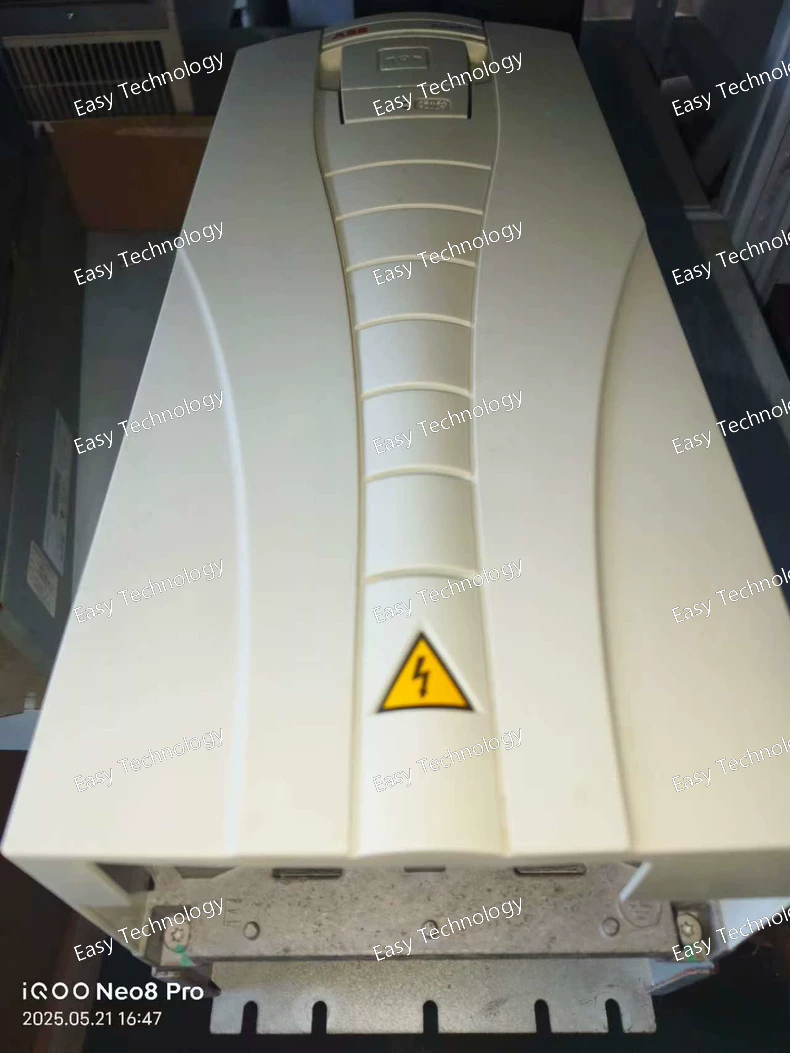

Key Parameters Parameter Category Specification Drive Series/Model ACS550-01-046A-4 Rated Output Current 46 A Rated Output Power 7.5 kW (10 HP) Input Supply Voltage 200 - 240 V AC (± 10%) Input Supply Phases 1-phase Output Voltage 0 - Input voltage Output Phases 3-phase Enclosure Rating IP21 / UL Type 1 (Standard for -01) Cooling Method Self-cooled (with internal fan) Control Method ABB Direct Torque Control (DTC) Key Standard Features • Plain Language Keypad: 4-line, 16-character backlit display for easy setup. • Application Macros: Factory-set parameters for common applications (Fan/Pump, Hand/Auto, 3-Wire, etc.). • Built-in PID Controller with sleep/wake and anti-jam functions. • Flying Start (restart a spinning motor). • Modbus RTU (RS-485) serial communication interface. • Slip Compensation and IR Compensation for stable motor performance. Protection Features • Motor thermal protection (I²t model) • Short circuit, ground fault, overcurrent, and overvoltage protection • Motor stall protection (STALLFUNC) • IGBT overtemperature protection • Power loss ride-through Application Focus General-purpose industrial applications (Pumps, Fans, Conveyors, Mixers, Compressors).

Key Parameters Parameter Category Specification Drive Series/Model ACS530-01-033A-4 Rated Output Current 33 A Rated Output Power 5.5 kW (7.5 HP) Input Supply Voltage 200 - 240 V AC (± 10%) Input Supply Phases 1-phase Output Voltage 0 - Input voltage Output Phases 3-phase Enclosure Rating IP21 / UL Type 1 (Standard for -01) Cooling Method Self-cooled (with internal fan) Control Method ABB Direct Torque Control (DTC) Key Standard Features • User-friendly Control Panel: Graphical display with 4-digit 7-segment + text area. • Built-in EMC Filter (Class A) • Built-in Modbus RTU (RS-485) serial communication • Application Macros: Pre-defined parameter sets (Pump, Fan, Hand/Auto, etc.) • PID Controller • Flying Start • Automatic Motor Adaptation (AMA) Protection Features • Motor thermal overload protection (I²t) • Short circuit, ground fault, overcurrent, and overvoltage protection • Motor stall and underload protection • IGBT overtemperature protection Application Focus General-purpose industrial machines (Pumps, Fans, Conveyors, Compressors, Mixers).

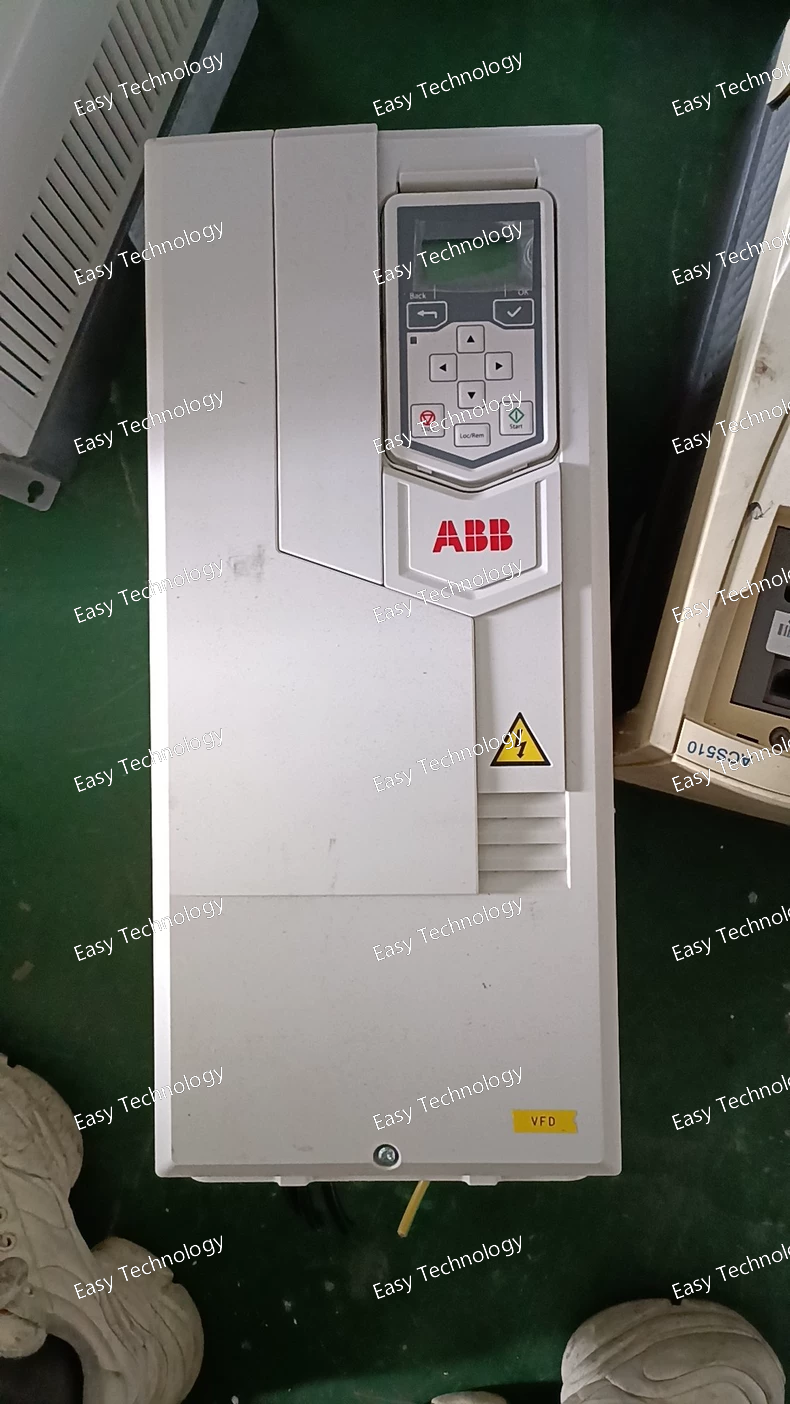

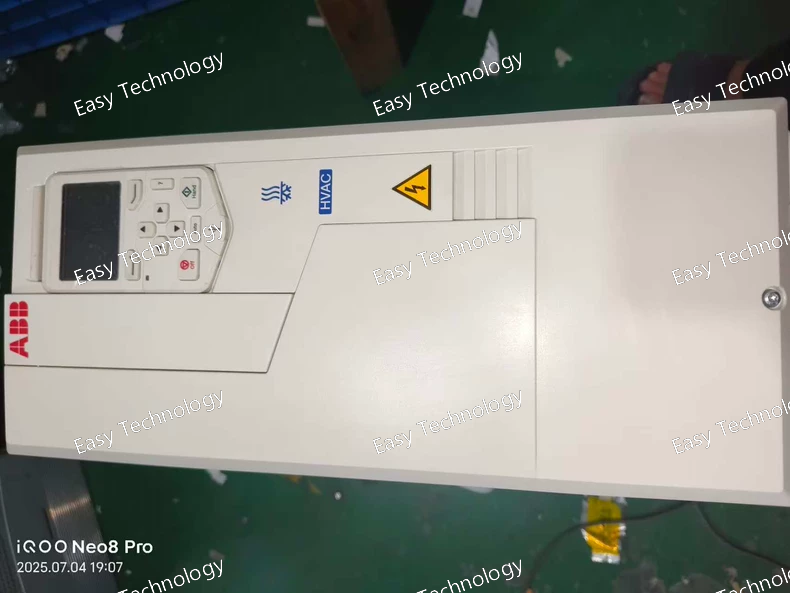

Key Parameters Parameter Category Specification Drive Series/Model ACH580-01-027A-4 Rated Output Current 27 A Rated Output Power 4.0 kW (5.5 HP) Input Supply Voltage 200 - 240 V AC (± 10%) Input Supply Phases 1-phase Output Voltage 0 - Input voltage Output Phases 3-phase Enclosure Class IP21 / UL Type 1 (standard for -01) Cooling Method Self-cooled (with internal fan) Control Principle DTC (Direct Torque Control) Standard Features - Built-in EMC filter (Class A) - Modbus RTU (RS-485) serial communication - Fixed-speed control macros (e.g., Hand/Auto) - PID controller - Flying start - DC hold - Energy Optimizer (auto-tunes for efficiency) Application Focus Pumps, fans, compressors (General Purpose) Protection Features - Motor thermal protection - Short circuit, ground fault, overcurrent, overvoltage, undervoltage protection - IGBT overtemperature protection

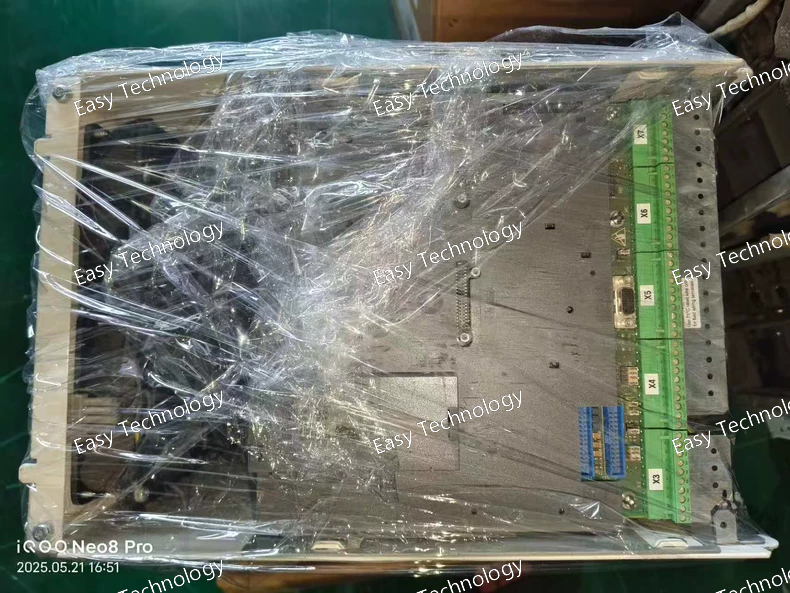

Technical Parameters Parameter Specification / Value Product Type Control & Regulation Unit (CRU) / Main Controller Parent System ABB DCS800 DC Drive System Control Technology Full digital microprocessor-based control for DC motors (separately excited). Core Control Functions • Speed control (with EMF or tacho/encoder feedback) • Armature current (torque) control • Field current control (including field weakening) • Application programming (via Drive AP software) • Comprehensive diagnostics and monitoring Standard Communication Interfaces • DriveBus (high-speed internal serial bus for I/O and option modules) • Service Port (e.g., RS-232/RS-485 for connection to DriveWindow PC tool) Optional Fieldbus Interfaces PROFIBUS DP, DeviceNet, Modbus RTU/TCP, PROFINET, EtherNet/IP (via plug-in FDNA-01/NPCA-01 type communication modules). Configurable Digital I/O Typically 16+ software-configurable channels (exact base number varies; can be expanded with I/O option modules). Configurable Analog I/O Typically 4+ channels (e.g., for speed reference, actual value, torque limit; configurable as voltage ±10V or current 0/4-20mA). Feedback Signal Interfaces • Dedicated encoder/tachogenerator input (differential, for precise speed feedback). • EMF calculation for sensorless speed control. Control Supply Voltage 24 V DC (supplied from the drive's internal NPBA-01 or NPBD-01 Power Supply Module). Firmware Storage Flash memory, updatable via service port. Operating Temperature 0°C to +45°C (for full performance; derating may apply at higher temperatures). Relative Humidity 5 - 95% (non-condensing). Certifications/Standards CE, cULus, compliant with IEC 61800 (adjustable speed drive standards).
