Technical Parameters Parameter Category Description / Value Brand & Series Eaton, FAZ Series (Bussmann) Model Number FAZ-C40/4 Fuse Class & Rating Class CC Rated Current: 40 A Rated Voltage: 600V AC Number of Poles / Quantity 4 pieces (4-pole set for 3-phase + Neutral applications) Type Fast-Acting (Non-Time-Delay) Rated Voltage 600V AC / 300V DC Rated Breaking Capacity 200 kA AC (200,000 Amps) at 600V AC Approvals / Standards UL 248-4 (Class CC), CSA C22.2 No. 248.4 Electrical Characteristics Current-Limiting: Yes Physical Dimensions Body: 13/32" x 1-1/2" (10.3mm diameter x 38.1mm length) Mounting Requires compatible Class CC fuse holder or fuse block

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, FAZ Series (Bussmann) Model Number FAZ-D3/2 Fuse Class & Rating Class D Rated Current: 3 A Rated Voltage: 600V AC / 300V DC Number of Poles / Quantity 2 pieces (2-pole set) Type Time-Delay (Dual-Element) Rated Voltage 600V AC / 300V DC Interrupting Rating 200 kA AC (200,000 Amps) at 600V AC Approvals / Standards UL 248-10 (Class D), CSA C22.2 No. 248.10 Electrical Characteristics Current-Limiting: Yes Time-Delay: Can withstand 500% of rated current for several seconds Physical Dimensions Body: 1-1/4" x 2-1/4" (31.8mm diameter x 57.2mm length) - Edison Base Mounting / Fuse Holder Requires compatible Class D fuse holder or fuse block

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, PL9 Series Model Number PL9-C40/2 Fuse Standard & Rating IEC gG (General Application) Rated Current: 40 A Number of Poles / Quantity 2 pieces (2-pole set) Rated Voltage 500V AC Breaking Capacity 50 kA (50,000 A) at 500V AC Standards Compliance IEC 60269-1, IEC 60269-2-1 Fuse Dimension 10 x 38 mm (Diameter x Length) Mounting Requires compatible fuse holder for 10x38mm fuses Utilization Category gG - Full-range breaking capacity for general applications

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, PLHT Series Model Number PLHT-B100 Fuse Standard & Rating IEC gG (General Application) Rated Current: 100 A Fuse System NH (Neozed) Style Size B Rated Voltage 500V AC (690V AC also available - check specific catalog) Breaking Capacity 50 kA / 100 kA (Depending on specific type and certification) Standards Compliance IEC 60269-1, IEC 60269-2-1 Contact Type Knife-blade contacts for secure connection in fuse bases Indicator Visual blown indicator (standard in PLHT series) Mounting Requires compatible NH fuse base size B

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, FAZ Series (Bussmann) Model Number FAZ-C16/4 Fuse Class & Rating Class CC Rated Current: 16 A Rated Voltage: 600V AC Number of Poles / Quantity 4 pieces (4-pole set for 3-phase + Neutral applications) Type Fast-Acting (Non-Time-Delay) Rated Voltage 600V AC / 300V DC Rated Breaking Capacity 200 kA AC (200,000 Amps) at 600V AC Approvals / Standards UL 248-4 (Class CC), CSA C22.2 No. 248.4 Electrical Characteristics Current-Limiting: Yes Physical Dimensions Body: 13/32" x 1-1/2" (10.3mm diameter x 38.1mm length) Mounting Requires compatible Class CC fuse holder or fuse block

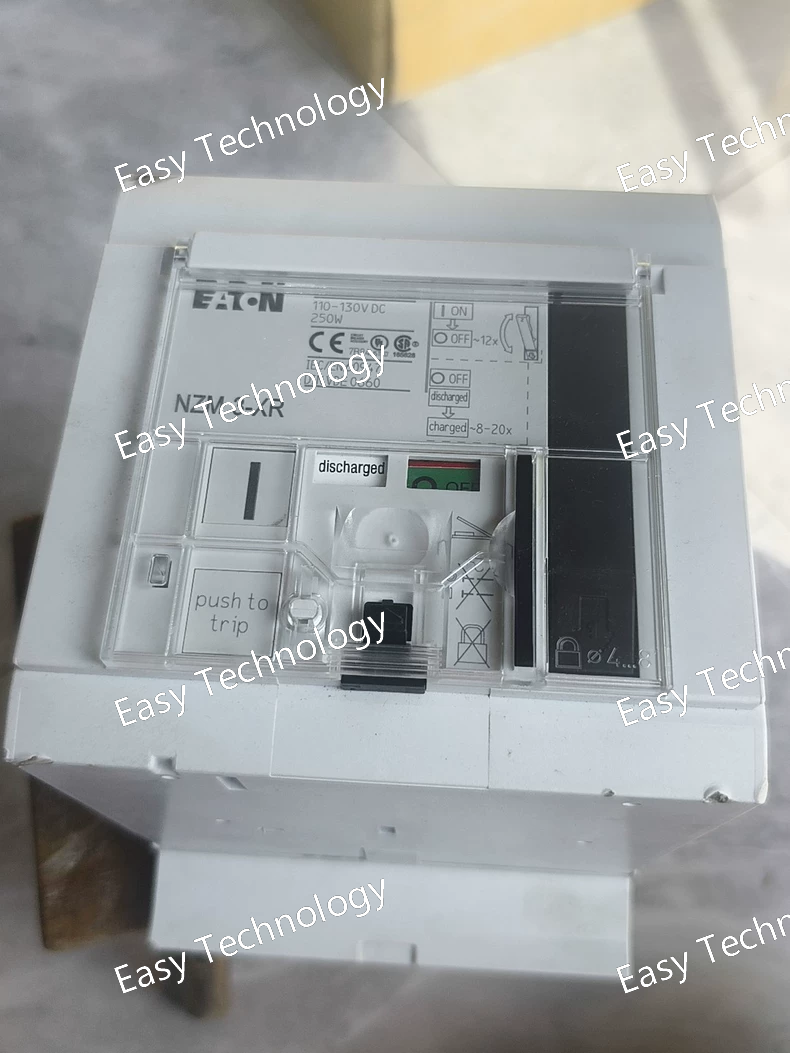

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, NZM Series Model Number NZM3-XR Number of Poles 3-Pole Mounting Type Draw-Out Version (Fixed mounting in draw-out frame) Rated Ultimate Breaking Capacity (Icu) Up to 100 kA (Depending on specific current rating and voltage) Rated Service Breaking Capacity (Ics) Typically 100% of Icu Rated Operational Voltage (Ue) Up to 690V AC Rated Insulation Voltage (Ui) 1000V AC Rated Impulse Withstand Voltage (Uimp) 12 kV Frame Size Varies (e.g., NZM3-XR available in multiple frame sizes: 400A, 630A, etc.) Trip Unit Options Available with Thermal-Magnetic (TMD) or Electronic (AE/ME) trip units Standard Compliance IEC/EN 60947-2

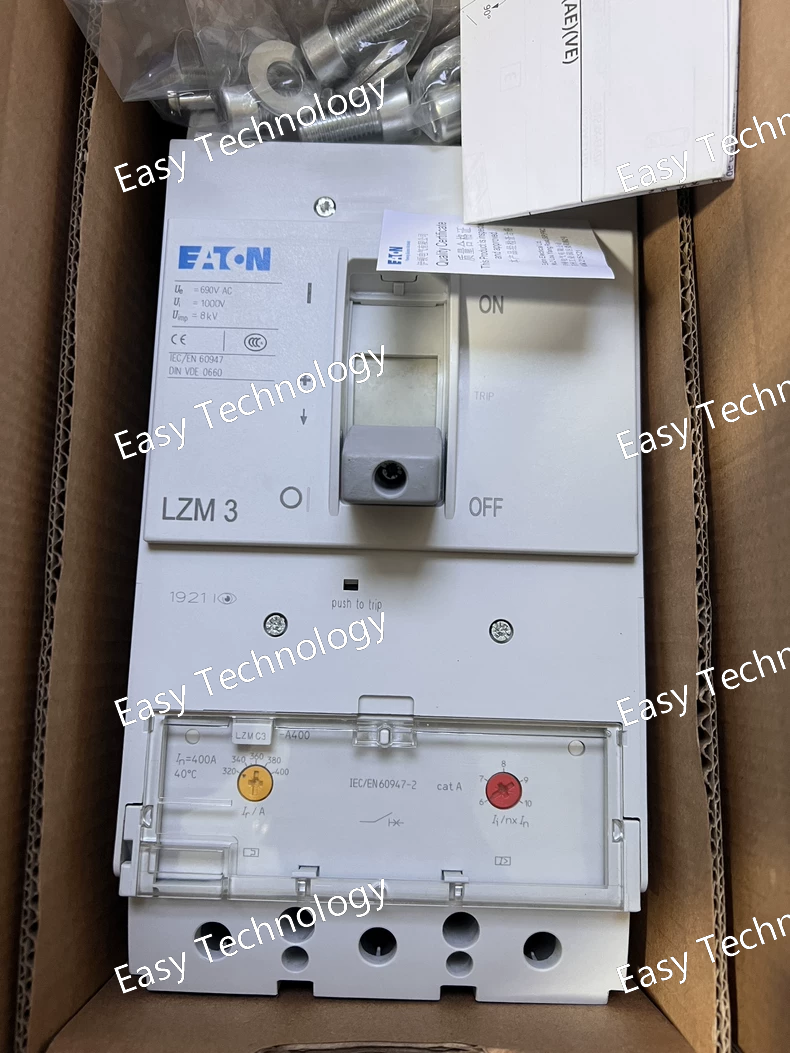

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, LZMC Series Model Number LZMC3-A400 Number of Poles 3-Pole Rated Current 400 A (Frame Size) Rated Operational Voltage (Ue) Up to 690V AC Breaking Capacity High interrupting capacity (Specific kA rating depends on voltage - typically 35-65kA range) Trip Unit Type Type A - Adjustable Electronic Trip Unit Protection Functions L - Long-time Delay (Overload) S - Short-time Delay (Short-Circuit) I - Instantaneous (Short-Circuit) Standards Compliance IEC 60947-2

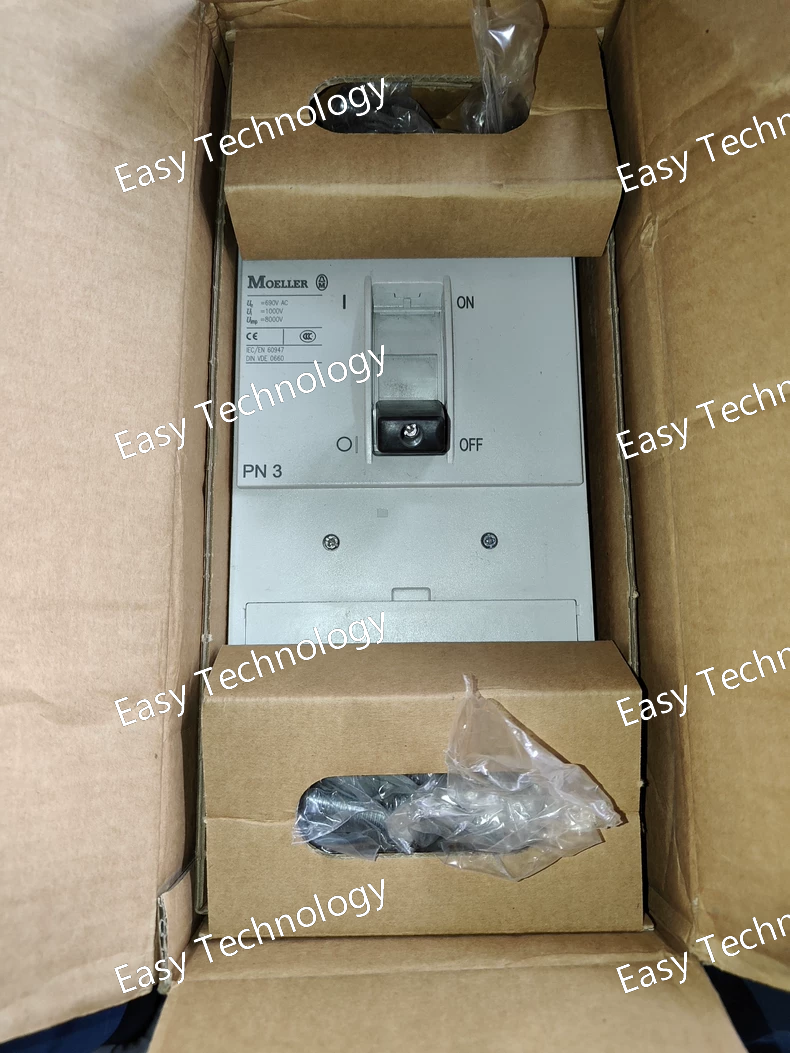

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, PN Series Model Number PN3-400 Number of Poles 3-Pole Rated Current 400 A Rated Operational Voltage (Ue) Up to 690V AC Breaking Capacity (Icu) 50 kA at 415V AC (Typical - confirm with specific catalog) Trip Unit Type Thermal-Magnetic (Fixed characteristics) Standards Compliance IEC 60947-2

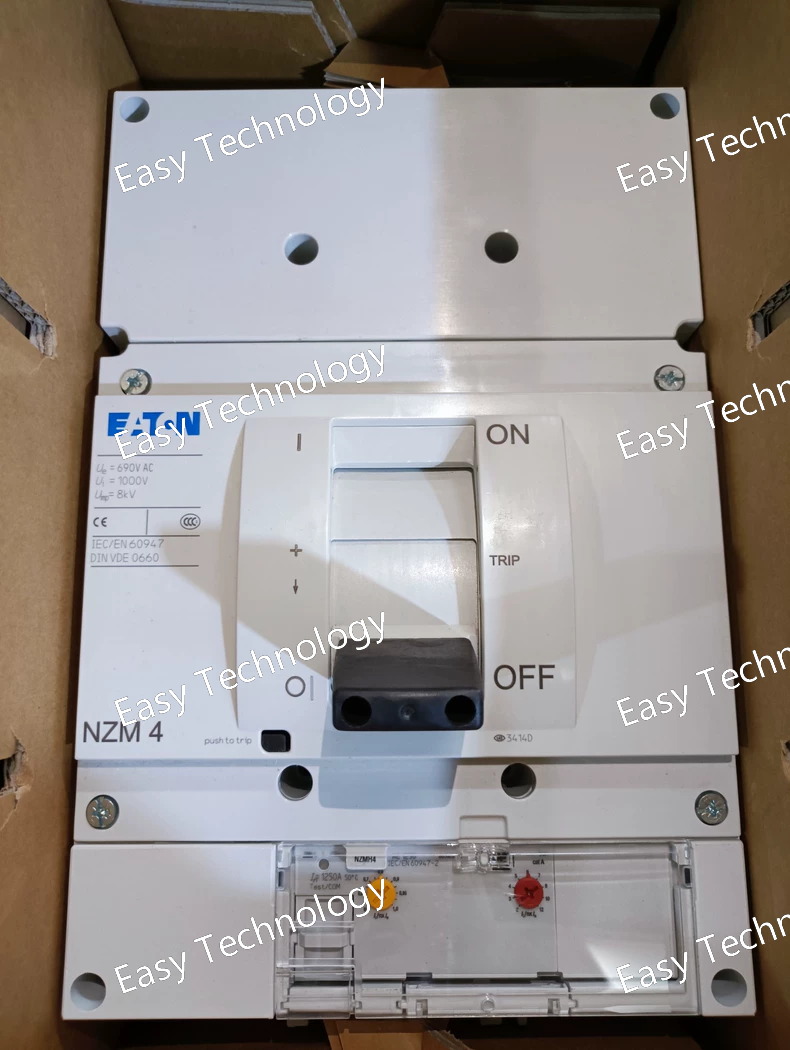

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, NZM Series Model Number NZMH4-AE1250 Number of Poles 4-Pole Rated Current 1250 A (Frame Size) Rated Operational Voltage (Ue) Up to 690V AC Rated Ultimate Breaking Capacity (Icu) Typically 65 kA / 85 kA at 415V AC (Confirm with specific datasheet) Trip Unit Type AE - Advanced Electronic Trip Unit with LCD Display Protection Functions L - Long-time Delay (Overload) S - Short-time Delay (Short-Circuit) I - Instantaneous (Short-Circuit) G - Ground-Fault (Earth Leakage) Standards Compliance IEC 60947-2

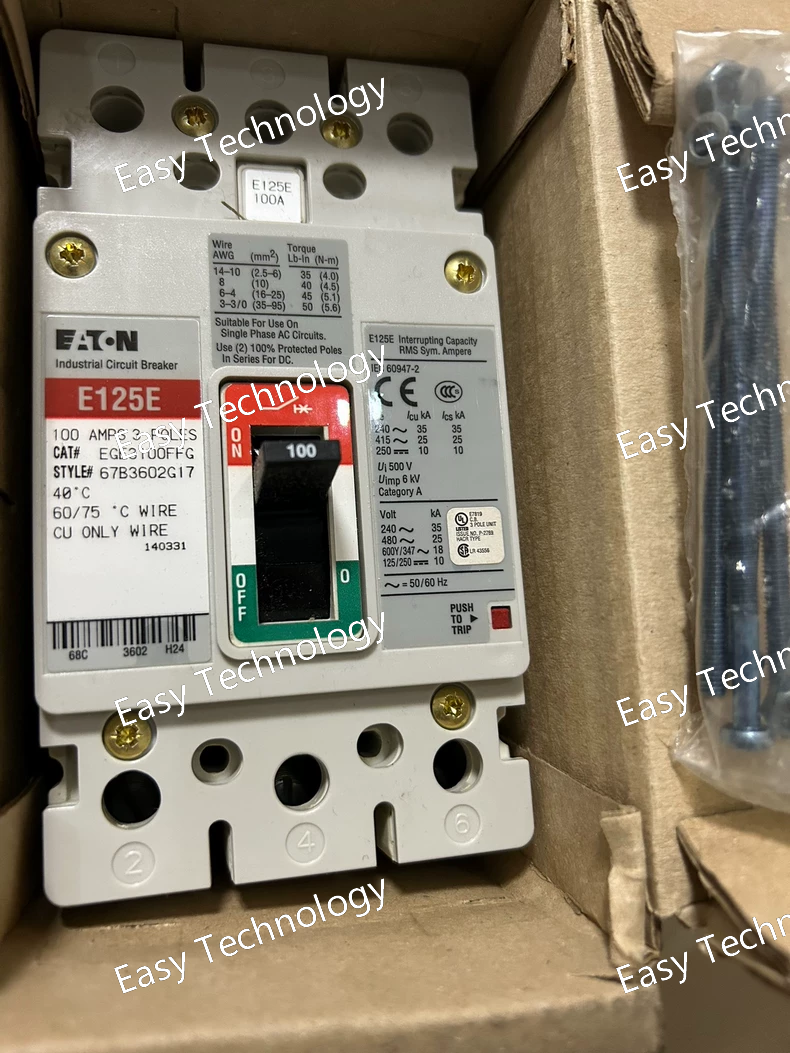

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, E-Frame Series Model Number E125E Rated Current 125 A (Frame Size) Pole Configurations Available in 1, 2, and 3-pole versions (specific model varies) Rated Voltage 120/240V AC for 1-2 poles 240V AC for 3 poles Interrupting Rating 10 kA / 14 kA / 22 kA (Depending on specific version and certification) Trip Characteristics Thermal-Magnetic • Thermal Trip: Inverse time delay for overloads • Magnetic Trip: Instantaneous for short-circuits Standards Compliance UL 489, CSA C22.2 No. 5

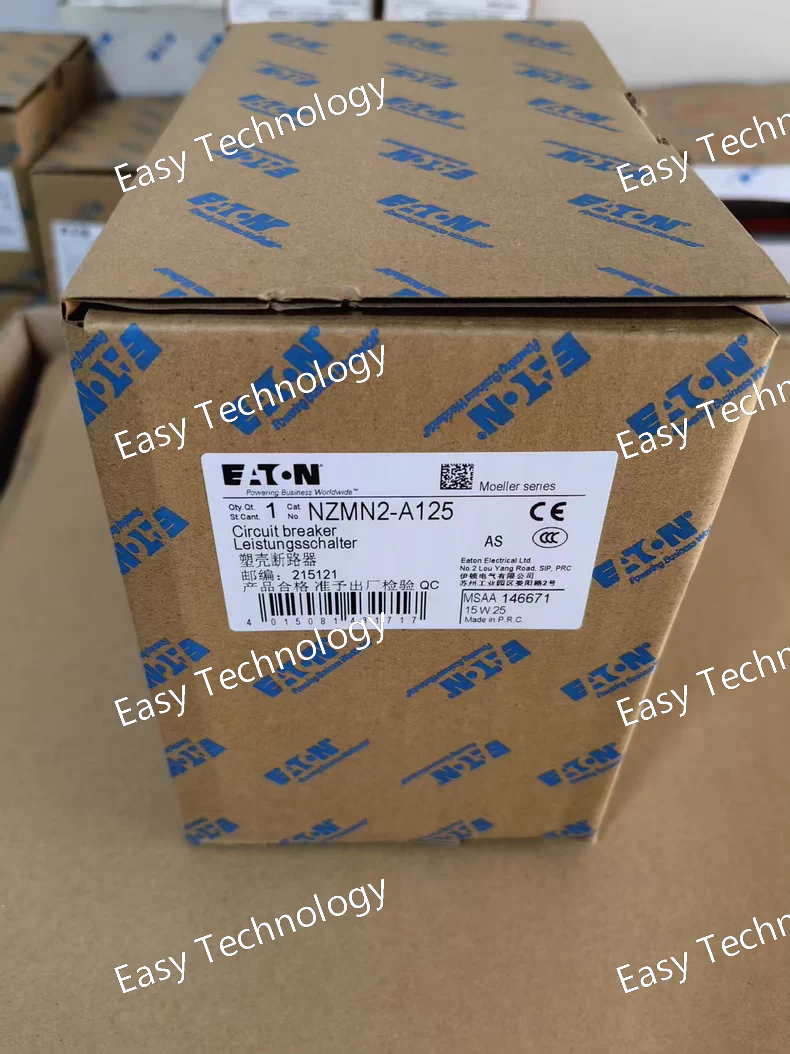

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, NZM Series Model Number NZMN2-A125 Number of Poles 2-Pole Rated Current 125 A (Frame Size) Rated Operational Voltage (Ue) Up to 480V AC Rated Insulation Voltage (Ui) 690V AC Rated Ultimate Breaking Capacity (Icu) Typically 25 kA / 35 kA at 480V AC (Confirm with specific datasheet) Trip Unit Type Type A - Adjustable Electronic Trip Unit Protection Functions L - Long-time Delay (Overload) S - Short-time Delay (Short-Circuit) I - Instantaneous (Short-Circuit) Standards Compliance IEC 60947-2

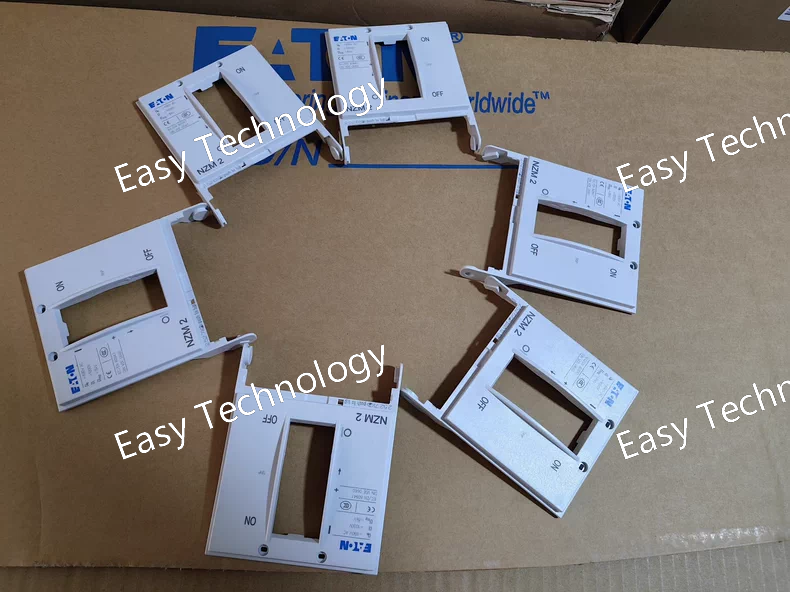

Technical Parameters Parameter Category Description / Value Brand & Series Eaton, NZM Series Model Designation NZM2 Frame Size Compact Frame (Specific current ratings typically up to 160A) Pole Configurations Available in 2, 3, and 4-pole versions Rated Operational Voltage (Ue) Up to 690V AC Rated Insulation Voltage (Ui) 750V AC / 800V AC Breaking Capacity High interrupting rating (Typically 25kA to 50kA depending on specific model and voltage) Trip Unit Options Available with Thermal-Magnetic (TMD) or Electronic (A/ME) trip units Standards Compliance IEC 60947-2
