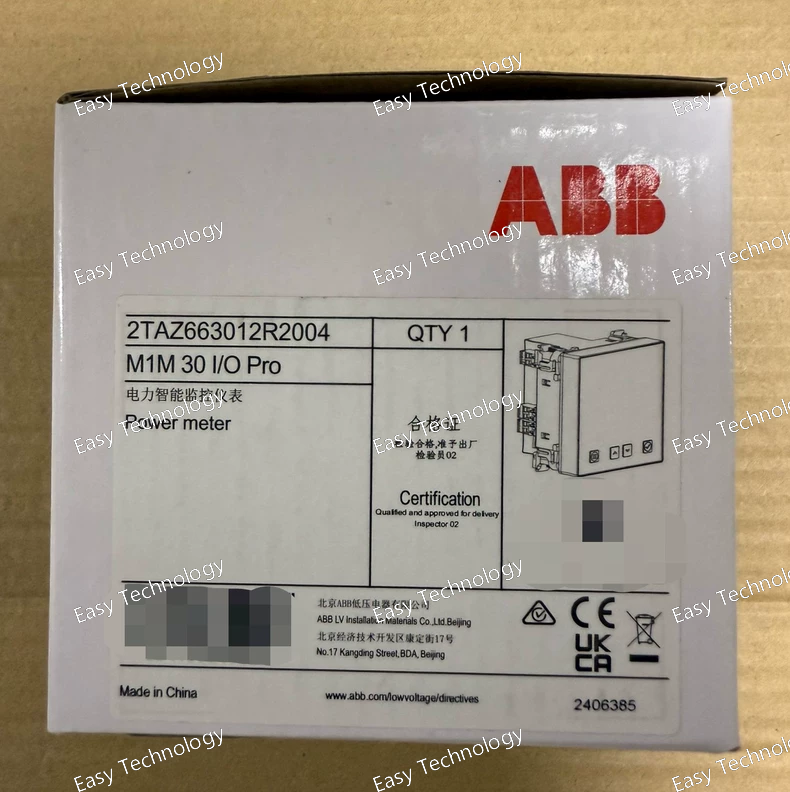

Specifications General Product Name: Multi‑Function Power and Energy Meter Model / Part Number: 2TAZ663012R2004 Series: ABB M1M 30 (or M1M Series power meter) Application: Three‑phase electrical measurement and monitoring Installation: DIN‑rail or panel mounted meter Display: LCD or multi‑line display for real‑time parameters Measurement Functions (typical for M1M 30 series) Voltage Measurement: Line‑to‑line and line‑to‑neutral per phase Current Measurement: Per phase via external CTs Power Parameters: • Active, reactive, and apparent power • Power factor • Frequency Energy: Active and reactive energy (kWh, kVArh) Harmonics: THD of voltage and current (if supported) Electrical Ratings Supply / Measurement Voltage Range: Suitable for standard low‑voltage three‑phase systems Current Input: Through CTs, supported ratio aligned with meter range Accuracy Class: High‑accuracy class per IEC energy metering standards Communications Protocol: Modbus‑RTU Interface: RS‑485 serial communication I/O: Additional digital inputs and outputs (for alarms and status) Integration: Interfaces with PLCs, BMS, SCADA, or energy management systems Functional Features Multi‑parameter display: Real‑time values for power, energy, currents, voltages, etc. Event & alarm thresholds: Configurable alarms via I/O or communication Data logging: Local parameter logs (if available) Remote configuration: Via communication interface Mechanical & Environmental Mounting: DIN‑rail or panel cut‑out Housing Protection: Standard IP20 (indoor electrical panel) Operating Temperature: Industrial ambient range Terminals: Screw/plug‑in type for power, CT, and communication Compliance & Standards Complies with relevant IEC/EN energy measurement standards Designed for use in industrial and commercial electrical distribution measurement Typical Applications Monitoring of three‑phase electrical installations Energy management systems Load analysis for industrial and commercial facilities Integration with building automation and SCADA systems

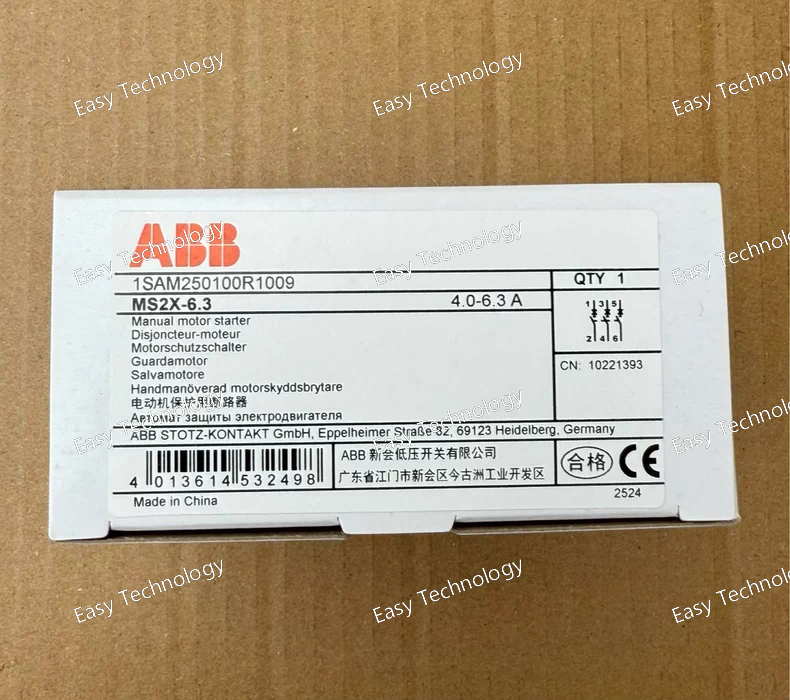

Specifications General Product Type: Manual Motor Protector / Manual Motor Starter Model: MS2X‑6.3 Series: MS (ABB manual motor protection series) Application: Manual starting/stopping and protection of three‑phase motors and loads Mounting: DIN‑rail or panel mounting compatible Connectors: Screw terminals Electrical Ratings Rated Operational Current (Ie): 6.3 A Overload Setting Range: 4 … 6.3 A Number of Poles: 3 poles (three‑phase) Rated Operational Voltage: Up to 690 V AC (main circuit), up to 250 V DC (control/protection) Rated Frequency: 50/60 Hz Rated Insulation Voltage (Ui): 690 V Rated Impulse Withstand Voltage (Uimp): ~6 kV Trip Class: Class 10 Short‑Circuit Breaking Capacity: High breaking capacity per IEC standards Phase Protection: Overload, short circuit, and phase failure/imbalance protection incorporated Operational Performance Manual Switch: ON / OFF / TRIP position indication Disconnect Function: Built‑in disconnection handle Phase Loss Sensitivity: Yes Trip‑Free Mechanism: Yes Status Indication: Clear indication of ON/OFF/TRIP states Physical & Mechanical Housing Protection Class: IP20 Typical Dimensions: Approx. 45 mm width × 90 mm height × 86.8 mm depth Handle Type: Rotary handle for manual control and reset Weight: Compact/lightweight design Environmental Operating Ambient Temperature: –25 °C to +70 °C Storage Temperature: –50 °C to +80 °C Pollution Degree: Suitable for industrial environments Compliance & Standards Complies with IEC/EN 60947‑1, IEC/EN 60947‑2, IEC/EN 60947‑4‑1 standards for motor protection devices Typical Applications Motor control centers and starters Industrial machinery motor protection Pump, compressor, and conveyor motor protection Automation systems requiring overload and phase‑failure protection

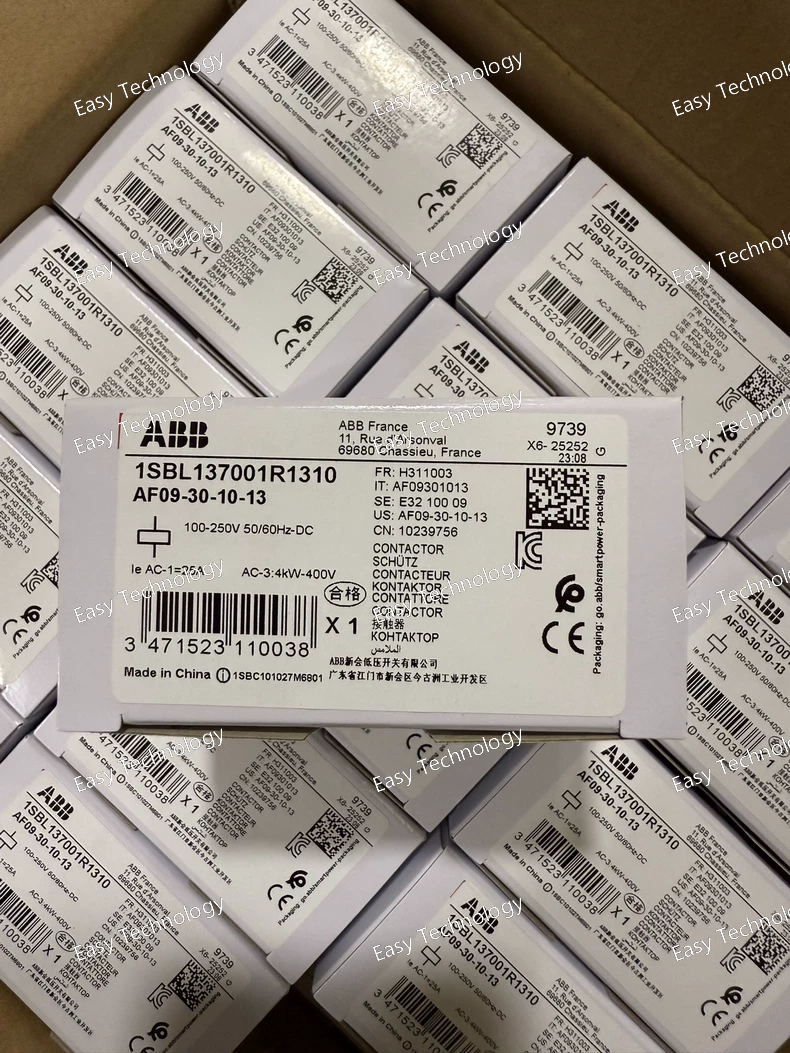

Specifications General Product Name: AF09‑30‑10‑13 AC Contactor Part Number: 1SBL137001R1310 Series: AF Contactors (AF09 range) Number of Poles: 3 main poles (3P) Auxiliary Contacts: 1 built-in normally open (NO) auxiliary contact Terminal Type: Screw terminals Mounting: DIN-rail or panel Design: Block type, compact, modular Protection Class: IP20 Control / Coil Control Voltage Range: 100–250 V AC/DC Control Circuit Frequency: 50/60 Hz Electronic Coil Interface: Accepts large control voltage variation Electrical Ratings – Main Circuit Rated Operational Voltage (Ue): Up to 690 V AC Rated Operational Current (AC‑1): 25 A AC‑3 Rated Current: 9 A (typical motor switching) Rated Operational Power (AC‑3): ~2.2 kW @ 230 V ~4 kW @ 380–415 V ~5.5 kW @ 500–690 V Rated Insulation Voltage (Ui): 690 V Rated Impulse Withstand Voltage (Uimp): ~6 kV Rated Frequency: 50/60 Hz Performance Electrical Switching Frequency: AC‑1 ~600 cycles/hour, AC‑3 ~1200 cycles/hour Mechanical Switching Frequency: ~3600 cycles/hour Short‑time Withstand Current: 150 A (10 s), 300 A (1 s) Mechanical & Physical Width: ~45 mm Height: ~86 mm Depth: ~77 mm Weight: ~0.27 kg Terminal Capacity: Main: 1–6 mm², Control/Aux: up to 2.5 mm² Operate Times: ~40–95 ms (energize/de‑energize) Environmental Operating Ambient Temperature: –40 °C to +70 °C Storage Temperature: –60 °C to +80 °C Maximum Operating Altitude: Up to ~3000 m Standards & Compliance Meets IEC 60947‑1, IEC 60947‑4‑1, UL 508, CSA C22.2 No.14 Typical Applications Three-phase motor control (starters, automation) General industrial load switching Panel and control cabinet installations HVAC, pumps, compressors, and machine control circuits

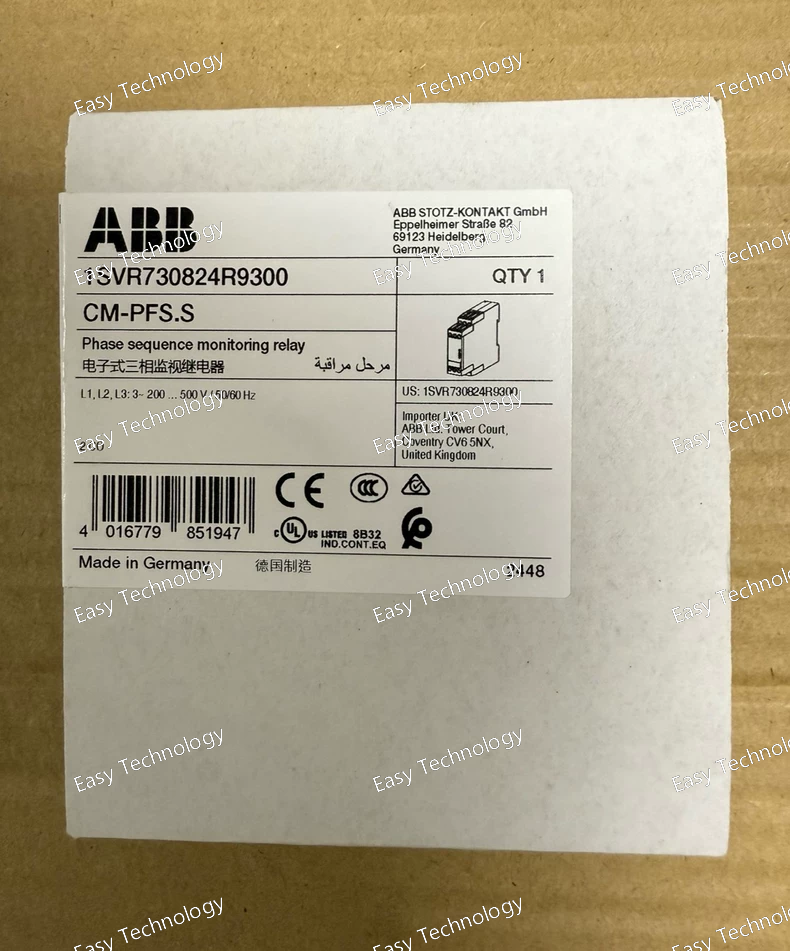

Specifications General Product Name: Three-Phase Monitoring Relay Model / Part Number: 1SVR730824R9300 Series: CM-PFS.S Mounting: DIN-rail Terminal Type: Screw terminals Width: 22.5 mm Height: 85.6 mm Depth: 103.7 mm Weight: ~0.127 kg Monitoring & Functionality Monitored Parameters: Phase failure, phase sequence Response / Start-Up Delay: 500 ms Electrical Rated Control / Supply Voltage (L-L): 200–500 V AC (three-phase) Measuring Voltage Range: 200–500 V AC Rated Frequency: 50/60 Hz Output Contacts: 2 changeover (SPDT / DPDT) Contact Rating: 4 A at 230 V AC Suitable for control and monitoring loads Environmental Operating Ambient Temperature: –25 °C to +60 °C Storage Temperature: –40 °C to +85 °C Degree of Protection: Housing IP50, Terminals IP20 Indicators LED indicators for operational status and fault conditions Applications Monitoring of three-phase supply systems Protection of motors, compressors, pumps, and three-phase equipment Phase sequence and phase loss detection in control panels and switchgear Integration with PLCs and automation systems for fault detection responses

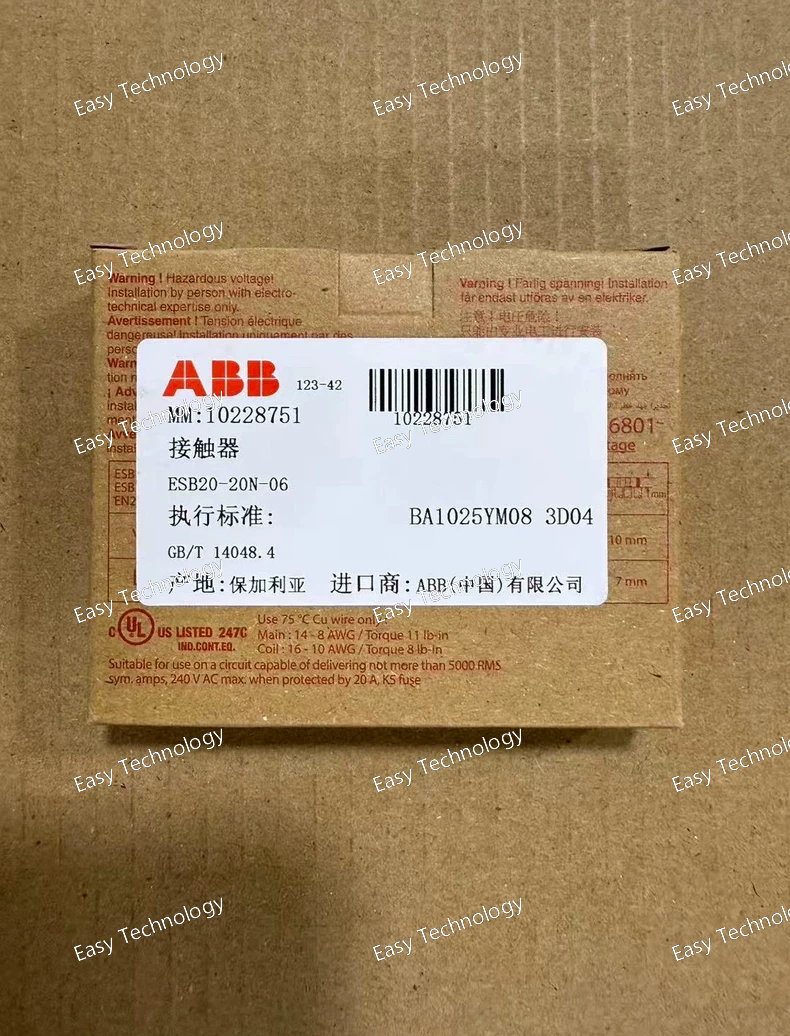

Specifications General Product Name: Installation Contactor Model / Part Number: ESB20‑20N‑06 (ABB 1SBE121111R0620) Type: 2‑pole installation contactor Series: ESB20..N Mounting: DIN‑rail or panel mounting Protection Class: IP20 Applicable Standards: IEC/EN 60947‑1, IEC/EN 60947‑4‑1 compliance Electrical Ratings Rated Operational Current (AC‑1): 20 A (single‑phase load) Rated Control Circuit Voltage: 230 V AC / 230 V DC Rated Main Circuit Voltage: Up to ~250 V AC (single‑phase) Rated Insulation Voltage (Ui): 400 V Rated Impulse Withstand Voltage (Uimp): ~6 kV Control Voltage Type: AC/DC control operation supported Operating Frequency: 50 Hz / 60 Hz / DC control compatible Contacts Configuration: 2 normally open (NO) main contacts Utilization Category: AC‑1 / AC‑7a operational use Performance Rated Operational Power (AC‑7a): ~4.6 kW at 230 V Rated Operational Power (AC‑3): ~1.3 kW at 230 V (resistive or motor load) Electrical Endurance: ~150,000 cycles (contact switching) Mechanical Endurance: ~1,000,000 cycles Mechanical & Physical Number of Poles: 2 Contact Type: Normally open (NO) Connection Type: Screw terminals for main and control circuits Width / Size: 18 mm (modular width) Weight: ~0.14 kg Environmental Operating Ambient Temperature: ~‑25 °C to +55 °C Pollution Degree: 3 Degree of Protection: IP20 (basic protection) Typical Applications Switching and control of single‑phase loads Water heaters, HVAC and ventilation systems Pumps and small motor loads Lighting and resistive load control Panelboards and distribution boards

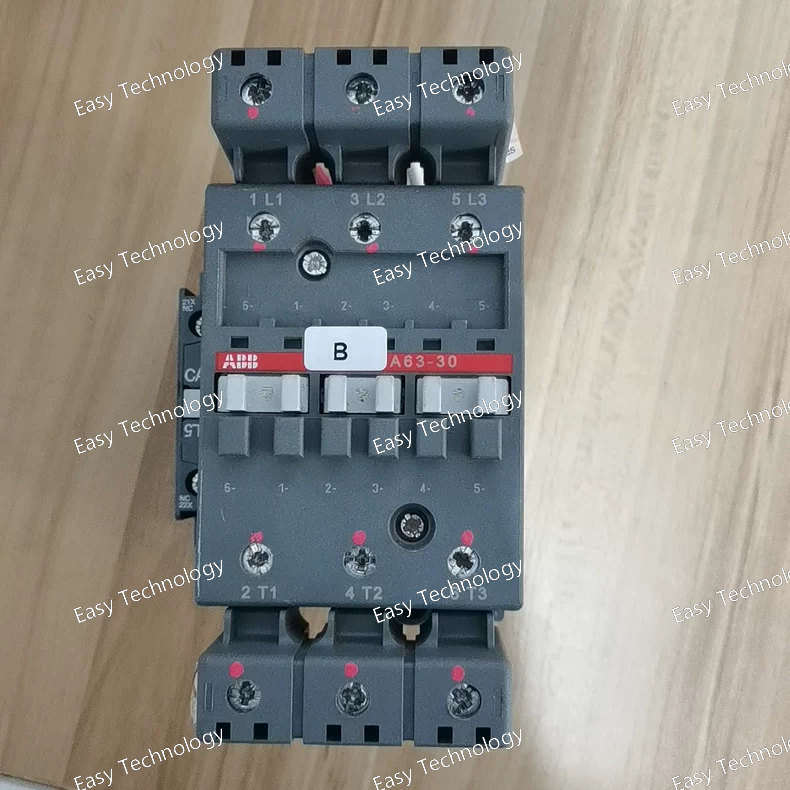

Specifications General Product Type: 3‑Pole AC Contactor Series: A‑Series (ABB) Model: A63‑30 Main Contact Configuration: 3 normally open (3NO) main contacts Contactor Type: Non‑reversing contactor Mounting: Panel or DIN‑rail compatible Protection Class: IP20 (touch‑safe enclosure) Electrical Ratings Rated Operational Voltage (Ue): Up to 690 V AC Rated Operational Current (AC‑1): 63 A Rated Operational Current (AC‑3): Typically 40–50 A (dependent on voltage and load type) Frequency: 50/60 Hz Rated Insulation Voltage (Ui): 1000 V AC Rated Impulse Withstand Voltage (Uimp): ~8 kV Control (Coil) Control Coil Type: AC coil (various voltages available) Typical Control Coil Voltages: 24 V AC, 48 V AC, 110–120 V AC, 220–240 V AC, 380–415 V AC (varies by specific model suffix) Coil Consumption: Typically in the range of ~15–20 VA (depends on coil voltage) Operating Frequency (Coil): 50/60 Hz Performance Making/Breaking Capacity: Suitable for industrial motor loads, resistive and inductive loads Electrical Endurance: High cycle life under rated load operations Mechanical Endurance: Designed for frequent switching Mechanical Number of Poles: 3 main poles Auxiliary Contacts: Optional auxiliary contact blocks (NO/NC) available separately Terminals: Screw terminals Dimensions (approx): Width ~70–75 mm, Depth ~100–110 mm, Height ~90–100 mm (model dependent) Weight: ~1.2–1.5 kg (varies by coil version) Environmental Operating Ambient Temperature: –40 °C to +70 °C (typical) Storage Temperature: –40 °C to +80 °C Altitude: Suitable for use up to ~2000–3000 m (depending on application) Standards & Compliance Designed according to IEC 60947‑4‑1 (Contactor and Motor Starter Standards) Suitable for use in industrial power control and motor starter applications Typical Applications Motor control and starting Industrial automation control circuits Power distribution panels HVAC systems Pumps, compressors, conveyors, and general load switching Integration with overload relays and PLC logic

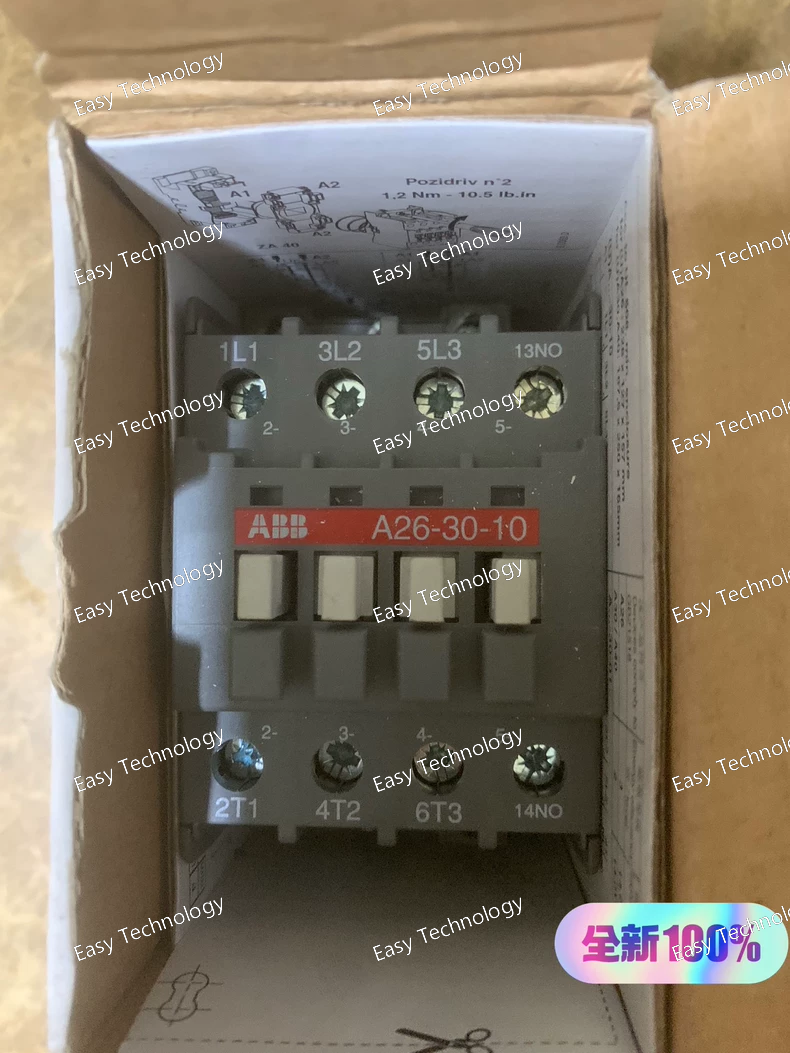

Specifications General Product Type: 3-Pole AC Contactor Series: A26 (ABB A-Series) Model: A26-30-10 Main Contact Configuration: 3 normally open (3NO) poles Auxiliary Contacts: Typically 1 NO auxiliary contact (add-on if required) Design: Block type, non-reversing contactor Mounting: Panel or DIN rail compatible Enclosure Protection: IP20 Electrical Ratings Rated Operational Voltage (Main Circuit): Up to 690 V AC Rated Current: AC-1: ~45 A AC-3: ~40 A at 400 V (motor control) Rated Control Voltage (Coil): Depends on variant (24 V, 110–120 V, 220–240 V, 380–400 V AC) Rated Insulation Voltage (Ui): 1000 V AC Rated Impulse Withstand Voltage (Uimp): 8 kV Frequency: 50/60 Hz Performance Rated Making / Breaking Capacity (AC-3): Suitable for motor loads up to ~11 kW at 400 V Mechanical Endurance: High operating cycle design Coil & Control Coil Type: AC coil versions (various voltages) Coil Consumption: Typical ~12 VA holding power (model dependent) Coil Operating Limits: Approx. 0.85–1.1 × rated control voltage Mechanical Number of Poles: 3 main poles Contact Material: Silver alloy for conductivity and durability Termination: Screw terminals Dimensions (approx): Width 54 mm, Depth 93.6 mm, Height 90 mm Weight: ~0.60 kg Environmental Operating Temperature Range: –40 °C to +70 °C Altitude Capability: Up to 3000 m Standards & Compliance Designed according to IEC 60947-4-1 standards UL/CSA approvals available on certain variants Typical Applications Motor control and switching Industrial automation systems Power distribution and control panels HVAC and compressor systems Integration with overload relays and PLC control

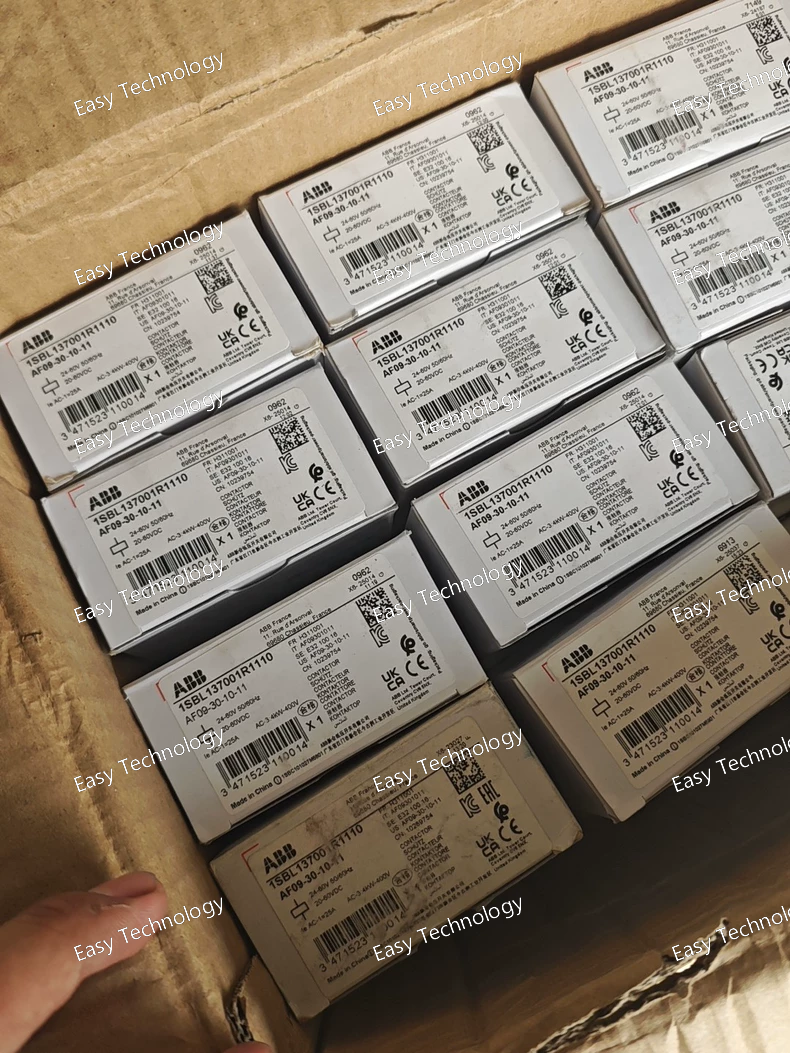

Specifications General Product Name: 3‑Pole AC Contactor Model / Catalog No.: 1SBL137001R1110 (AF09‑30‑10‑11) Series: AF09 Series Contactors Number of Poles: 3 main poles Auxiliary Contacts: 1 built‑in normally open (NO) auxiliary contact Connection Type: Screw terminals Design: Compact, block‑type contactor for panel and DIN rail mounting Protection Class: IP20 enclosure protection Electrical Ratings – Main Circuit Rated Operational Voltage: Up to 690 V AC (IEC) / 600 V AC (UL) Rated Operational Current (AC‑1): 25 A Rated Operational Current (AC‑3): 9 A Motor Control Power (AC‑3): • Up to ~4 kW at 400 V AC • Up to ~5.5 kW at 500–690 V AC Horsepower Ratings (UL/CSA): • ~5 HP @ 440–480 V AC (three‑phase) • ~7.5 HP @ 550–600 V AC (three‑phase) Control (Coil) Characteristics Control Voltage Range: • 24–60 V AC, 50/60 Hz • 20–60 V DC Coil accepts broad AC/DC voltage range for flexible control integration Built‑in surge protection on coil for reliable switching Performance & Durability Rated Short‑Time Withstand Current (Icw): Up to ~300 A (varies by duration) Electrical Durability: High cycle life under rated load conditions Mechanical Durability: Designed for frequent switching duty Rated Operational Voltage – Auxiliary Circuits: Up to 690 V AC Maximum Operating Altitude: Designed for use up to ~3000 m above sea level Mechanical Dimensions (approx): • Height: ~86 mm • Width: ~45 mm • Depth: ~77 mm Weight: ~0.27 kg Installation: Panel or DIN‑rail mount with standard screw hardware Complies With: IEC 60947‑1 / IEC 60947‑4‑1; UL 508; CSA C22.2 No.14 Environmental Ambient Operating Temperature: –40 °C to +70 °C (contactor alone) Storage Temperature: –60 °C to +80 °C Shock / Vibration: Designed for typical industrial environmental conditions Typical Applications Three‑phase motor control (starters and automation systems) HVAC equipment and pump control Industrial machinery control panels General AC power switching and load control Integration with PLCs, control relays, and safety systems

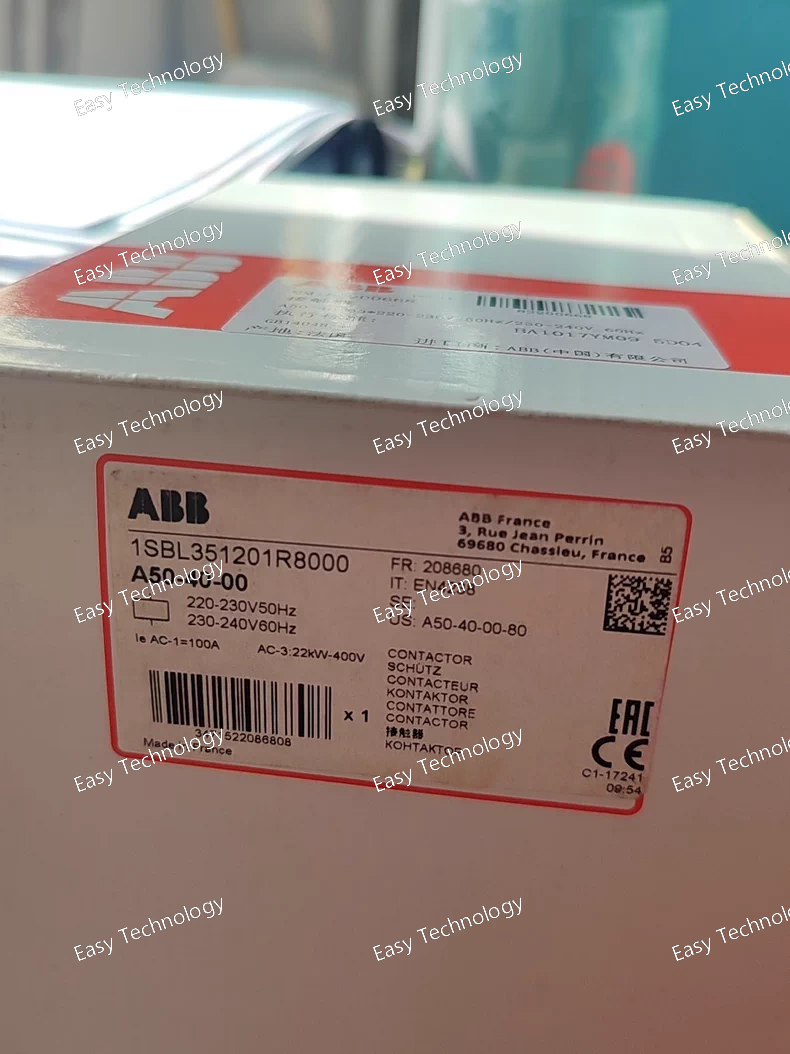

Specifications General Product Name: Industrial AC Contactor Series: A Series Model: A50-40-00 Main Contacts: 4 N.O. (Normally Open) Contactor Type: Non-reversing IEC contactor Design: Block type with easy maintenance and coil inspection features Mounting: Panel or DIN-rail compatible Standards: IEC 60947-4-1 compliance Electrical Main Circuit Voltage: Up to 690 V AC Control Coil Voltage: Varies by version (e.g., 24 V AC, 110–120 V AC, 220–240 V AC, etc.) Frequency: 50/60 Hz Rated Insulation Voltage (Ui): 1000 V AC Rated Impulse Withstand Voltage: 8 kV Coil Type: Electromagnetic AC coil Current & Load Ratings Rated Operational Current (AC-1): ~80 A Rated Operational Current (AC-3): ~54 A Rated Motor Power: Single-phase motors up to ~20 HP @ 230/240 V Three-phase motors up to ~40 HP @ 460/480 V Three-phase motors up to ~50 HP @ 575/600 V Mechanical Number of Poles: 4 Termination: Screw terminals Auxiliary Contacts: Optional add-on blocks Operating Cycles: High cycle life for frequent operation Protection Class: IP20 Weight: ~1.4 kg Environmental Ambient Operating Temperature: –40 °C to +55 °C Storage Temperature: –60 °C to +80 °C Designed for: Industrial environments with standard humidity and vibration tolerances Applications Control of three-phase motors and power circuits Industrial automation and machine control Heating and lighting load switching Power distribution control panels HVAC and pump control systems

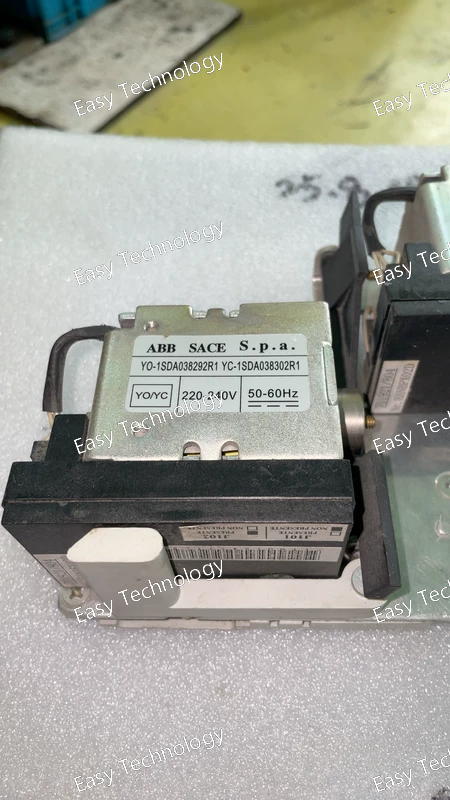

Specifications General Product Name: Shunt Closing Release Coil Part Number: YC-1SDA038302R1 Accessory Type: Remote Closing Coil for Circuit Breakers Function: Provides remote electrical closing of the circuit breaker contact mechanism Electrical Characteristics Rated Control Voltage: 220–240 V AC/DC Frequency: 50/60 Hz Control Type: AC/DC operated shunt closing coil Used to command the breaker to close when energized Compatibility Applicable Breakers: ABB Emax low-voltage air circuit breakers Suitable Frame Sizes: E1, E2, E3, E4, E6, T8 Works in conjunction with other control accessories such as shunt trip units, undervoltage releases, and auxiliary contacts Mechanical & Installation Compact module designed for panel or breaker accessory slot installation Easy electrical connection to control circuitry for remote actuation Operational Features Enables remote or automated closing action from a control source (PLC, pushbutton, control relay, etc.) Designed for reliable actuation in industrial environments Dual-rated AC/DC coil simplifies system integration Environmental & Compliance Designed per relevant IEC accessory standards Suitable for control voltages in standard industrial applications Conforms to applicable electrical safety and environmental guidelines Typical Applications Automated electrical distribution systems Switchgear control panels Motor control centers (MCCs) Remote breaker control from PLCs or DCS Safety interlock and process automation systems

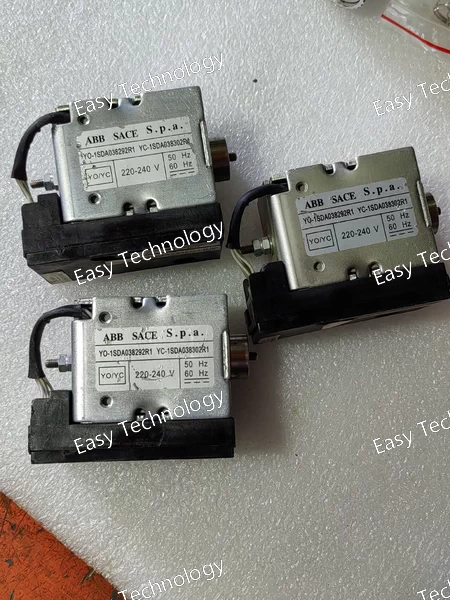

Specifications General Product Name: Shunt Closing & Opening Release Coil Part Number: YO-1SDA038292R1 Manufacturer: ABB SACE (Low-Voltage Power Accessories) Accessory Type: Shunt release coil for circuit breaker control Function Enables remote opening (trip) and remote closing of the circuit breaker via external electrical signal Used in motor control, safety interlock systems, automation sequences, and remote operation panels Electrical Characteristics Rated Control Voltage: 220–240 V AC/DC Frequency: 50/60 Hz Operates on standard industrial control voltages Dual-function coil designed for both opening and closing actuation Compatibility Applicable Circuit Breakers: ABB Emax series low-voltage breakers Frame Sizes: Typically suitable for E1 to E6 / T8 frame breakers Physical / Mechanical Compact accessory designed to mount in breaker accessory slot or panel mount Standard industrial grade construction for reliable operation in control cabinets Operational Features Supports remote breaker control via electrical logic signals Enhances system safety by integrating breaker control with automation and safety systems Can be interfaced with PLCs, building management systems, and alarm interlocks Applications Industrial switchboards and distribution panels Motor control centers (MCCs) Automated electrical control systems Emergency stop / safety interlock circuits Remote breaker actuation in process automation Standards & Compliance Designed according to IEC low-voltage accessory norms Robust design suitable for industrial environments

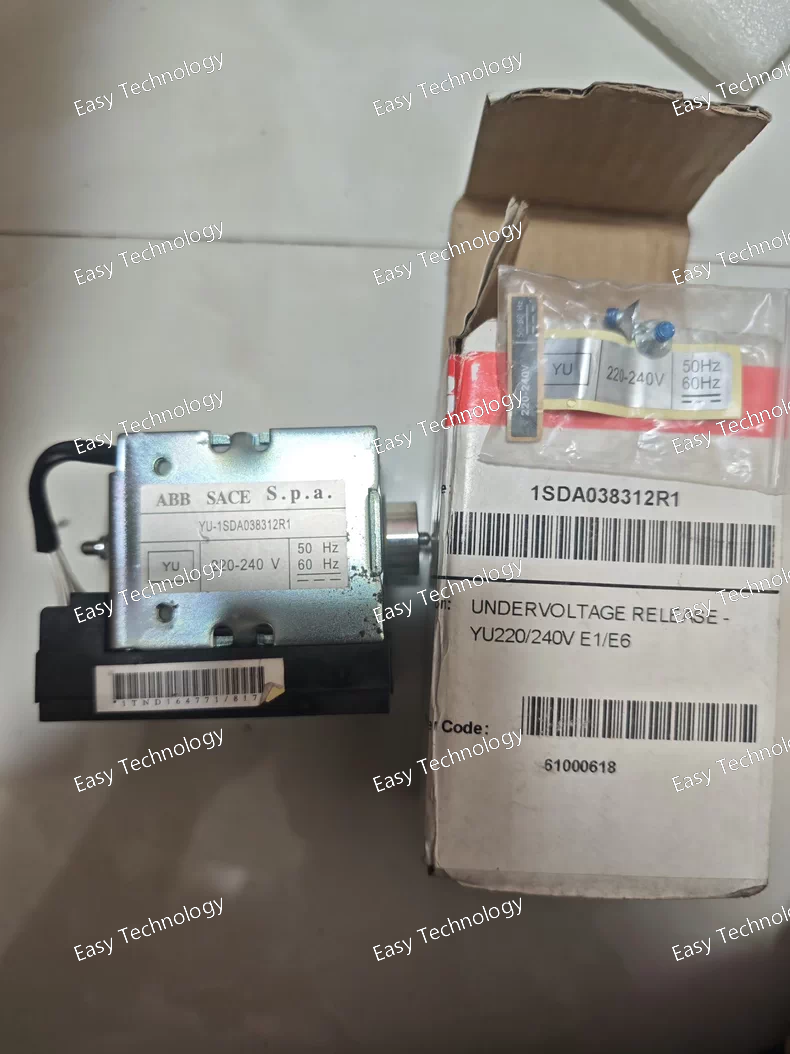

Specifications General Product Type: Undervoltage Release (UVR) Part Number: 1SDA038312R1 Function: Automatically trips the breaker during undervoltage conditions Installation: Mounts as an accessory inside ABB Emax circuit breakers Electrical Characteristics Rated Operating Voltage: 220–240 V AC, 50/60 Hz Operation: When supply voltage falls below the trip threshold, the device instantly activates the breaker opening mechanism Coil Type: AC-operated undervoltage trip coil Compatibility Applicable Breakers: ABB Emax / SACE Emax series Typical Frame Sizes: E1, E2, E3, E4, E6, T8 Works with other control accessories such as shunt trip units and auxiliary contacts Functional Features Prevents closing of the breaker if voltage is not within the safe operating range Provides automatic protection during brownouts or voltage dips Suitable for integration with industrial control and safety systems Mechanical & Environmental Protection Class: Typically IP20 Operating Temperature Range: Approx. –20 °C to +55 °C Compact module designed for easy installation inside the breaker accessory compartment Compliance Designed according to IEC standards for circuit breaker accessories CE compliant RoHS compliant Typical Applications Industrial distribution panels Motor control centers Automation systems Emergency and safety shutdown circuits Any installation requiring automatic breaker tripping during undervoltage conditions
