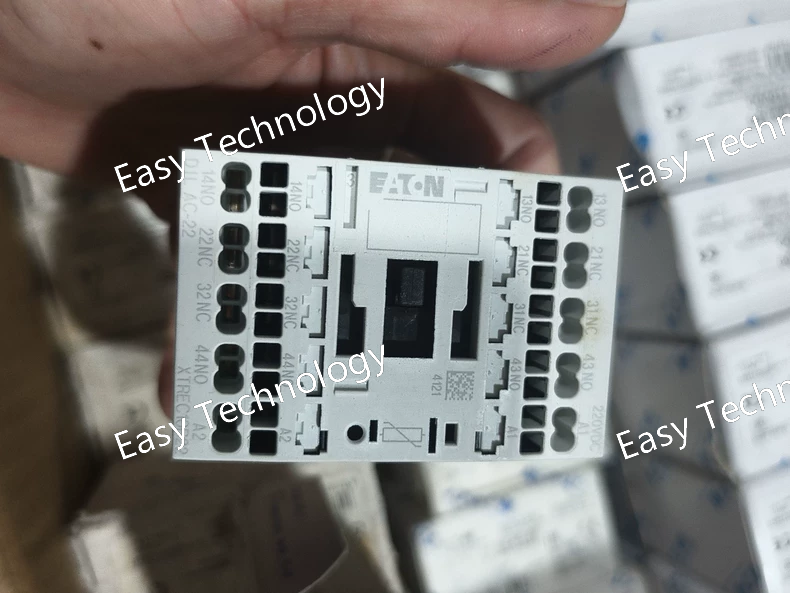

Technical Parameters Parameter Specification Model DILAC-22 Rated Operational Current 22 A Motor Power Range (at 400V AC) 11 kW Rated Operational Voltage 690 V AC Control Voltage 24-240 V AC/DC (varies by specific model) Protection Degree IP20 Mounting DIN Rail (35mm) Auxiliary Contacts 1 NO + 1 NC (minimum) Standards & Approvals IEC/EN 60947-4-2, UL 508, CE, cULus

Technical Parameters Parameter Specification Model ZB12C-1.6 Product Type Plug-in Terminal Block (Base + Plug) Rated Voltage 250 V Rated Current 16 A Wire Cross-Section 1.6 mm² (Range: 0.25-2.5 mm²) Connection Technology Cage Clamp (Spring Loaded) Conductor Types Solid, Stranded, or Ferruled Strands Mounting DIN Rail NS 35/7.5 Housing Material Transparent Polycarbonate (PC) Clamp Material Tin-plated Steel Conductor Material Tin-plated Copper Standards & Approvals UL 1059, CSA, CE, RoHS, cULus

Technical Parameters Parameter Specification Model ZB12C-1 Product Type Plug-in Terminal Block (Base + Plug) Rated Voltage 250 V Rated Current 10 A Wire Cross-Section 1.0 mm² (Range: 0.25-1.5 mm²) Connection Technology Cage Clamp (Spring Loaded) Conductor Types Solid, Stranded, or Ferruled Strands Mounting DIN Rail NS 35/7.5 Housing Material Transparent Polycarbonate (PC) Clamp Material Tin-plated Steel Conductor Material Tin-plated Copper Standards & Approvals UL 1059, CSA, CE, RoHS, cULus

Technical Parameters Parameter Specification Notes Model ZB12C-1 Product Type Plug-in Terminal Block Consists of a base and a plug Rated Voltage 250 V Rated Current 10 A Rated Cross-Section (Wire Size) 1.0 mm² This is the core specification indicated by "-1". It typically accommodates a range, e.g., 0.25 mm² to 1.5 mm². Number of Positions 1 (sold individually) Multiple units can be snapped together to form a block. Connection Technology Cage Clamp (Spring Loaded) Conductor Type Solid, stranded, or finely stranded with ferrule Mounting DIN Rail NS 35/7.5 Standard 35mm DIN rail. Material (Housing) Polycarbonate (PC), Transparent Material (Clamp) Steel, Tin-plated Material (Conductor) Copper, Tin-plated Approvals / Standards UL 1059, CSA, CE, RoHS, cULus

Technical Parameters Parameter Specification Notes Model ZB32C-32 Product Type Plug-in Terminal Block Consists of a base and a plug Rated Voltage 500 V Rated Current 32 A This is the core specification indicated by "-32". Rated Cross-Section (Wire Size) Up to 6.0 mm² Typical range is 0.5 mm² to 6.0 mm² (check datasheet). Number of Positions 1 (sold individually) Multiple units can be snapped together to form a block. Connection Technology Cage Clamp (Spring Loaded) Conductor Type Solid, stranded, or finely stranded with ferrule Mounting DIN Rail NS 35/7.5 or NS 32 Standard 35mm DIN rail. Material (Housing) Polycarbonate (PC), Transparent Material (Clamp) Steel, Tin-plated Material (Conductor) Copper, Tin-plated Approvals / Standards UL 1059, CSA, CE, RoHS Recognized Component

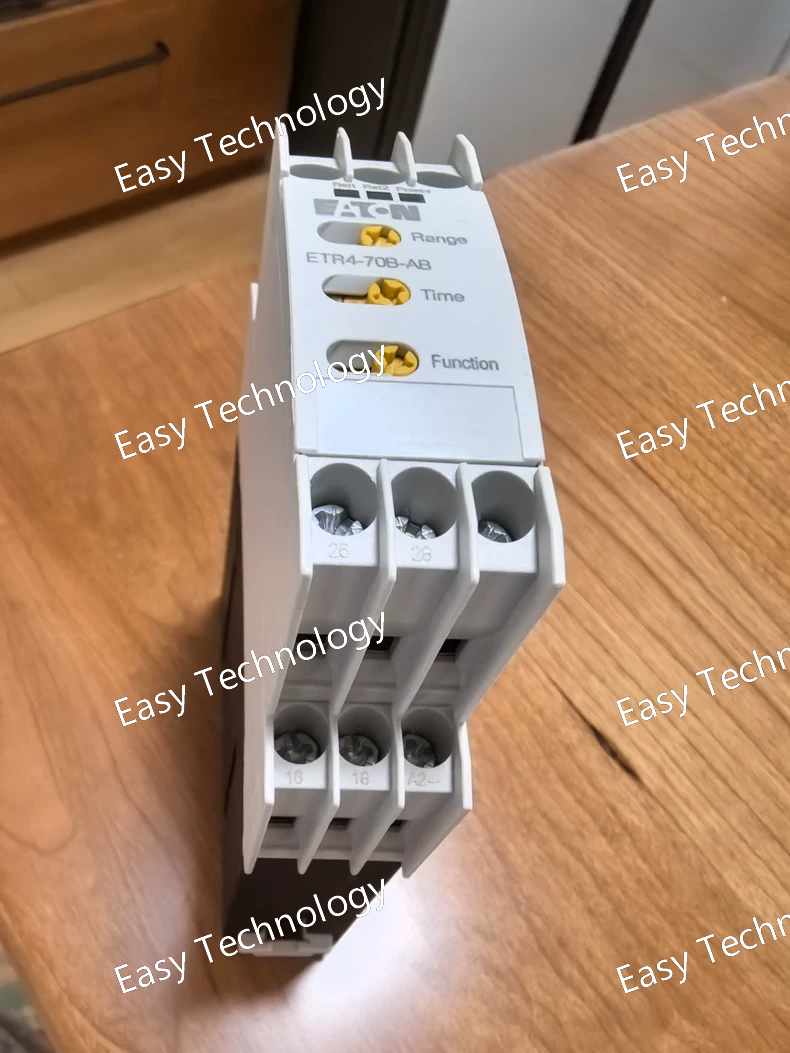

Technical Parameters) Parameter Specification Notes Model ETR4-70B-AB Electronic Time Relay Product Type Multi-function Timer Operating Voltage (Us) 24-240 V AC/DC This is a key feature of the "AB" suffix. Wide-range, auto-sensing supply. Timing Range 0.05s - 300h Extremely wide range, selectable via sub-ranges. Switching Capacity 8 A / 250 V AC (AC-1) 8 A / 30 V DC (DC-1) Resistive load ratings. Output Type 1 Changeover (CO) Relay Contact SPDT (1 normally open + 1 normally closed) Number of Time Ranges 7 Selectable via the rotary switch. Number of Functions 10+ e.g., On-delay, Off-delay, Interval, Star-Delta, Flasher. Repeat Accuracy < 0.5% of set value + 10 ms Mounting DIN Rail (35mm) Terminal Type Screw Clamp Degree of Protection IP20 (front), IP40 (terminal) Agency Approvals UL 508, CSA, CE, cULus, RoHS

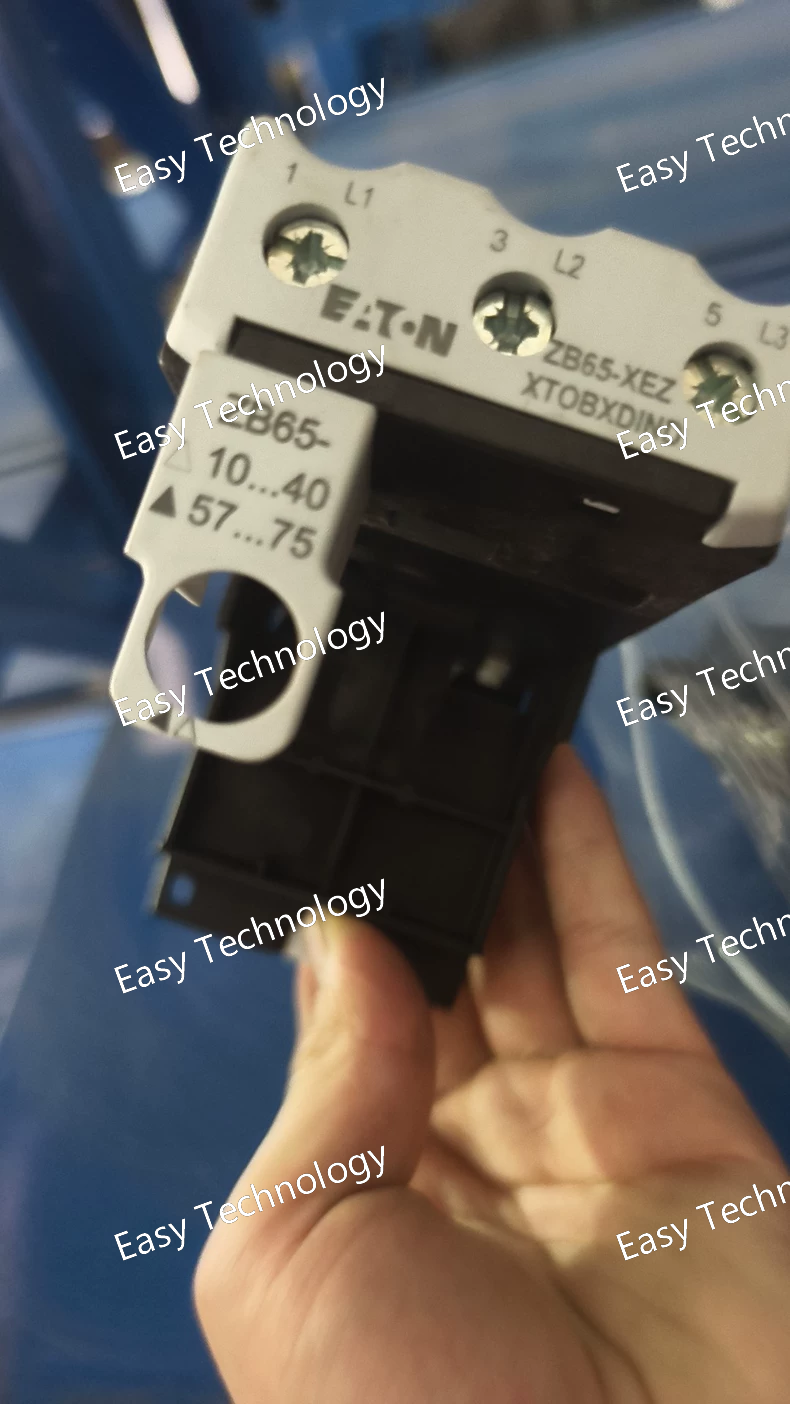

Technical Parameters Parameter Specification Notes Model ZB65-XEZ Plug-in Bridge & Test Terminal Product Type Test Terminal with Integrated Shunt/Resistor Rated Voltage Typically 600/1000 V Rated Current Dependent on the integrated shunt's rating A common rating for this type is 50 A, generating 60 mV drop. This is a critical detail to confirm. Shunt Output Typically 60 mV or 100 mV The voltage signal at rated current for measurement. Rated Cross-Section (Wire Size) Up to 16 mm² or 25 mm² Number of Positions Custom configuration (e.g., 4-pole) Connection Technology Cage Clamp (Spring Loaded) Mounting DIN Rail NS 35 Material (Housing) Polyamide (PA), typically Black Material (Clamp) Steel, Tin-plated Material (Conductor) Copper, Tin-plated Approvals / Standards UL 1059, CSA, CE, RoHS

Technical Parameters Parameter Specification Notes Model ZB12C-2.4 Product Type Plug-in Terminal Block Consists of a base and a plug Rated Voltage 250 V Rated Current 16 A Rated Cross-Section (Wire Size) 2.4 mm² This is the core specification. It typically accommodates a range, e.g., 0.5 mm² to 2.5 mm². Number of Positions 1 (sold individually) Multiple units can be snapped together to form a block. Connection Technology Cage Clamp (Spring Loaded) Conductor Type Solid, stranded, or finely stranded with ferrule Mounting DIN Rail NS 35/7.5 Standard 35mm DIN rail. Material (Housing) Polycarbonate (PC), Transparent Material (Clamp) Steel, Tin-plated Material (Conductor) Copper, Tin-plated Approvals / Standards UL 1059, CSA, CE, RoHS, cULus

echnical Parameters Parameter Specification Notes Model ZB32N-4 Product Type Level Junction Terminal Block Rated Voltage 400 V Rated Current 57 A Rated Cross-Section 4.0 mm² Primary specification indicated by "-4" Wire Range 1.5 - 4.0 mm² Confirm in datasheet Number of Positions 1 Units can be assembled into blocks Connection Technology Cage Clamp (Spring Loaded) Tool-less operation Conductor Type Solid, stranded, or ferruled strands Mounting DIN Rail NS 35/7.5 or NS 32 Standard 35mm rail Housing Material Polycarbonate (PC), Transparent Clamp Material Steel, Tin-plated Conductor Material Copper, Tin-plated Standards & Approvals UL 1059, CSA, CE, RoHS Component recognized

Technical Parameters Parameter Specification Notes Model XTOD18-1.6 Type Solid State Relay (SSR) DC Input to DC Output Load Voltage 5 to 60 VDC Load Current 18 A max Absolute Max Load Current 27 A Non-repetitive peak On-State Resistance ≤ 18 mΩ On-State Voltage Drop ≤ 0.32 V @ 18A Input Control Voltage 3 to 10 VDC Input Current 10 mA typical @ 5V Turn-On Time 1 ms max Turn-Off Time 0.1 ms max Isolation Voltage 1500 Vrms Between input and output Operating Temperature -40°C to +80°C Storage Temperature -40°C to +100°C Mounting PCB Mount Through-hole type Package Plastic, sealed Weight Approx. 10 g Agency Approvals UL 508, CE, CQC Recognized / Certified

Technical Parameters Parameter Specification Notes Model XTOD18-8 Type Solid State Relay (SSR) DC Input to DC Output Load Voltage 5 to 60 VDC Load Current 18 A max Absolute Max Load Current 27 A Non-repetitive peak On-State Resistance ≤ 18 mΩ On-State Voltage Drop ≤ 0.32 V @ 18A Input Control Voltage 3 to 10 VDC Input Current 10 mA typical @ 5V Turn-On Time 1 ms max Turn-Off Time 0.1 ms max Isolation Voltage 1500 Vrms Between input and output Operating Temperature -40°C to +80°C Storage Temperature -40°C to +100°C Mounting PCB Mount Through-hole type Package Plastic, sealed Weight Approx. 10 g Agency Approvals UL 508, CE, CQC Recognized / Certified

Technical Parameters Parameter Specification Notes Model ZB32N-1,5 Equivalent to ZB32N-1.5 Product Type Level Junction Terminal Block Rated Voltage 400 V Rated Current 24 A Rated Cross-Section (Wire Size) 1.5 mm² This is the core specification indicated by "1,5". It can also accommodate a range of wire sizes, e.g., 0.5 mm² to 2.5 mm² (check datasheet). Number of Positions 1 (sold individually) Multiple units can be snapped together to form a block. Connection Technology Cage Clamp (Spring Loaded) Tool-less or with a screwdriver for opening. Conductor Type Solid, stranded, or finely stranded with ferrule Torque (for cage clamp) Typically 0.6 - 0.8 Nm Refer to datasheet for exact value. Mounting DIN Rail NS 35/7.5 or NS 32 Standard 35mm DIN rail. Material (Housing) Polycarbonate (PC), Transparent Material (Clamp) Steel, Tin-plated Material (Conductor) Copper, Tin-plated Approvals / Standards UL 1059, CSA, CE, RoHS Recognized Component
