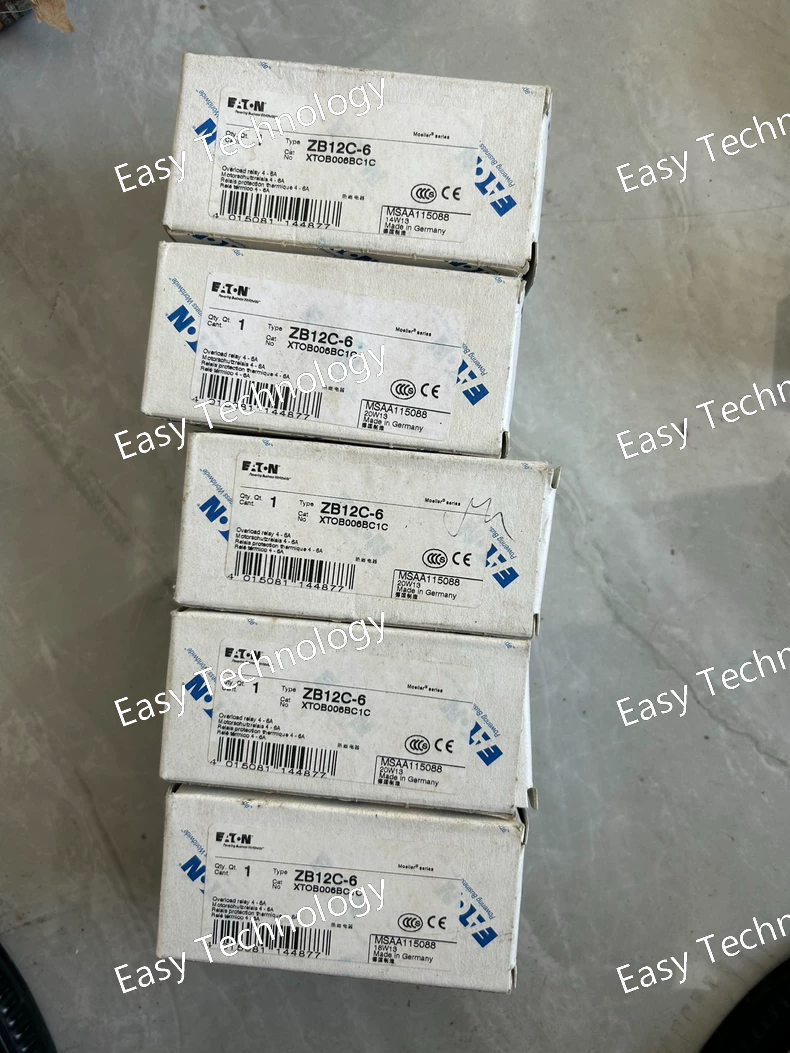

Technical Parameters Parameter Specification Model ZB12C-6 Product Type Plug-in Terminal Block (Base + Plug) Rated Voltage 500 V Rated Current 32 A Wire Cross-Section 0.5-6.0 mm² Connection Technology Cage Clamp (Spring Loaded) Conductor Types Solid, Stranded, or Ferruled Strands Mounting DIN Rail NS 35/7.5 Housing Material Transparent Polycarbonate (PC) Clamp Material Tin-plated Steel Conductor Material Tin-plated Copper Standards & Approvals UL 1059, CSA, CE, RoHS, cULus

Technical Parameters Parameter Specification Model DILAC-31 Rated Operational Current 32 A Motor Power Range (at 400V AC) 15 kW Rated Operational Voltage 690 V AC Control Voltage 24-240 V AC/DC (auto-sensing, varies by specific model) Setting Range 25-32 A (adjustable) Protection Features Overload protection, phase failure protection, unbalanced load protection Auxiliary Contacts 1 NO + 1 NC (minimum) Mounting DIN Rail (35mm) Protection Degree IP20 Standards & Approvals IEC/EN 60947-4-2, UL 508, CE, cULus, RoHS

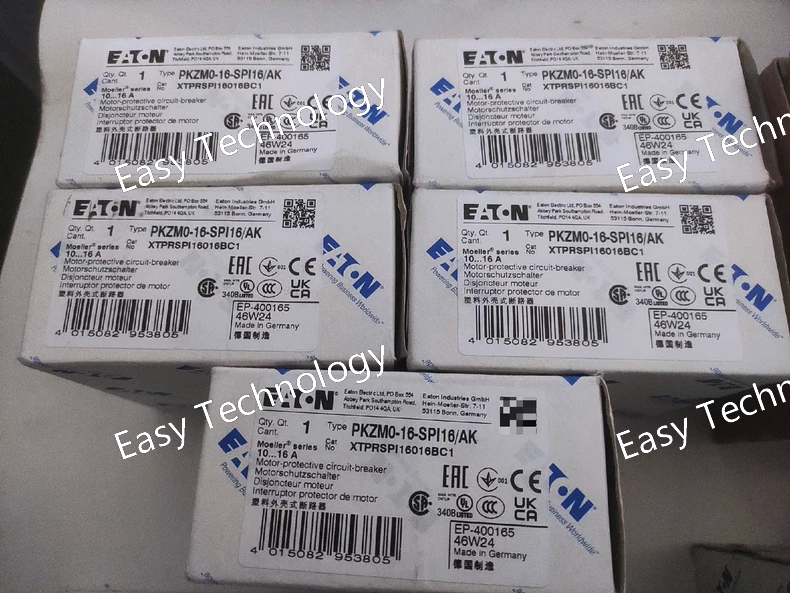

Technical Parameters Parameter Specification Model PKZM0-16-SPI16/AK Rated Operational Current 16 A Setting Range 12-16 A (adjustable) Motor Power Range (at 400V AC) 7.5 kW Rated Operational Voltage 690 V AC Rated Insulation Voltage 690 V Breaking Capacity 50 kA (at 400V AC) Tripping Characteristic Suitable for motor starting (Type 10A) Auxiliary Contacts 1 NO + 1 NC (as indicated by "/AK" suffix) Mounting DIN Rail (35mm) Protection Degree IP20 Standards & Approvals IEC/EN 60947-2, IEC/EN 60947-4-1, UL 508, CE, cULus

Technical Parameters Parameter Specification Model DILA-31 Rated Operational Current (Ie) 32 A (at AC-3, 400V) Motor Power Rating (at 400V AC) 15 kW Rated Operational Voltage (Ue) 690 V AC Control Supply Voltage Varies by specific model* Number of Poles 3 main poles Auxiliary Contacts Typically 2 convertible contacts (NO/NC) Utilization Category AC-3 (squirrel cage motors) Mechanical Durability 10-30 million operations Electrical Durability 1.5-3 million operations (at AC-3) Mounting DIN Rail (35mm) or Panel Mount Terminal Type Screw clamp Protection Degree IP00 (terminal), IP20 (front) Standards & Approvals IEC/EN 60947-4-1, UL 508, CE, cULus

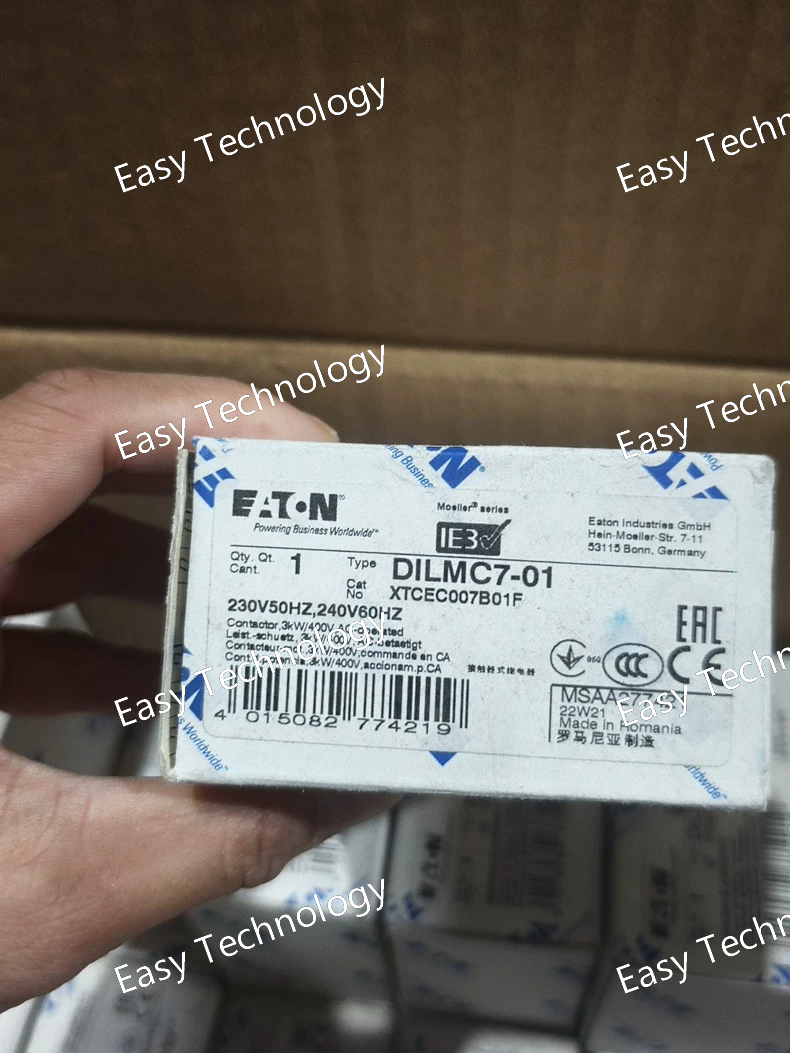

Technical Parameters Parameter Specification Model DILMC7-01 Rated Operational Current (Ie) 7 A (at AC-3, 400V) Motor Power Rating (at 400V AC) 3 kW Rated Operational Voltage (Ue) 690 V AC Control Supply Voltage See note below* Number of Poles 3 main poles Auxiliary Contacts 1 NO (normally open) Utilization Category AC-3 (squirrel cage motors) Mechanical Durability 10 million operations Electrical Durability 1.5 million operations (at AC-3) Mounting DIN Rail (35mm) or Panel Mount Terminal Type Cage Clamp Protection Degree IP20 Standards & Approvals IEC/EN 60947-4-1, UL 508, CE, cULus

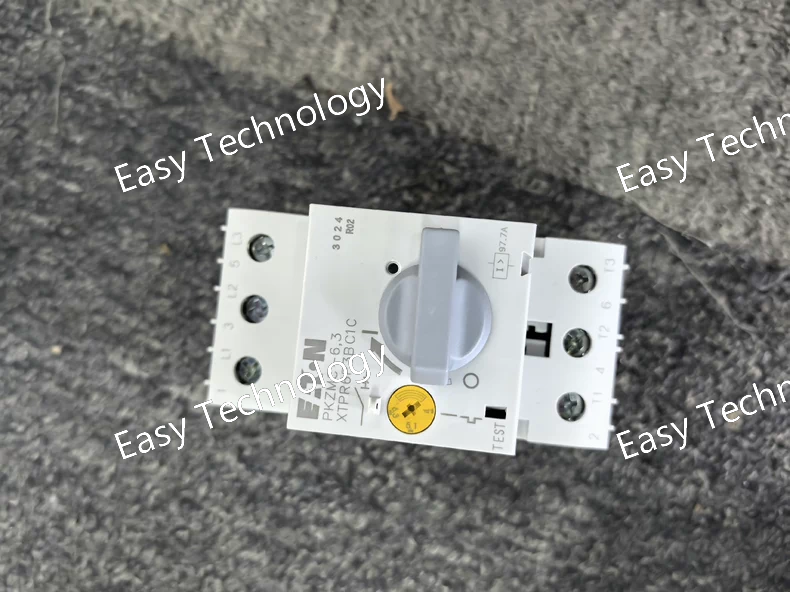

Technical Parameters Parameter Specification Model PKZMC-6.3 Rated Operational Current 6.3 A Motor Power Range (at 400V AC) 3 kW Rated Operational Voltage 690 V AC Short-circuit Breaking Capacity Up to 100 kA (depending on specific type) Control Voltage Depends on configuration (typically 230V AC) Protection Features Short-circuit protection, overload protection, phase failure protection Mounting DIN Rail (35mm) Standards & Approvals IEC/EN 60947-2, IEC/EN 60947-4-1, UL 508, CE, cULus

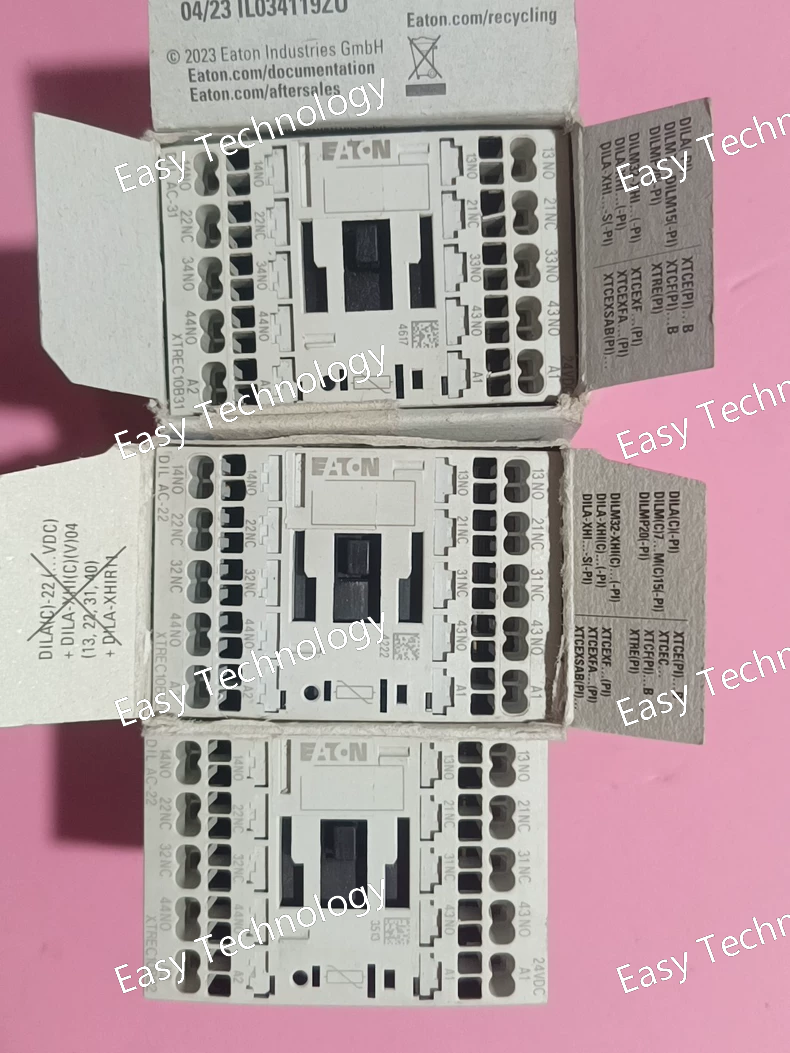

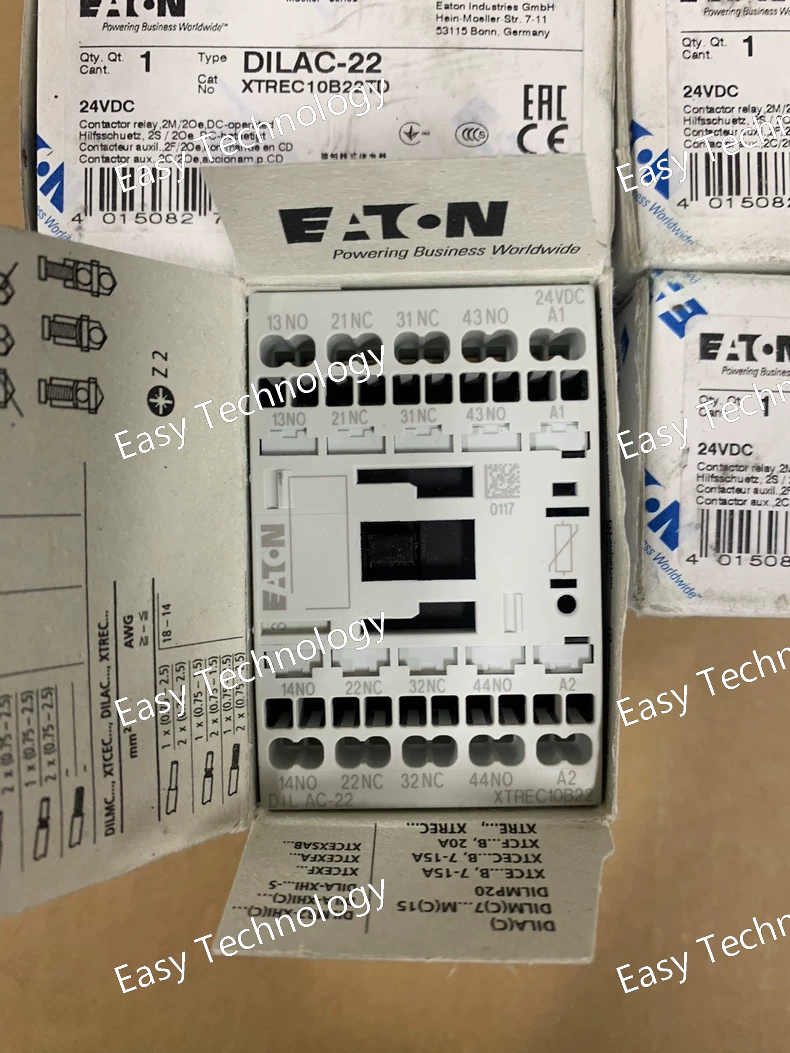

Technical Parameters Parameter Specification Model DILAC-22 Rated Operational Current 22 A Motor Power Range (at 400V AC) 11 kW Rated Operational Voltage 690 V AC Control Voltage 24-240 V AC/DC (varies by specific model) Protection Degree IP20 Mounting DIN Rail (35mm) Auxiliary Contacts 1 NO + 1 NC (minimum) Standards & Approvals IEC/EN 60947-4-2, UL 508, CE, cULus

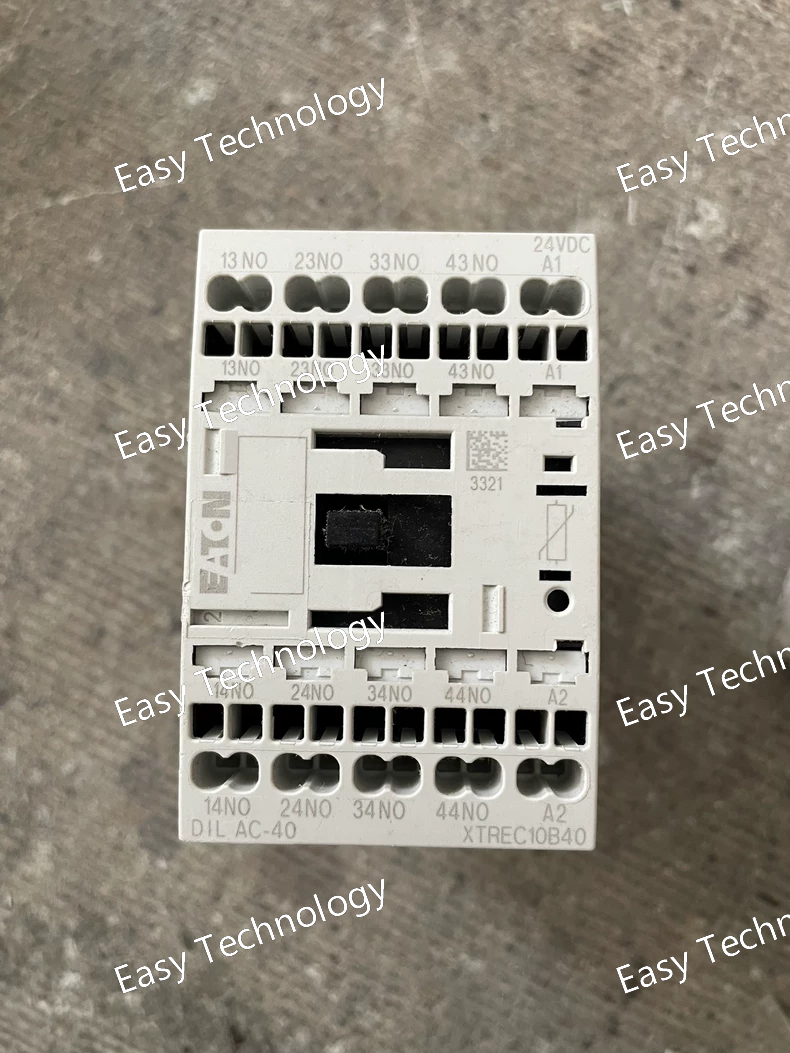

Technical Parameters Parameter Specification Model DILAC-40 Rated Operational Current 40 A Motor Power Range (at 400V AC) 22 kW Rated Operational Voltage 690 V AC Control Voltage 24-240 V AC/DC (varies by specific model) Protection Degree IP20 Mounting DIN Rail (35mm) Auxiliary Contacts Configurable (typically 1 NO + 1 NC) Protection Features Overload, phase failure, unbalanced load Standards & Approvals IEC/EN 60947-4-2, UL 508, CE, cULus

Technical Parameters Parameter Specification Model DILMC9-01 Rated Operational Current (Ie) 9 A (at AC-3, 400V) Motor Power Rating (at 400V AC) 4 kW Rated Operational Voltage (Ue) 690 V AC Control Supply Voltage See note below* Number of Poles 3 main poles Auxiliary Contacts 1 NO (normally open) Utilization Category AC-3 (squirrel cage motors) Mechanical Durability 10 million operations Electrical Durability 1.5 million operations (at AC-3) Mounting DIN Rail (35mm) or Panel Mount Terminal Type Cage Clamp Protection Degree IP20 Standards & Approvals IEC/EN 60947-4-1, UL 508, CE, cULus

Technical Parameters Parameter Specification Model NZMN1-M63 Rated Current (In) 63 A Number of Poles 1P (Single Pole) Rated Voltage 230/400 V AC Rated Frequency 50/60 Hz Breaking Capacity 10 kA (at 400 V AC) Tripping Characteristic C Curve (Medium starting current) Electrical Life 10,000 operations Mechanical Life 20,000 operations Mounting DIN Rail (35mm) Terminal Type Screw Clamp Standards & Approvals IEC/EN 60898-1, CE

Technical Parameters Parameter Specification Model DILM12-01LN Rated Operational Current (Ie) 12 A (at AC-3, 400V) Motor Power Rating (at 400V AC) 5.5 kW Rated Operational Voltage (Ue) 690 V AC Control Supply Voltage 24 V AC/DC (as indicated by "LN" suffix) Number of Poles 3 main poles + 1 auxiliary contact (1 NO) Utilization Category AC-3 (squirrel cage motors) Mechanical Durability 10 million operations Electrical Durability 1.5 million operations (at AC-3) Mounting DIN Rail (35mm) or Panel Mount Terminal Type Cage Clamp Protection Degree IP20 Standards & Approvals IEC/EN 60947-4-1, UL 508, CE, cULus

Technical Parameters Parameter Specification Model DILM15-01LN Rated Operational Current (Ie) 15 A (at AC-3, 400V) Motor Power Rating (at 400V AC) 7.5 kW Rated Operational Voltage (Ue) 690 V AC Control Supply Voltage 24 V AC/DC (as indicated by "LN" suffix) Number of Poles 3 main poles + 1 auxiliary contact (1 NO) Utilization Category AC-3 (squirrel cage motors) Mechanical Durability 10 million operations Electrical Durability 1.5 million operations (at AC-3) Mounting DIN Rail (35mm) or Panel Mount Terminal Type Cage Clamp Protection Degree IP20 Standards & Approvals IEC/EN 60947-4-1, UL 508, CE, cULus
