ABB

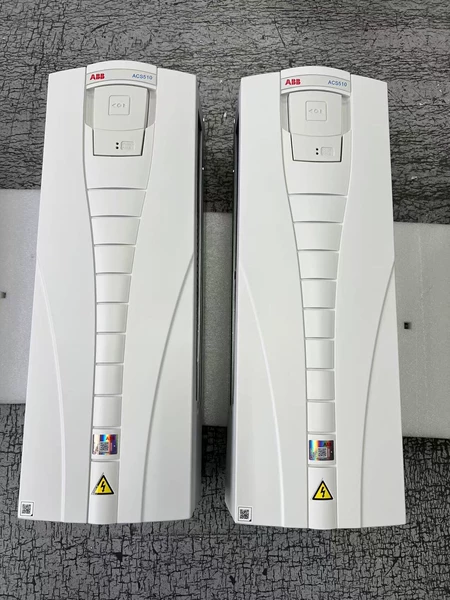

Technical Specifications Parameter Specification Output Current 72A Rated Power 37kW (400V 4-pole motor) Input Voltage 3-phase 380-480V AC (±10%), 50/60Hz Enclosure IP21 (open chassis) Control Methods Sensorless Vector Control (SLVC) & V/f control Overload 150% for 60 seconds Communication Modbus RTU (standard), optional fieldbus Key Features ✔ Energy Optimization Automatic adaptation to load changes Energy savings up to 50% in pump/fan applications ✔ Advanced Motor Protection Thermal overload protection (I²t) Short-circuit, ground fault, and phase loss protection ✔ User-Friendly Operation LCD keypad with multilingual interface Quick start-up wizard ✔ Process Control Built-in PID controller Customizable application macros ✔ Compact & Robust Space-saving design (220 x 190 x 195mm) -10°C to +50°C operating range Model Number Breakdown ACS510: Series name 01: IP21 enclosure 072A: 72A output current 4: 400V voltage class

708

ABB

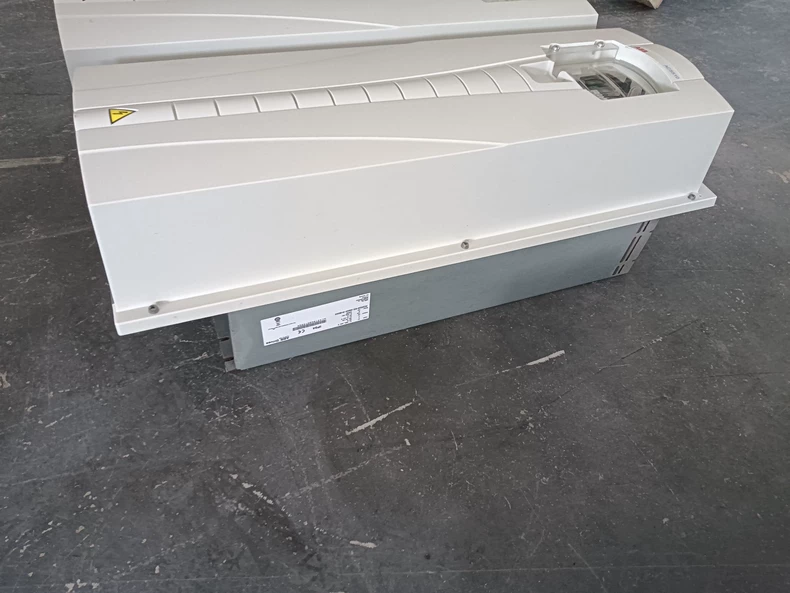

Key Specifications Parameter Specification Output Current 180A Rated Power 90kW (400V, 4-pole motor) Input Voltage 3-phase 380-480V AC (±10%), 50/60Hz Enclosure IP21 (open chassis) Overload 150% for 60 seconds Control Flux-optimized V/f & DTC (Optional) Advanced Features ✔ Dynamic Motor Control - Optional Direct Torque Control (DTC) for superior low-speed performance ✔ Heavy-Duty Design - Industrial-grade components for 24/7 operation ✔ Smart Cooling - Temperature-controlled fan with dust-proof design ✔ Multi-Protocol Support - Built-in Modbus RTU + optional fieldbus cards (PROFIBUS, DeviceNet) ✔ Advanced Sequencing - Built-in PLC functionality with 3 programmable macros Technical Highlights Application-Specific Profiles: Pre-configured for pumps, fans, conveyors, and cranes Harmonic Mitigation: Optional DC choke or line filter available Safety: STO (Safe Torque Off) compliant Environmental: Operates at -15°C to +50°C (with derating) Model Designation ACS550: ABB's industrial drive series 01: IP21 enclosure (NEMA 1 equivalent) 180A: 180A output current 4: 400V voltage class

772

ABB

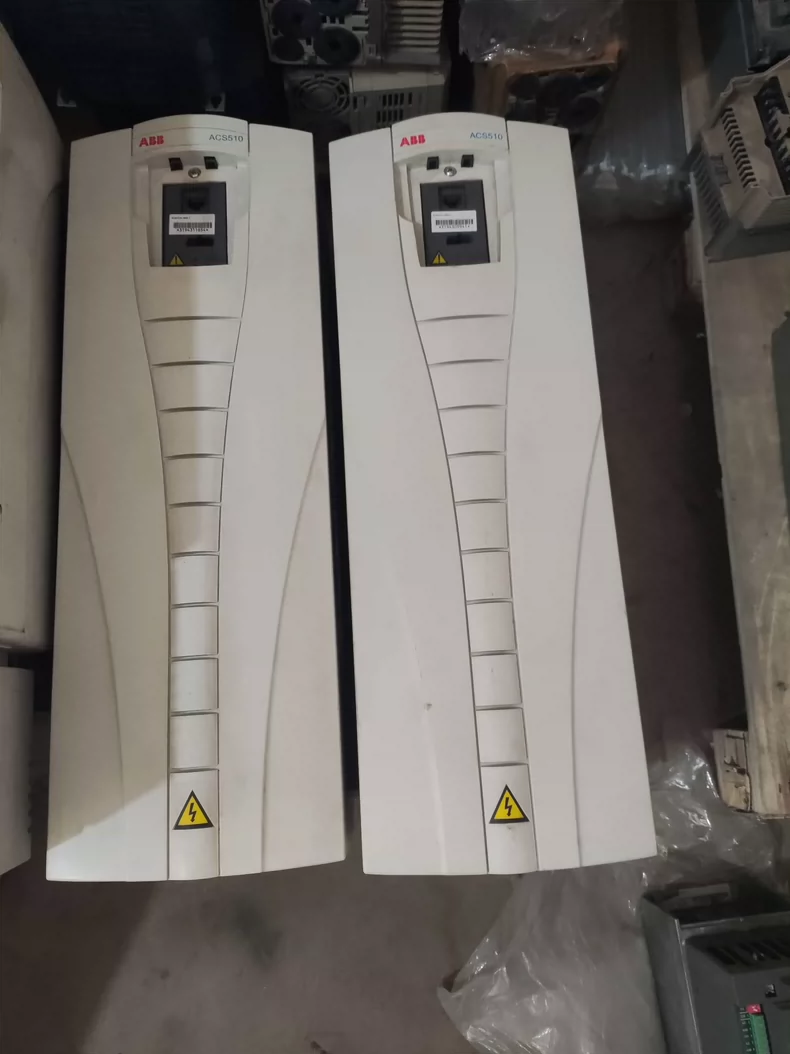

Key Specifications: Output Current: 46A Rated Power: 22kW (for 400V 4-pole motor) Input Voltage: 3-phase 380-480V AC (±10%), 50/60Hz Enclosure Rating: IP21 (open chassis) Control Methods: Sensorless Vector Control (SLVC) & V/f control Overload Capacity: 150% for 60 seconds Communication Protocol: Built-in Modbus RTU (RS485) Advanced Features: Energy Optimization: Automatic adaptation to load changes for maximum efficiency in variable torque applications Intelligent Motor Protection: Comprehensive safeguards including thermal overload, short-circuit, and phase-loss protection User-Friendly Interface: LCD keypad with multilingual support (8 languages) and quick-start wizard Integrated PID Controller: Enables precise process control for pressure, flow, and temperature regulation Compact Design: Space-efficient footprint for cabinet installation Fieldbus Connectivity: Supports optional PROFIBUS DP and BACnet modules Model Number Decoding: ACS510: Series designation 01: IP21 enclosure type 046A: 46A output current rating 4: 400V voltage class (380-480V)

405

ABB

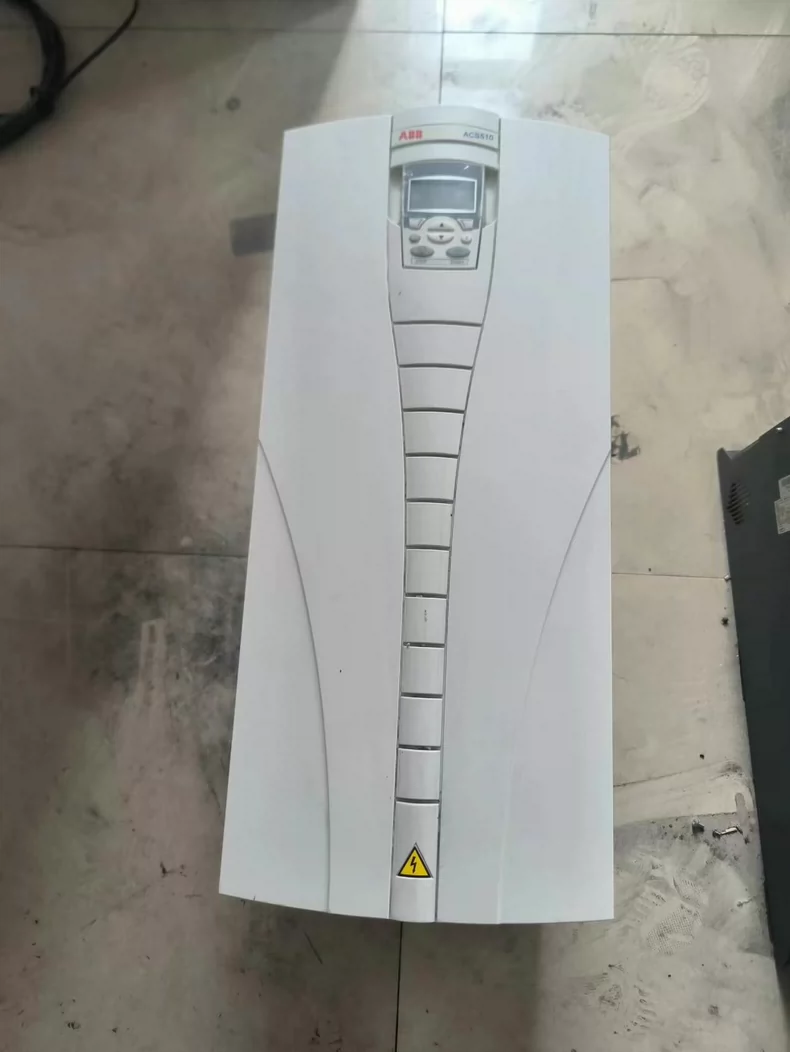

Technical Specifications Parameter Specification Output Current 17A Rated Power 7.5kW (400V, 4-pole motor) Input Voltage 3-phase 380-480V AC (±10%), 50/60Hz Enclosure IP21 (open chassis) Control Methods Sensorless Vector Control (SLVC) & V/f control Overload 150% for 60 seconds Communication Built-in Modbus RTU (RS485) Key Features ✔ Energy Optimization - Automatic energy-saving algorithm for pumps and fans ✔ Advanced Protection - Motor thermal protection, short-circuit, and phase loss safeguards ✔ User-Friendly Interface - LCD keypad with multilingual support (8 languages) ✔ Integrated PID Controller - For closed-loop process control ✔ Compact Design - Space-saving for easy cabinet installation ✔ Fieldbus Options - Supports PROFIBUS DP and BACnet via optional modules Model Number Breakdown ACS510: Series name 01: IP21 enclosure 017A: 17A output current 4: 400V class (380-480V)

383

ABB

Technical Specifications Parameter Specification Output Current 88A Rated Power 45kW (400V, 4-pole motor) Input Voltage 3-phase 380-480V AC (±10%), 50/60Hz Enclosure Class IP21 (open chassis) Control Methods Sensorless Vector Control (SLVC) & V/f control Overload Capacity 150% for 60 seconds Communication Modbus RTU (standard), optional PROFIBUS/BACnet Key Features ✔ Advanced Energy Optimization - Auto-tuning for maximum efficiency in variable torque applications ✔ Robust Motor Protection - Comprehensive safeguards including thermal, overcurrent, and phase loss protection ✔ Intuitive Control Interface - Multilingual LCD keypad with quick-start wizard ✔ Built-in PID Controller - For precise process regulation (pressure, flow, temperature) ✔ Compact Footprint - Space-efficient design for cabinet installation ✔ Fieldbus Connectivity - Expandable communication options for system integration Model Identification ACS510: Series designation (ABB's general-purpose drive family) 01: IP21 protection level 088A: 88A output current rating 4: 400V voltage class (380-480V AC)

925

ABB

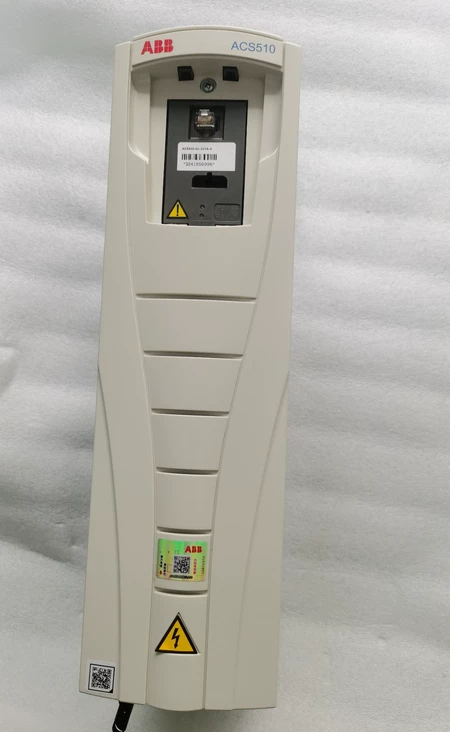

Key Specifications Parameter Specification Output Current 38A Rated Power 18.5kW (400V, 4-pole motor) Input Voltage 3-phase 380-480V AC (±10%), 50/60Hz Enclosure IP21 (open chassis) Control Methods Sensorless Vector Control (SLVC) & V/f control Overload 150% for 60 seconds Communication Built-in Modbus RTU (RS485) Advanced Features ✔ Energy Optimization - Automatic adaptation to load changes for maximum efficiency ✔ Intelligent Motor Protection - Thermal, short-circuit, and phase-loss protection ✔ User-Friendly Interface - LCD keypad with multilingual display (8 languages) ✔ Integrated PID Controller - For precise process control (pressure, flow, temperature) ✔ Compact Design - Space-saving for easy cabinet installation (DIN rail or panel mount) ✔ Fieldbus Options - Supports PROFIBUS DP and BACnet via optional modules Model Number Breakdown ACS510: Series designation (general-purpose drives) 01: IP21 enclosure rating 038A: 38A output current 4: 400V voltage class (380-480V)

707

ABB

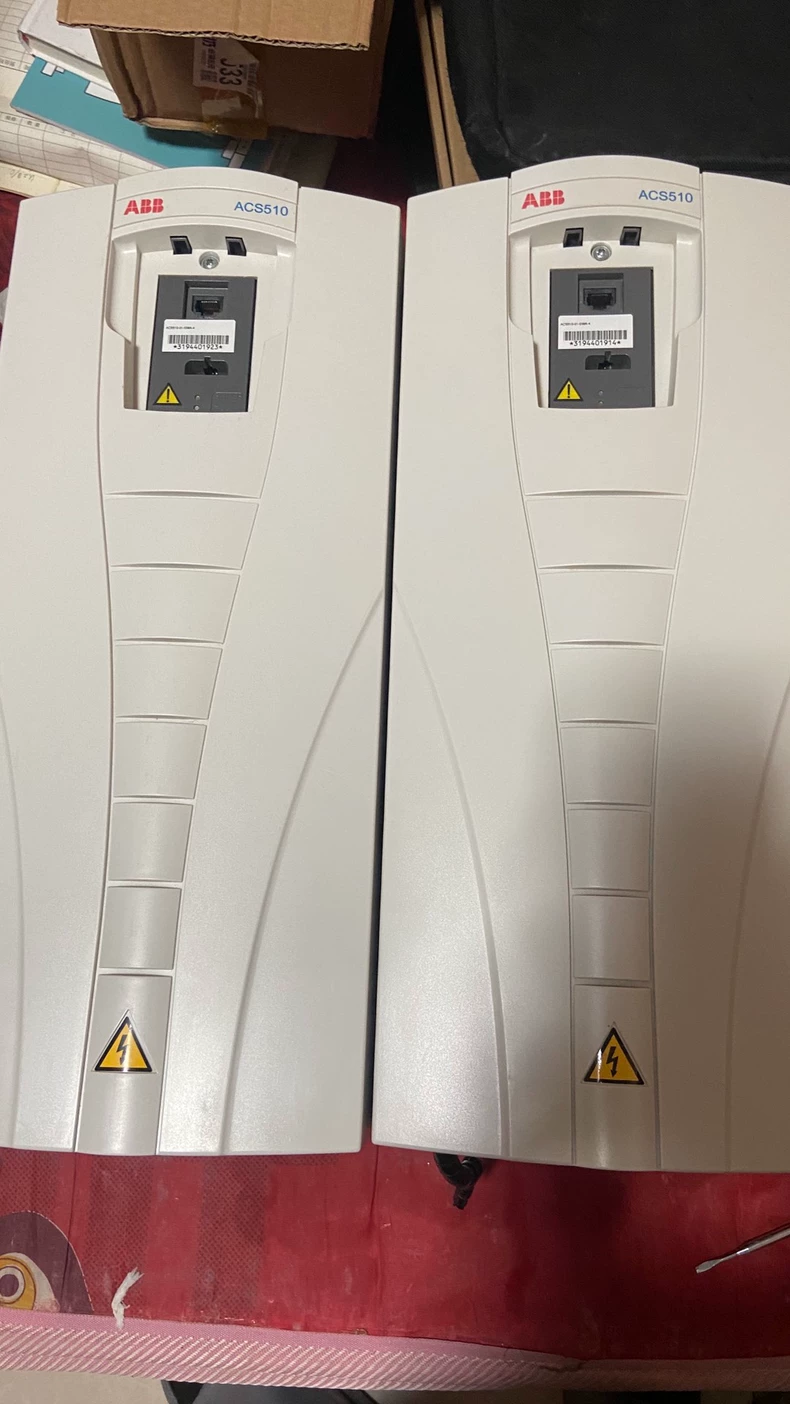

Key Specifications Output Current: 60A Rated Power: 30kW (for 400V 4-pole motor) Supply Voltage: 3-phase 380-480V AC (±10%), 50/60Hz Enclosure Type: IP21 (open chassis) Control Methods: Sensorless Vector Control (SLVC) V/f control Overload Capacity: 150% for 60 seconds Main Features ✔ Energy Optimization - Automatic energy-saving function specifically for pump and fan applications ✔ Advanced Motor Protection - Includes thermal overload, short circuit, and phase loss protection ✔ User-Friendly Interface - LCD keypad with multilingual support ✔ Built-in PID Controller - For closed-loop process control ✔ Fieldbus Communication - Standard Modbus RTU (RS485), with optional PROFIBUS DP and BACnet modules ✔ Compact Design - Space-saving for easy cabinet installation

21

ABB

Key Specifications Parameter Specification Output Current 157A Rated Power 75 kW (400V, 4-pole motor) Supply Voltage 3-phase, 380–480V AC (±10%), 50/60Hz Enclosure IP21 (Open chassis, panel-mountable) Control Method Sensorless Vector Control (SLVC) & V/f control Overload Capacity 150% for 60 seconds Communication Built-in Modbus RTU (RS485), optional fieldbus modules Key Features ✔ High Power Output – Supports 75kW motors with 157A continuous current. ✔ Energy-Saving Mode – Automatic energy optimization for pumps, fans, and compressors. ✔ Advanced Motor Protection – Thermal overload, short-circuit, phase-loss, and ground fault protection. ✔ PID Control – Built-in closed-loop regulation for pressure, flow, and temperature control. ✔ User-Friendly Interface – LCD keypad with multilingual support for easy programming. ✔ Compact & Efficient Cooling – Forced-air cooling for stable operation under heavy loads. ✔ Fieldbus Connectivity – Supports Modbus, PROFIBUS, BACnet (optional) for system integration. Model Number Breakdown ACS510 → ABB’s general-purpose drive series. 01 → IP21 enclosure (basic protection, open chassis). 157A → 157A output current rating. 4 → 400V class (380–480V AC supply).

87

ABB

Key Specifications Parameter Specification Output Current 9A Rated Power 4 kW (400V, 4-pole motor) Supply Voltage 3-phase, 380–480V AC (±10%), 50/60Hz Enclosure IP21 (Open chassis, panel-mountable) Control Method Sensorless Vector Control (SLVC) & V/f control Braking Torque Up to 150% (with optional brake resistor) Communication Built-in Modbus RTU (RS485), optional PROFIBUS & BACnet Main Features ✔ Energy-Saving Optimization – Automatic adaptation to load changes for maximum efficiency in pump & fan applications. ✔ Intelligent Motor Protection – Built-in thermal overload, short-circuit, and phase-loss protection. ✔ User-Friendly Interface – LCD keypad with multilingual support (English, Spanish, French, etc.). ✔ PID Control – Integrated PID regulator for closed-loop process control (pressure, flow, temperature). ✔ Compact & Space-Saving – DIN-rail or panel mounting for easy installation in control cabinets. ✔ Plug-and-Play Compatibility – Pre-configured for ABB motors but works with standard AC motors. Model Number Breakdown ACS510 → Series (ABB’s general-purpose drive for pumps & fans). 01 → IP21 enclosure (basic protection, open chassis). 09A4 → 9A output current, 4 kW power class. 4 → 400V supply voltage (380–480V AC).

625

ABB

Core Components ACS510-01-060A-4 Drive Unit Rated Output: 60A, 380-480V AC Power Rating: ~30kW (400V 4-pole motor) Control Features: Sensorless vector control Built-in PID controller Pump/fan optimization logic Motor thermal protection B055 Brake Chopper Module Function: Dissipates regenerative energy Braking Power: 55kW peak (standard duty) Connection: Pre-engineered for seamless integration Protection: Over-temperature monitoring Technical Advantages Dynamic Braking Capability: Enables controlled deceleration of high-inertia loads Energy Management: Protects drive DC bus from overvoltage during braking Space Optimization: Compact combined footprint Simplified Installation: Pre-configured compatibility

889

ABB

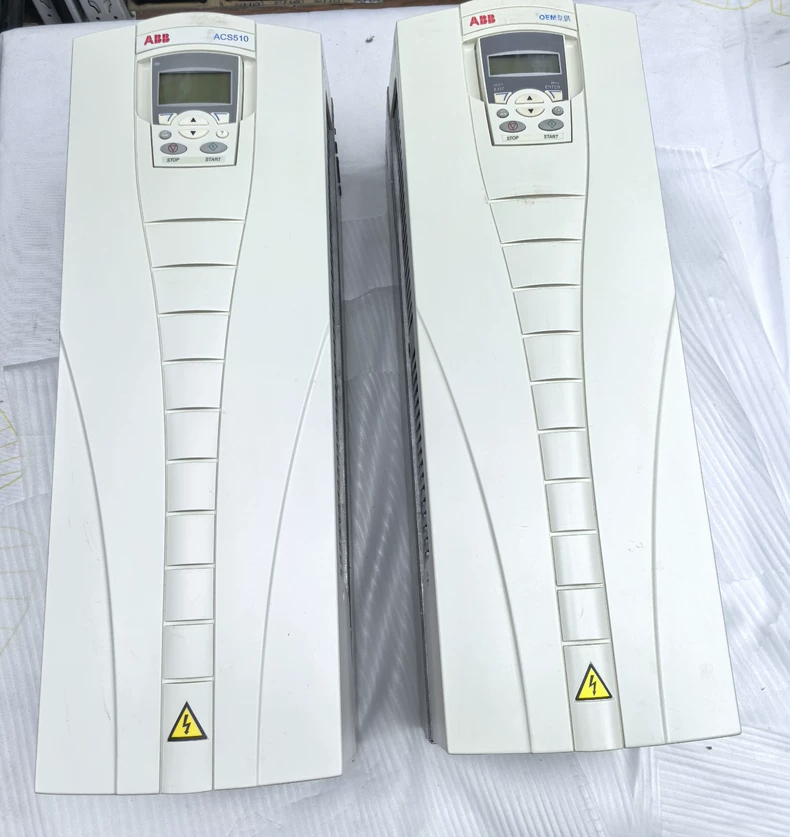

Key Specifications: Output Current: 60A Rated Power: ~30kW (for standard 400V 4-pole motor) Supply Voltage: 3-phase 380-480V AC (±10%), 50/60Hz Control Methods: Sensorless Vector Control (SLVC) & V/f control Enclosure Type: IP21 (Open chassis, panel-mounted) Cooling Method: Self-cooling (convection) Advanced Features: ✔ Energy Savings Optimization - Automatic energy optimization algorithm for pumps and fans ✔ Intelligent Motor Control - Built-in motor thermal protection and adaptive programming ✔ User-Friendly Interface - LCD keypad with multilingual support (including English) ✔ Robust Protection - Overcurrent, overvoltage, motor overload, and short-circuit protection ✔ Fieldbus Connectivity - Built-in Modbus RTU (RS485), optional PROFIBUS DP & BACnet ✔ PID Controller - Integrated for closed-loop process control Model Number Breakdown: ACS510: Series name (ABB general-purpose drive) 01: IP21 enclosure rating 060A: 60A output current rating 4: 400V class (380-480V) (0EM): Standard OEM configuration

791

ABB

Key Features: Protection Functions: Instantaneous and time-delayed overcurrent protection (50/51) Current Input: 1A or 5A nominal (configurable) Four-Stage Protection: Three-phase and earth-fault protection stages LED Indicators: Clear status indication for relay operation and alarms Communication: RS485 interface with Modbus RTU protocol Mechanical Design: Compact, DIN-rail mounted housing (1SVR form factor) Operating Range: Wide auxiliary voltage range (24-250V DC/AC) Technical Specifications: Standards Compliance: IEC 60255, IEEE C37.90 Auxiliary Supply: 110V AC/DC (as indicated by "110" in model number) Operating Temperature: -25°C to +55°C Enclosure Rating: IP20

770
