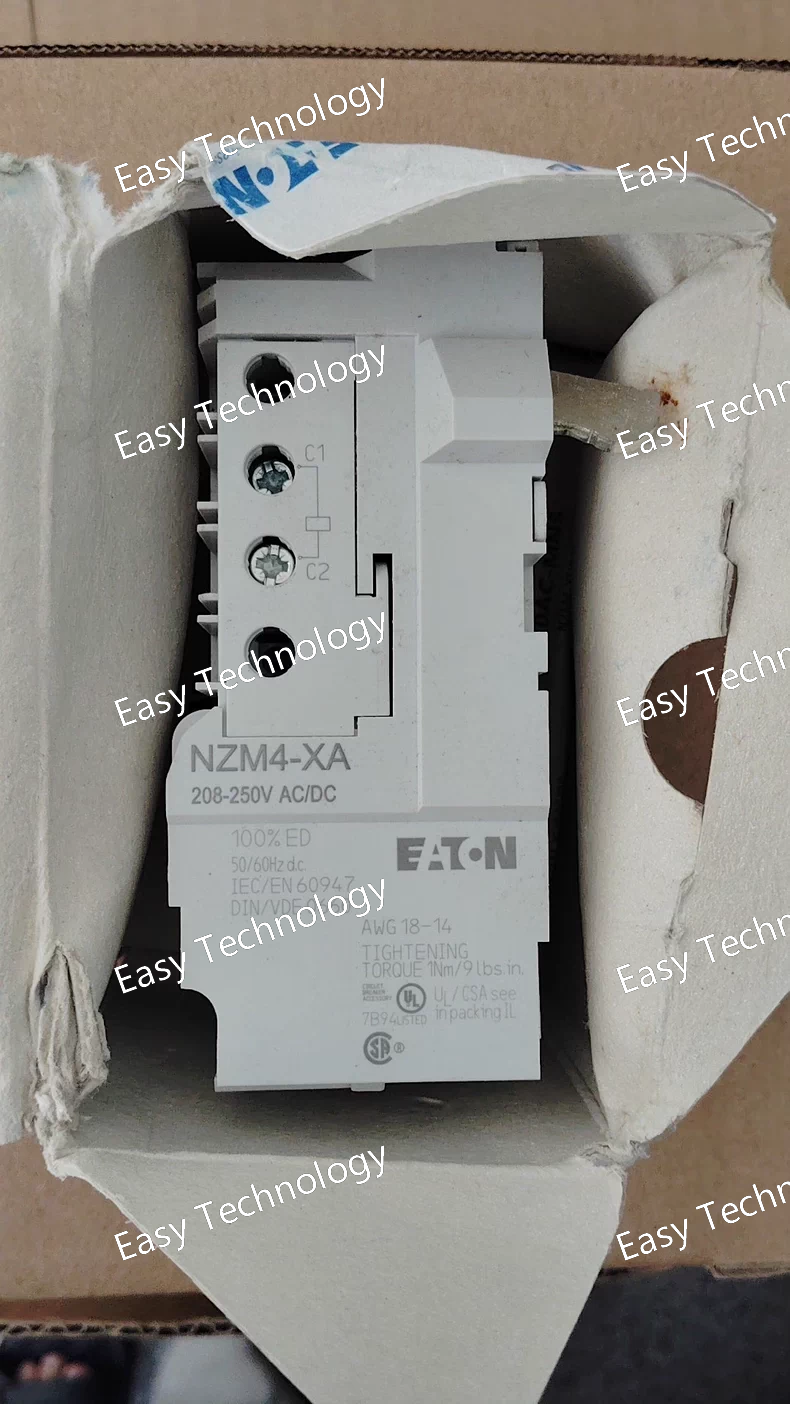

Technical Parameters Category Specification Product Model NZM4-XA Product Family Eaton NZM Accessories Device Type Shunt Trip Release Compatibility NZM4 series circuit breakers Mounting Position Can be mounted on left or right side of breaker Electrical Life >1,000 operations Mechanical Life >10,000 operations Operating Temperature -25°C to +70°C Storage Temperature -40°C to +85°C Protection Degree IP20 (when installed in breaker) Standards Compliance IEC/EN 60947-2

Technical Parameters Category Specification Product Model LZMN1-A125 Product Family Eaton LZMN Series Miniature Circuit Breakers Number of Poles 1 pole Rated Current 125A Rated Voltage 230/400V AC Rated Frequency 50/60 Hz Breaking Capacity 10kA (at 230/400V AC) Tripping Characteristic C-characteristic (medium trip) Standards Compliance IEC 60898-1, CE Electrical Life 6,000 operations Mechanical Life 20,000 operations Operating Temperature -25°C to +55°C Storage Temperature -40°C to +85°C Protection Degree IP20 (when installed in enclosure)

Technical Parameters Category Specification Product Model CI-PKZ0-GRM Product Family Eaton PKZ Electronic Overload Relays Device Type Electronic Overload Relay Rated Current Range 0.1-0.16A (adjustable) Rated Operational Voltage 690V AC max Control Supply Voltage 24V AC/DC or 110-230V AC Standards Compliance IEC/EN 60947-4-1, UL 508, CE Ambient Temperature -20°C to +60°C Storage Temperature -40°C to +85°C Protection Degree IP20

Technical Parameters Category Specification Product Model NZM2-XHB-DA-NA Product Family Eaton NZM2 Digital Accessories Device Type Digital Trip Unit with Communication Rated Current Configurable based on breaker size Rated Voltage 690V AC max Communication Protocol Modbus, Profibus DP (configurable) Power Supply Self-powered from current transformers Standards Compliance IEC 60947-2, UL 1066, CE Operating Temperature -25°C to +70°C Protection Degree IP20 (when installed in breaker)

Technical Parameters Category Specification Product Model NZM2-XIPK Product Family Eaton NZM2 Accessories Device Type Instrumentation and Communication Kit Compatibility NZM2 series circuit breakers Rated Voltage Up to 690V AC Communication Protocols Modbus RTU, Profibus DP Power Supply Self-powered via current transformers Standards Compliance IEC 60947-2, UL 1066, CE Operating Temperature -25°C to +70°C Storage Temperature -40°C to +85°C Protection Degree IP20 (when installed in breaker)

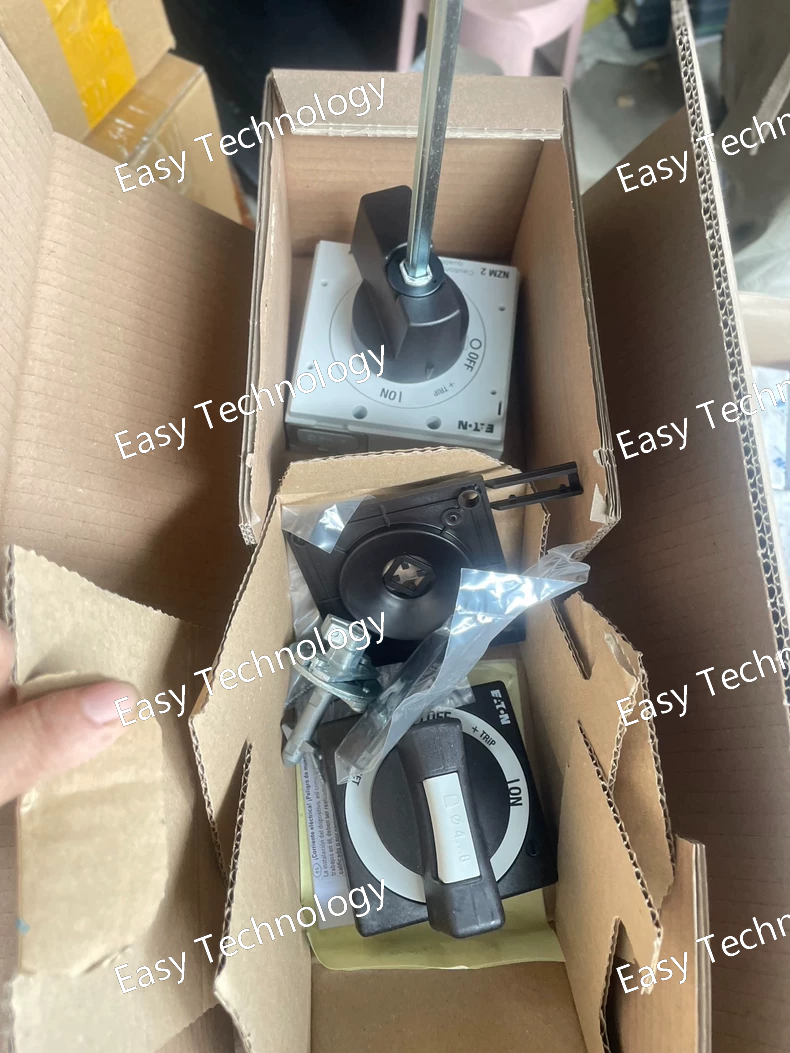

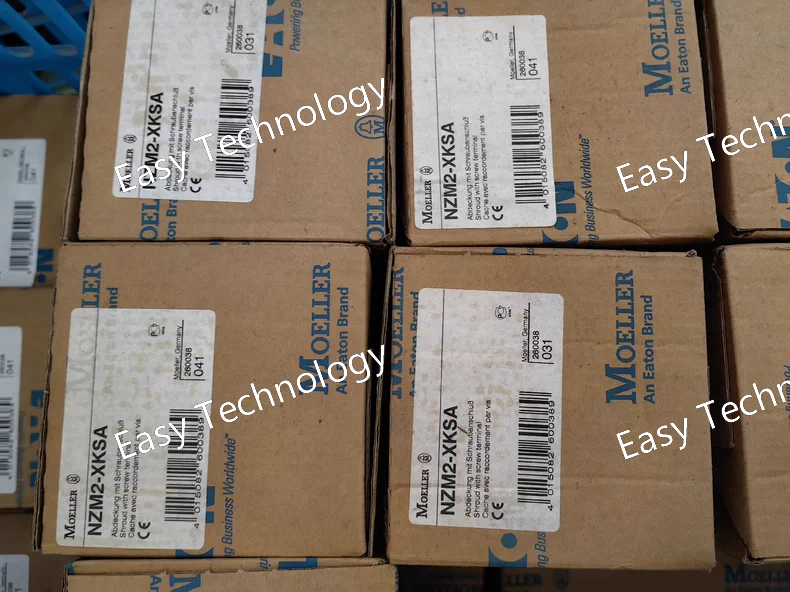

Technical Parameters Category Specification Product Model NZM2-XKSA Product Family Eaton NZM2 Accessories Device Type Extended Rotary Handle Kit Compatibility NZM2 series circuit breakers Mounting Position Front panel mounting Handle Length Standard extension length Maximum Panel Thickness Typically up to 6mm Mechanical Life >10,000 operations Operating Temperature -25°C to +70°C Protection Degree IP40 (when properly installed) Standards Compliance IEC 60947-2

Technical Parameters Category Specification Product Model XTCE115GC Product Family Eaton XTCE Enclosure Series Enclosure Type Wall-Mount Electrical Enclosure NEMA Rating NEMA 4X (Watertight, Dusttight, Corrosion Resistant) Material Fiberglass Reinforced Polyester (FRP) Color Gray Dimensions (H×W×D) 115 × 115 × 115 mm (4.53" × 4.53" × 4.53") Operating Temperature -40°C to +120°C (-40°F to +248°F) UV Resistance Excellent (Suitable for outdoor use) Chemical Resistance Resistant to most chemicals and solvents Impact Resistance High impact strength Flame Rating UL 94 V-0

Technical Parameters Parameter Specification Model BZMB2-A250-AP Rated Current (Iₙ) 250 A Number of Poles 2P (Two Pole) Rated Voltage (Uₑ) 600 V AC Rated Frequency 50/60 Hz Breaking Capacity 35 kA (at 480 V AC) Trip Unit Type Thermal-magnetic Rated Insulation Voltage (Uᵢ) 690 V Rated Impulse Voltage (Uᵢₘₚ) 6 kV Electrical Life 5,000 operations Mechanical Life 10,000 operations Mounting Fixed Type Terminal Type Screw Clamp Wire Range 250 kcmil - 4/0 AWG Standards & Approvals UL 489, IEC 60947-2, CSA C22.2

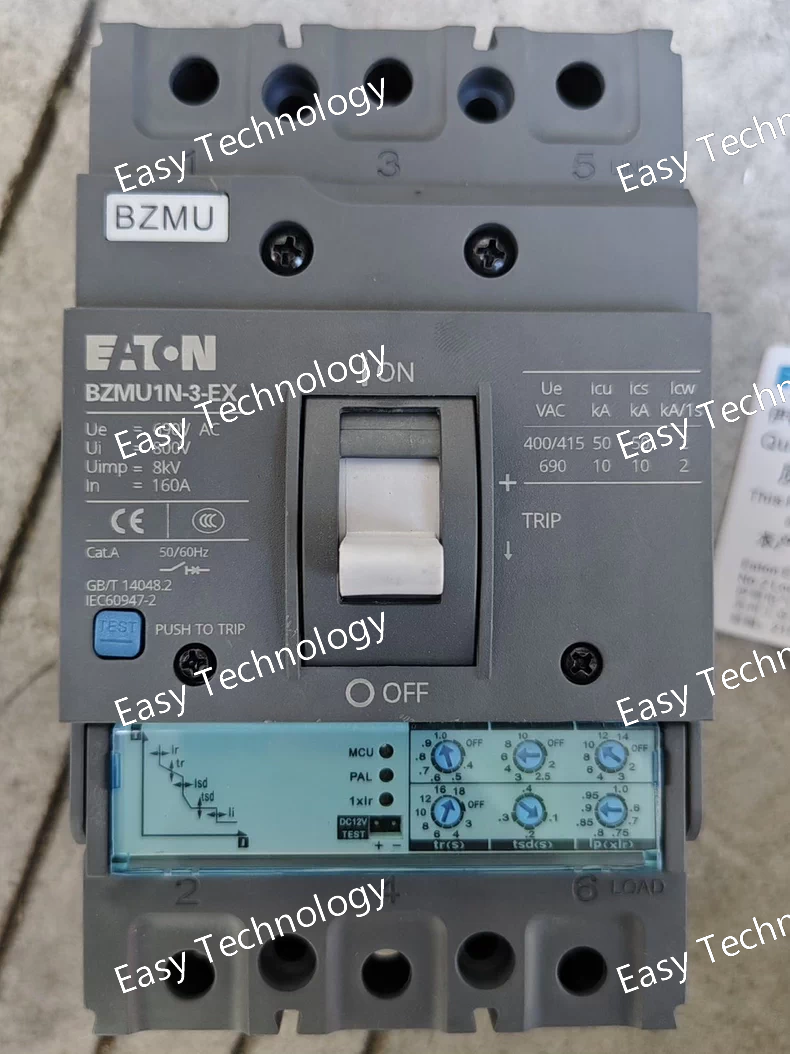

Technical Parameters Parameter Specification Model BZMU1N-3-EX160 Rated Current (Iₙ) 160 A Frame Size 160 A Number of Poles 3P (Three Pole) Rated Voltage (Uₑ) 690 V AC Rated Frequency 50/60 Hz Breaking Capacity 35 kA (at 480 V AC) Trip Unit Type Electronic (EX type) Rated Insulation Voltage (Uᵢ) 1000 V Rated Impulse Voltage (Uᵢₘₚ) 12 kV Protection Functions Long-time (L), Short-time (S), Instantaneous (I), Ground Fault (G) Communication Protocol Modbus, Profibus (optional) Mounting Fixed Type Terminal Type Screw Clamp Wire Range 1/0 AWG - 250 kcmil Standards & Approvals UL 489, IEC 60947-2, CSA C22.2

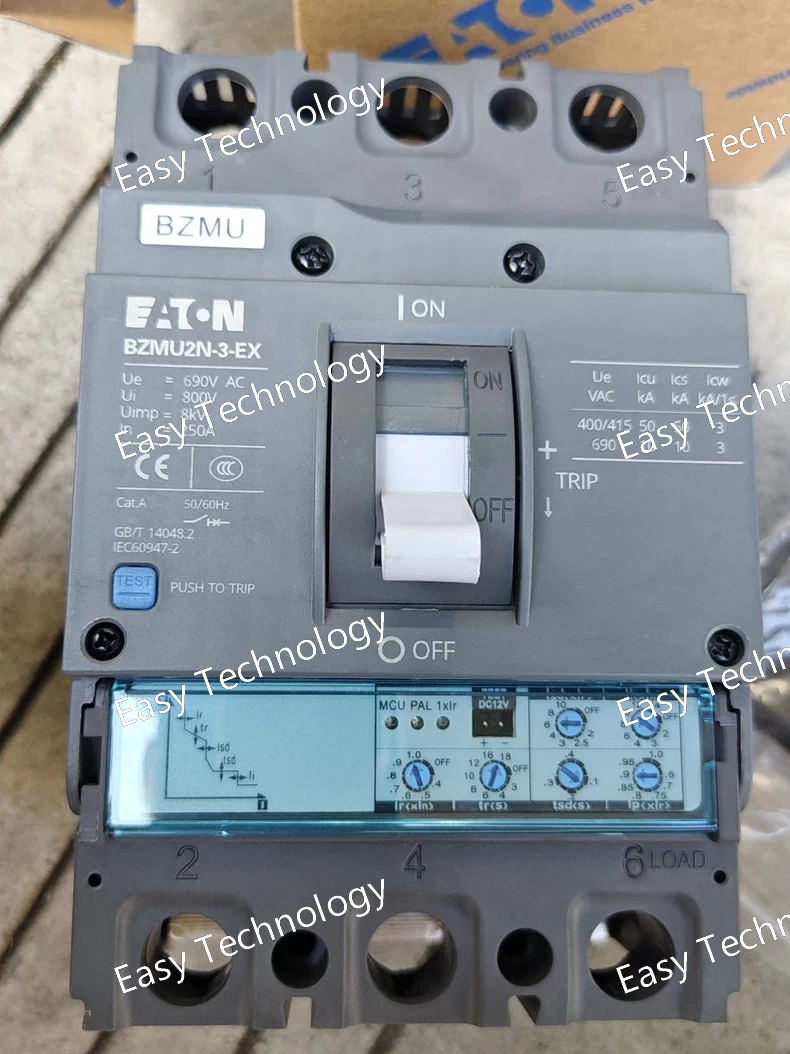

Technical Parameters Parameter Specification Model BZMU2N-3-EX250 Rated Current (Iₙ) 250 A Frame Size 250 A Number of Poles 3P (Three Pole) Rated Voltage (Uₑ) 690 V AC Rated Frequency 50/60 Hz Breaking Capacity 65 kA (at 480 V AC) Trip Unit Type Electronic (EX type) Rated Insulation Voltage (Uᵢ) 1000 V Rated Impulse Voltage (Uᵢₘₚ) 12 kV Protection Functions Long-time (L), Short-time (S), Instantaneous (I), Ground Fault (G) Communication Protocol Modbus, Profibus (optional) Mounting Fixed Type Terminal Type Screw Clamp Wire Range 250 kcmil - 4/0 AWG Standards & Approvals UL 489, IEC 60947-2, CSA C22.2

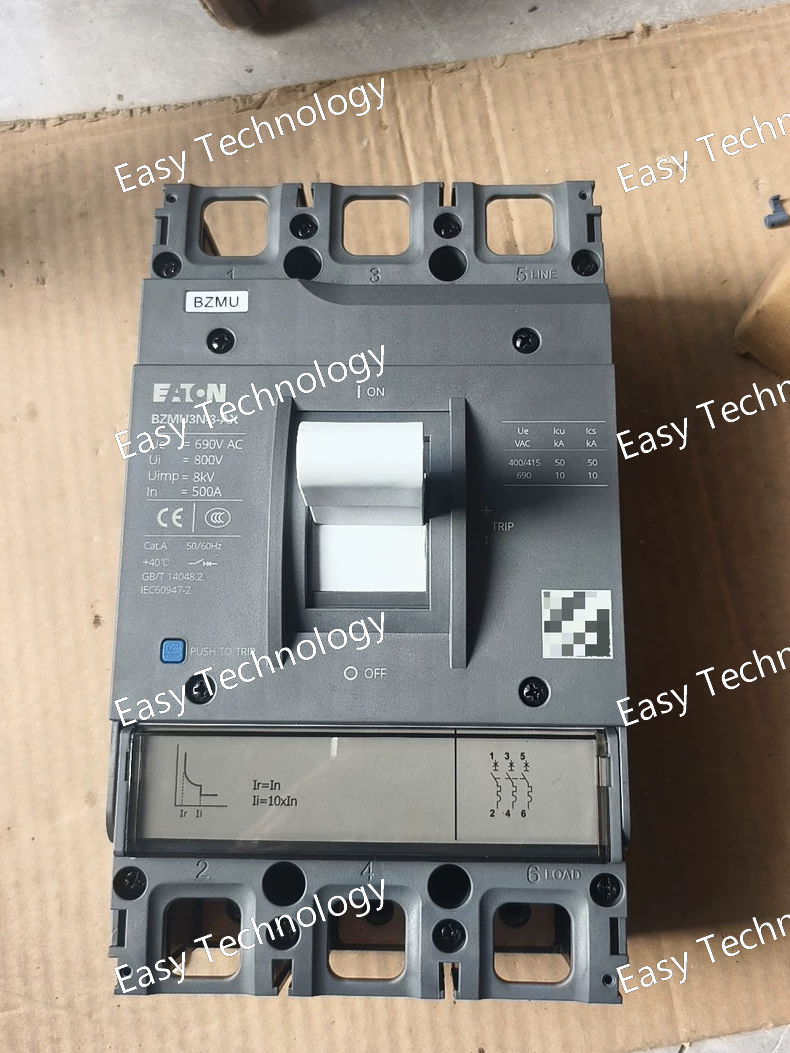

Technical Parameters Parameter Specification Model BZMU3N-3-AX Rated Current (Iₙ) Up to 630A (specific rating depends on order code) Frame Size 630A Number of Poles 3P (Three Pole) Rated Voltage (Uₑ) 690 V AC Rated Frequency 50/60 Hz Breaking Capacity Up to 100 kA (depending on specific rating) Trip Unit Type Electronic (AX type) Rated Insulation Voltage (Uᵢ) 1000 V Rated Impulse Voltage (Uᵢₘₚ) 12 kV Protection Functions Long-time (L), Short-time (S), Instantaneous (I), Ground Fault (G) Communication Protocol Modbus, Profibus (optional) Mounting Fixed or Drawout Type Terminal Type Screw Clamp or Bus Connection Standards & Approvals UL 489, IEC 60947-2, CSA C22.2

Technical Parameters Parameter Specification Model HNM3-3HU Rated Current (Iₙ) 63 A (typical - confirm specific rating) Number of Poles 3P (Three Pole) Rated Voltage 400 V AC Rated Frequency 50/60 Hz Breaking Capacity 10 kA (at 230/400 V AC) Tripping Characteristic C Curve (Medium starting current) Electrical Life 6,000 operations Mechanical Life 20,000 operations Mounting DIN Rail (35mm) Terminal Type Screw Clamp Wire Range 16 mm² - 25 mm² Standards & Approvals IEC 60898-1, CE
