ABB

Key Parameters: Basic Specs: Power: 45kW (60HP) Current: 88A Voltage: 380-480V AC (±10%), 3-phase Frequency: 50/60Hz Control: DTC technology Efficiency: >98% Performance: Overload: 150% for 3s Speed accuracy: ±0.2% (sensorless) Protection: IP21 (IP55 optional) Cooling: Forced air Dimensions: 255×515×270mm (W×H×D) Weight: 18.5kg Features: Built-in EMC filter RS485 + fieldbus options Energy saving mode PID controller Certifications: CE/UL/cUL RoHS compliant

295

ABB

Key Specifications: Power Rating: 37kW (50HP) continuous duty Output Current: 73A (150% overload for 3 seconds) Input Voltage: 380-480V AC (±10%), 3-phase, 50/60Hz Control Technology: ABB Direct Torque Control (DTC) Efficiency: >97.5% (typical at full load) Protection Class: IP21 standard (IP55 optional) Cooling Method: Intelligent forced-air cooling Advanced Features: Precision Motor Control: ±0.5% speed control accuracy without encoder Automatic motor adaptation (AMA) Torque boost function for heavy starts Energy Optimization: Smart Energy Saving mode (up to 30% energy reduction) Adaptive DC link control Built-in harmonic mitigation (THD<5%) Enhanced Connectivity: Dual-channel RS485 (Modbus RTU) Optional fieldbus modules (PROFINET, EtherNet/IP) Integrated PID controller with 4 preset speeds Robust Protection: Multi-level IGBT protection Motor thermal overload protection Phase loss and short circuit detection

182

ABB

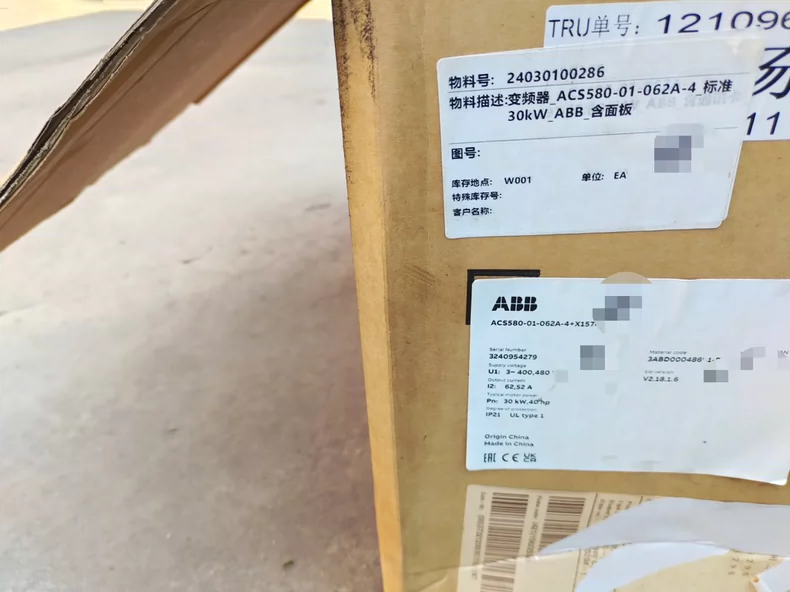

Key Parameters: Basic Specs: Power: 30kW (40HP) Output: 62A Input: 380-480V AC (±10%), 3-phase, 50/60Hz Control: DTC technology Efficiency: >98% Features: Overload: 150% for 3s Protection: IP21 (IP55 optional) Cooling: Forced air Comm: RS485 + fieldbus options Dimensions: 220×450×245mm (W×H×D) Weight: 14.2kg Certifications: CE/UL/cUL IEC 61800 compliant

567

ABB

Key Specifications: Power Rating: 22kW (30HP) Output Current: 46A Input Voltage: 380-480V AC (±10%), 3-phase, 50/60Hz Control Method: Sensorless vector control (DTC) Efficiency: >97% Protection Class: IP21 (standard) Ambient Temperature: -15°C to +50°C (without derating) Technical Features: Advanced Motor Control: Sensorless Direct Torque Control (DTC) technology Automatic motor adaptation (AMA) Flying start function Energy Saving Functions: Automatic energy optimization Power factor correction Sleep mode functionality Protection Features: Motor thermal protection Short circuit protection Overcurrent and overvoltage protection Ground fault protection User Interface: Built-in multilingual control panel Quick start macros for common applications Real-time monitoring of key parameters Communication Options: Built-in Modbus RTU (RS485) Optional fieldbus adapters available (Profibus, Ethernet, etc.)

41

ABB

Key Features Plug-and-Play Simplicity: Pre-programmed macros for quick setup. Energy Efficiency: ABB’s Optimum Motor Control (OMC) ensures smooth performance and energy savings. Robust Protection: Built-in safeguards against overloads, short circuits, and overheating. EMC Compliance: Integrated EMC filter (meets IEC 61800-3 standards). Smart Connectivity: Supports Modbus RTU, BACnet MS/TP, and optional Fieldbus protocols. LCD Keypad: Intuitive interface for easy monitoring and parameter adjustments.

707

ABB

General Parameters: Model: ACS580-01-039A-4 Rated Power: 18.5 kW (25 HP) Output Current: 39 A Supply Voltage: 3-phase, 380–480 V AC (±10%) Frequency Range: 48–63 Hz Control Method: Sensorless Vector Control (DTC optional) Enclosure: IP21 (standard), IP55 (optional) Cooling Method: Air-cooled Performance Features: Speed Range: 1:10 (sensorless), 1:100 (with encoder) Starting Torque: 150% at 0.5 Hz (sensorless) Overload Capacity: 110% continuous, 150% for 60 sec Switching Frequency: Default 4 kHz (adjustable up to 12 kHz) Input/Output (I/O): Digital Inputs: 6 (24 V DC, programmable) Analog Inputs: 2 (0/4–20 mA or 0–10 V) Relay Outputs: 2 (programmable, 250 V AC/30 V DC) Analog Output: 1 (0/4–20 mA or 0–10 V) Communication Options: Built-in Protocols: Modbus RTU, BACnet MS/TP, Metasys N2 Optional Fieldbus: Profibus DP, Ethernet/IP, Modbus TCP/IP (via add-on modules) Protection & Safety: Protections: Overcurrent, overvoltage, undervoltage, motor overload, short circuit, ground fault, etc. Safety Features: Safe Torque Off (STO) (optional) Dimensions & Weight: Width/Height/Depth: ~200 x 380 x 210 mm (varies by enclosure) Weight: ~10–12 kg (depends on options)

962

ABB

Key Specifications Output Current: 33A Voltage Range: 380–480V AC (±10%), 3-phase Power Rating: 15kW (at 400V) Control Method: Flux-optimized DTC (Direct Torque Control) Overload Capacity: 110% continuous, 150% for 60 sec Efficiency: >98% (typical) Enclosure Rating: IP21 (NEMA 1, fan-cooled) Operating Temp: 0°C to +40°C (up to +50°C with derating) Dimensions: 245 × 405 × 220mm (W×H×D) Advanced Features ✔ Precision Control: ±0.2% speed accuracy (sensorless vector control) Built-in PID controller for process automation Automatic energy optimization (reduces power consumption by up to 50% in variable torque applications) ✔ Smart Connectivity: Standard Modbus RTU (RS-485) Optional fieldbus adapters (Profibus DP, Ethernet/IP, DeviceNet) 2 analog inputs (0-10V/4-20mA) + 3 digital inputs 2 relay outputs for fault/status signals ✔ Protection & Safety: Motor thermal protection (PTC support) Short-circuit & overvoltage protection Safe Torque Off (STO, optional safety function) Certifications & Compliance CE, UL, cULus IEC 61800-5-1 (safety standards) RoHS & REACH compliant

144

ABB

Key Specifications Output Current: 18A Voltage Range: 380–480V AC (±10%), 3-phase Power Rating: 7.5kW (at 400V) Control Method: Flux-optimized DTC (Direct Torque Control) Overload Capacity: 110% continuous, 150% for 60 sec Efficiency: >98% (typical) Enclosure Rating: IP21 (NEMA 1, fan-cooled) Operating Temp: 0°C to +40°C (up to +50°C with derating) Dimensions: 245 × 405 × 220mm (W×H×D) Advanced Features ✔ Precision Control: ±0.2% speed accuracy (sensorless vector control) Built-in PID controller for process automation Automatic energy optimization (reduces power consumption by up to 50% in pump/fan apps) ✔ Smart Connectivity: Standard Modbus RTU (RS-485) Optional fieldbus adapters (Profibus DP, Ethernet/IP, DeviceNet) 2 analog inputs (0-10V/4-20mA) + 3 digital inputs 2 relay outputs for fault/status signals ✔ Protection & Safety: Motor thermal protection (PTC support) Short-circuit & overvoltage protection Safe Torque Off (STO, optional safety function) Certifications & Compliance CE, UL, cULus IEC 61800-5-1 (safety standards) RoHS & REACH compliant

577

ABB

Technical Specifications: Output Current: 12.7A Voltage Range: 380-480V AC (±10%), 3-phase Power Rating: 5.5kW (at 400V) Control Method: Advanced Flux-optimized DTC Overload Capacity: 110% continuous, 150% for 60s Efficiency: >98% (typical) Enclosure Rating: IP21 (NEMA 1) Cooling Method: Intelligent fan cooling Operating Temperature: 0°C to +40°C (50°C with derating) Dimensions: 245 × 405 × 220mm (W×H×D) Key Features: ✔ Superior Control Performance: ±0.2% speed control accuracy Built-in adaptive PID controller Automatic energy optimization ✔ Enhanced Connectivity: Standard Modbus RTU (RS-485) Optional fieldbus modules (Profibus, Ethernet/IP) 2 analog inputs (0-10V/4-20mA) 3 digital inputs, 2 relay outputs ✔ Comprehensive Protection: Motor thermal monitoring Overcurrent/voltage protection Short-circuit protection Optional STO safety function Certifications & Compliance: CE, UL, cULus listed IEC 61800-5-1 compliant RoHS compliant

790

ABB

Key Specifications Output Current: 9.5A Voltage Range: 380–480V AC (±10%), 3-phase Power Rating: 4kW (at 400V) Control Method: Flux-optimized DTC (Direct Torque Control) Overload Capacity: 110% continuous, 150% for 60 sec Efficiency: >98% (typical) Enclosure Rating: IP21 (NEMA 1, fan-cooled) Operating Temp: 0°C to +40°C (up to +50°C with derating) Dimensions: 172 × 245 × 195mm (W×H×D) Advanced Features ✔ Precision Control: ±0.2% speed accuracy (sensorless vector control) Built-in PID controller for process automation Automatic energy optimization (reduces power consumption) ✔ Smart Connectivity: Standard Modbus RTU (RS-485) Optional fieldbus adapters (Profibus DP, Ethernet/IP) 2 analog inputs (0-10V/4-20mA) + 3 digital inputs 2 relay outputs for status/control ✔ Protection & Safety: Motor thermal protection (PTC thermistor support) Short-circuit & overvoltage protection Safe Torque Off (STO, optional for safety compliance) Certifications & Compliance CE, UL, cULus IEC 61800-5-1 (safety standards) RoHS & REACH compliant

836

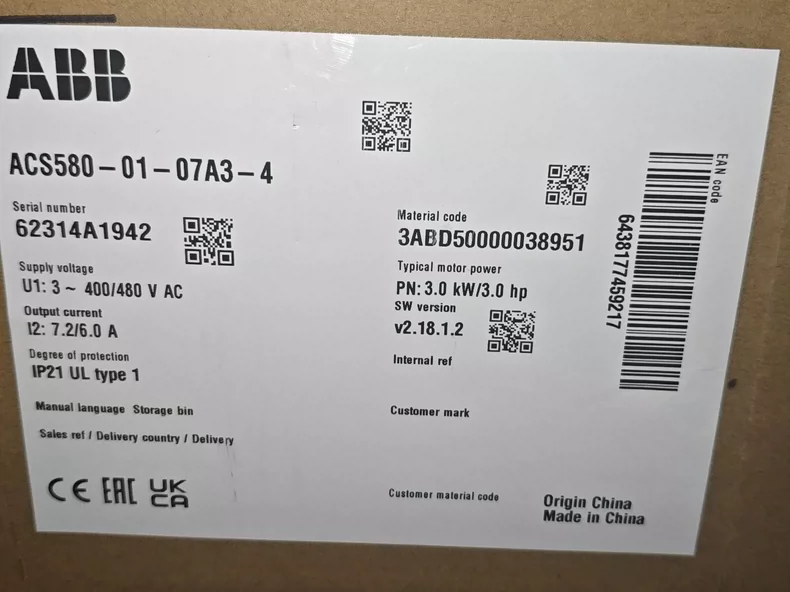

ABB

Technical Specifications: Output Current: 7.3A Voltage Range: 380-480V AC (±10%), 3-phase Power Rating: 3kW (at 400V) Control Technology: Flux-optimized DTC Overload Capacity: 110% continuous, 150% for 60 seconds Efficiency: Up to 98% Enclosure Rating: IP21 (NEMA 1) Cooling Method: Intelligent fan cooling Operating Temperature: 0°C to +40°C (50°C with derating) Dimensions: 172 × 245 × 195mm (W×H×D) Key Features: ✔ Advanced Control Capabilities: ±0.2% speed control accuracy Built-in PID controller with autotuning Energy optimization mode ✔ Enhanced Connectivity: Standard Modbus RTU protocol Optional fieldbus adapters (Profibus DP, Ethernet/IP) 2 analog inputs (configurable 0-10V/4-20mA) 3 digital inputs, 2 relay outputs ✔ Comprehensive Protection: Motor thermal protection Overcurrent/voltage protection Ground fault detection Optional Safe Torque Off (STO) Certifications & Standards: CE, UL, cULus certified IEC 61800-5-1 compliant RoHS compliant

351

ABB

Technical Specifications: Output Current: 5.7A Voltage Range: 380-480V AC (±10%), 3-phase Power Rating: 2.2kW (at 400V) Control Method: Advanced Flux-optimized DTC Overload Capacity: 110% continuous, 150% for 60s Efficiency: >97.5% (typical) Enclosure: IP21 (NEMA 1) Cooling: Intelligent fan cooling Operating Temp: 0°C to +40°C (50°C with derating) Dimensions: 172 × 245 × 195mm (W×H×D) Key Features: ✔ Enhanced Control Performance: ±0.5% speed control accuracy Built-in PID controller Automatic energy optimization ✔ Smart Connectivity: Standard Modbus RTU (RS-485) Optional fieldbus modules (Profibus, Ethernet) 2× analog inputs (0-10V/4-20mA) 3× digital inputs, 2× relay outputs ✔ Robust Protection: Motor thermal monitoring Overcurrent/voltage protection Short-circuit protection Optional STO safety function Certifications & Compliance: CE, UL, cULus listed IEC 61800-5-1 compliant RoHS compliant

459
