Technical Specifications Parameter Specification Model DVP-2000 Type Digital Valve Positioner Input Signal 4-20 mA (2-wire) with HART protocol Output Signal Pneumatic pressure to actuator (3-15, 6-30 psi or other ranges) Supply Air Pressure 20-150 psig (1.4-10.3 bar) Air Consumption < 0.15 SCFM (4.2 NLPM) at steady state Accuracy ≤ 0.5% of span (including linearity, dead band, hysteresis) Travel Feedback Non-contact magnetic position sensing Enclosure Rating NEMA 4X (IP66/67) Ambient Temperature -40°F to 185°F (-40°C to 85°C) Mounting Direct mount to Fisher and other manufacturers' actuators Communication HART 5/7 protocol

Technical Specifications Parameter Specification Model KJ1501x1-BC1 Type Control Valve Assembly Valve Style Globe Valve (typical for KJ series) Valve Size Specific size encoded in "KJ1501x1" (e.g., 1.5 inch or similar) Pressure Class ANSI Class 150 or 300 (encoded in model number) Actuator Type Pneumatic Spring-Diaphragm ("BC1" configuration) Actuator Action Spring-Return (fail-safe) Air Signal 3-15 psig (0.2-1.0 bar) standard Flow Characteristic Equal Percentage or Linear (trim dependent) End Connections Flanged (RF facing standard) Temperature Range -20°F to 450°F (-29°C to 232°C) - standard

Technical Specifications Parameter Specification Part Number 159000677 Description Repair Kit or Component Assembly Kit Type Maintenance/Repair Kit for Fisher valves or actuators Contents Specific components vary (typically includes seals, gaskets, O-rings, fasteners) Compatibility Designed for specific Fisher valve or actuator models Materials Buna-N, PTFE, Stainless Steel, or other engineered materials Temperature Rating Dependent on component materials (typically -20°F to 400°F / -29°C to 204°C) Pressure Rating Matches original equipment specifications

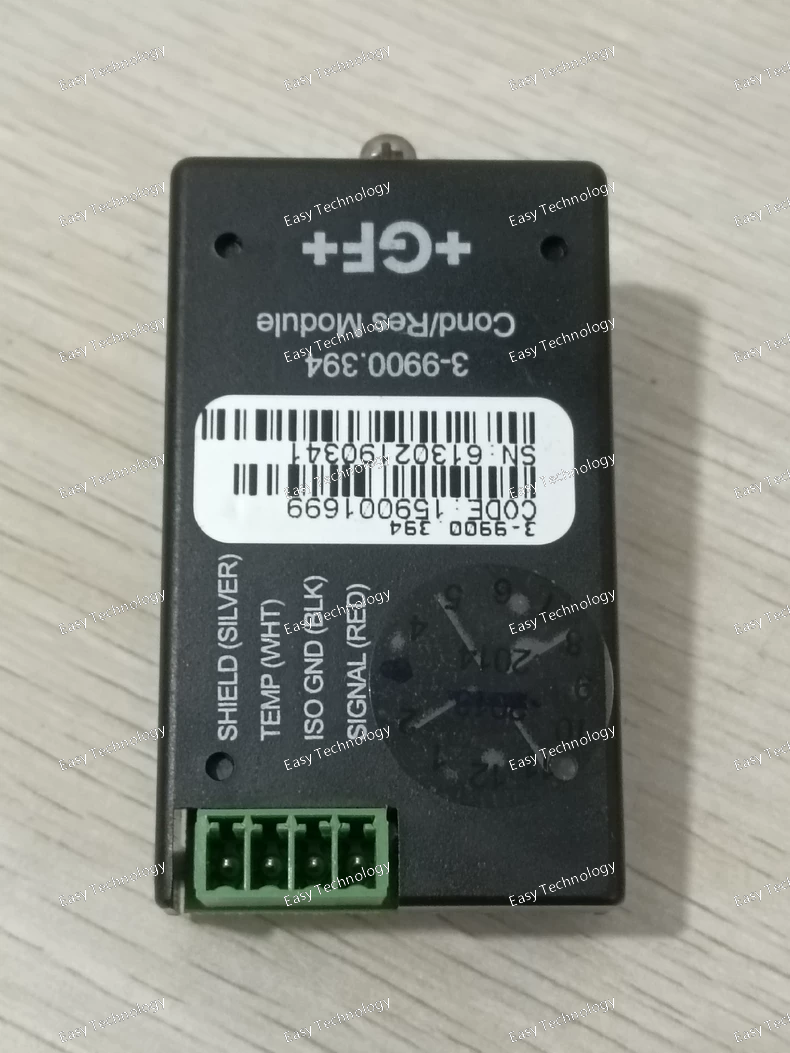

Parameters / Specifications Model: 3‑9900.394 Direct Conductivity/Resistivity Module Compatible With: GF Signet 9900 transmitter platform Input Sensor Types: Conductivity and resistivity electrodes (e.g., Signet 2819 to 2823; Signet 2839 to 2842) Function: Converts electrode signals into conditioned output suitable for the 9900 transmitter; enables conductivity, resistivity, and salinity measurement via the 9900 digital inputs Weight: Approximately 0.2 lb (~0.09 kg) in one listing Dimensions: Approx. 4″ × 4″ × 4″ (~101 mm × 101 mm × 101 mm) in one listing Mounting/Format: Module card designed to slide into or attach to the 9900 transmitter enclosure Alternate Part Number: 159 001 699 (associated part number for this module) Application: Water quality monitoring, process analytics, inline conductivity/resistivity measurement in industries such as water treatment, food & beverage, semiconductor, aquaculture, marine, pulp & paper Key Features: Direct interface of conductivity/resistivity electrodes to transmitter Supports salinity measurement when combined with the 9900 digital S3L inputs Simplifies wiring and integration by using a dedicated module rather than separate transmitter for each sensor type

Parameter Specification / Description Model Series Fisher 655 Actuator Type Scotch-Yoke / Rack and Pinion Pneumatic Piston Actuator Configurations Double-Acting (Air-to-Air): Requires air to open and close. No fail-safe spring. Spring-Return: Provides fail-safe action (fail-open or fail-closed) upon air supply loss. Actuator Sizes 30, 40, 50, 60, 70, 80 (The number indicates the piston diameter in millimeters) Standard Supply Pressure 40 to 120 psi (2.8 to 8.3 bar) Temperature Range Standard: -4° to 180°F (-20° to 82°C) Low Temp.: -40°F (-40°C) with optional seals & lubrication Mounting Directly to ISO 5211 mounting pads and NAMUR (VDI/VDE 3845) compliant valves. Accessory Mounting NAMUR standard for easy attachment of solenoid valves, limit switches, and positioners. Body Material Standard: Aluminum with corrosion-resistant epoxy coating. Optional: Stainless Steel (e.g., for corrosive environments). Spring Material Carbon Steel Piston Seals Standard: Buna-N Optional: Ethylene Propylene (EPDM), Fluorocarbon (Viton)

Parameter Specification Model MR95H Product Line Fisher MR Series I/P Converter Device Type Current-to-Pressure (I/P) Converter Input Signal 4-20 mA DC (Standard two-wire) Output Pressure Range Standard: 3-15 psig (0.2-1.0 bar) Other Ranges: Available, such as 3-27 psig, 6-30 psig. Supply Pressure 20 psig (1.4 bar) minimum, 40 psig (2.8 bar) typical, up to 120 psig (8.3 bar) maximum. Must be at least 3-5 psi above the required output pressure. Air Consumption Static (No Signal): Typically ≤ 0.2 scfm (0.0057 Nm³/min) Dynamic (With Signal): Varies with output. Accuracy Typically ±0.5% of span (including linearity, hysteresis, and dead band) Supply Connection 1/4 in. NPT (F) Output Connection 1/4 in. NPT (F) Mounting Standard: Panel mount (for 1-1/8 in. or 29mm diameter hole) Optional: Manifold mount, surface mount, or 35mm DIN rail kit. Enclosure Rating NEMA 4X (IP66) when properly mounted. Material Aluminum enclosure with polyurethane coating. Ambient Temperature Range -20° to 180°F (-29° to 82°C)

Parameter Specification Model 39A9228X012 Product Line Fisher Type 678C Device Type Self-Relieving Supply Pressure Regulator Supply Pressure Range Up to 300 psig (20.7 bar) Output Pressure Range 3 to 65 psig (0.2 to 4.5 bar) Adjustable via the spring knob. Relieving Capacity Up to 25 scfm (0.71 Nm³/min) Capacity to vent excess downstream pressure. Connection Size 1/4 in. NPT (F) for Supply, Output, and Gauge Ports Mounting Panel Mount (Requires a 1-1/8 inch or 29mm diameter hole) Housing Material Zinc-Aluminum Alloy (ZA-12) Internal Parts Brass, Buna-N, Stainless Steel, Anodized Aluminum Standard Color Gray Temperature Range -20° to 180°F (-29° to 82°C)

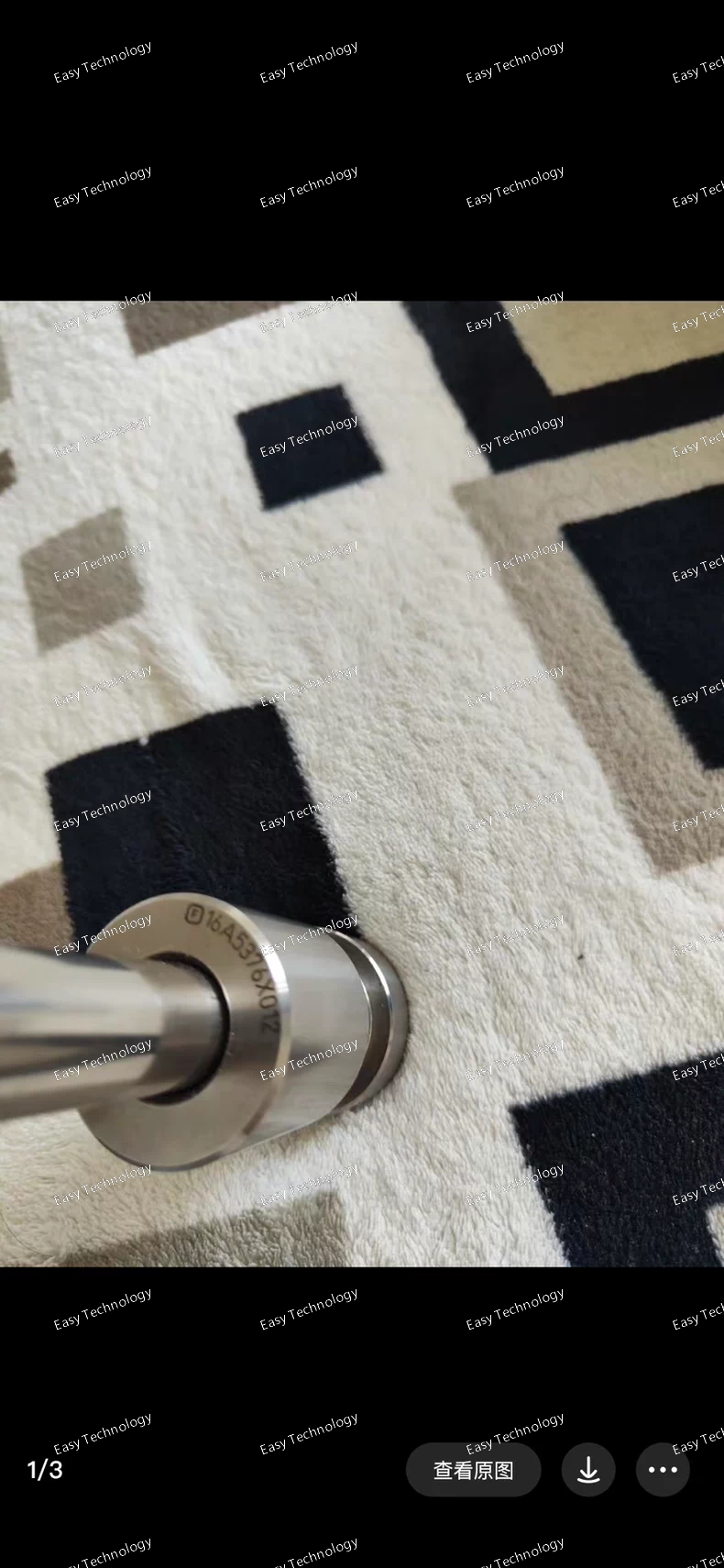

Parameter Specification Model 26A5291X012 Product Line Fisher 667 / 667FP Actuator Component Type Spring Cartridge (Spring Module) Actuator Size Size 70 Spring Range 1440 - 2240 psi (on a 667 diaphragm) Equivalent Force: Approx. 3620 - 5620 lbf (16.1 - 25.0 kN) Action Provides the return force for spring-return actuators. The fail-safe direction (FO or FC) is determined by how the actuator is oriented on the valve. Fail-Safe Action Enables Fail-Closed or Fail-Open operation upon air supply failure. Standard Style Standard (Non-Fire Safe) Material Carbon Steel Spring; Protective Epoxy Coating

Parameter Specification Notes / Details Model 16A5376X082 Product Line Fisher 1052 NAMUR Pneumatic Actuator Actuator Type Double-Acting (Springless) Requires air for both open & close strokes. Action Double-Acting Fail-Safe Mode None (Air-to-Air) Lacks a spring. Stays in last position on air failure unless paired with an external safety system. Torque Output Approx. 413 lb-in (47 Nm) at 80 psi (5.5 bar) supply pressure. Torque is proportional to air supply pressure. Supply Pressure Range 40 to 120 psi (2.8 to 8.3 bar) Standard operating range. Standard Air Connection NPT 1/4" Mounting Standard VDI/VDE 3845 (NAMUR) Standardized interface for quarter-turn valve accessories (e.g., limit switches, solenoid valves). Mounting Style Direct to NAMUR-compliant valves; Side-mounted to Fisher 1061/1066 piston actuators for double-block-and-bleed applications. Temperature Range Standard: -4° to 180°F (-20° to 82°C) Low Temp.: -40° to 180°F (-40° to 82°C) (with optional seals) Materials Body: Die-cast aluminum Corrosion Protection: Powder-coated epoxy finish Internal Parts: Plated for corrosion resistance.

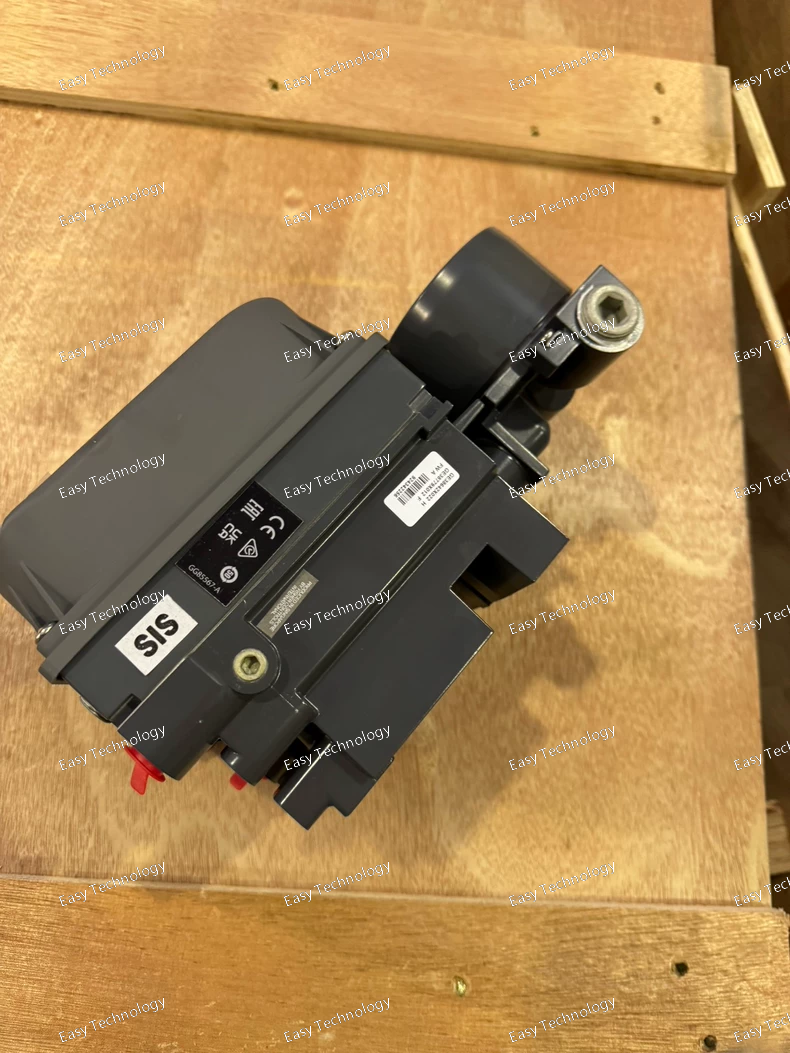

Parameter Specification Model DVC6200 SIS Product Line Fisher FIELDVUE® Type Digital Valve Controller / Positioner Certification SIL 2 capable per IEC 61508/61511 (hardware fault tolerance 0 with SFF > 90%). SIL 3 capable for specific architectures (e.g., HFT 1). Certified by exida. Input Signal 4-20 mA with HART® 7 protocol; Digital (via FOUNDATION™ fieldbus H1 or PROFIBUS® PA available as options) Supply Pressure Up to 150 psi (10.3 bar) for single-acting; Up to 125 psi (8.6 bar) for double-acting Air Delivery Capacity High Capacity: Up to 110 scfm (187 Nm³/h) Standard Capacity: Up to 32 scfm (54 Nm³/h) Output Action Single-acting (for spring-return actuators) or Double-acting Fail-safe Action De-energize to trip. Upon loss of power or signal, it exhausts air from the actuator to drive the valve to its safe state. Pilot Valve Type Piezoelectric, low power consumption Operating Temperature Standard: -40° to 185°F (-40° to 85°C) Extended: -60° to 185°F (-51° to 85°C) with optional heater Enclosure Rating NEMA 4X, Type 4, IP66/67 Communication HART 7 (via 4-20 mA signal), Local Magnetic Communicator, and/or FIELDVUE DVC6200 SIS Setup Software Diagnostics Built-in Partial Stroke Test (PST), travel, pressure, and step response data collection, performance alerts. Materials Aluminum enclosure with epoxy paint; Stainless steel internal parts and fittings. Safety Manual Available and required for proper use in SIS loops.

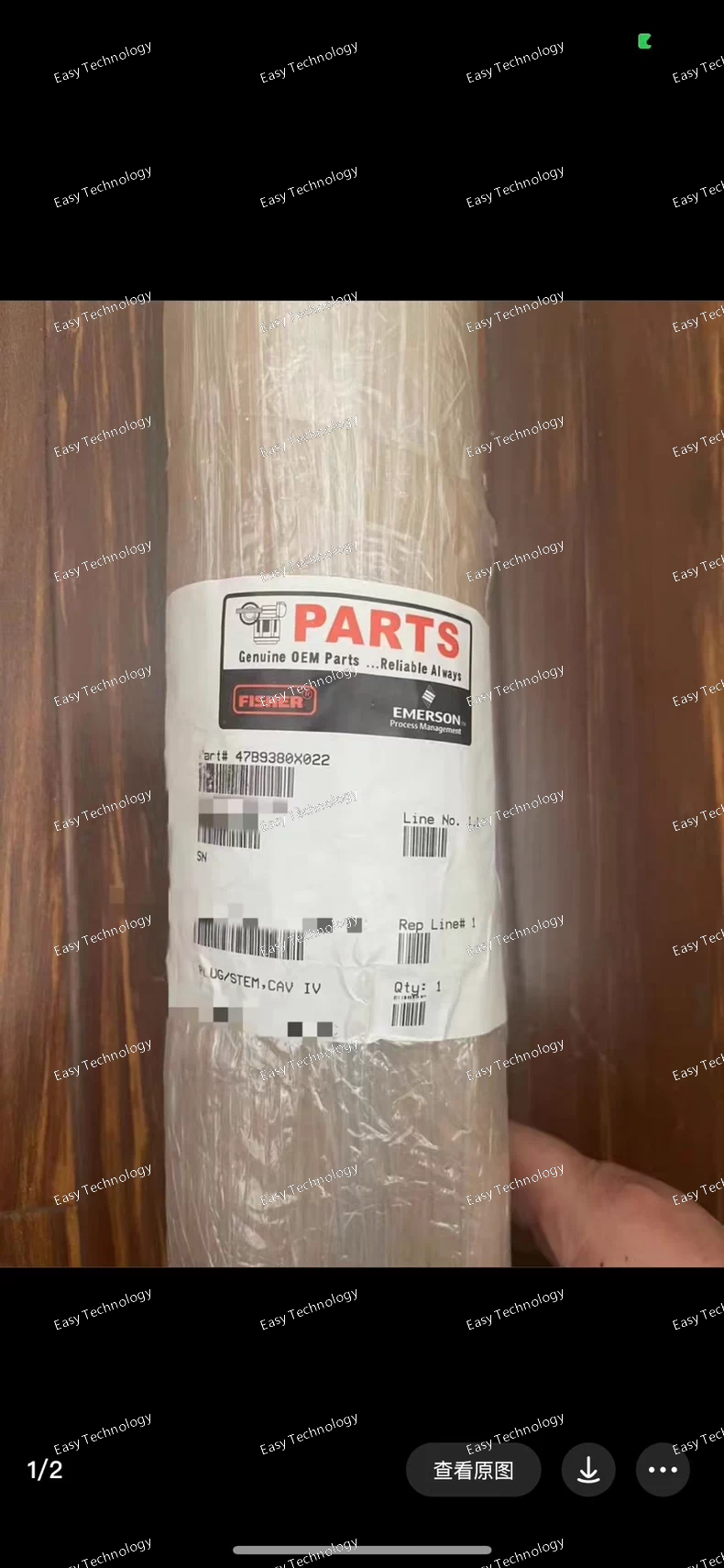

Technical Parameters Parameter Value / Description Fisher Model Number 47B9380X022 Type Pilot-Operated Pressure Regulator (Pilot) Primary Function Acts as a control pilot for a main valve or as a standalone regulator. Pilot Supply Source Typically tapped from upstream pressure or an external gas supply. Body Material Aluminum Trim Materials Standard corrosion-resistant materials (e.g., stainless steel & elastomers). Pressure Rating Typically 1440 psig (100 bar) or similar high pressure. Outlet Pressure Range (P2) Determined by the internal spring. The "X022" suffix likely specifies a particular range. Common 47B series ranges: 5-250 psig, 20-500 psig, etc. Must be confirmed from order records. Inlet Pressure (P1) Up to the pressure rating (e.g., 1440 psig). Connections Typically 1/4" or 1/2" NPT Female Diaphragm Material Typically Nylon-coated fabric or Viton (FKM).

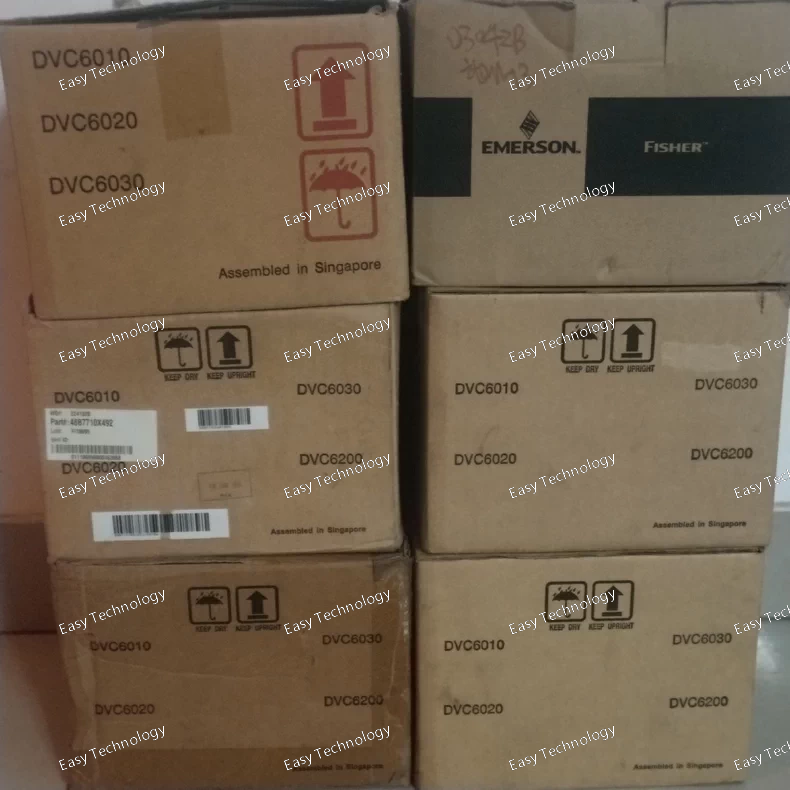

Technical Parameters Parameter Value / Description Fisher Model Number DVC6030 Product Line FIELDVUE Type Digital Valve Controller (Positioner) Action Single-Acting Input Signal 4-20 mA DC, with HART protocol digital communication Supply Pressure Up to 150 psig (10.3 bar) Output Pressure Up to supply pressure Air Consumption Typically < 0.15 SCFM (0.25 Nm³/hr) at steady state Accuracy Better than ±0.5% of span Dead Band Better than 0.05% of span Travel Range Configurable, typically supports 0.2 to 4.0 inches (5 to 100 mm) Ambient Temperature -40°F to +185°F (-40°C to +85°C) Enclosure Rating NEMA 4X (IP66) Communication HART 5/6/7 Mounting Linear (via mounting kit); can be adapted for some rotary valves
