01. Product Features
YZ-0945 is an information security module specifically designed to block the transmission of unmanned aerial vehicle ground stations. This module has an average output power of 45dBm (40W), sufficient power, good in band flatness, and small offset between upper and lower bands. The product is equipped with operation indicator LED lights, efficient sweep frequency interference source with very small temperature drift, and stable and reliable power supply through a through-hole capacitor. It is easy to apply and has good countermeasures against frequency hopping unmanned aerial vehicles.
02. Main performance indicators
|
parameter |
eigenvalue |
unit |
describe |
||
|
|
minimum |
typical |
maximum |
|
|
|
signal bandwidth |
860 |
|
960 |
MHz |
|
|
output power |
44.5 |
45 |
45.5 |
dBm |
|
|
In-band flatness |
|
1 |
|
dB |
|
|
Working current |
|
2.8 |
|
A |
|
|
working voltage |
28 |
|
32 |
V |
|
|
working efficiency |
|
38 |
|
% |
|
|
Upper side with thermal offset |
|
8 |
|
MHz |
Module surface temperature 85 ° C |
|
Below with thermal offset |
|
8 |
|
MHz |
Module surface temperature 85 ° C |
|
weight |
0.22kg |
||||
|
size |
136*60*18mm |
||||
|
Note: 1. The positive electrode is connected to the through-hole capacitor, and the negative electrode is connected to the edge of the casing 2. Please connect the antenna before powering on this module, otherwise it may be damaged. Before powering on, please confirm if the power supply voltage is within the allowable range |
|||||

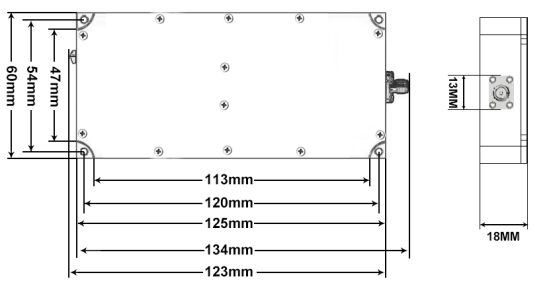

03. Structural dimensions
04. Test chart

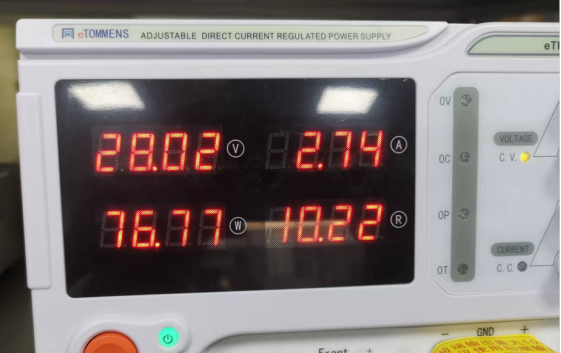

YZ-0945- Actual Power Supply Diagram

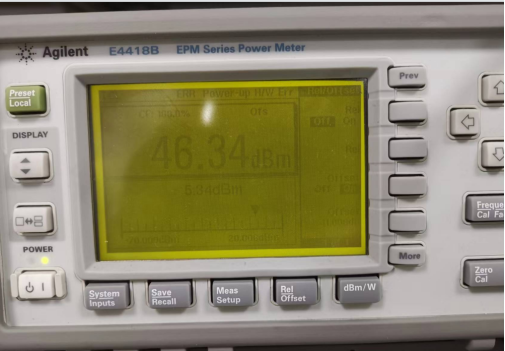

YZ-0945- Power Meter Test Diagram

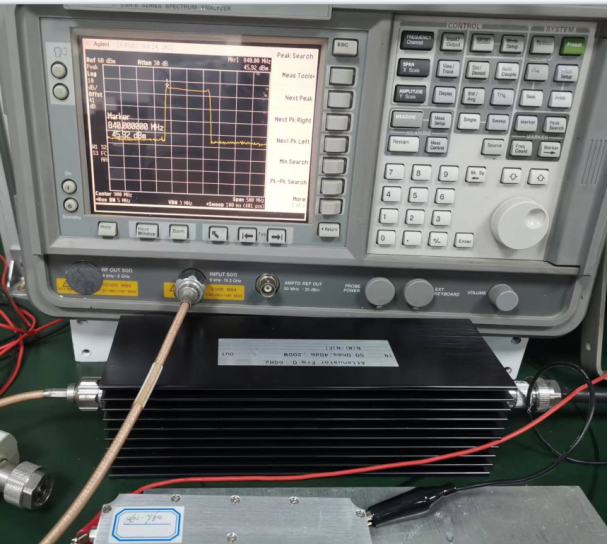

YZ-0945 Spectrum Test Diagram
